Operation Procedure

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Perform "CONSULT-II SETTING PROCEDURE ".
Touch "DTC WORK SUPPORT".

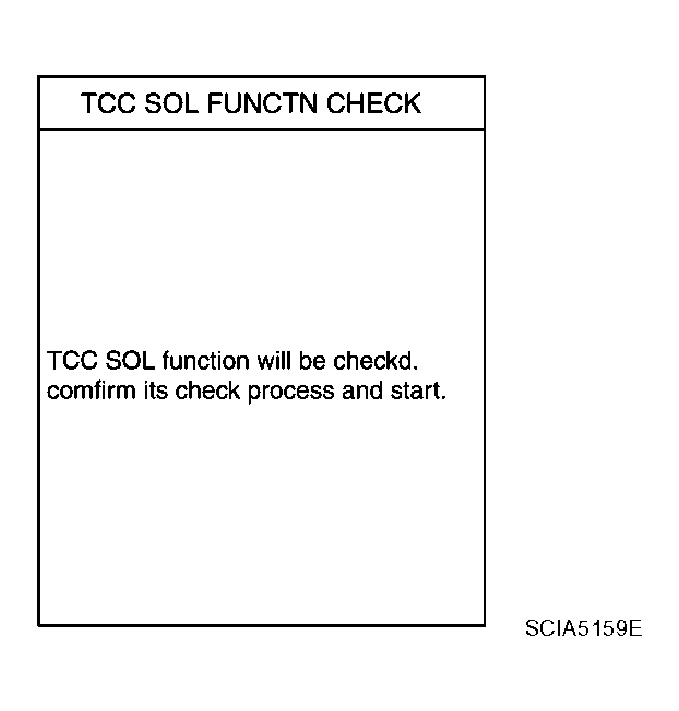

Fig 1: Consult-II SELECT DIAG MODE Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu.

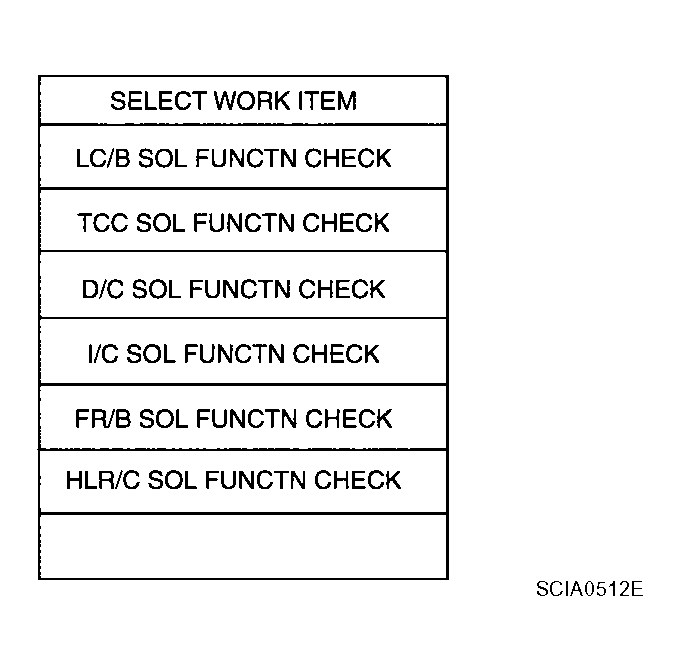

Fig 2: CONSULT-II Display - ITEM MENU
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

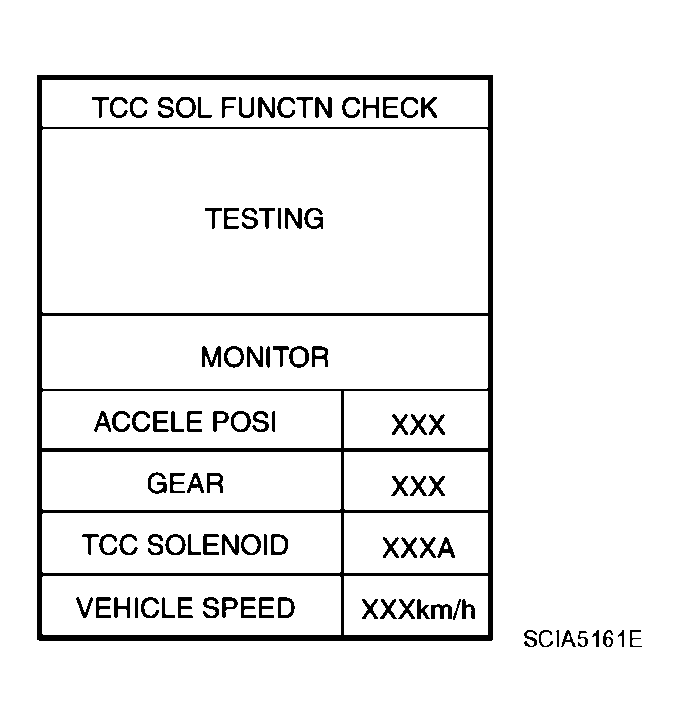

Fig 3: CONSULT-II Display - START
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

Fig 4: CONSULT-II Display - DTC CONFIRMATION PROCEDURE
Courtesy of NISSAN MOTOR CO., U.S.A.
- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

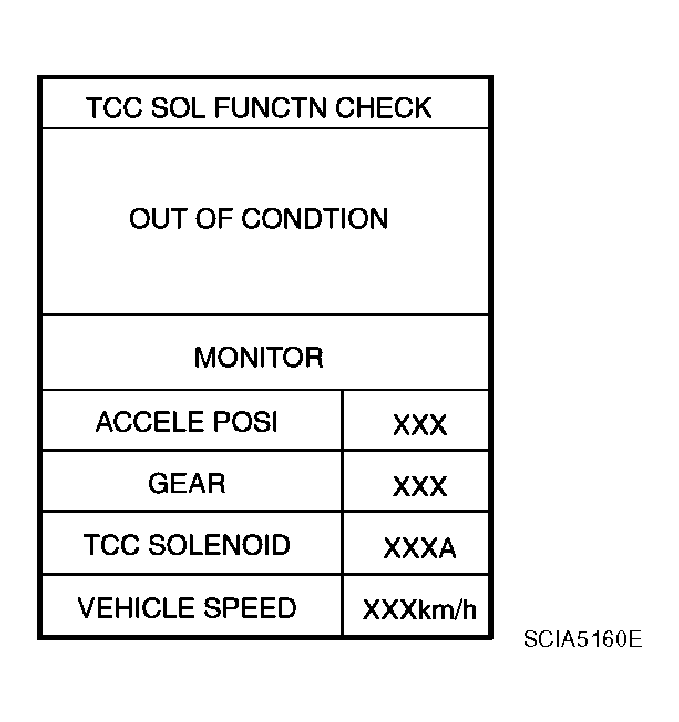

Fig 5: CONSULT-II Display - OUT OF CONDITION
Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle.

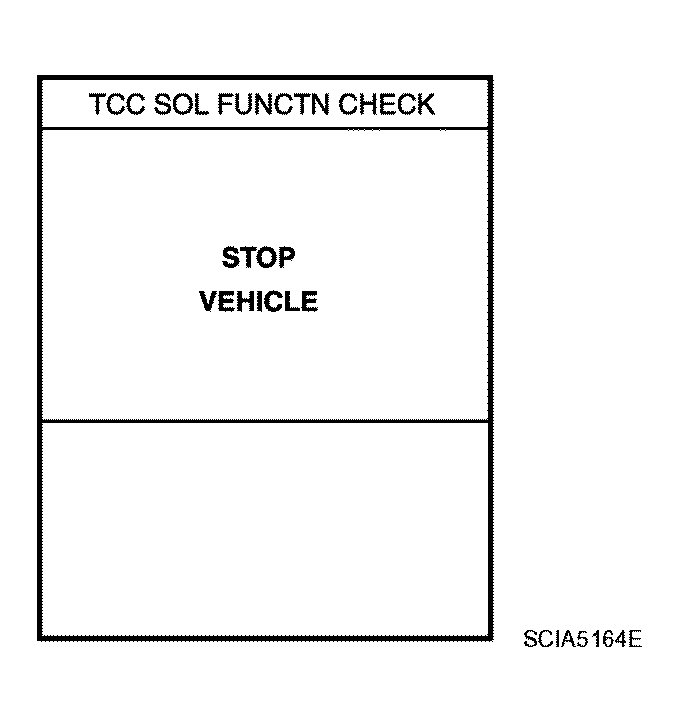

Fig 6: CONSULT-II Display - STOP VEHICLE
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, malfunction may exist. Go to "Diagnostic Procedure".

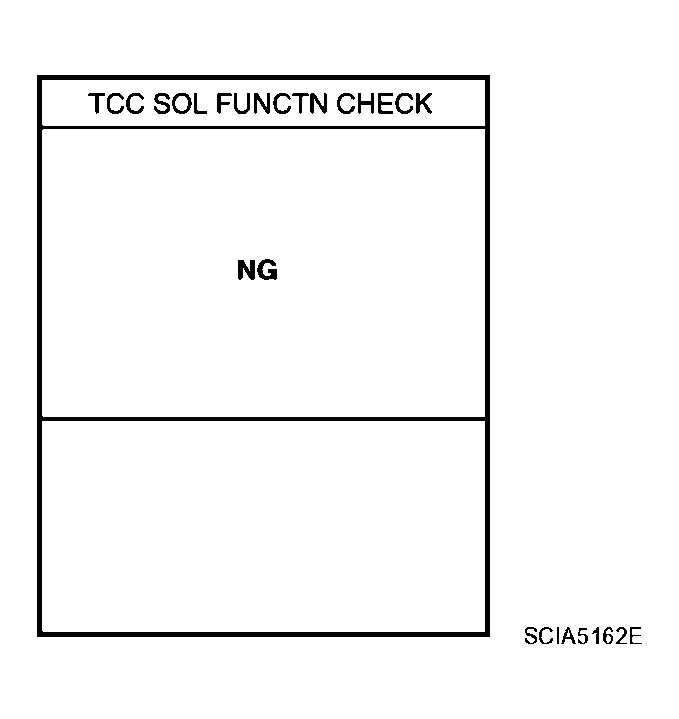

Fig 7: CONSULT-II Display - NG
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform test drive to check gear shift feeling in accordance with instructions displayed.
Touch "YES" or "NO".
CONSULT-II procedure is ended.

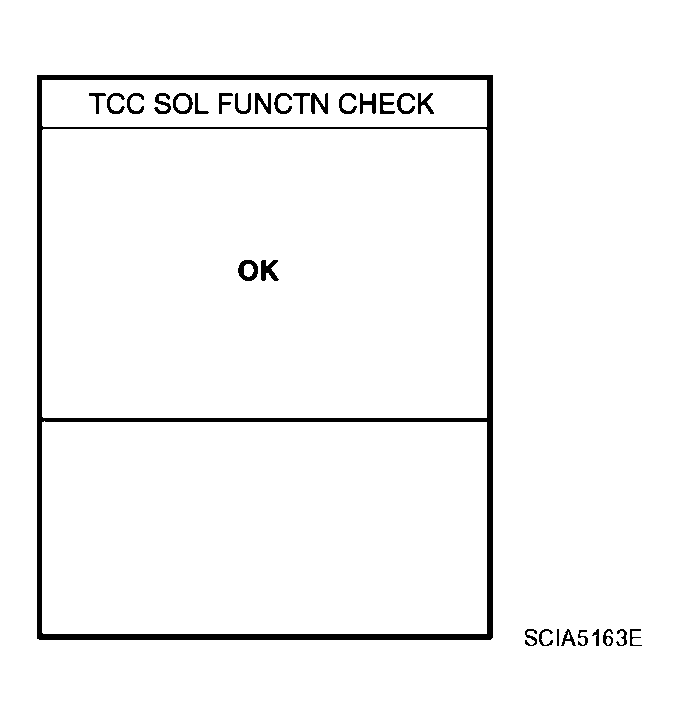

Fig 8: CONSULT-II Display - OK

Courtesy of NISSAN MOTOR CO., U.S.A.

If "NG" appears on the screen, a malfunction may exist. Go to "Diagnostic Procedure".

Fig 9: CONSULT-II Display - NG

Courtesy of NISSAN MOTOR CO., U.S.A.
