DTC P0037 Oxygen Sensor Heater Control Circuit Low (Bank 1 Sensor 2) : DTC P0038 Oxygen Sensor Heater Control Circuit High (Bank 1 Sensor 2): Description
WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
Refer to DTC P0136 (see ).
HINT:
- Sensor 2 refers to the sensor mounted behind the Three-Way Catalytic Converter (TWC) and located far from the engine assembly.
- When any of these DTCs are set, the ECM enters fail-safe mode. The ECM turns off the HO2 sensor heater in fail-safe mode. Fail-safe mode continues until the ignition switch is turned OFF.

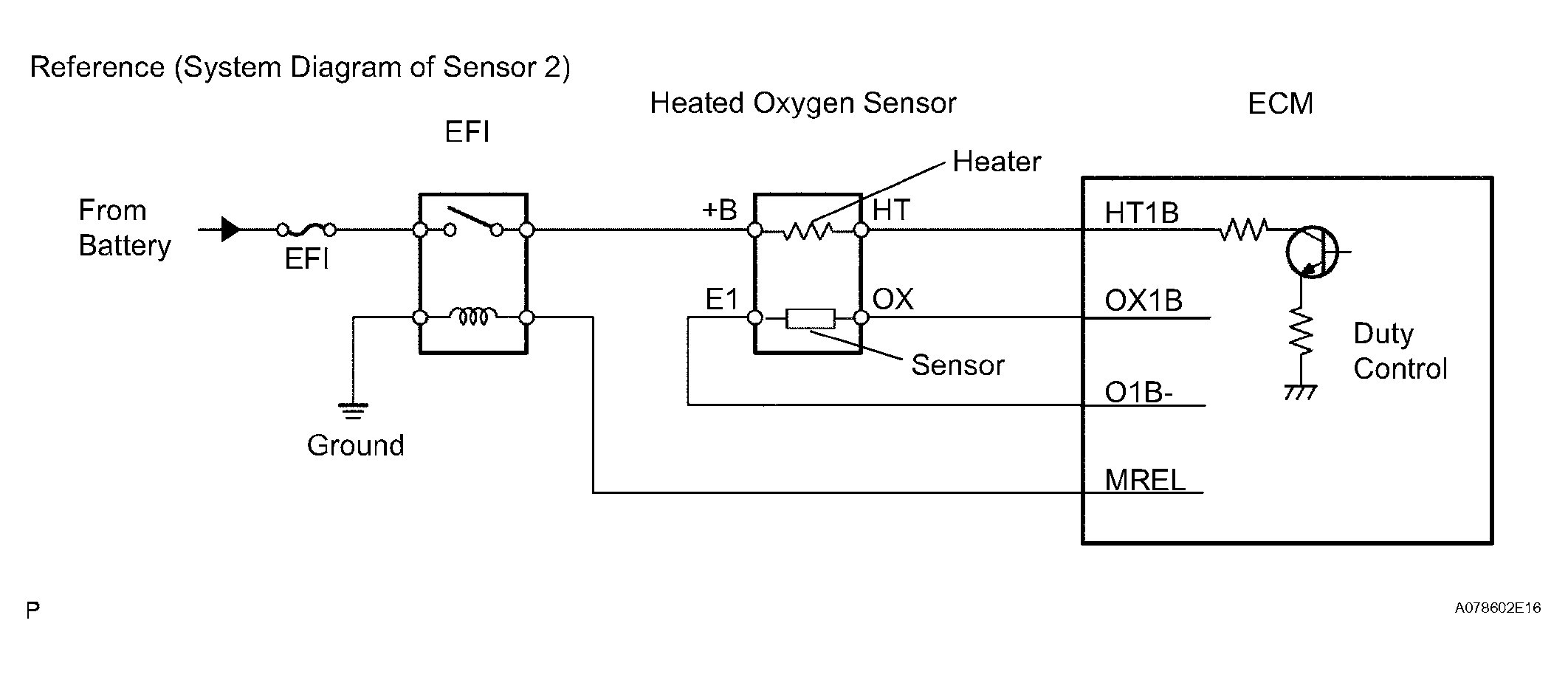

- The ECM provides a pulse width modulated control circuit to adjust the current through the heater. The Heated Oxygen (HO2) sensor heater circuit uses a relay on the +B side of the circuit.
DTC DETECTION CONDITION CHART
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| P0037 | HO2 sensor heater current less than 0.3 A (1 trip detection logic) |
|
| P0038 | HO2 sensor heater current more than 2 A (1 trip detection logic) |
|
