DTC P2610 ECM / PCM Internal Engine Off Timer Performance: Description

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

To ensure the accuracy of the EVAP (Evaporative Emission) monitor values, the soak timer, which is built into the ECM, measures 5 hours (+-15 minutes) from when the ignition switch is turned OFF, before the monitor is run. This allows the fuel to cool down, which stabilizes the Fuel Tank Pressure (FTP). When 5 hours have elapsed, the ECM turns on.

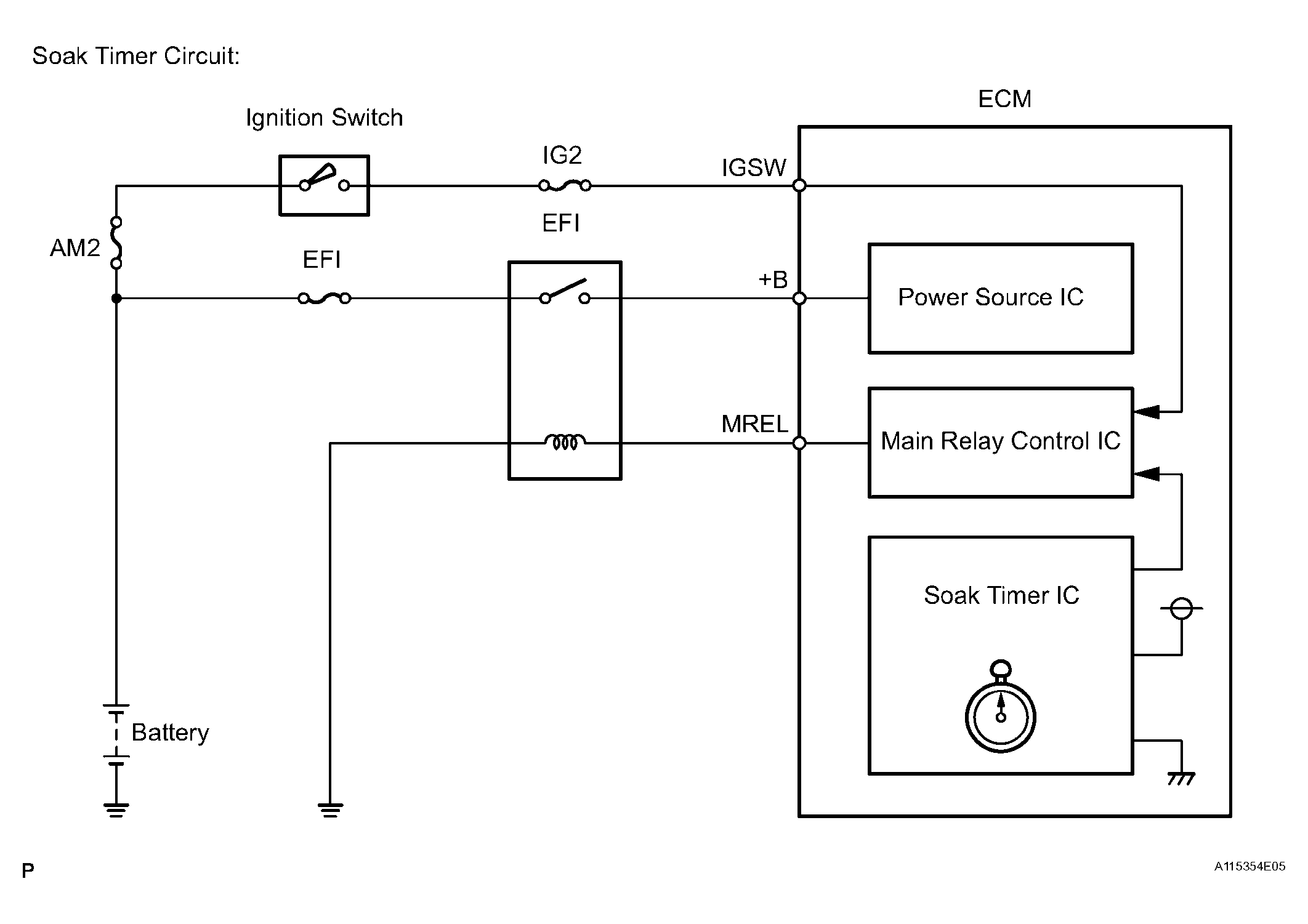

Fig 1: ECM/PCM Internal Engine Off Timer - Circuit Diagram
G04221236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
