DTC P0112: Intake Air Temperature Sensor Circuit Low Input Or DTC P0113: Intake Air Temperature Sensor Circuit High Input

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 5 .

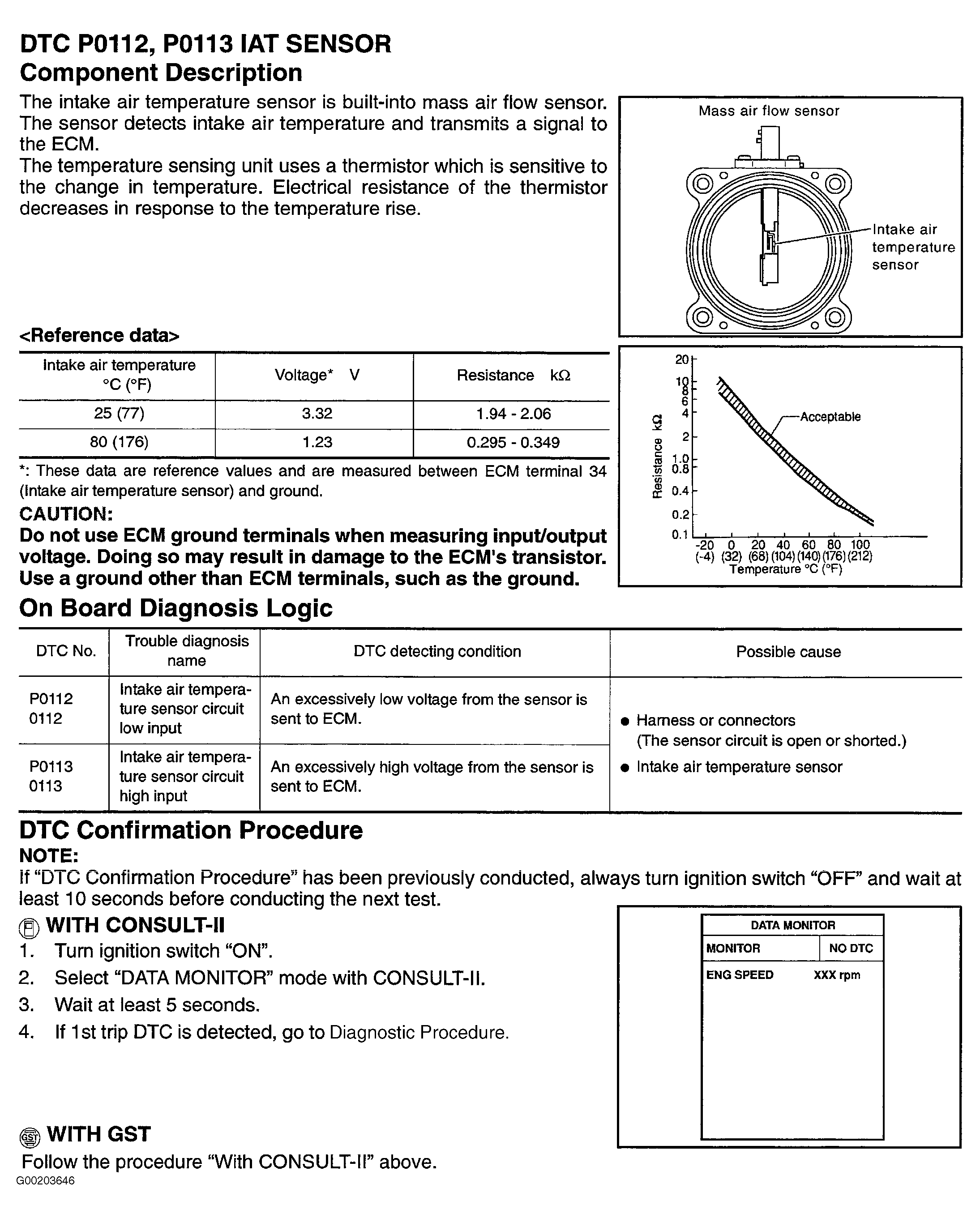

Fig 1: DTCs P0112 & P0113 (1 Of 4)
G00203646Courtesy of NISSAN MOTOR CO., U.S.A.

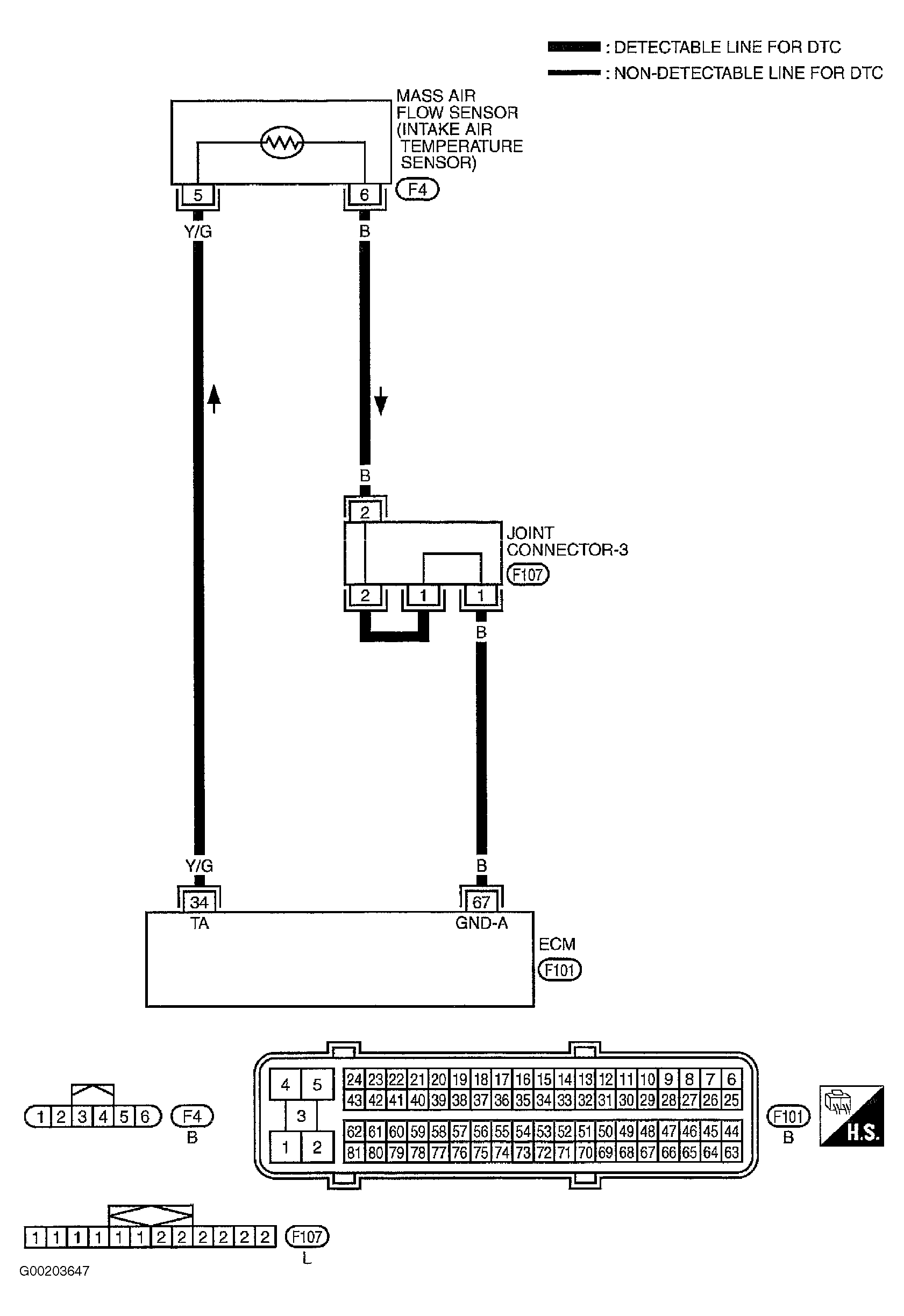

Fig 2: DTCs P0112 & P0113 (2 Of 4)
G00203647Courtesy of NISSAN MOTOR CO., U.S.A.

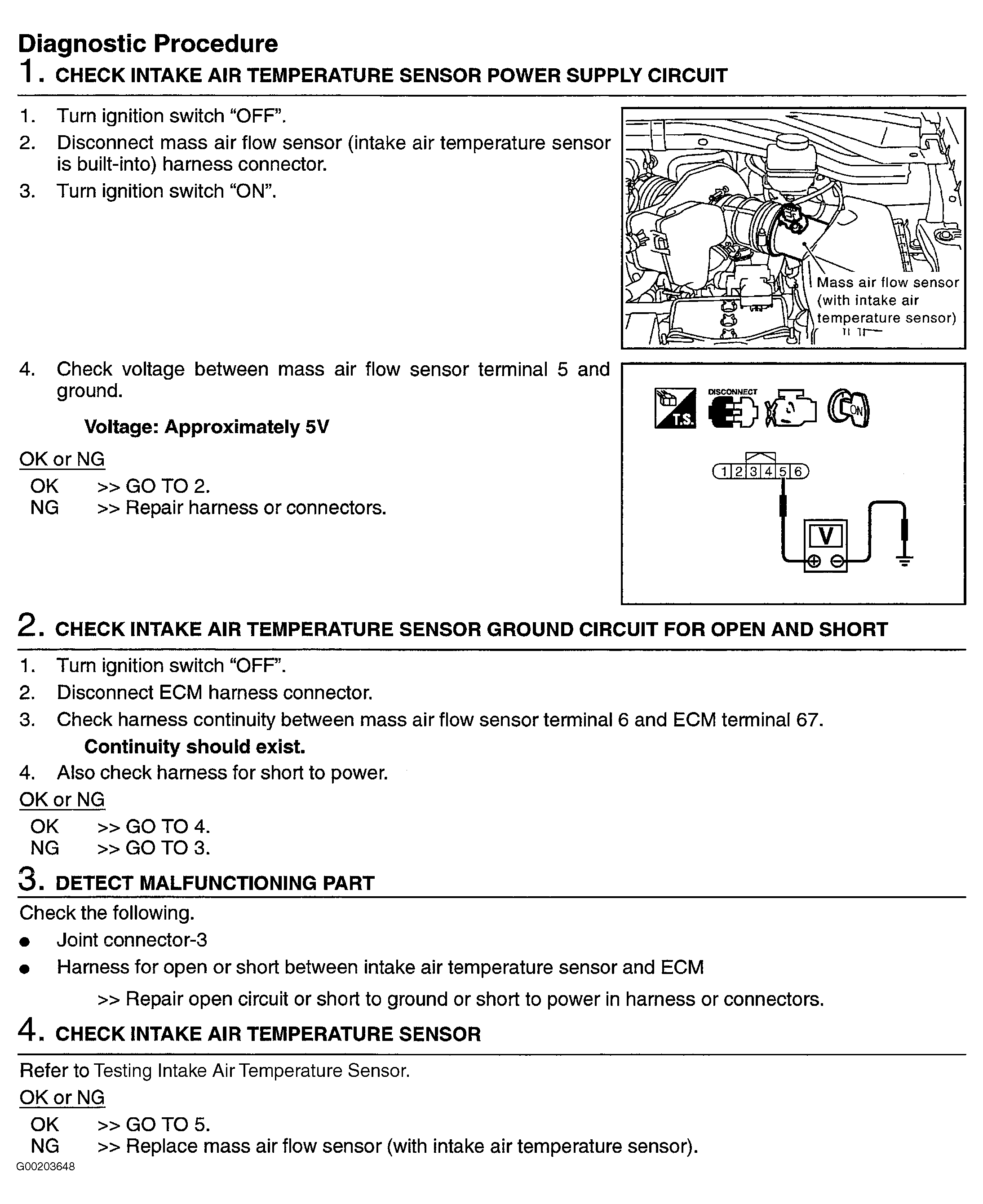

Fig 3: DTCs P0112 & P0113 (3 Of 4)
G00203648Courtesy of NISSAN MOTOR CO., U.S.A.

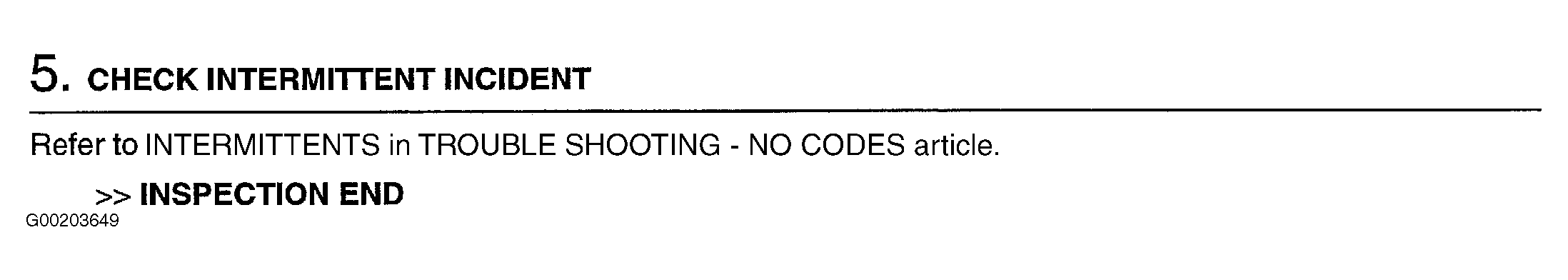

Fig 4: DTCs P0012 & P0013 (4 Of 4)
G00203649Courtesy of NISSAN MOTOR CO., U.S.A.

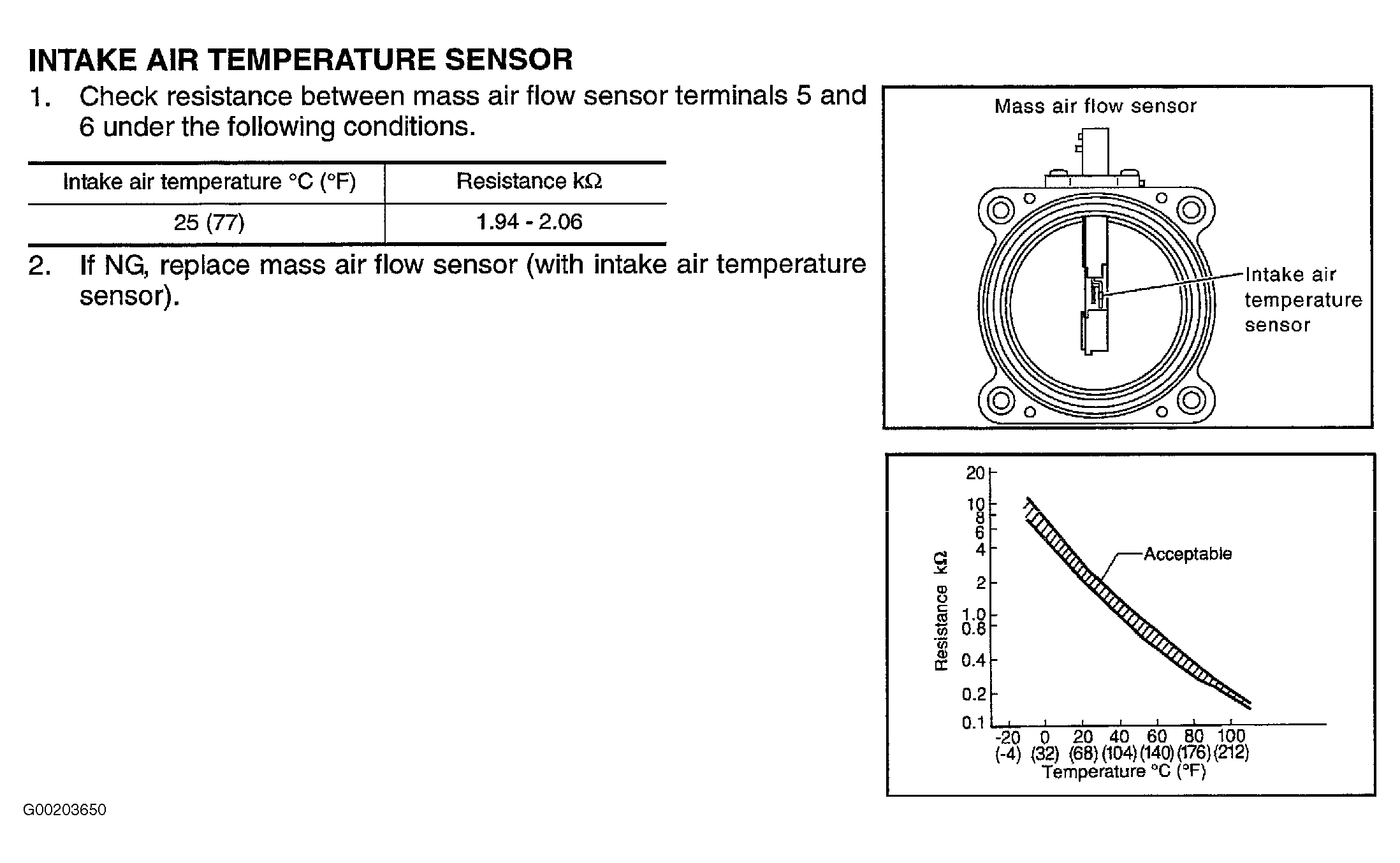

Fig 5: Testing Intake Air Temperature Sensor
G00203650Courtesy of NISSAN MOTOR CO., U.S.A.
