DTC P0122: Throttle Position Sensor Circuit Low Input Or DTC P0123: Throttle Position Sensor Circuit High Input

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 7 .

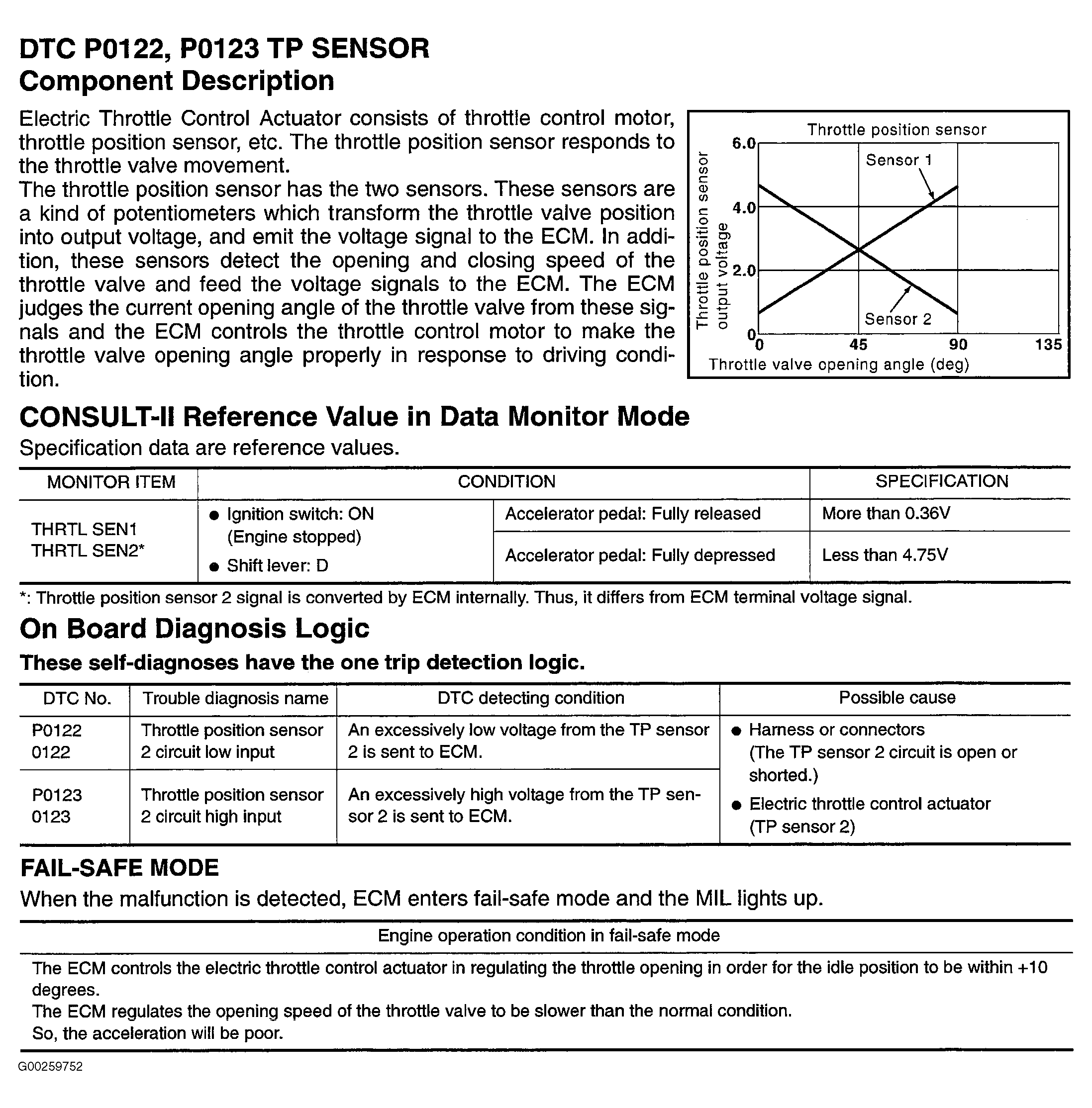

Fig 1: DTCs P0122 & P0123 (1 Of 6)
G00259752Courtesy of NISSAN MOTOR CO., U.S.A.

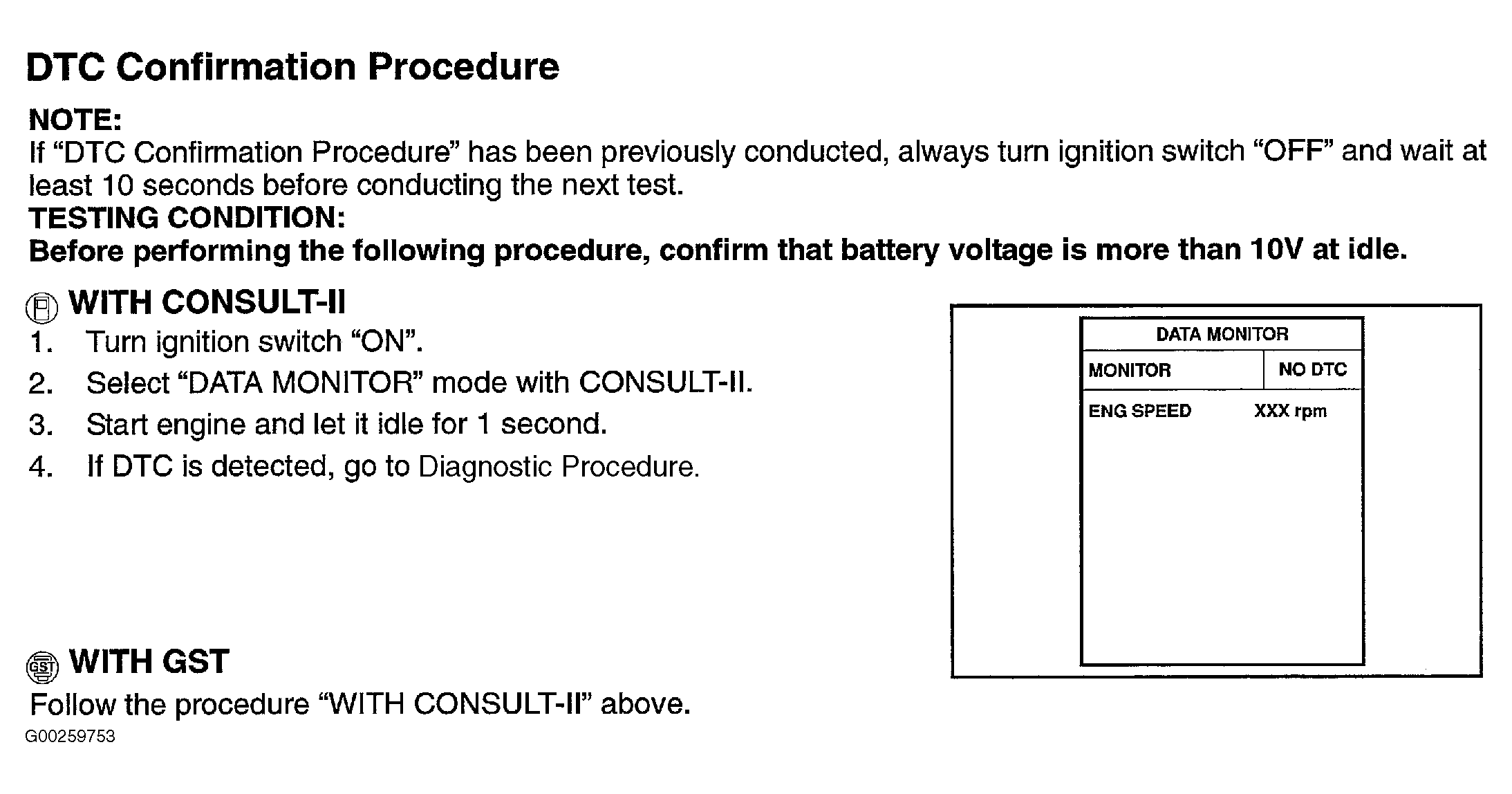

Fig 2: DTCs P0122 & P0123 (2 Of 6)
G00259753Courtesy of NISSAN MOTOR CO., U.S.A.

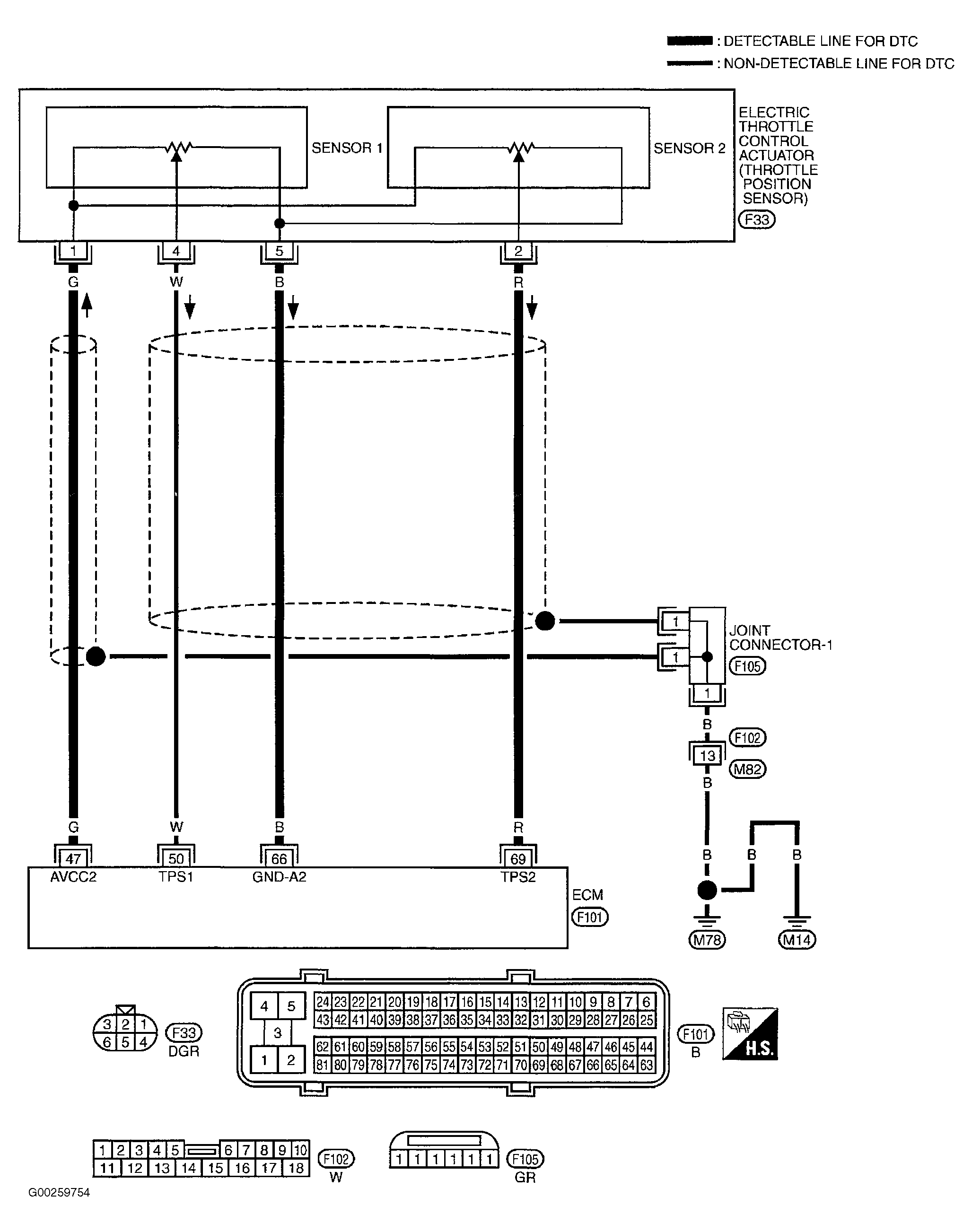

Fig 3: DTCs P0122 & P0123 (3 Of 6)
G00259754Courtesy of NISSAN MOTOR CO., U.S.A.

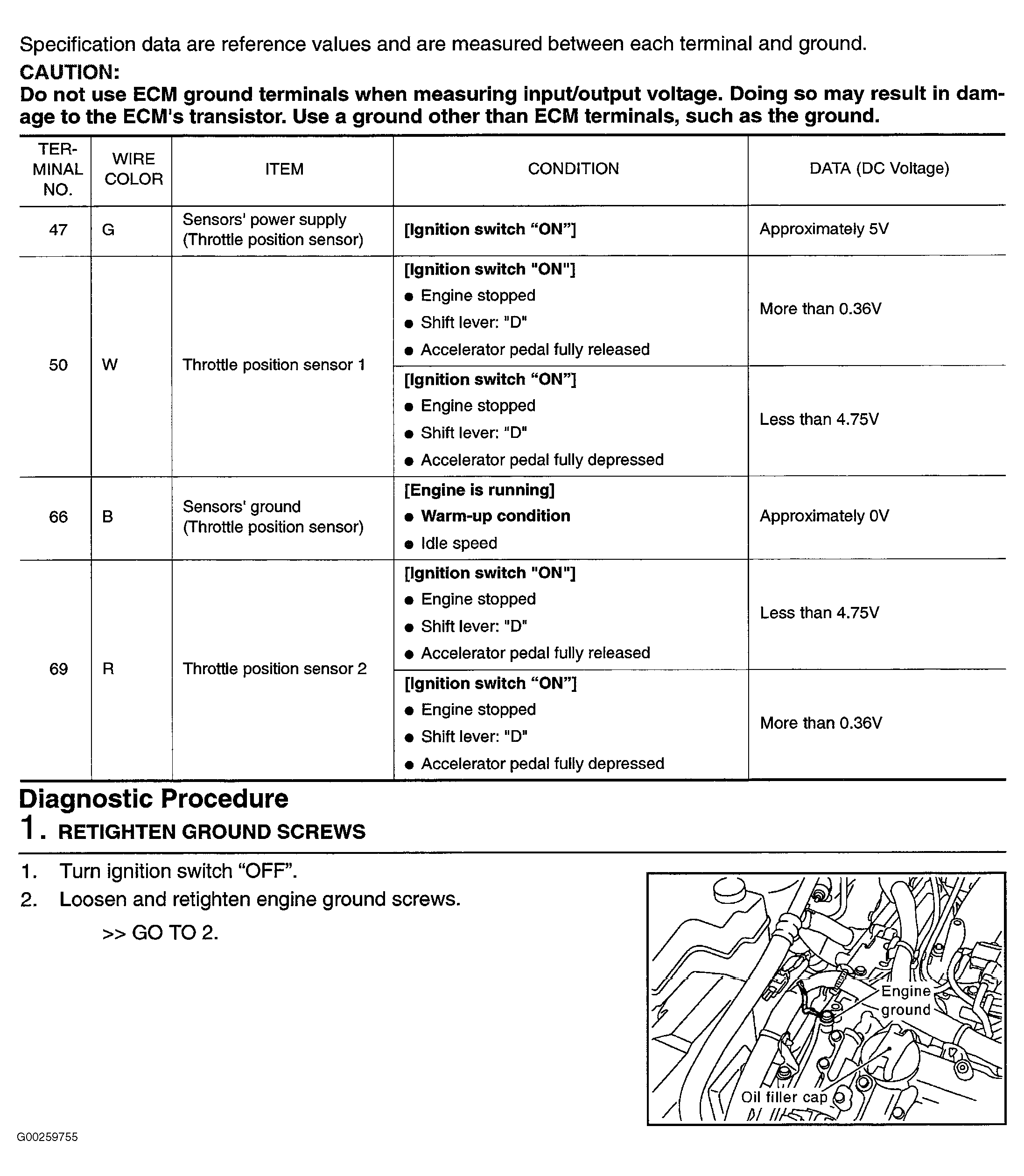

Fig 4: DTCs P0122 & P0123 (4 Of 6)
G00259755Courtesy of NISSAN MOTOR CO., U.S.A.

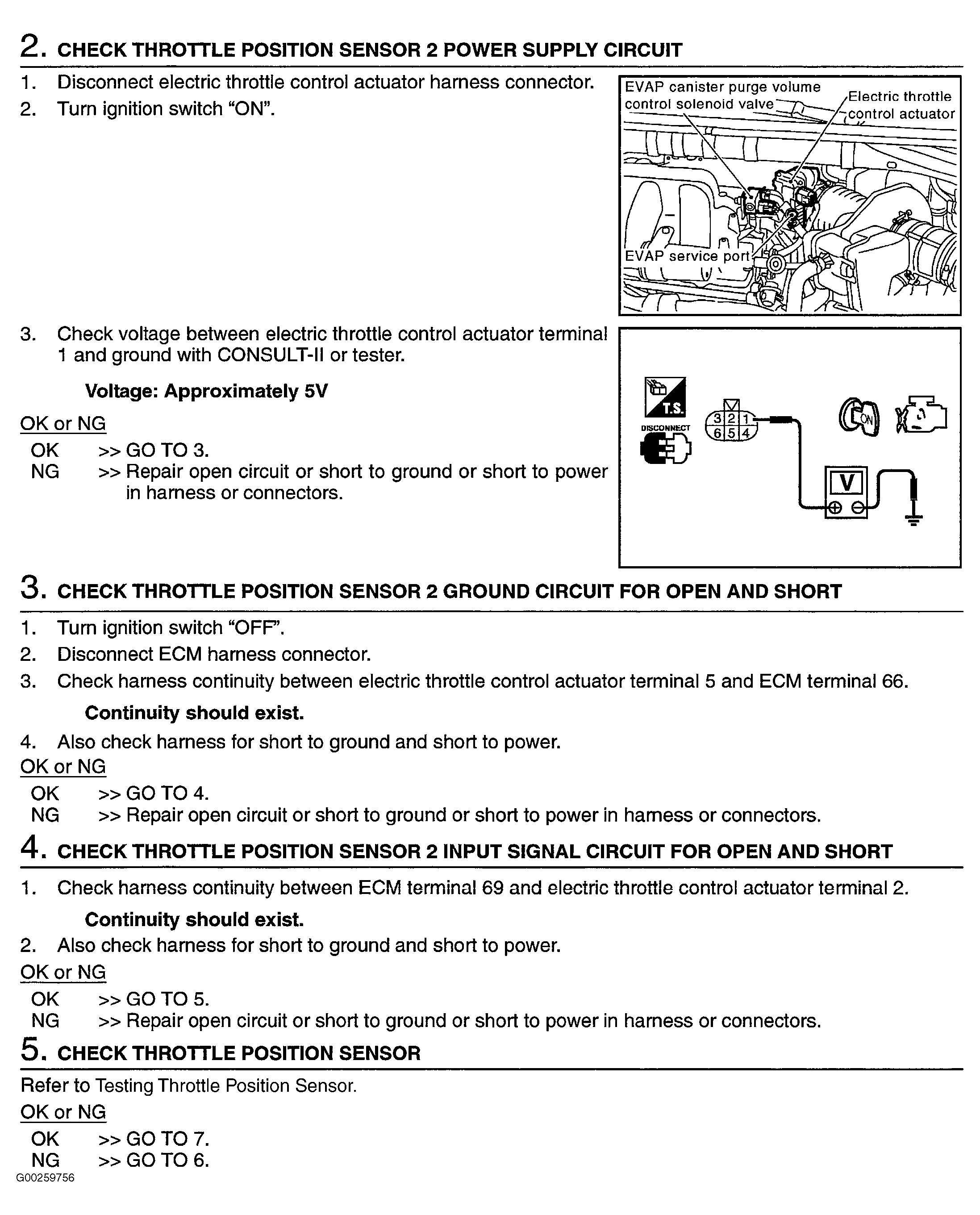

Fig 5: DTCs P0122 & P0123 (5 Of 6)
G00259756Courtesy of NISSAN MOTOR CO., U.S.A.

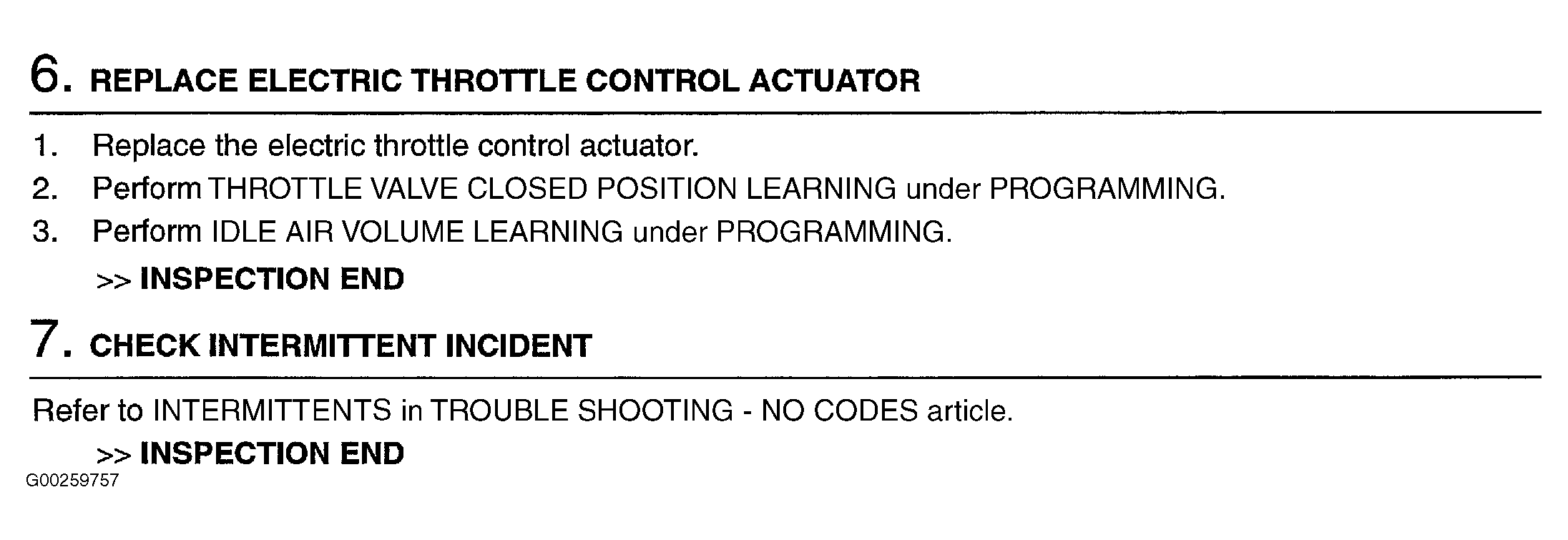

Fig 6: DTCs P0122 & P0123 (6 Of 6)
G00259757Courtesy of NISSAN MOTOR CO., U.S.A.

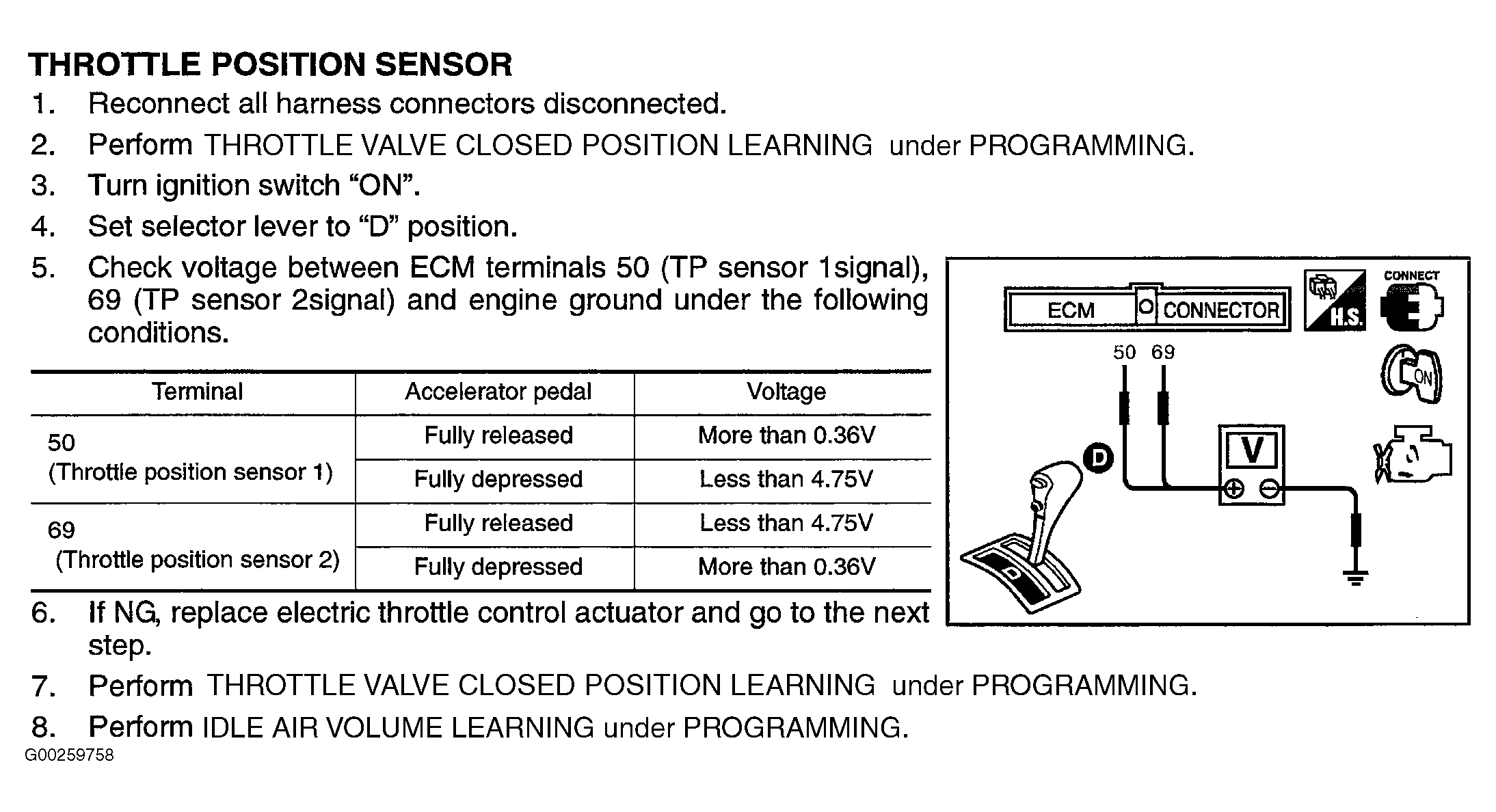

Fig 7: Testing Throttle Position Sensor
G00259758Courtesy of NISSAN MOTOR CO., U.S.A.
