DTC P0182: Fuel Tank Temperature Sensor Circuit Low Input Or DTC P0183: Fuel Tank Temperature Sensor Circuit High Input

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 4 .

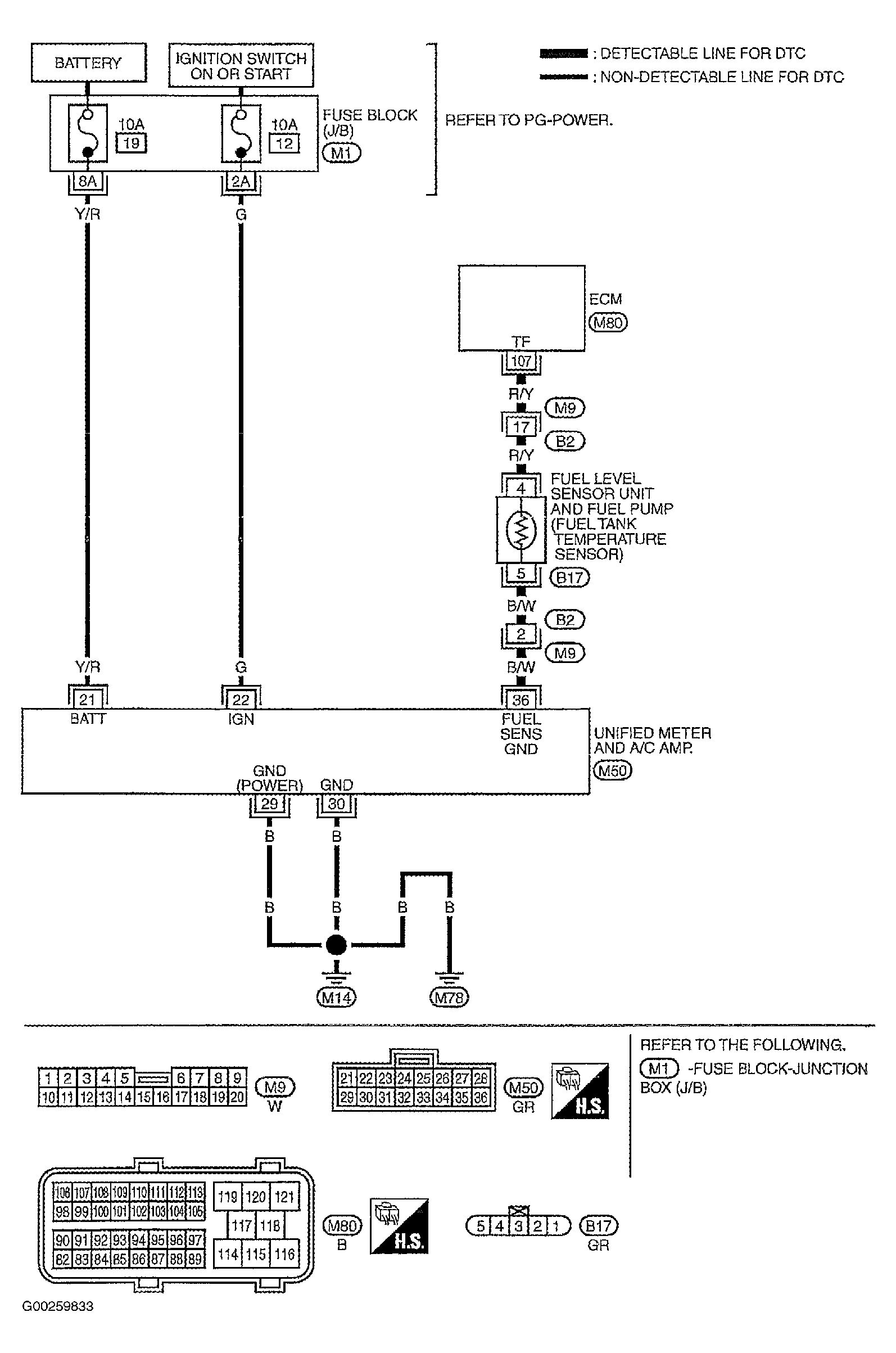

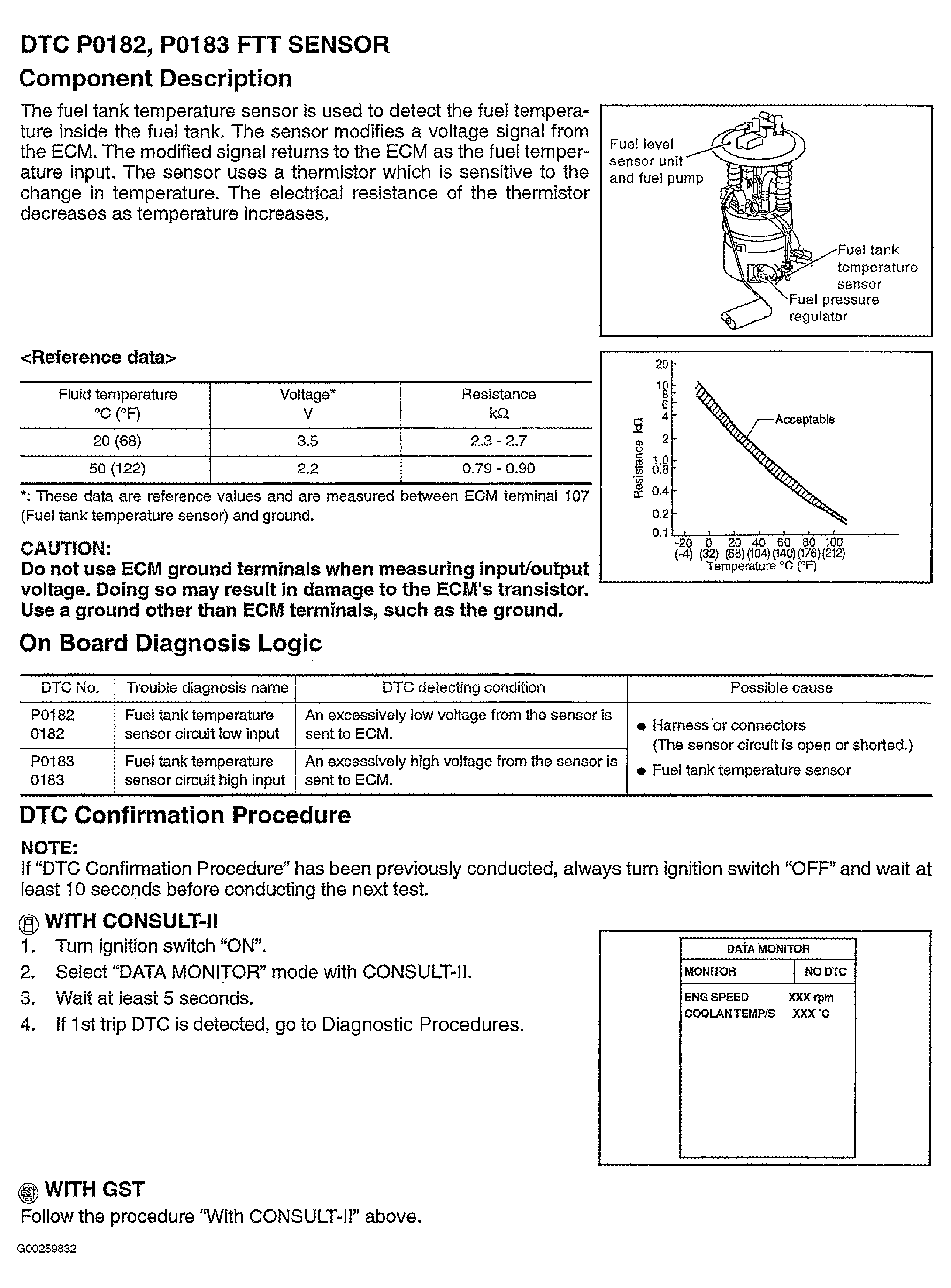

Fig 1: DTCs P0182 & P0183 (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

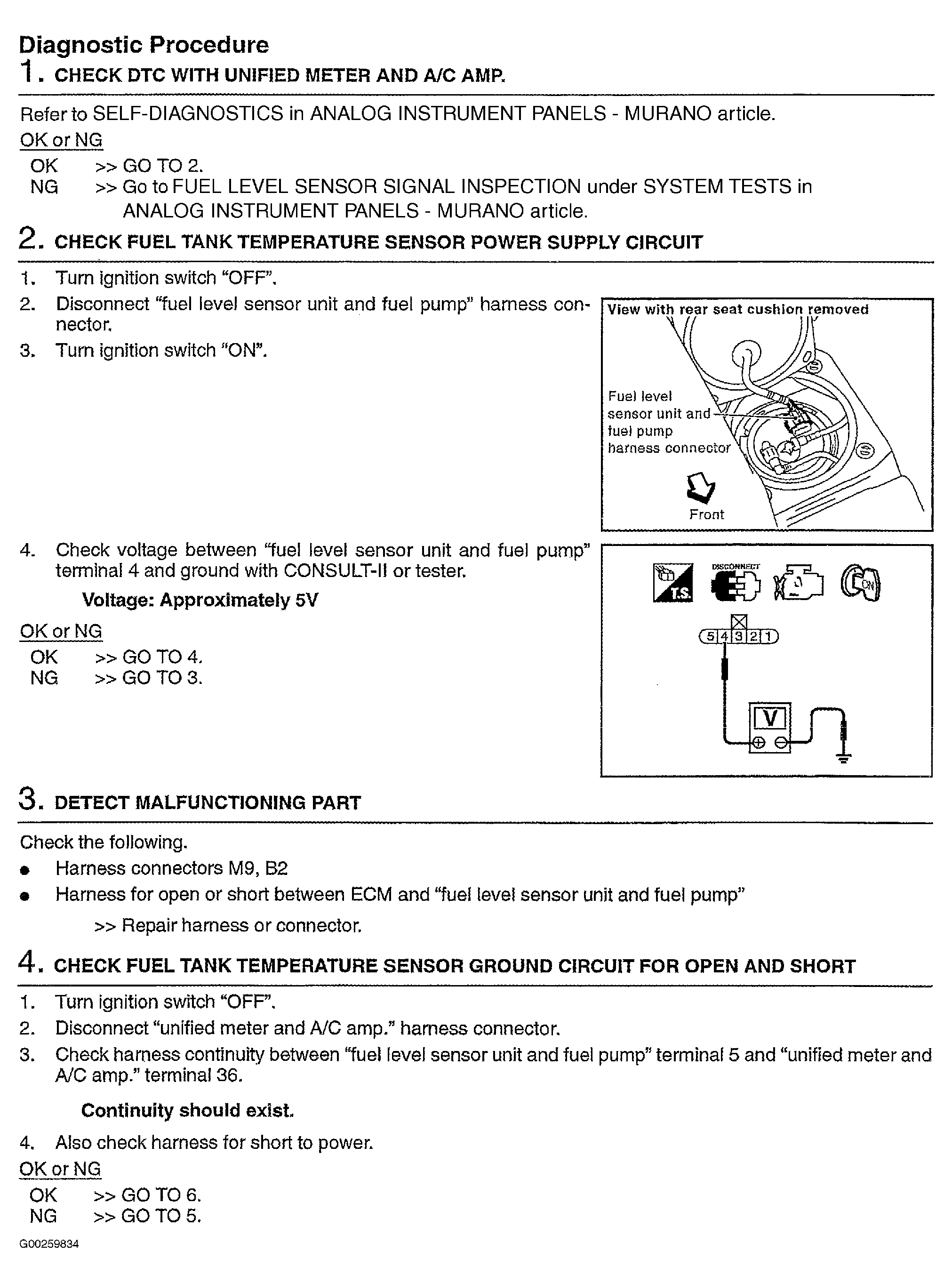

Fig 2: DTCs P0182 & P0183 (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: DTCs P0182 & P0183 (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

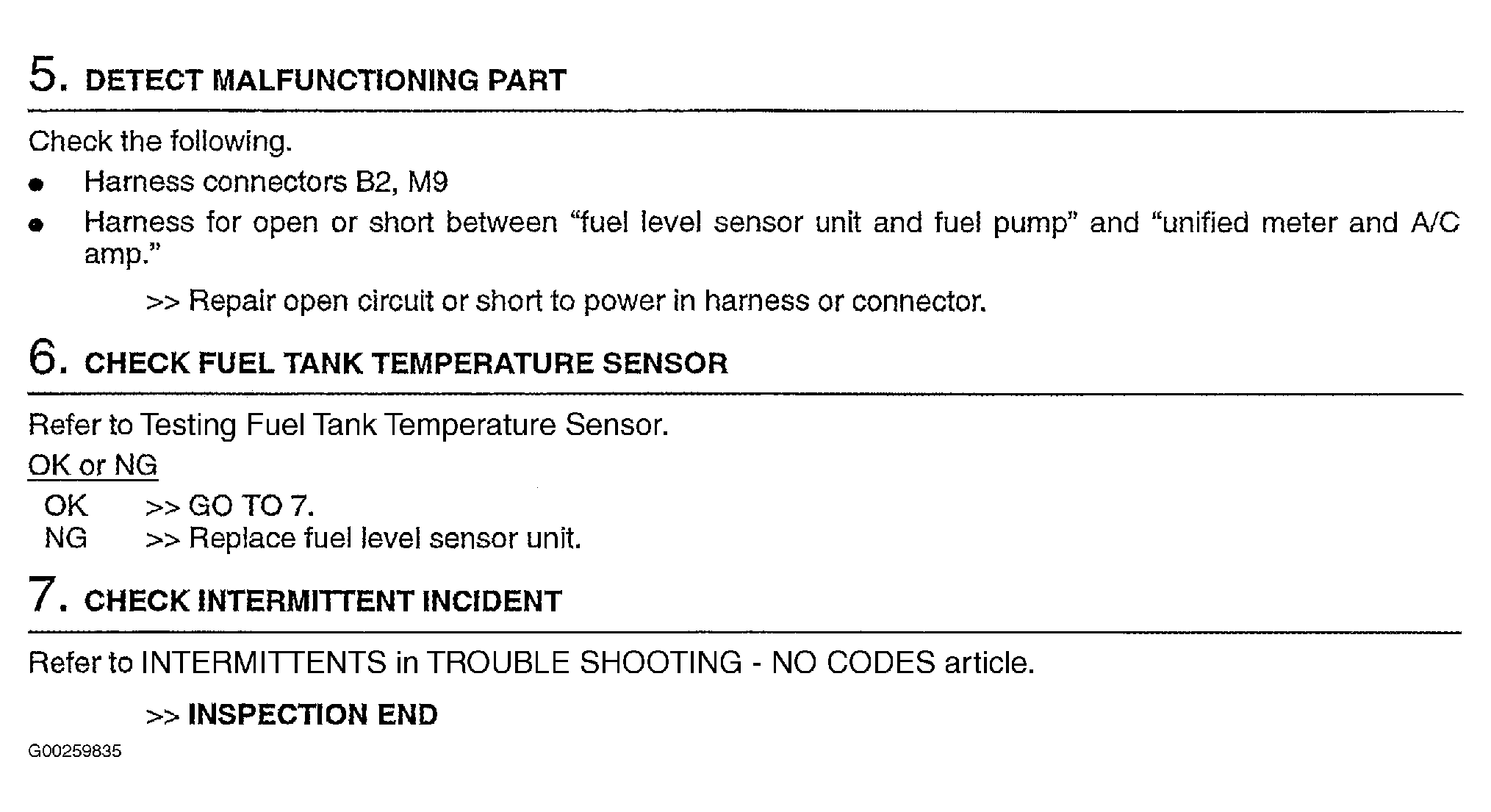

Fig 4: DTCs P0182 & P0183 (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
