DTC P0327: Knock Sensor Circuit Low Input Or DTC P0328: Knock Sensor Circuit High Input

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 5 .

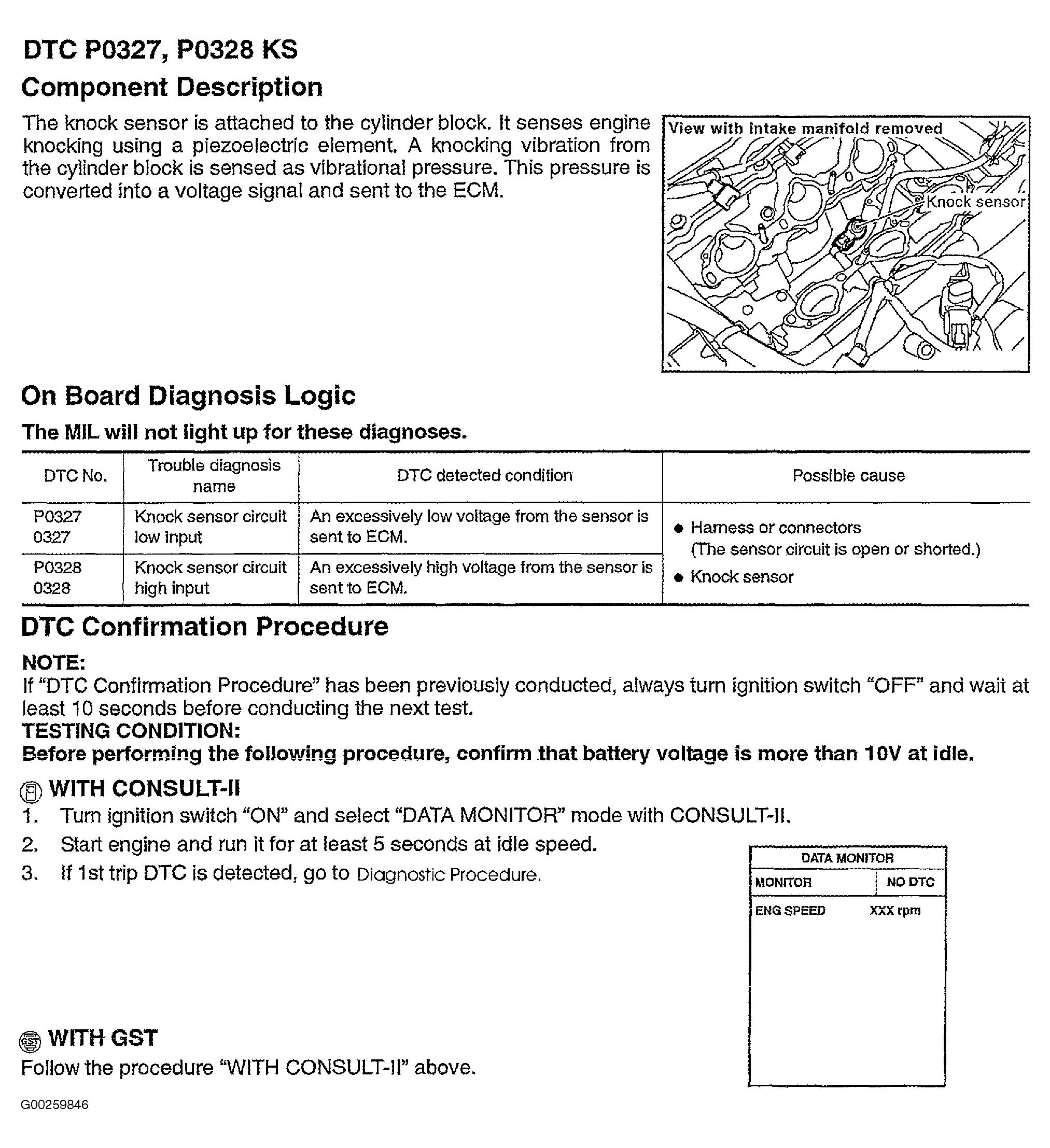

Fig 1: DTCs P0327 & P0328 (1 Of 4)
G00259846Courtesy of NISSAN MOTOR CO., U.S.A.

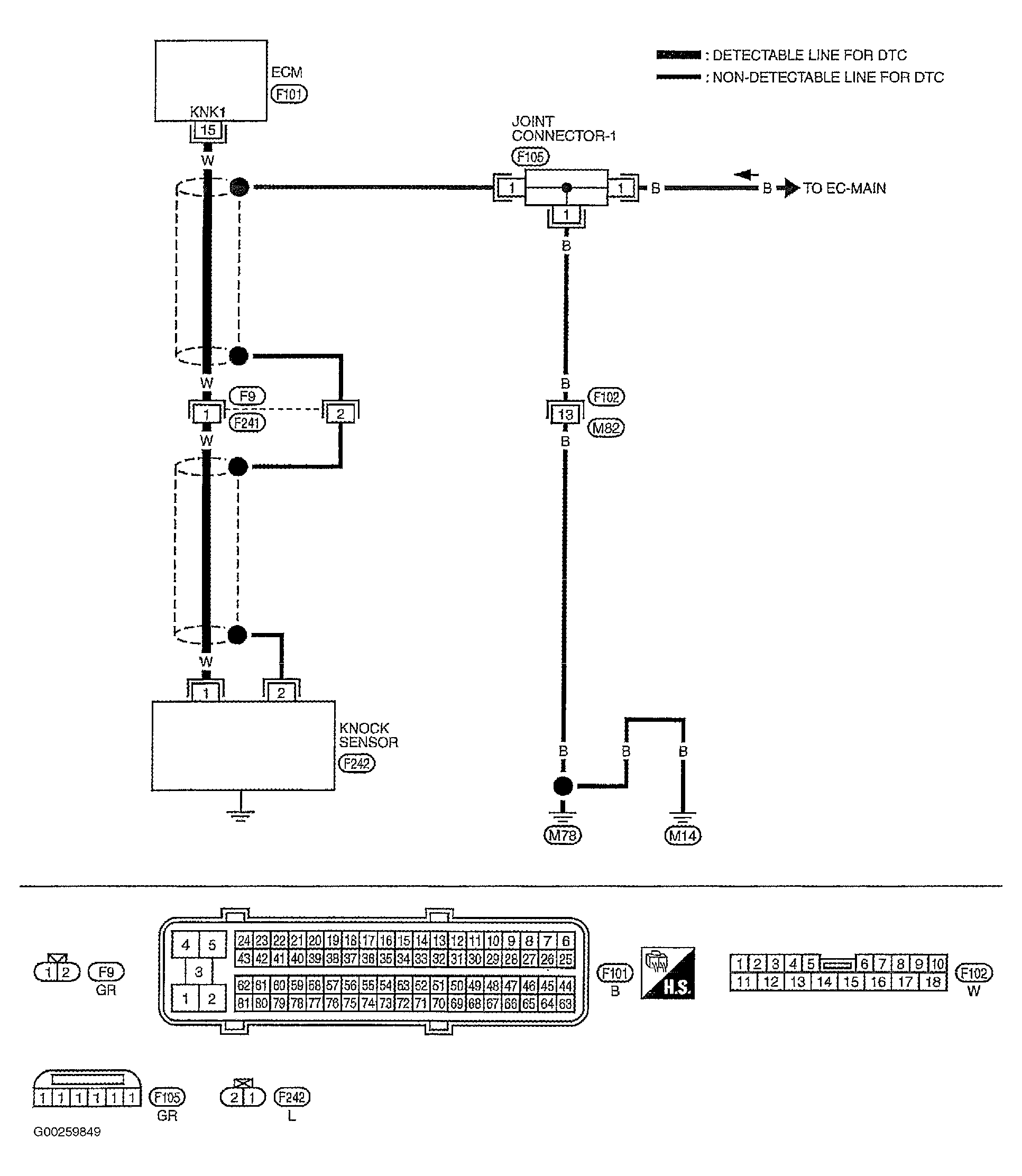

Fig 2: DTCs P0327 & P0328 (2 Of 4)
G00259849Courtesy of NISSAN MOTOR CO., U.S.A.

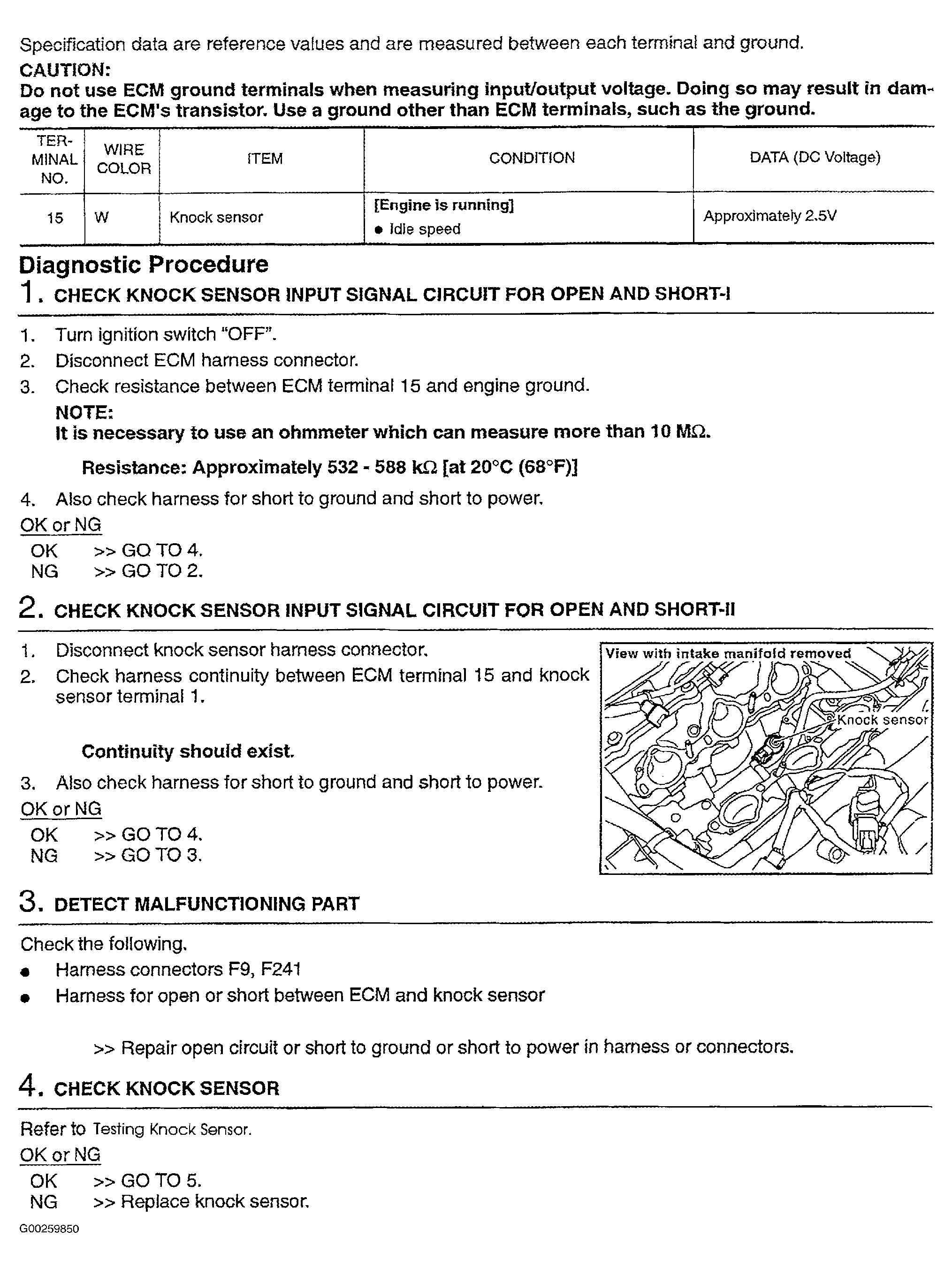

Fig 3: DTCs P0327 & P0328 (3 Of 4)
G00259850Courtesy of NISSAN MOTOR CO., U.S.A.

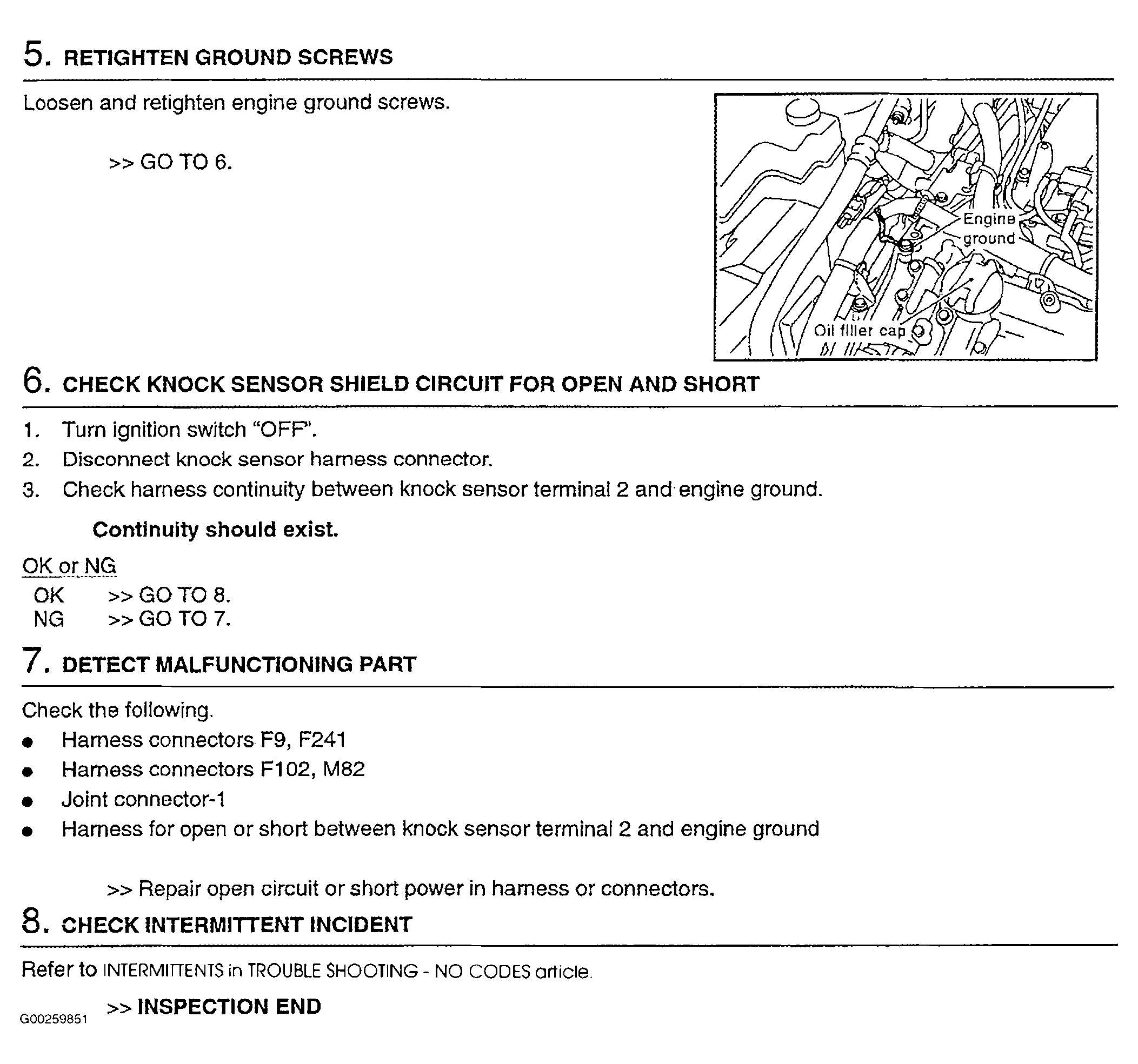

Fig 4: DTCs P0327 & P0328 (4 Of 4)
G00259851Courtesy of NISSAN MOTOR CO., U.S.A.

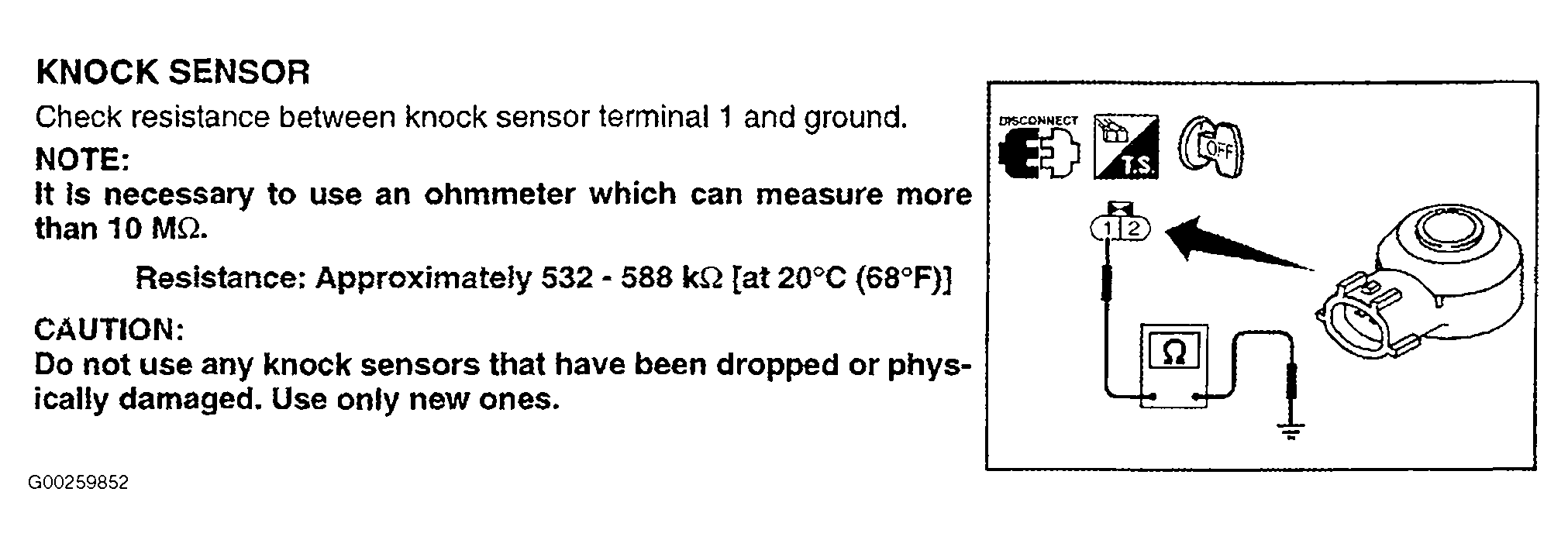

Fig 5: Testing Knock Sensor
G00259852Courtesy of NISSAN MOTOR CO., U.S.A.
