DTC P0461: Fuel Level Sensor Circuit Range/Performance

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1 and Fig 2 .

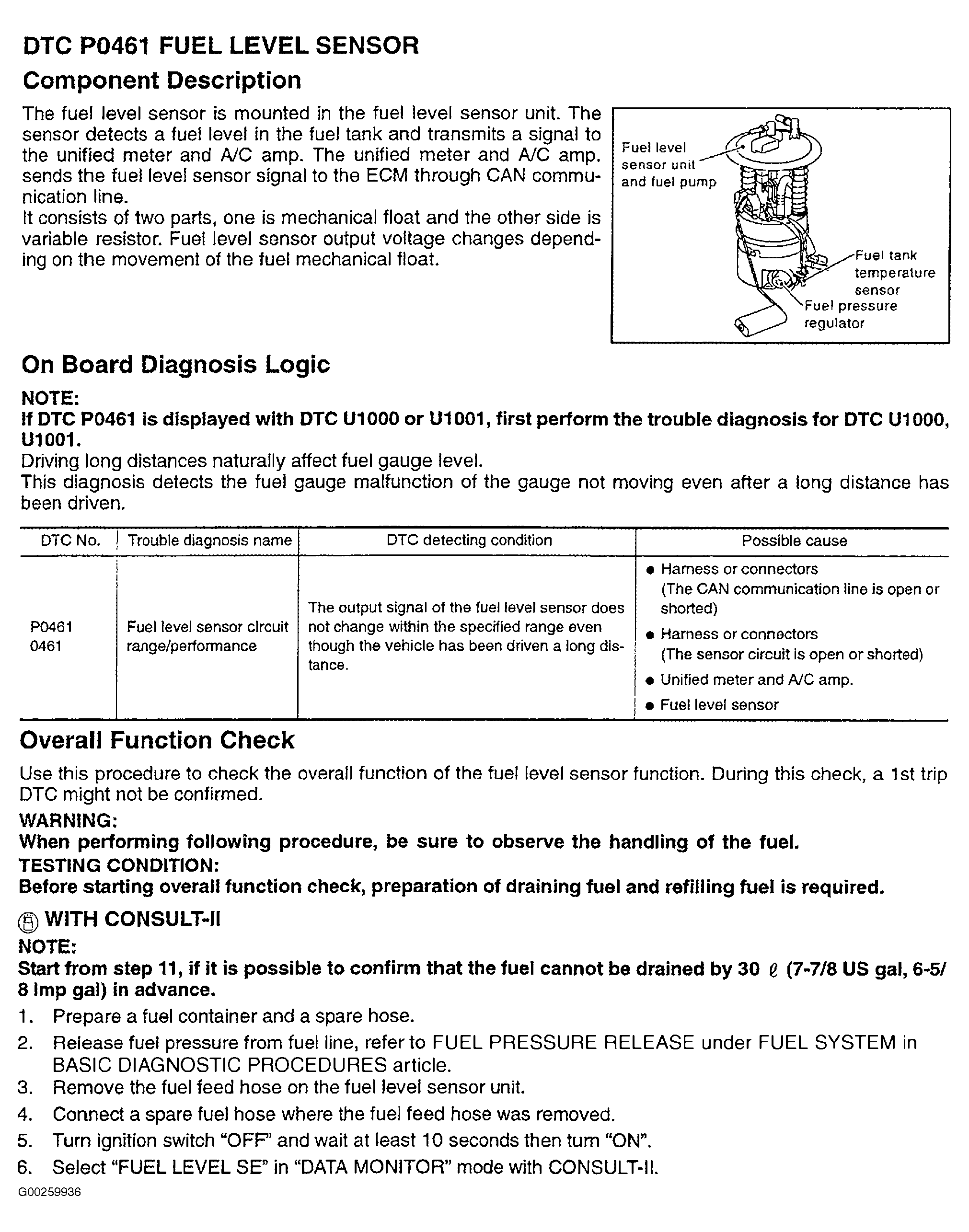

Fig 1: DTC P0461 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

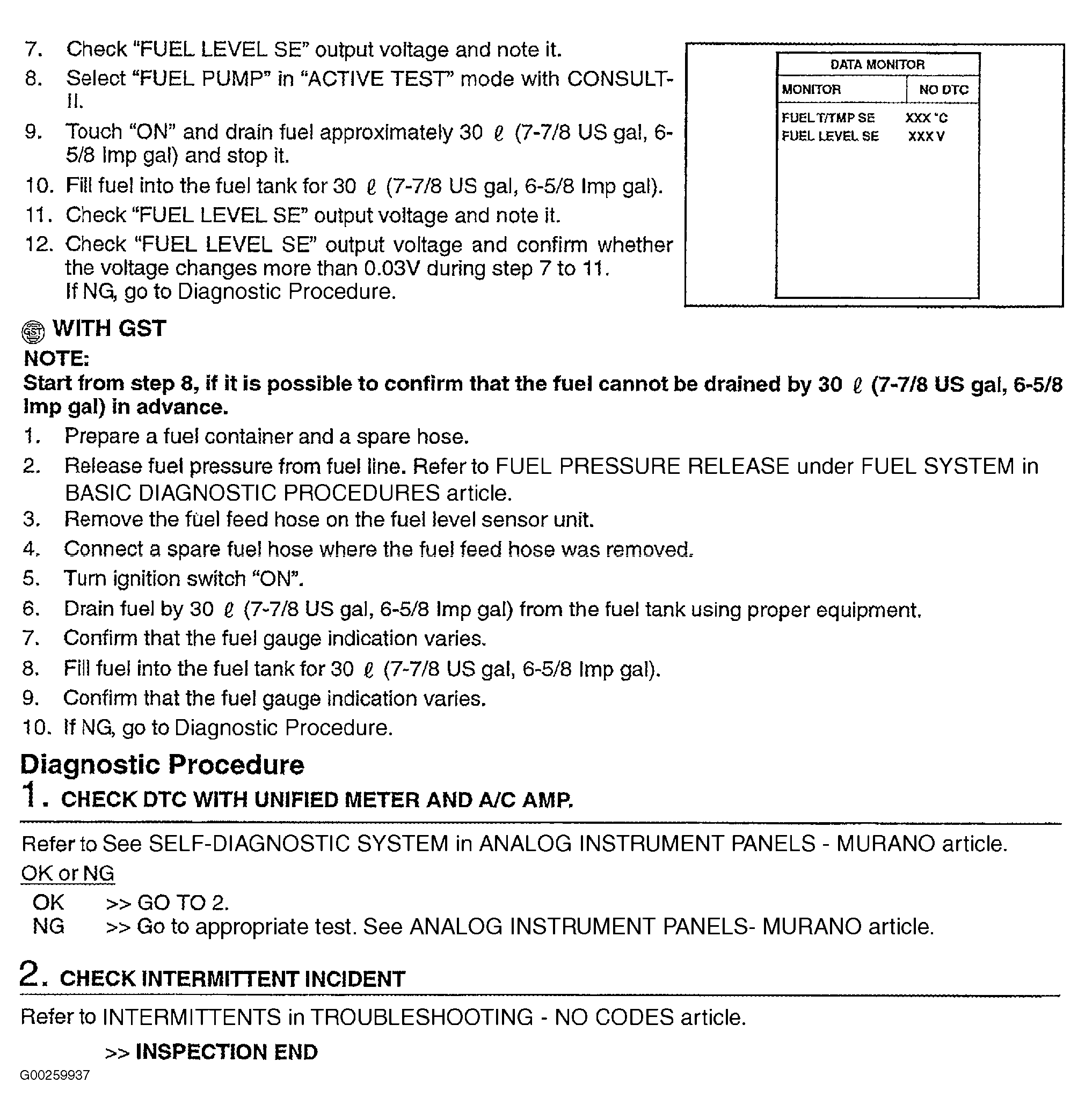

Fig 2: DTC P0461 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
