DTC P0462: Fuel Level Sensor Circuit Low Input Or DTC P0463: Fuel Level Sensor Circuit Low Input

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1 and Fig 2 .

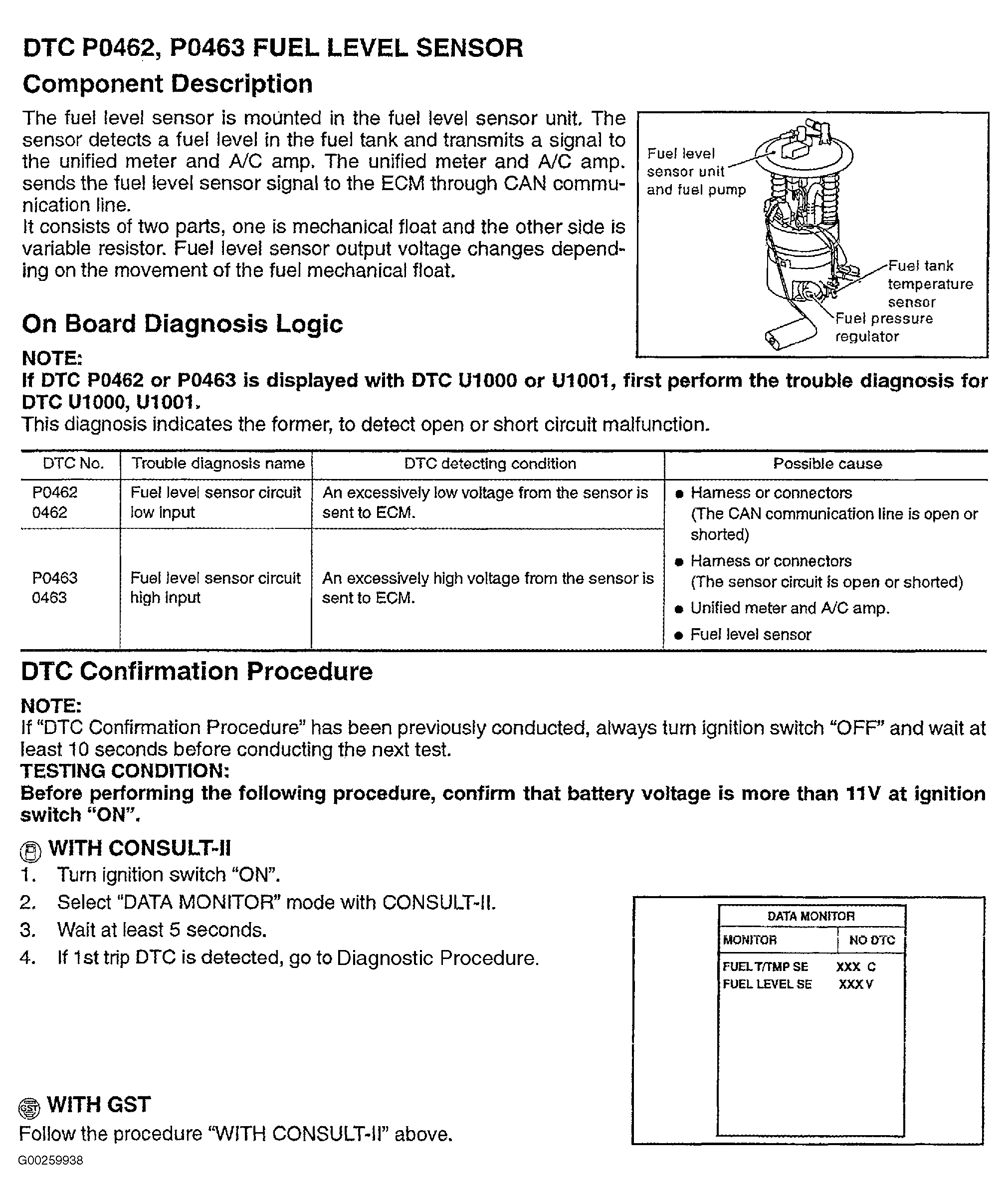

Fig 1: DTCs P0462 & P0463 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

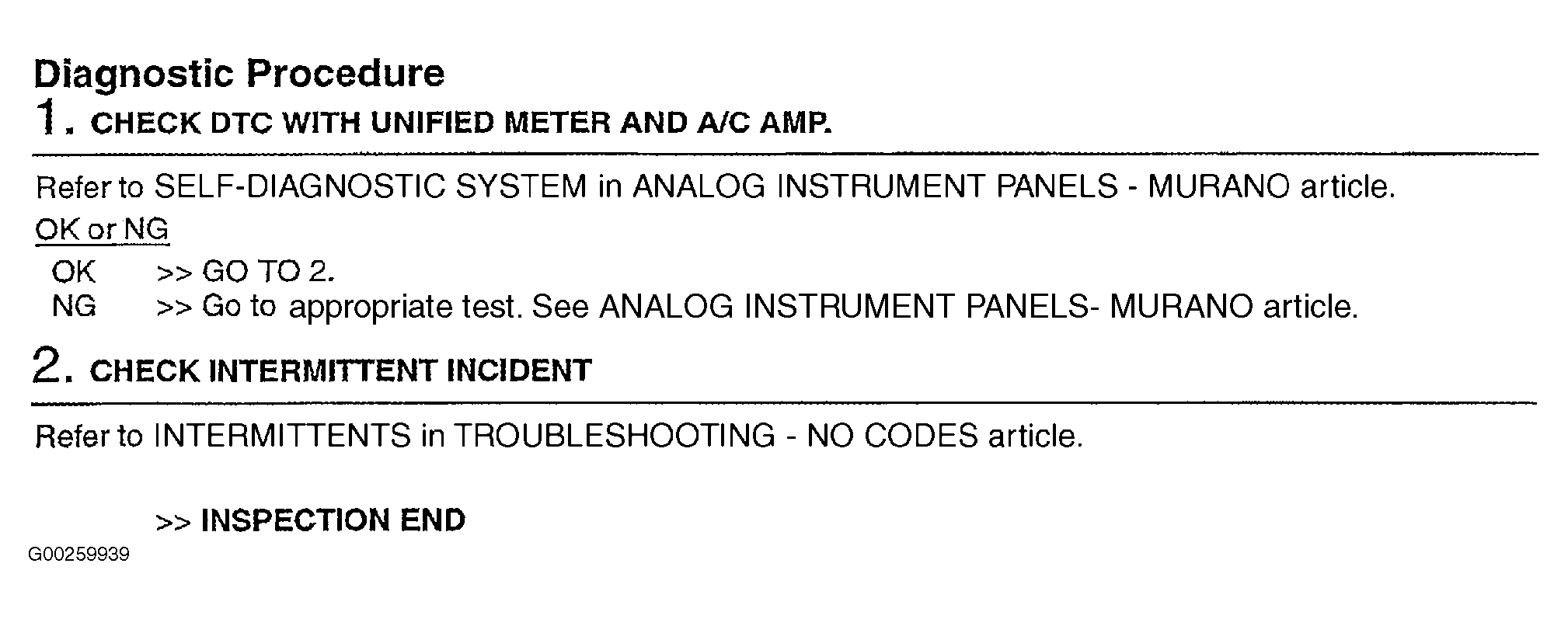

Fig 2: DTCs P0462 & P0463 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
