DTC P1124: Throttle Control Motor Relay Circuit Shorted Or DTC P1126: Throttle Control Motor Relay Circuit Open

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 5 .

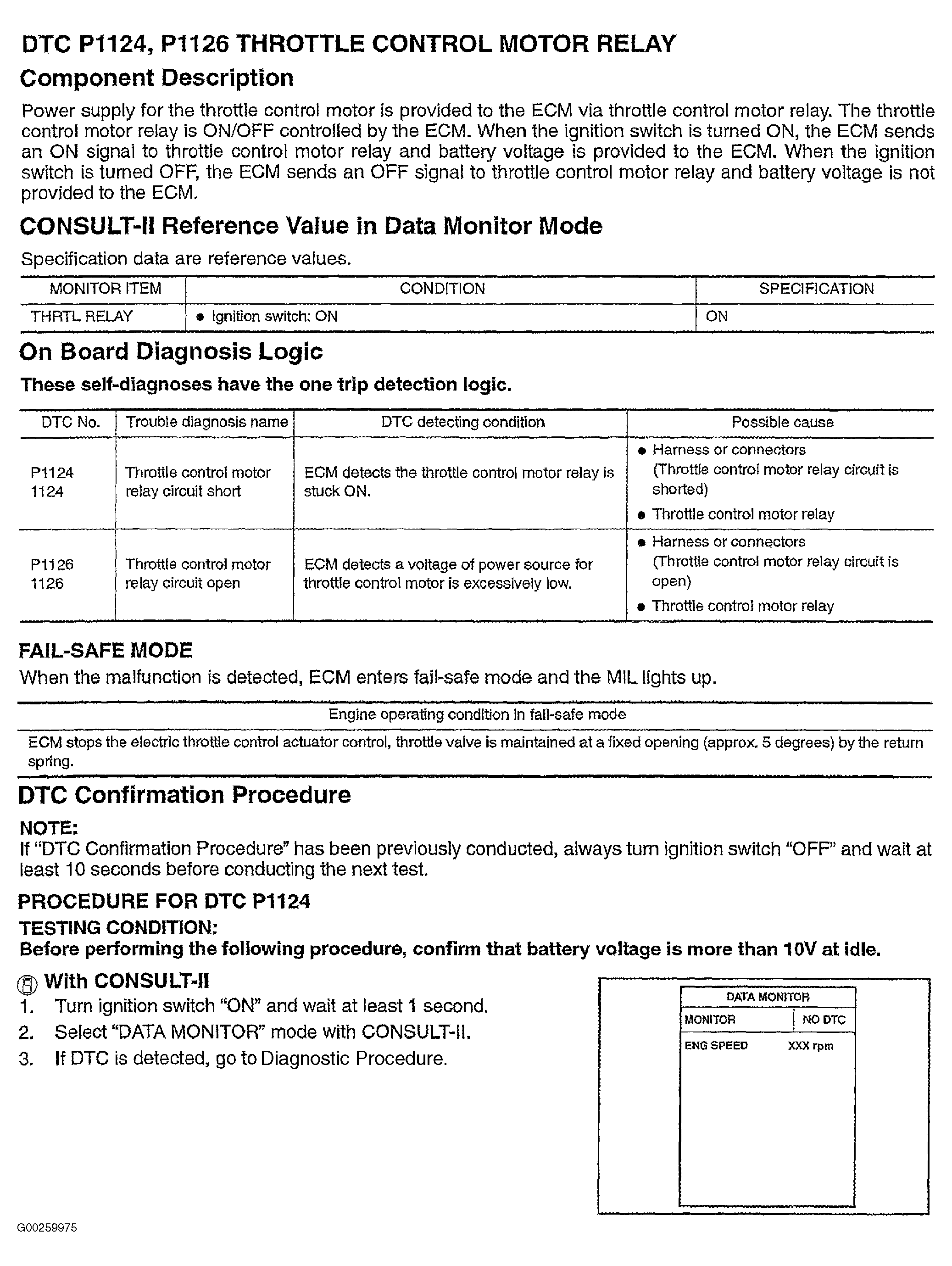

Fig 1: DTCs P1124 & P1126 (1 Of 5)
G00259975Courtesy of NISSAN MOTOR CO., U.S.A.

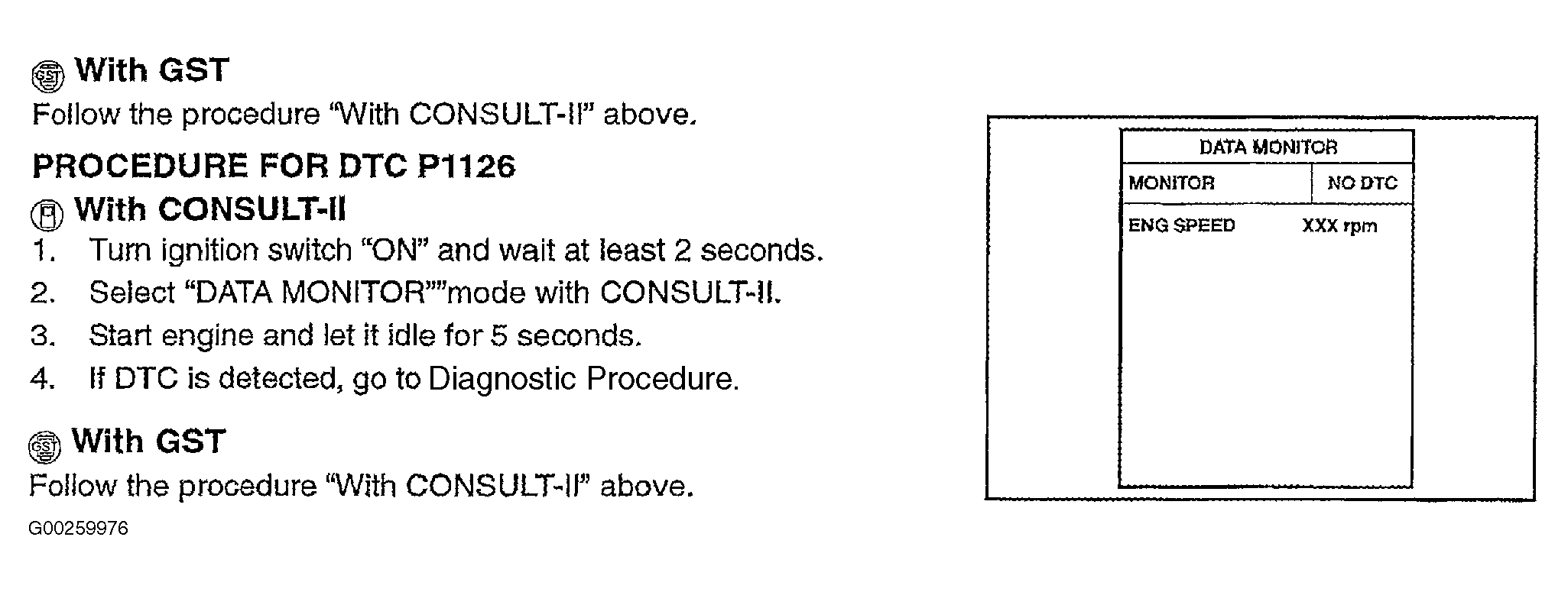

Fig 2: DTCs P1124 & P1126 (2 Of 5)
G00259976Courtesy of NISSAN MOTOR CO., U.S.A.

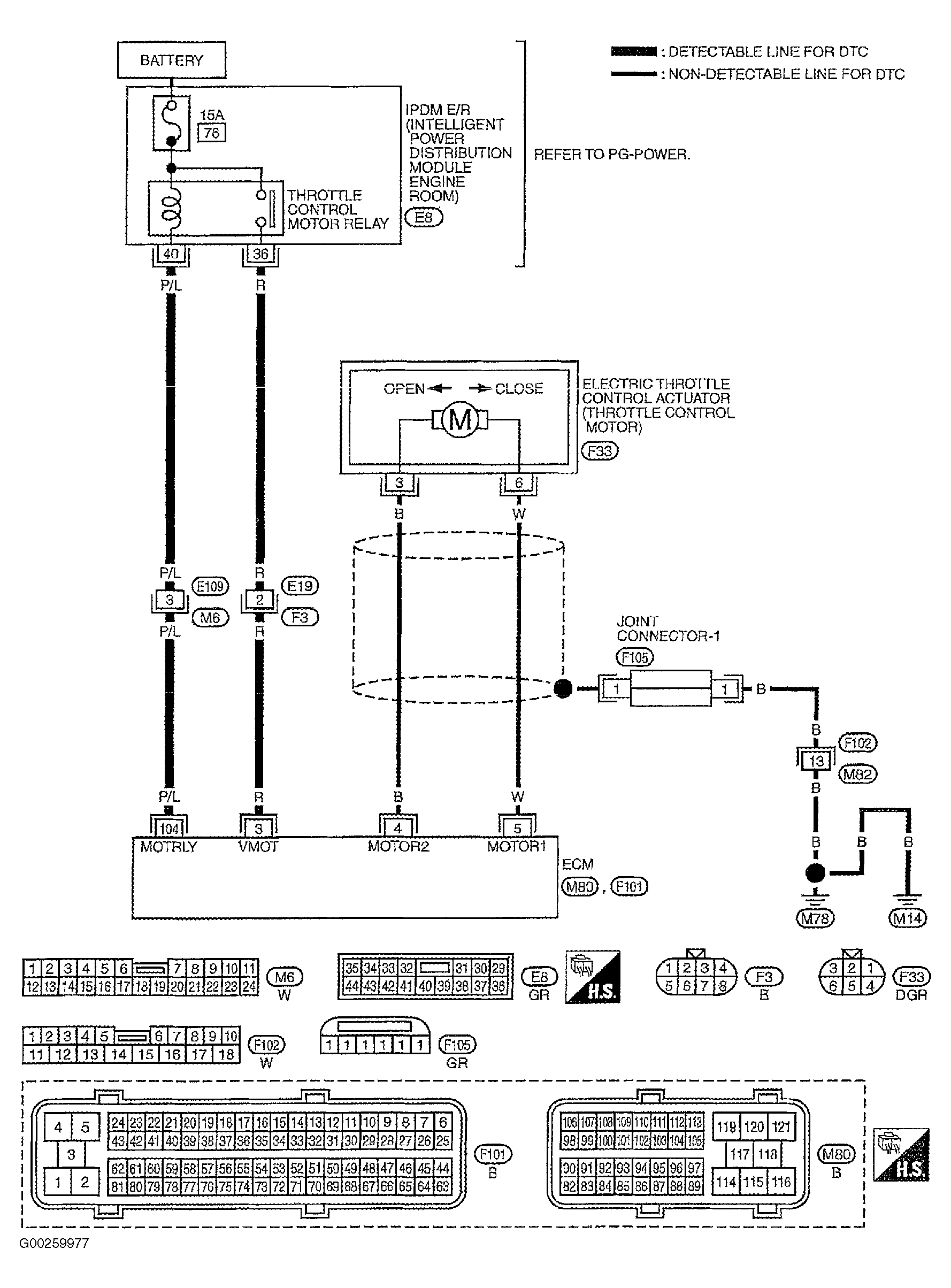

Fig 3: DTCs P1124 & P1126 (3 Of 5)
G00259977Courtesy of NISSAN MOTOR CO., U.S.A.

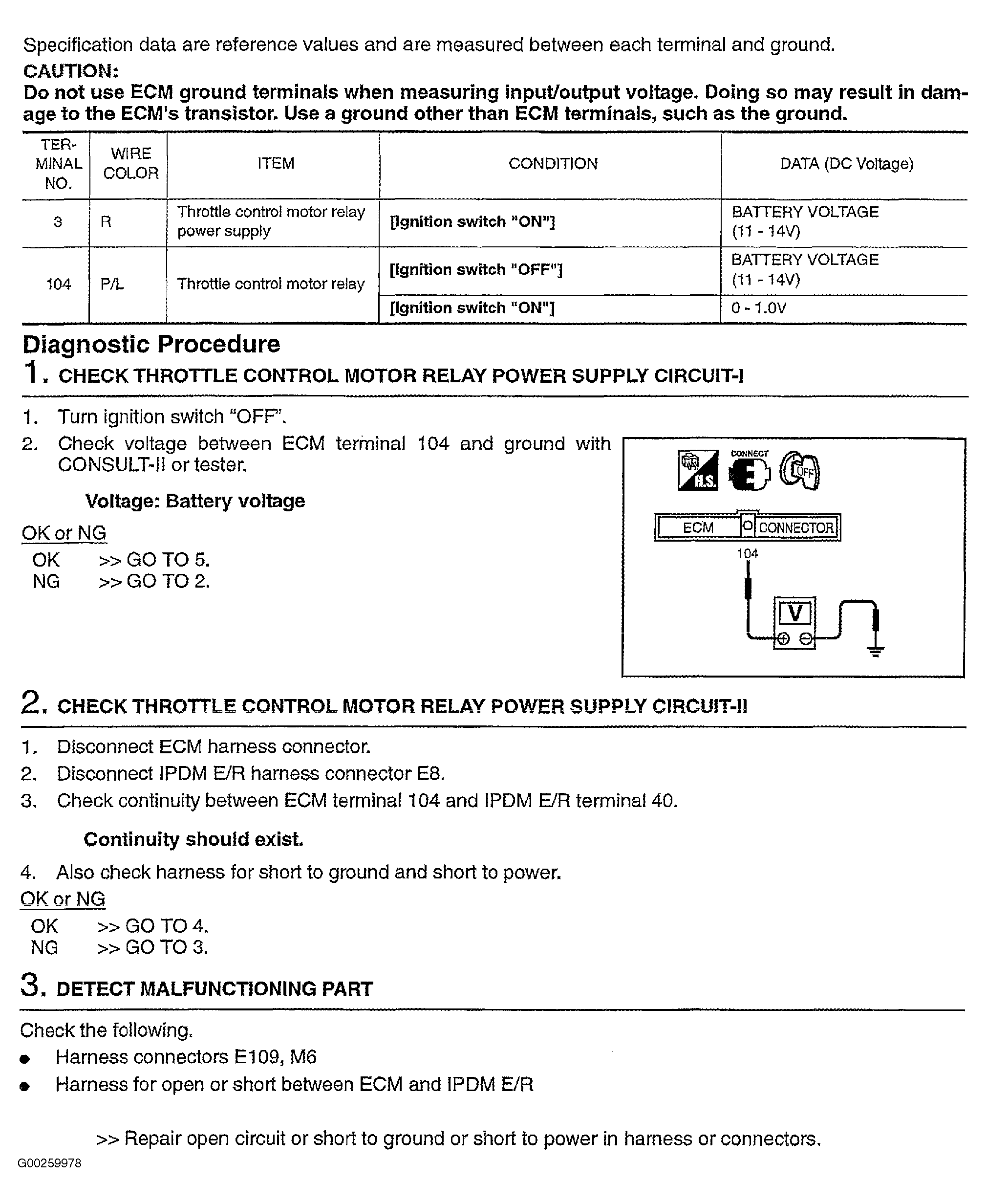

Fig 4: DTCs P1124 & P1126 (4 Of 5)
G00259978Courtesy of NISSAN MOTOR CO., U.S.A.

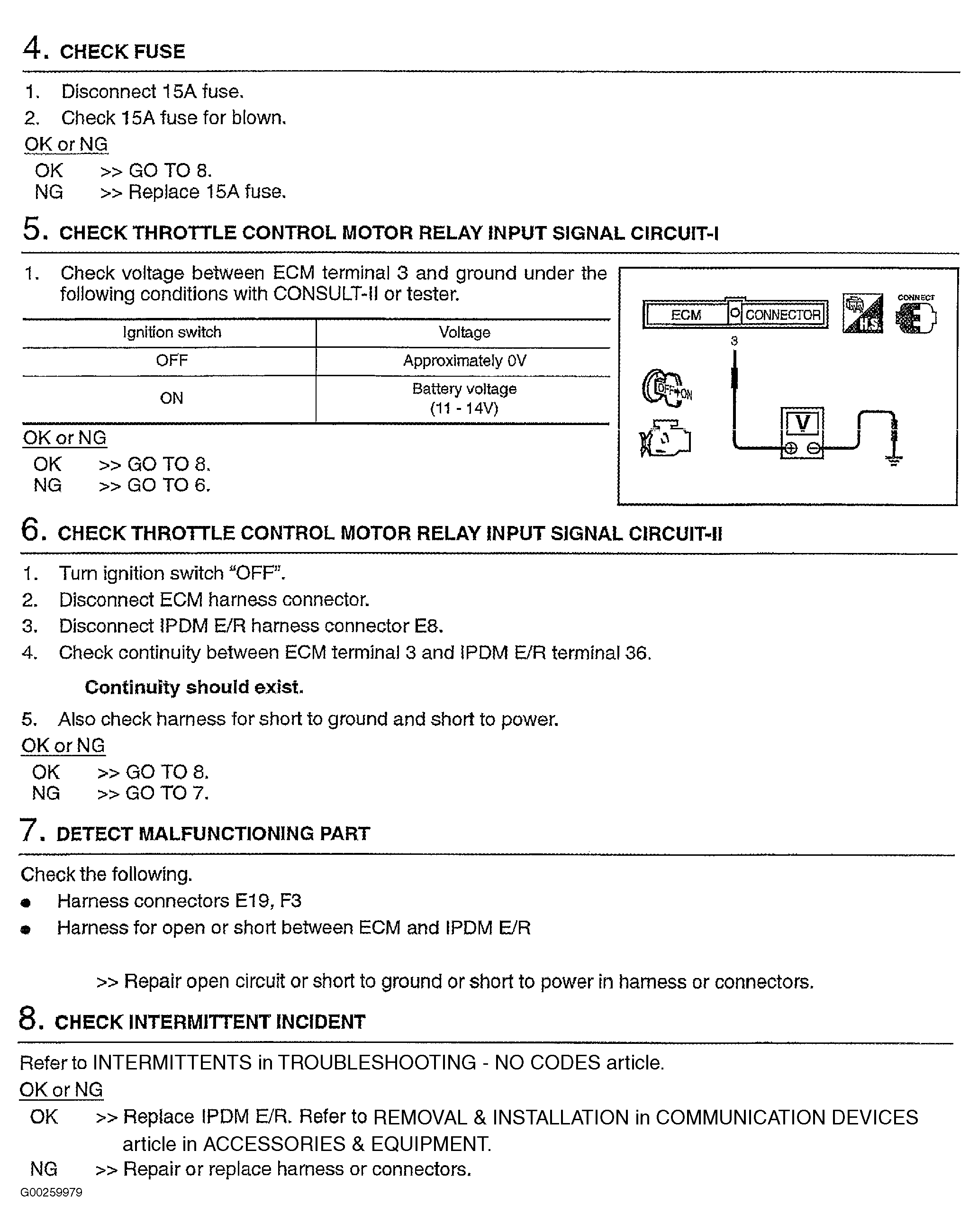

Fig 5: DTCs P1124 & P1126 (5 Of 5)
G00259979Courtesy of NISSAN MOTOR CO., U.S.A.
