DTC P2122: Accelerator Pedal Position Sensor 1 Circuit Low Input &/Or DTC P2123: Accelerator Pedal Position Sensor 1 Circuit High Input

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 6 .

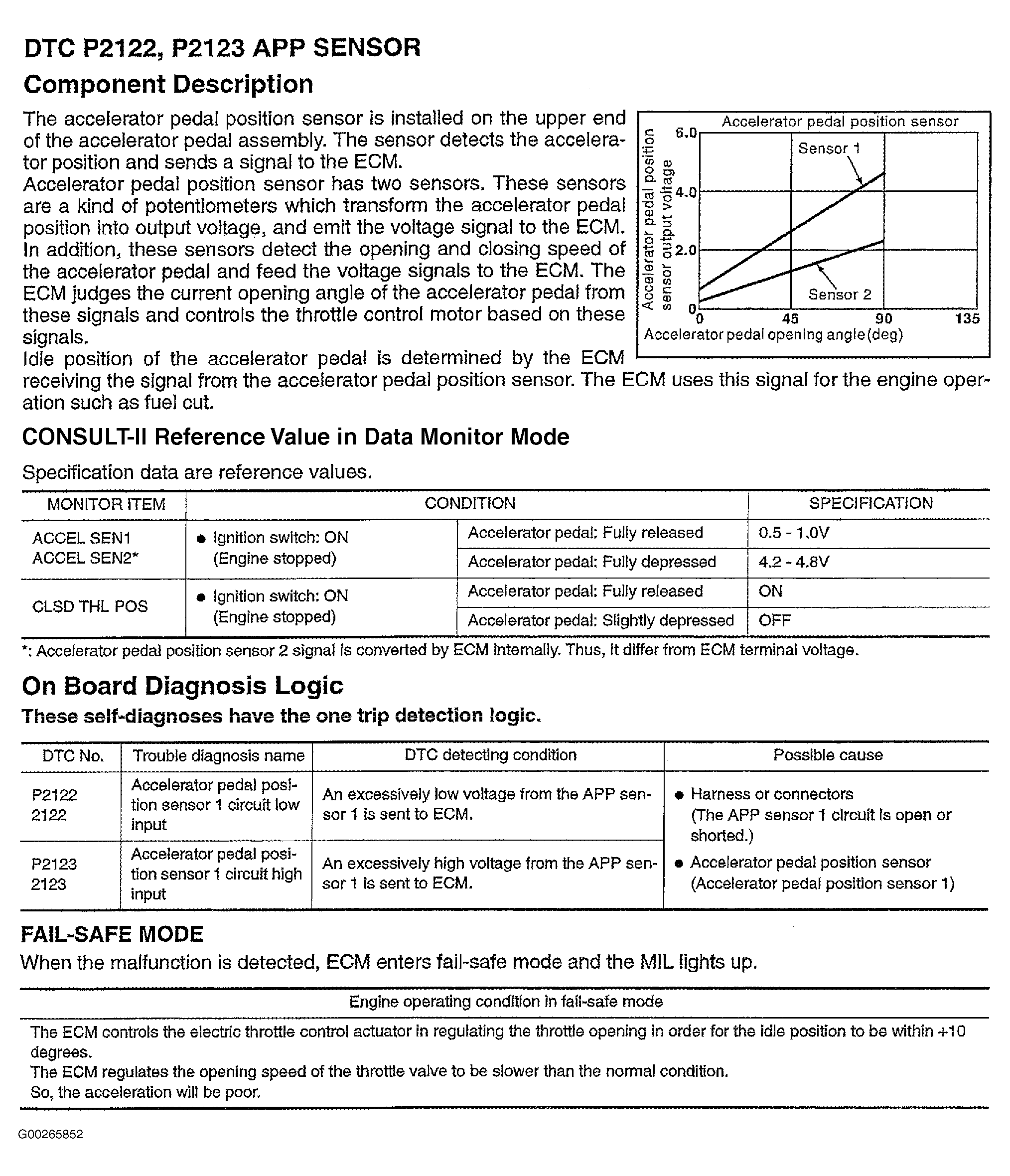

Fig 1: DTCs P2122 & P2123 (1 Of 6)
G00265852Courtesy of NISSAN MOTOR CO., U.S.A.

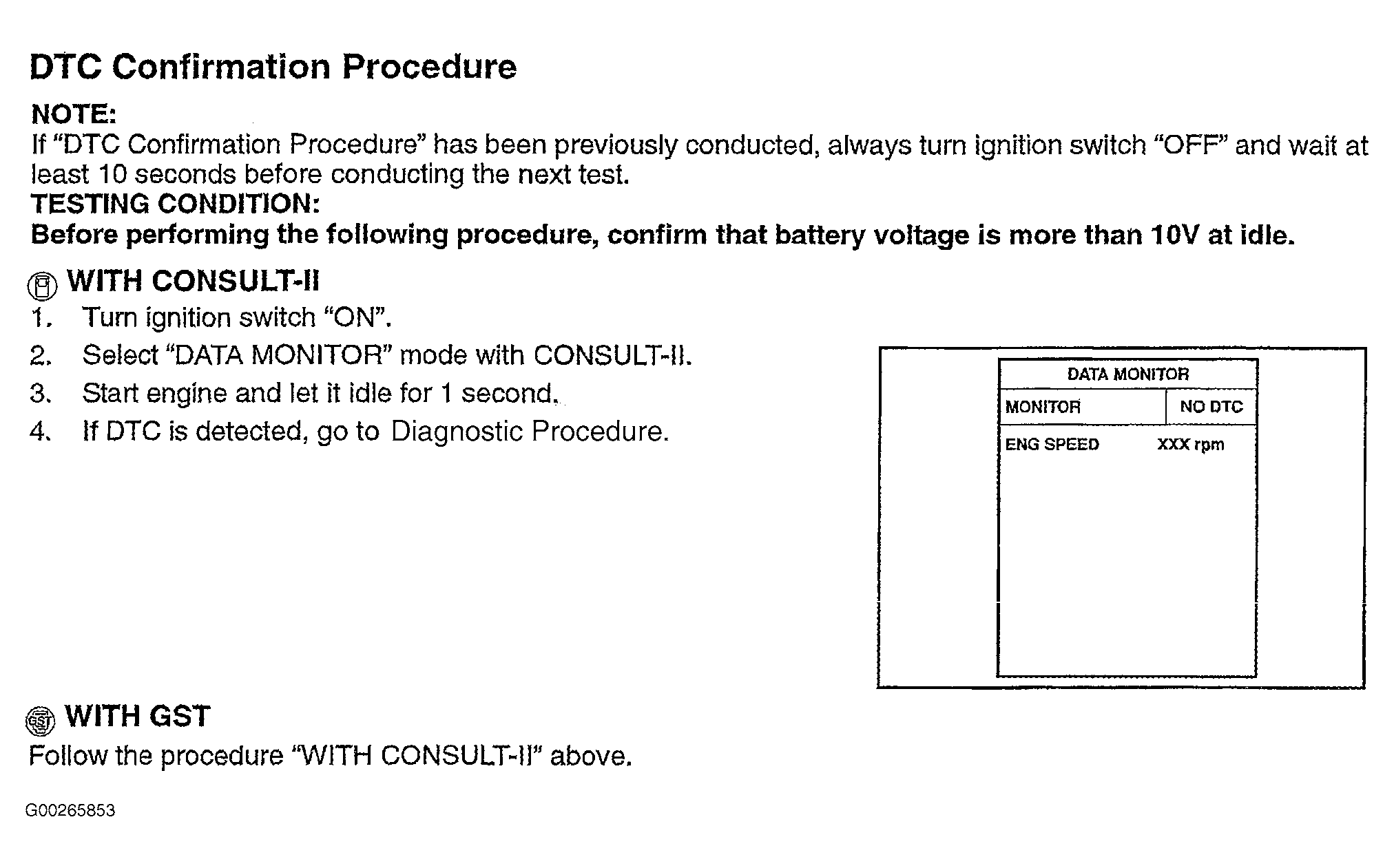

Fig 2: DTCs P2122 & P2123 (2 Of 6)
G00265853Courtesy of NISSAN MOTOR CO., U.S.A.

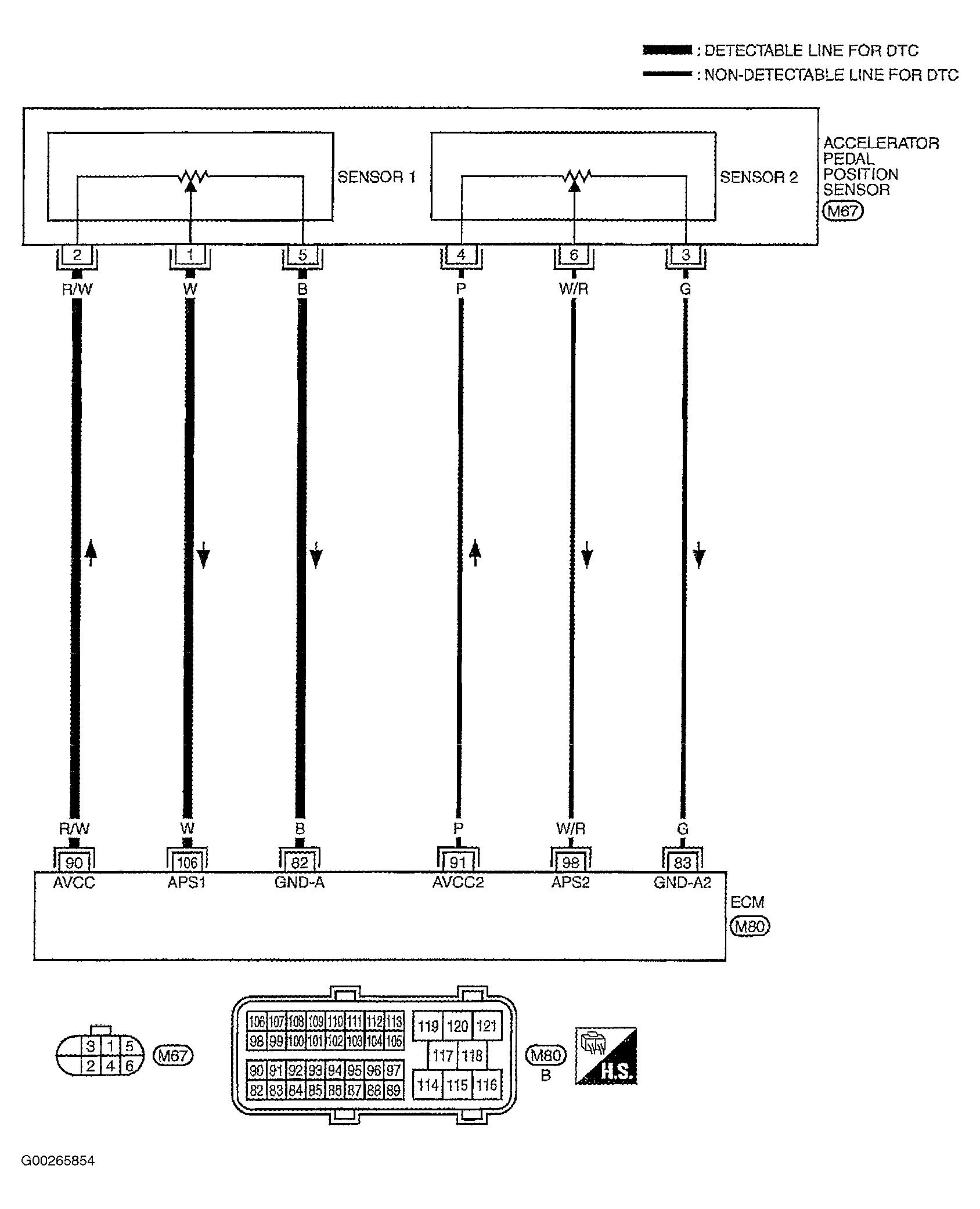

Fig 3: DTCs P2122 & P2123 (3 Of 6)
G00265854Courtesy of NISSAN MOTOR CO., U.S.A.

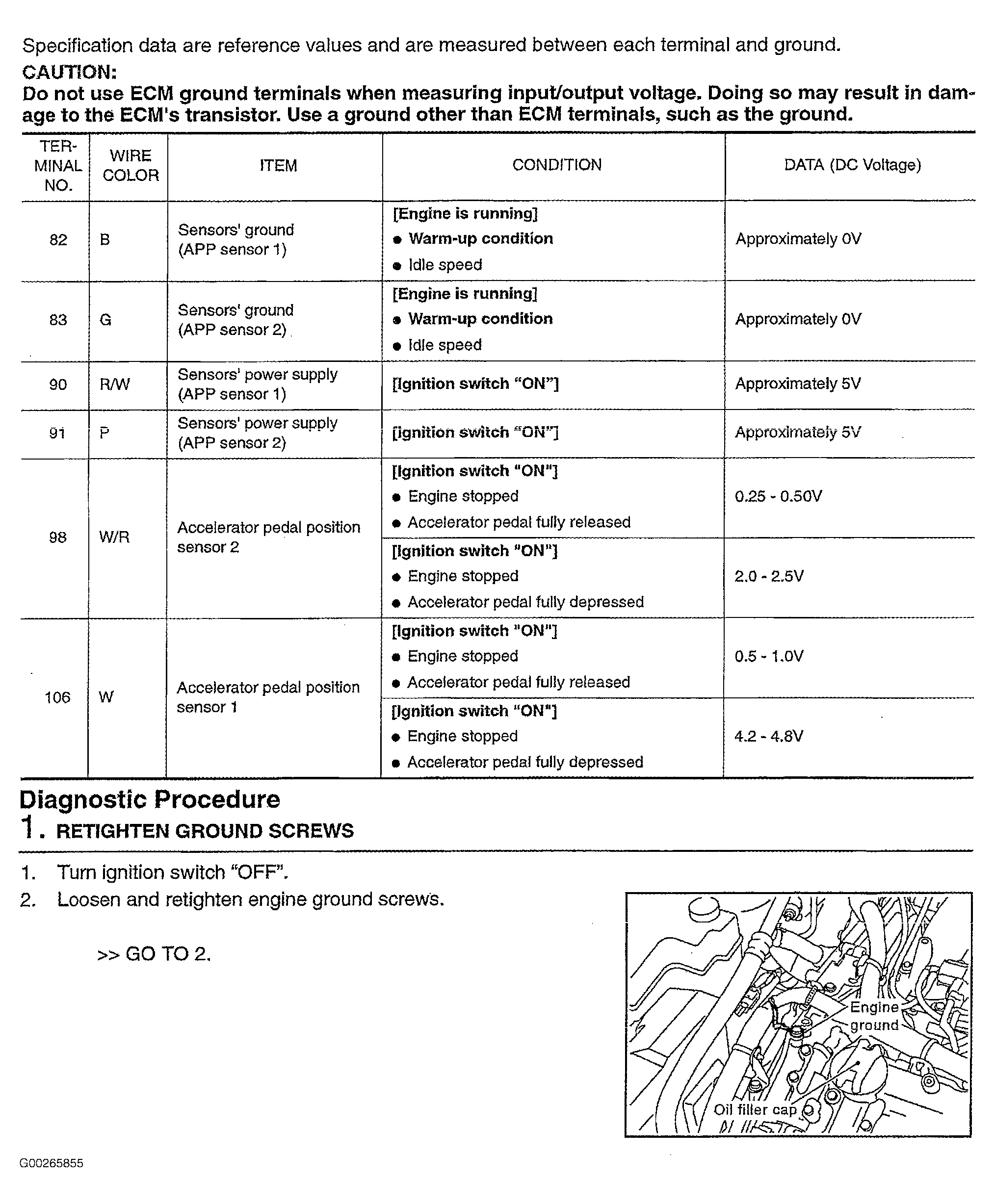

Fig 4: DTCs P2122 & P2123 (4 Of 6)
G00265855Courtesy of NISSAN MOTOR CO., U.S.A.

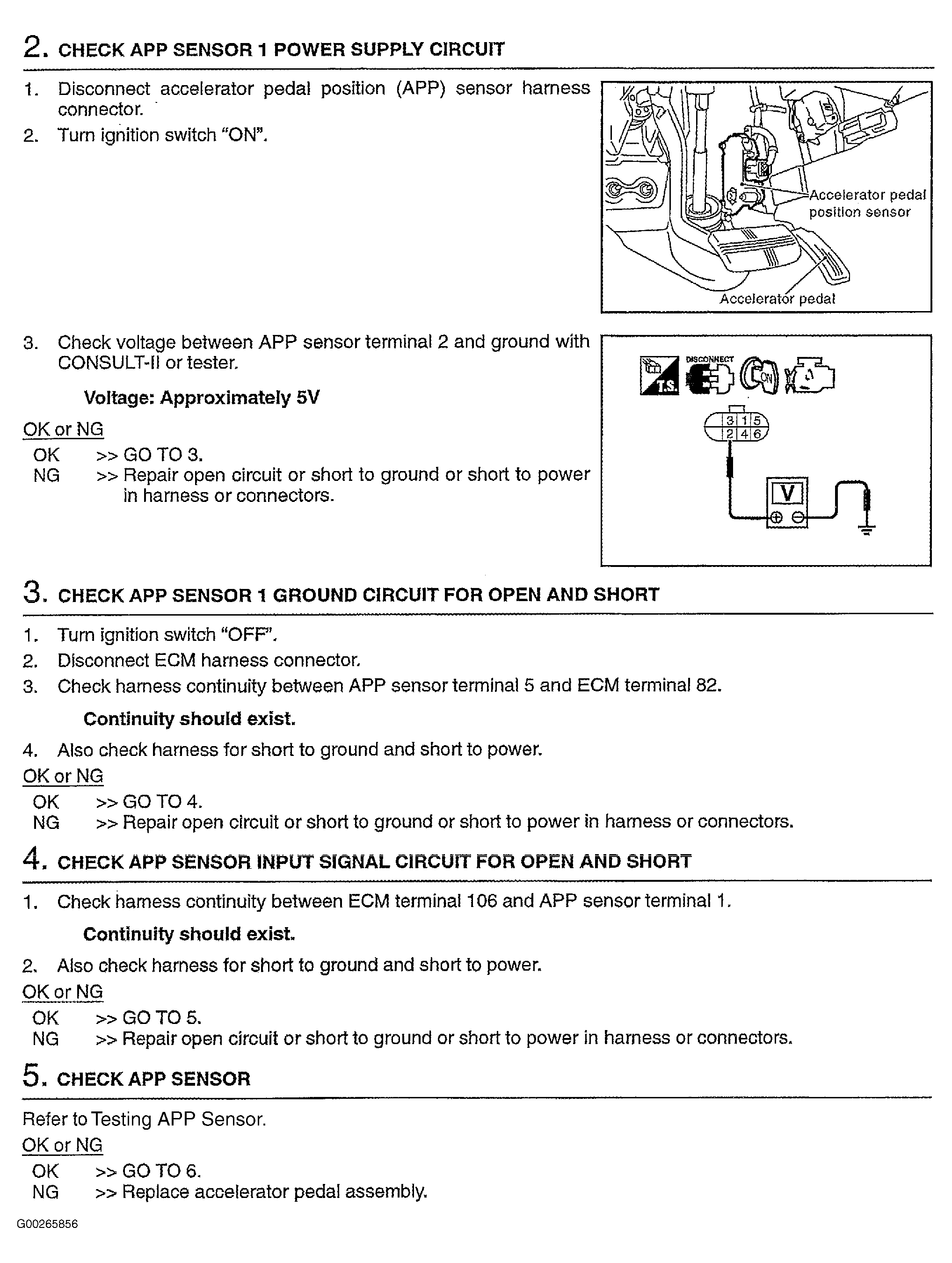

Fig 5: DTCs P2122 & P2123 (5 Of 6)
G00265856Courtesy of NISSAN MOTOR CO., U.S.A.

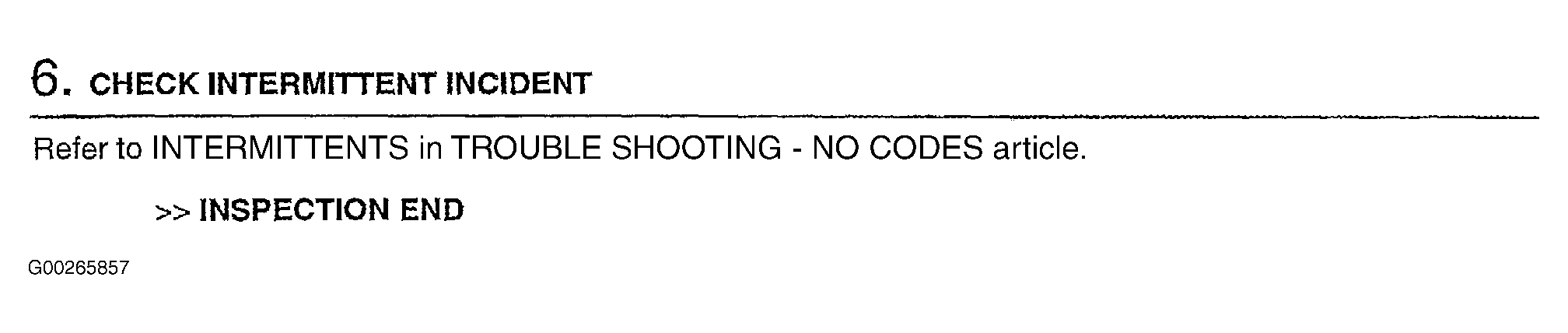

Fig 6: DTCs P2122 & P2123 (6 Of 6)
G00265857Courtesy of NISSAN MOTOR CO., U.S.A.
