DTC P2135: Throttle Position Sensor Circuit Range/Performance Problem

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 6 .

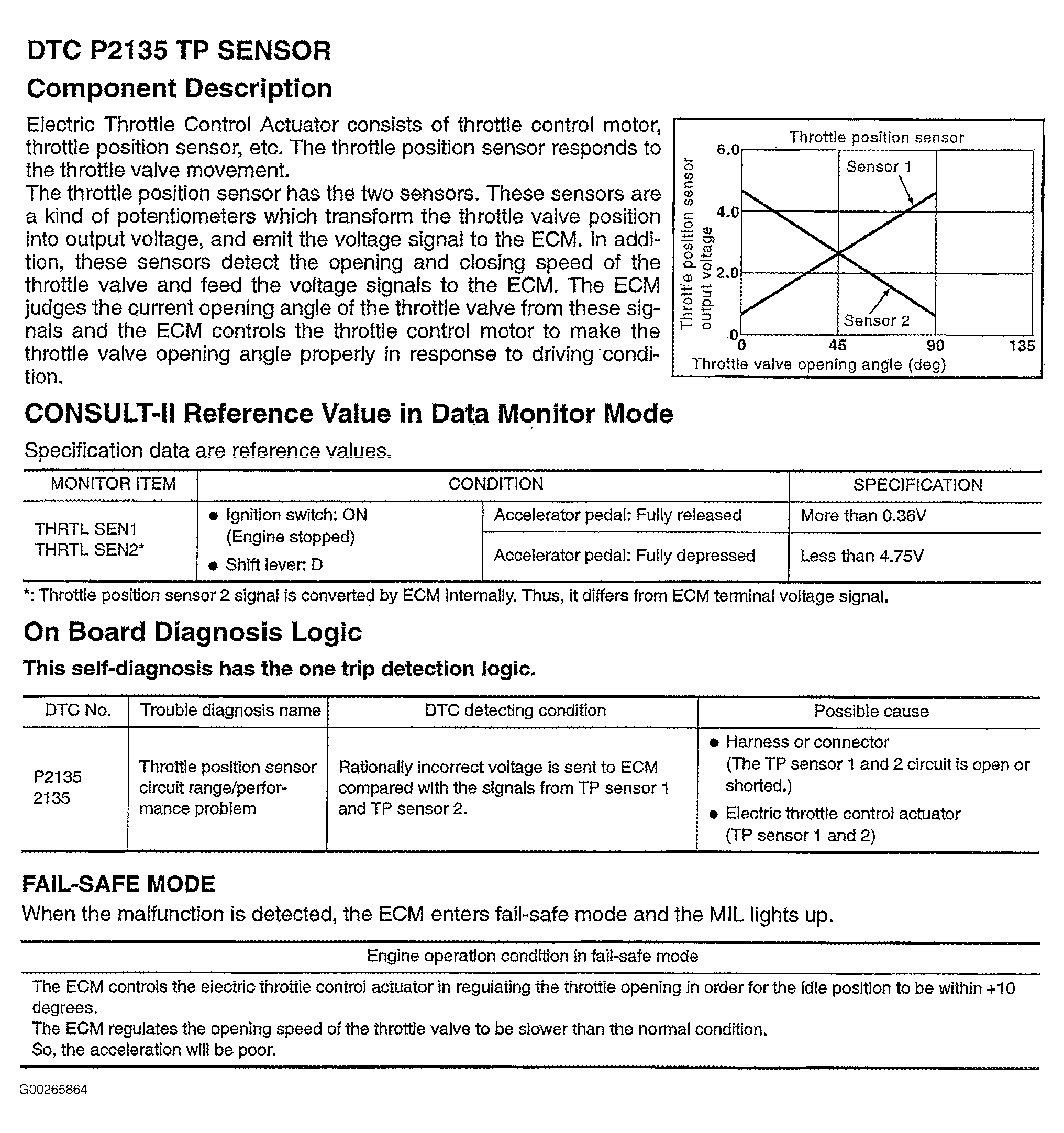

Fig 1: DTC P2135 (1 Of 6)
G00265864Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: DTC P2135 (2 Of 6)
G00265865Courtesy of NISSAN MOTOR CO., U.S.A.

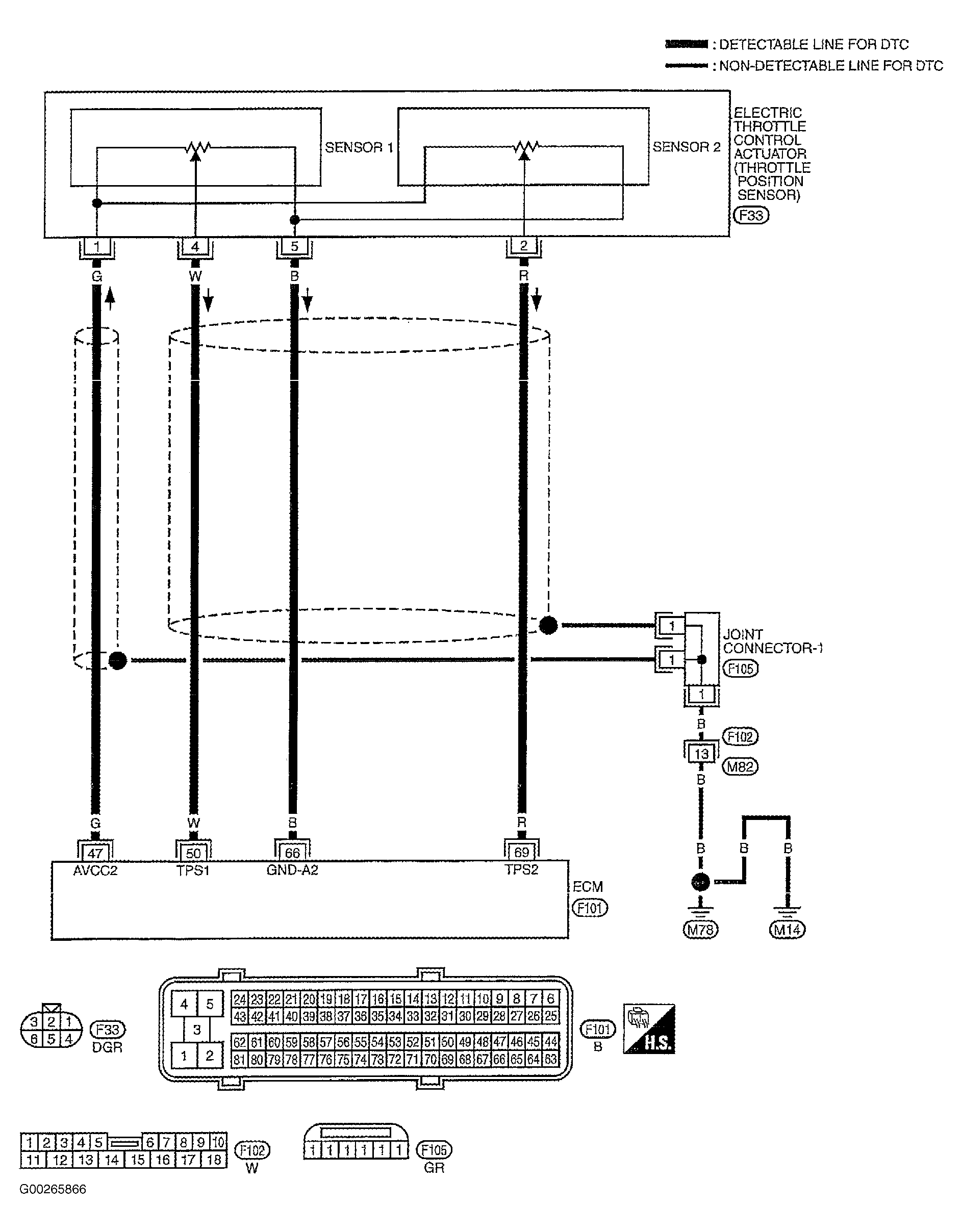

Fig 3: DTC P2135 (3 Of 6)
G00265866Courtesy of NISSAN MOTOR CO., U.S.A.

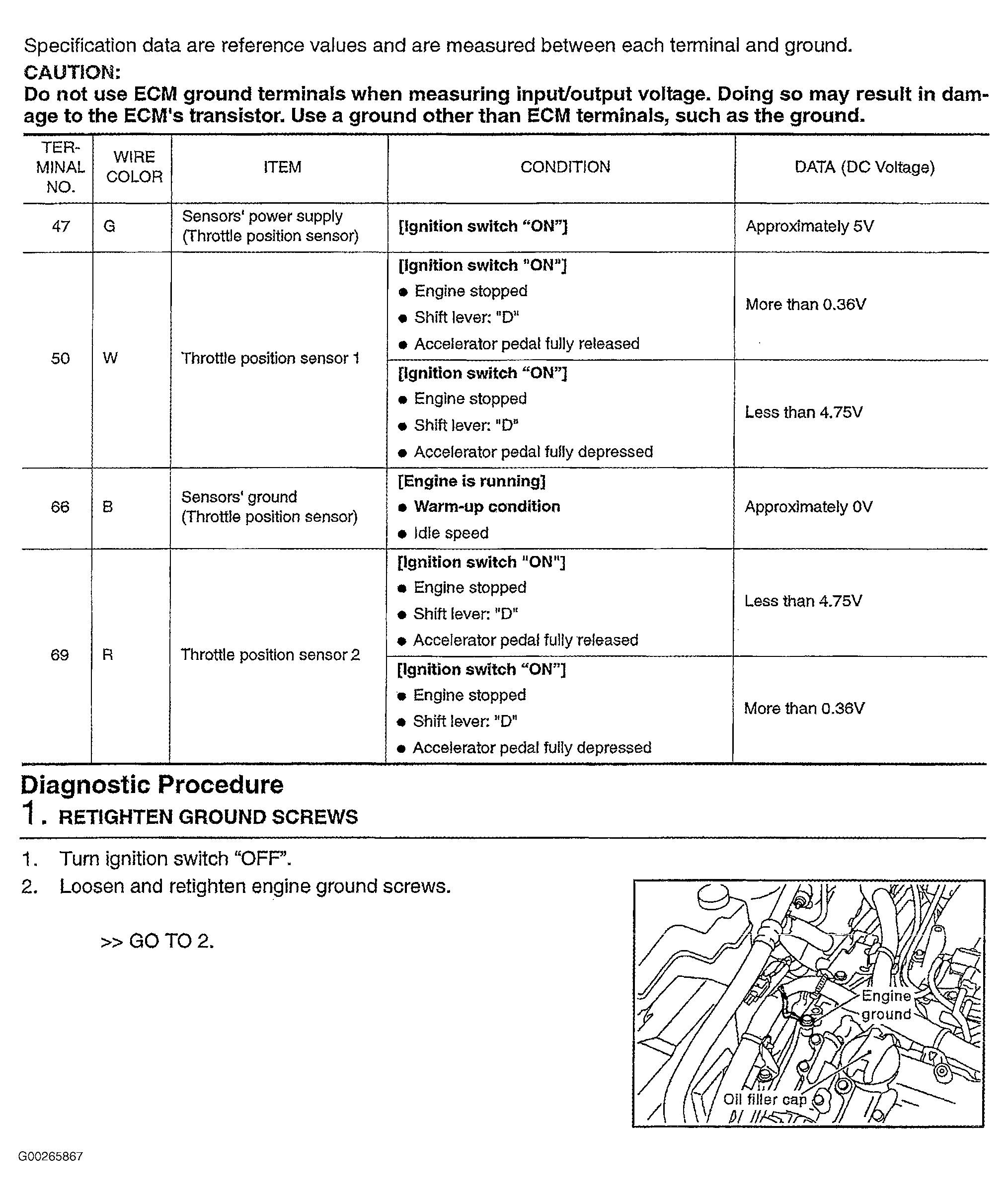

Fig 4: DTC P2135 (4 Of 6)
G00265867Courtesy of NISSAN MOTOR CO., U.S.A.

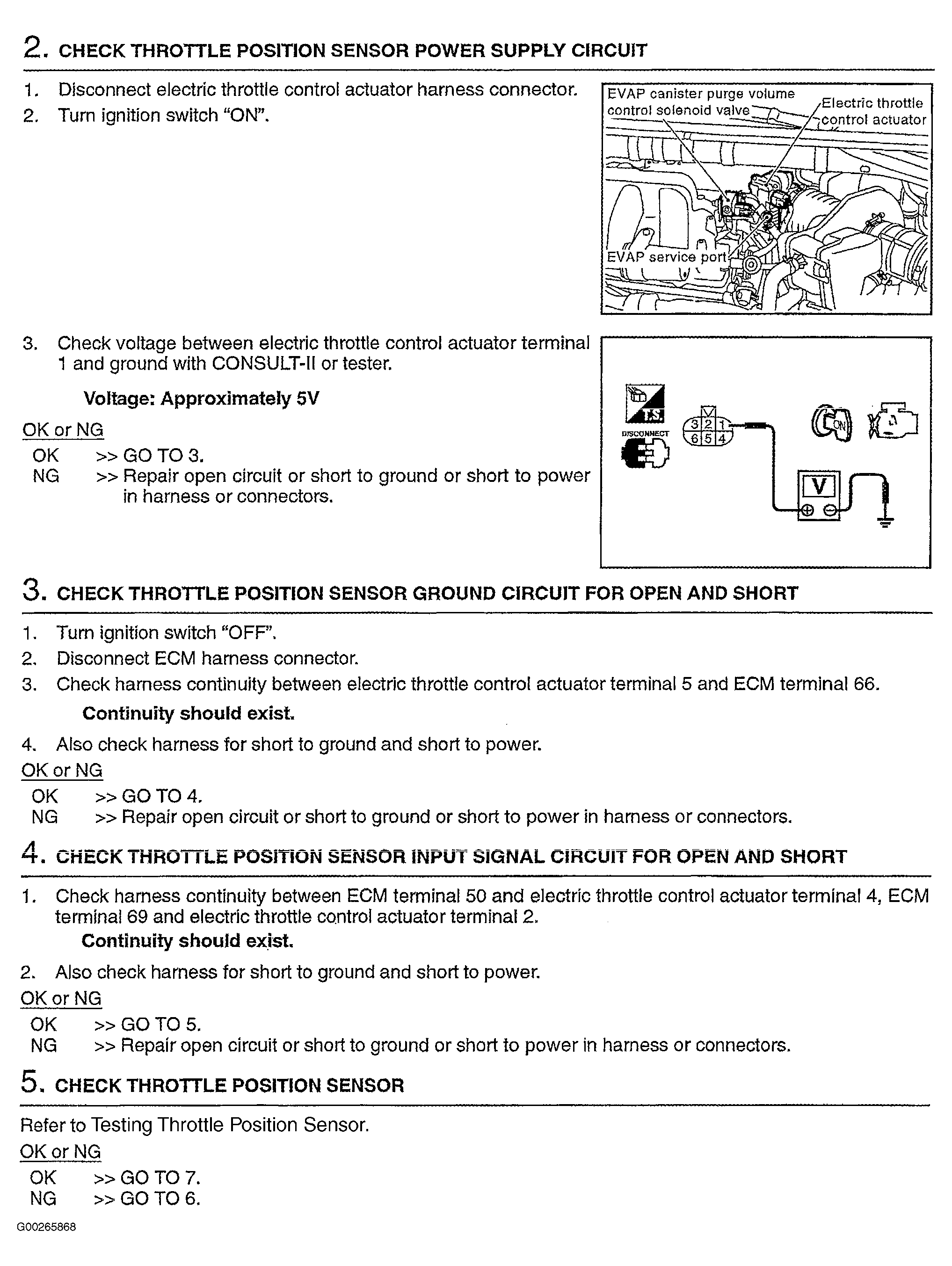

Fig 5: DTC P2135 (5 Of 6)
G00265868Courtesy of NISSAN MOTOR CO., U.S.A.

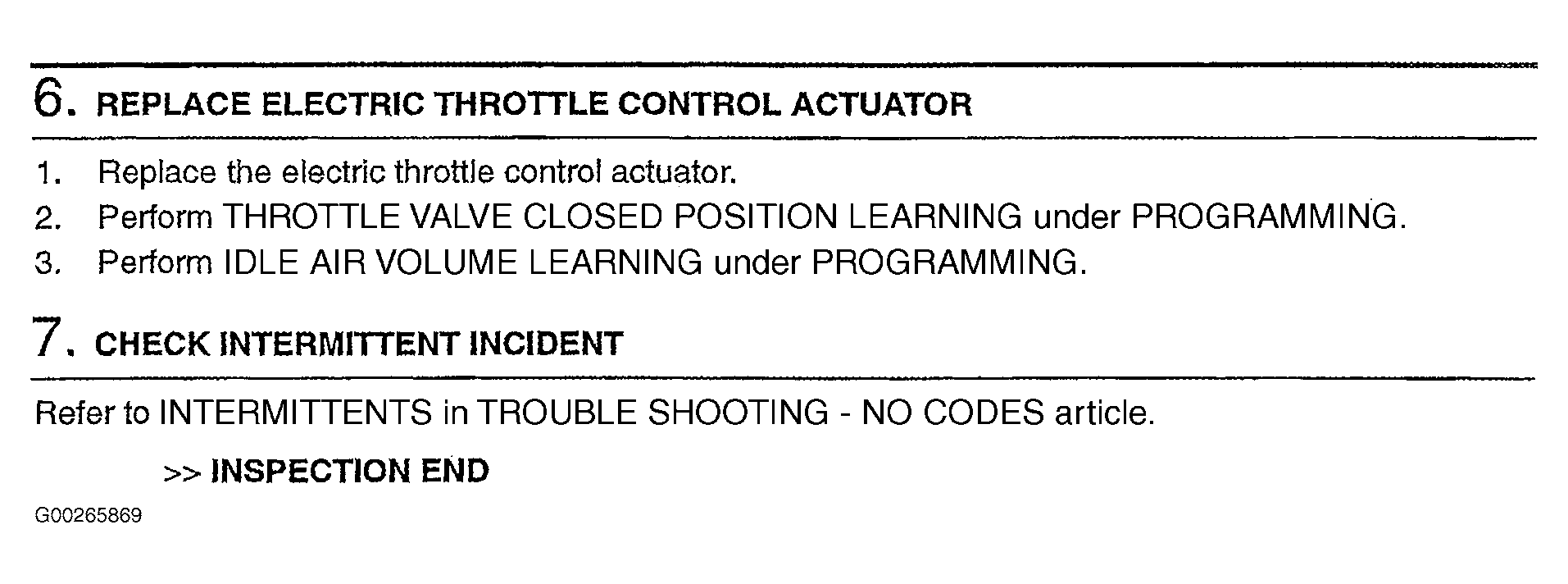

Fig 6: DTC P2135 (6 Of 6)
G00265869Courtesy of NISSAN MOTOR CO., U.S.A.
