DTC P2138: Accelerator Pedal Position Sensor Circuit Range/Performance Problem

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 7 .

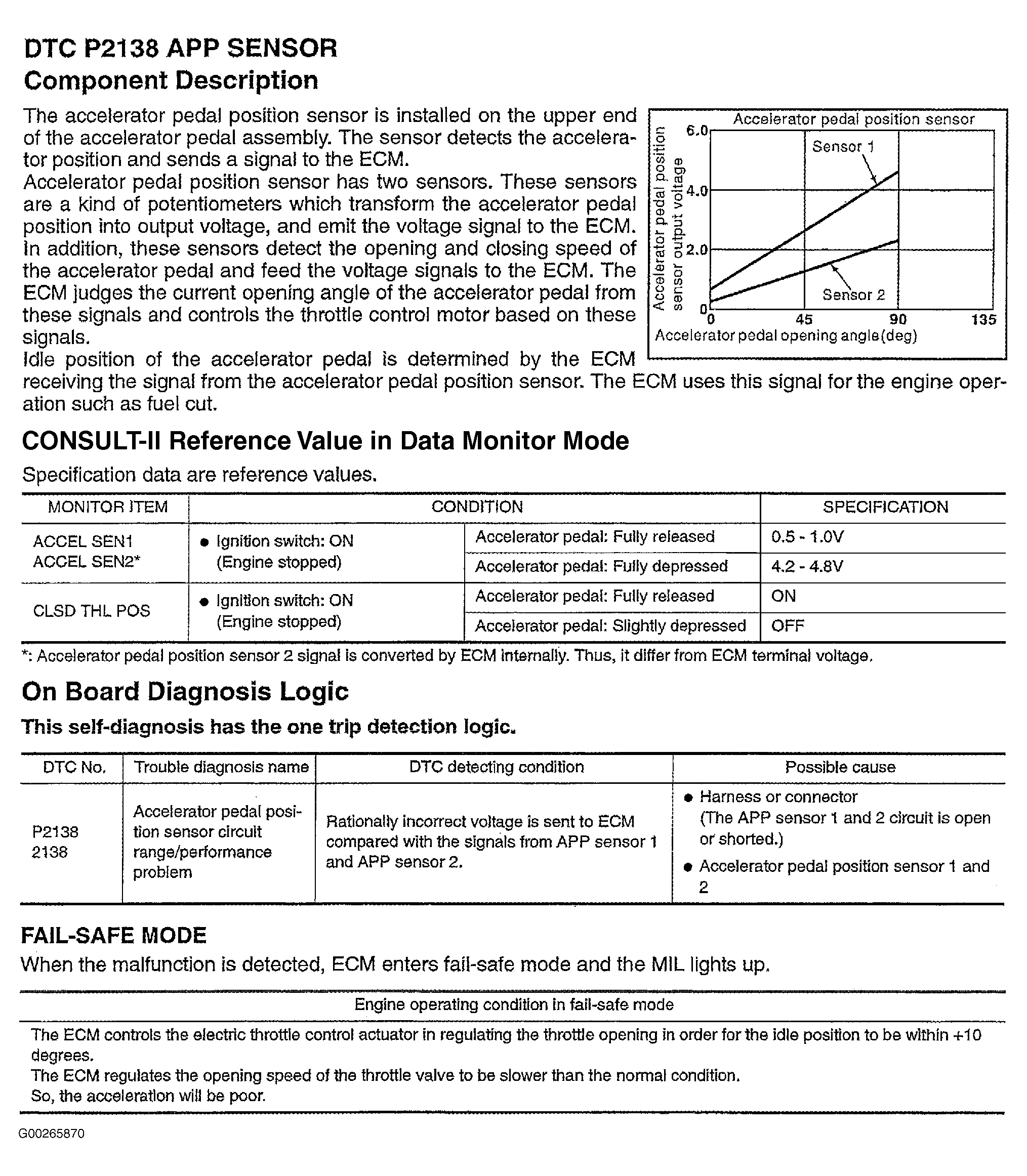

Fig 1: DTC P2138 (1 Of 6)
G00265870Courtesy of NISSAN MOTOR CO., U.S.A.

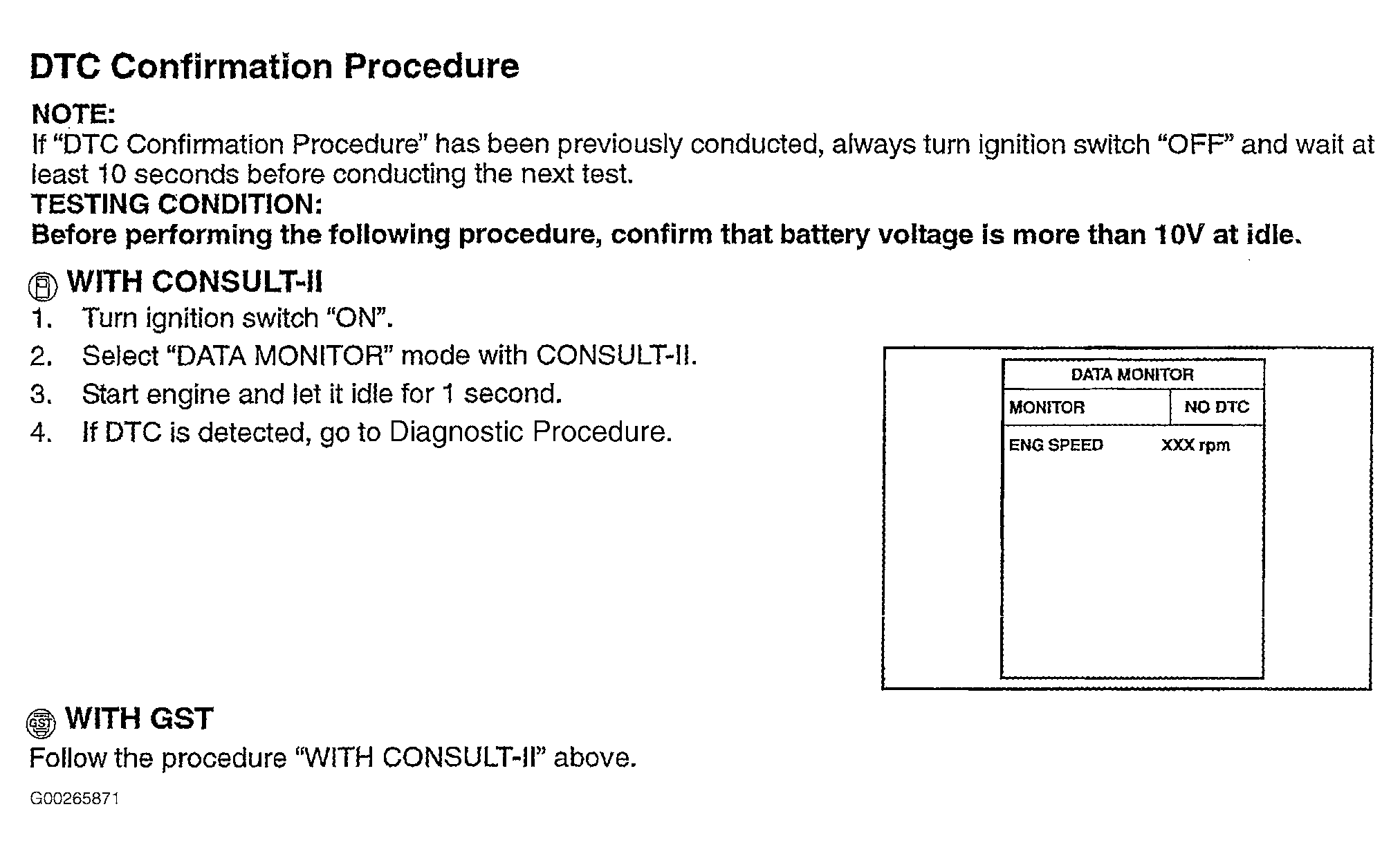

Fig 2: DTC P2138 (2 Of 6)
G00265871Courtesy of NISSAN MOTOR CO., U.S.A.

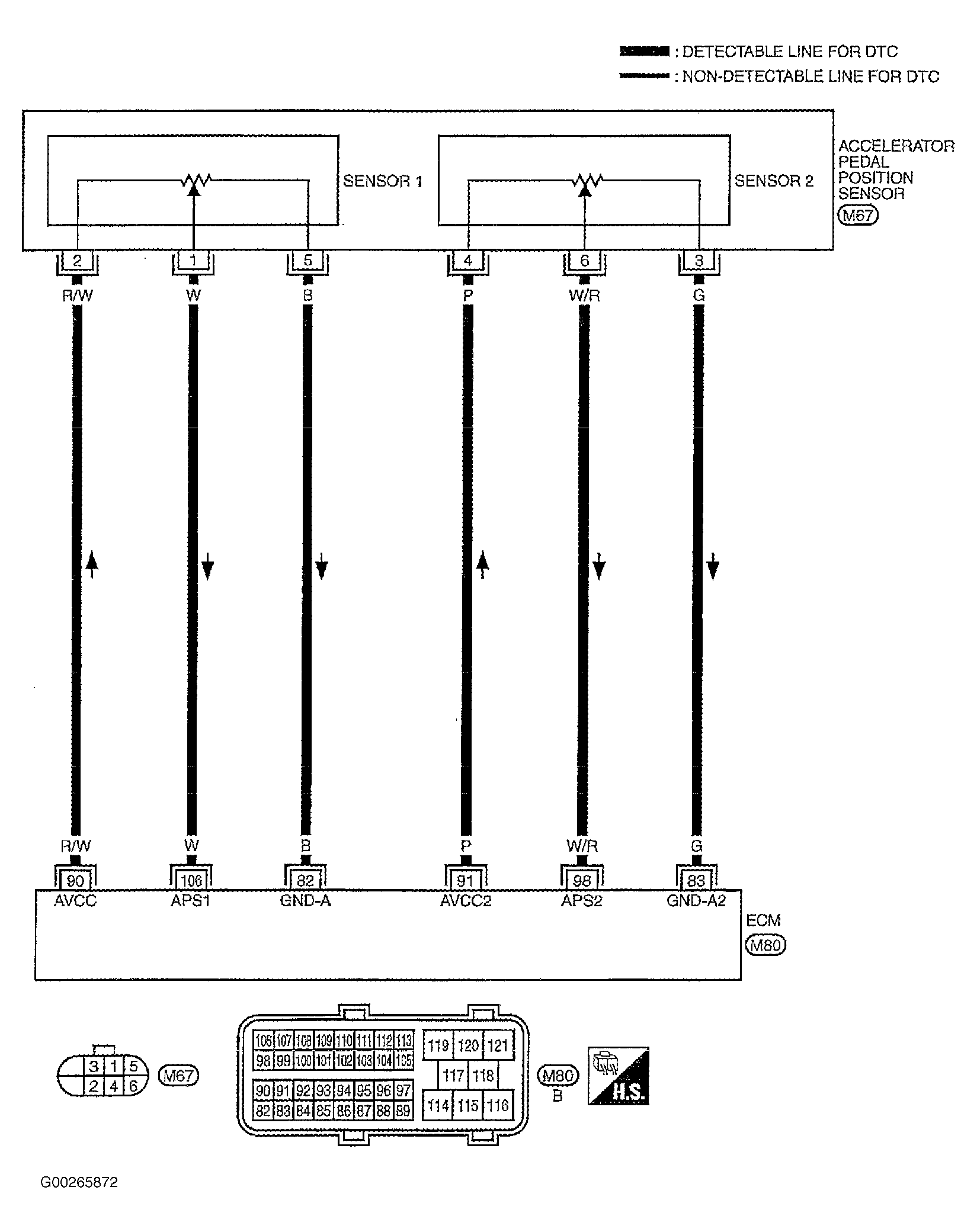

Fig 3: DTC P2138 (3 Of 6)
G00265872Courtesy of NISSAN MOTOR CO., U.S.A.

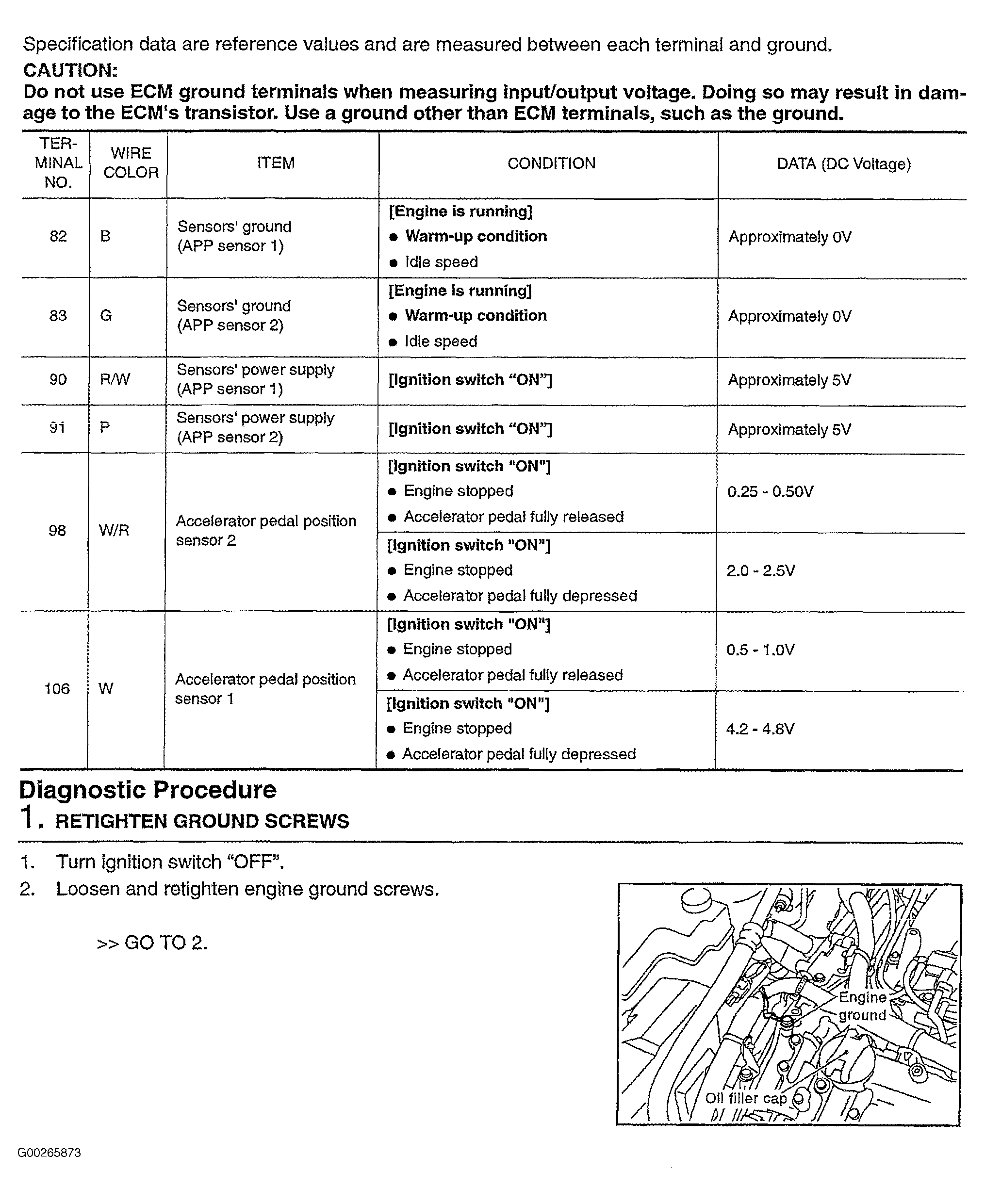

Fig 4: DTC P2138 (4 Of 6)
G00265873Courtesy of NISSAN MOTOR CO., U.S.A.

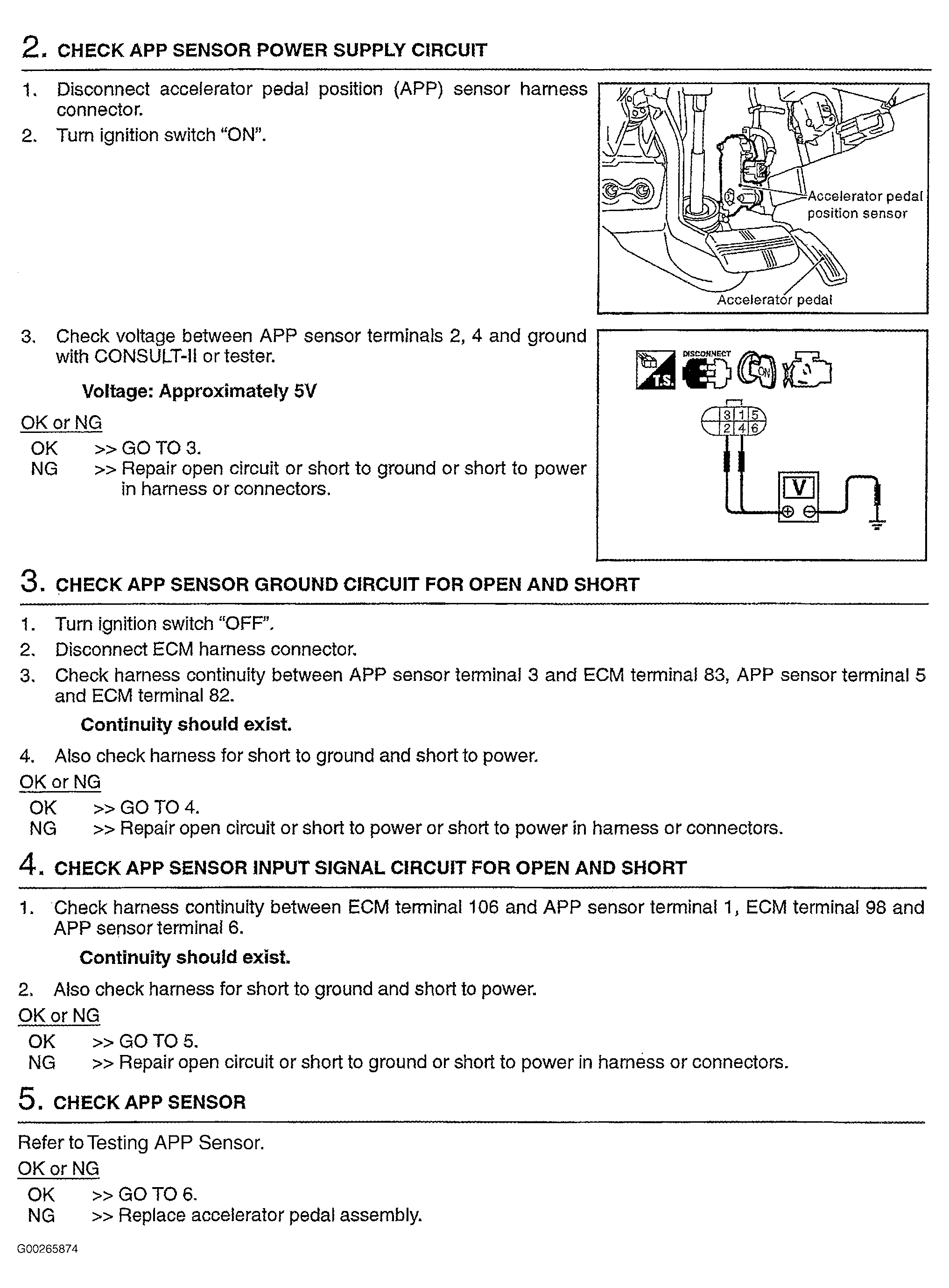

Fig 5: DTC P2138 (5 Of 6)
G00265874Courtesy of NISSAN MOTOR CO., U.S.A.

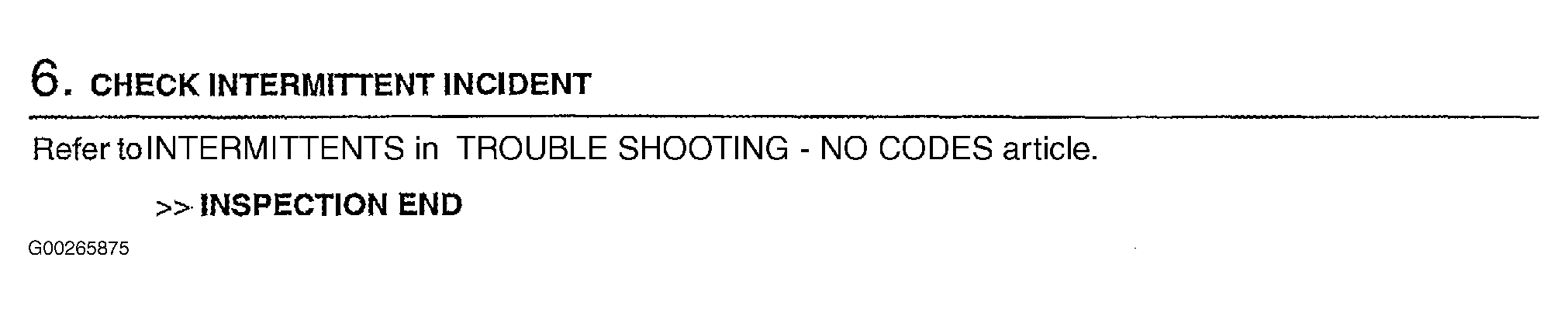

Fig 6: DTC P2138 (6 Of 6)
G00265875Courtesy of NISSAN MOTOR CO., U.S.A.

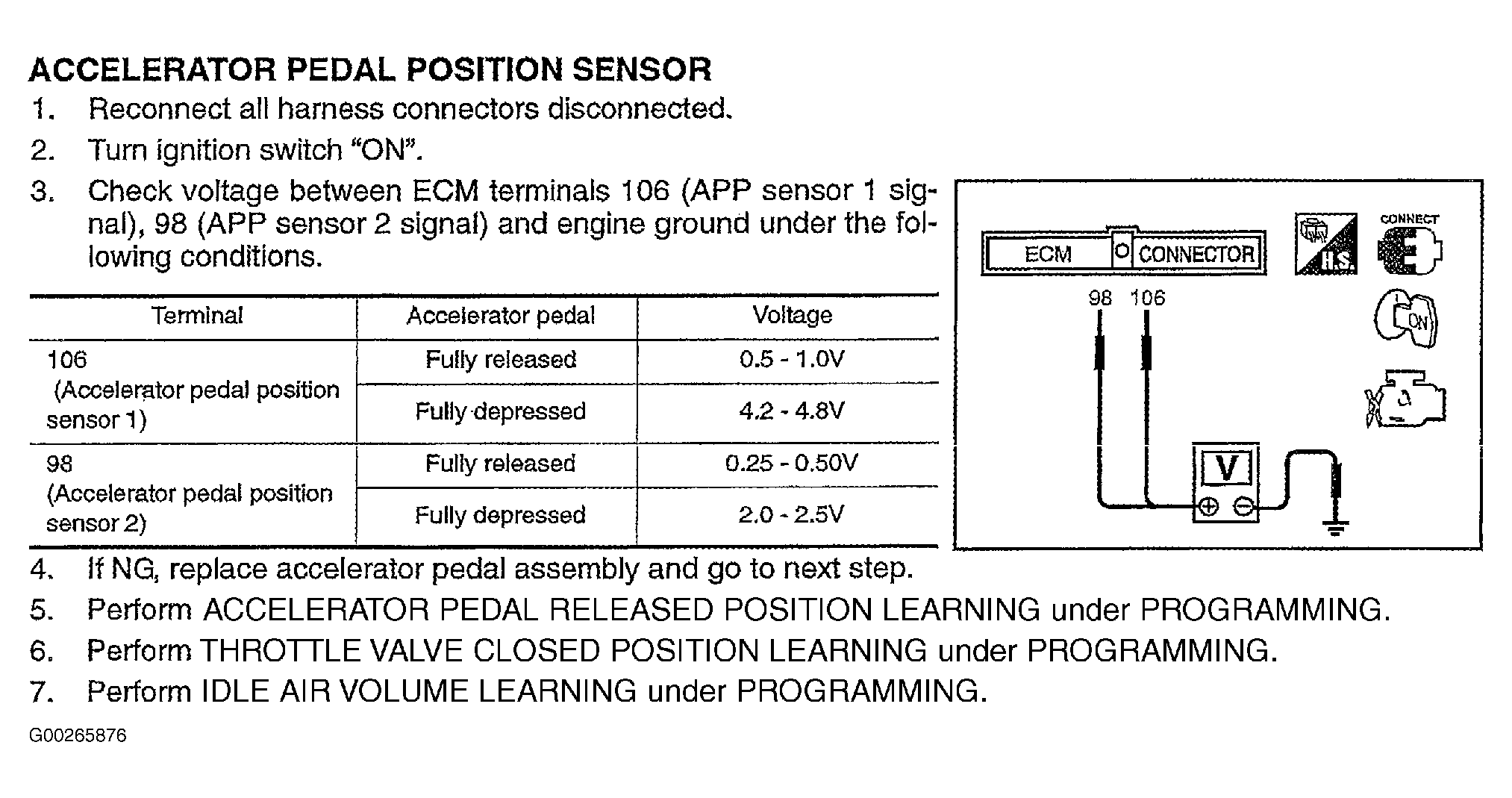

Fig 7: Testing Accelerator Pedal Position Sensor
G00265876Courtesy of NISSAN MOTOR CO., U.S.A.
