Wiring Diagram & Reference Data For Intake Air Temperature Sensor
WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
For wiring diagram, specification data and reference values for Intake Air Temperature (IAT) sensor, see Fig 1
and Fig 2
.

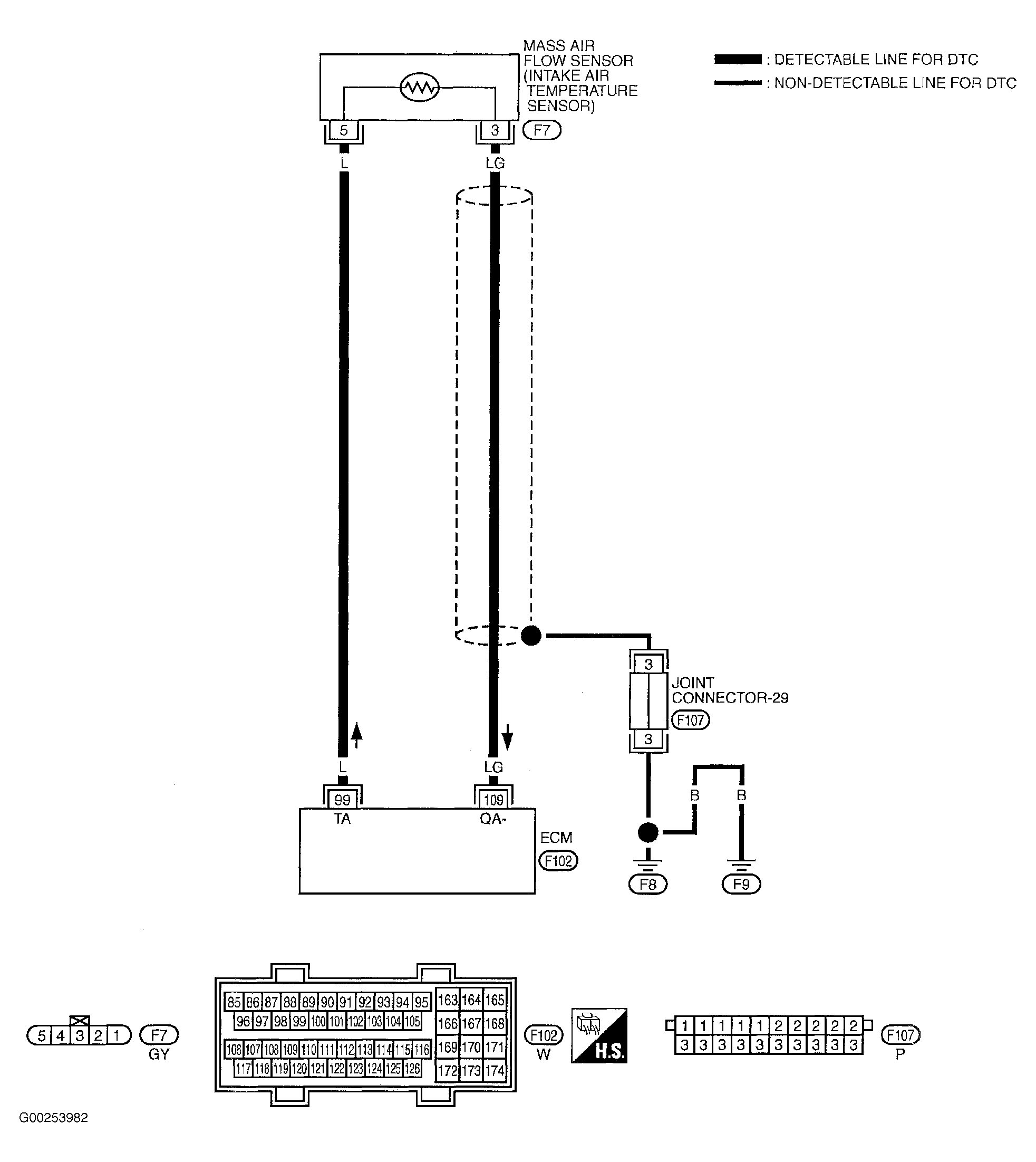

Fig 1: Wiring Diagram For Intake Air Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

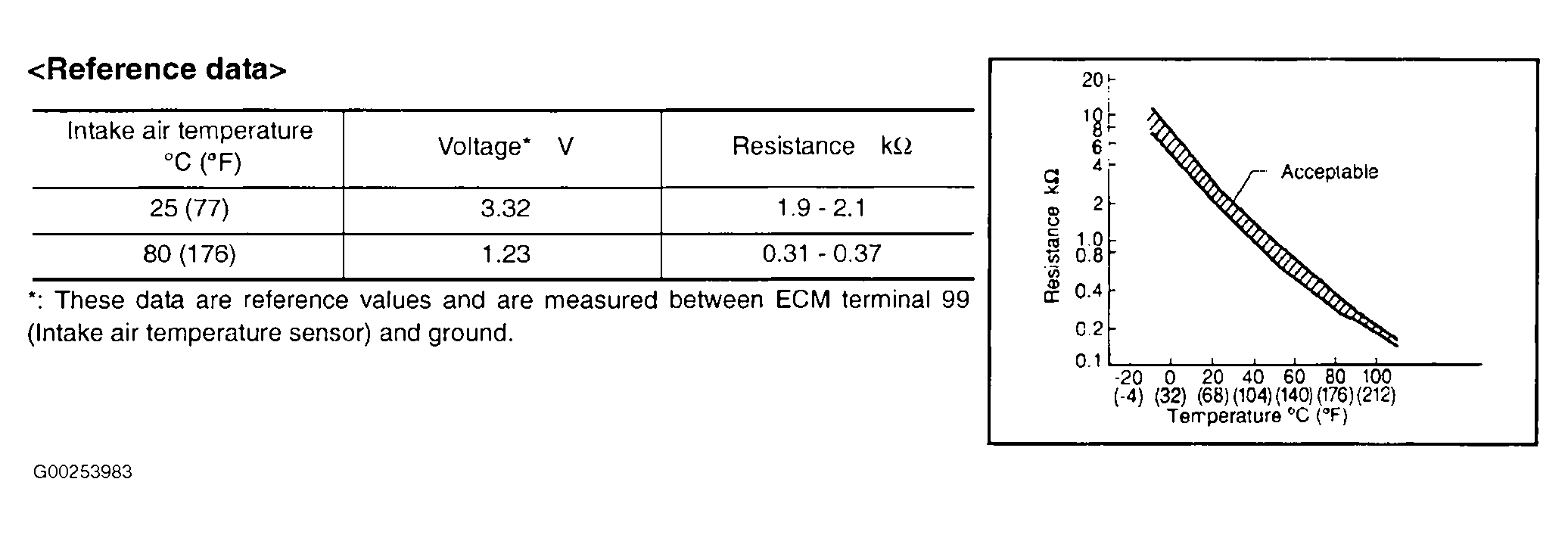

Fig 2: Reference Data For Intake Air Temperature Sensor
