Wiring Diagram & Specification Data For Throttle Position Sensor

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram and specification data for Throttle Position (TP) sensor, see Fig 1 and Fig 2 .

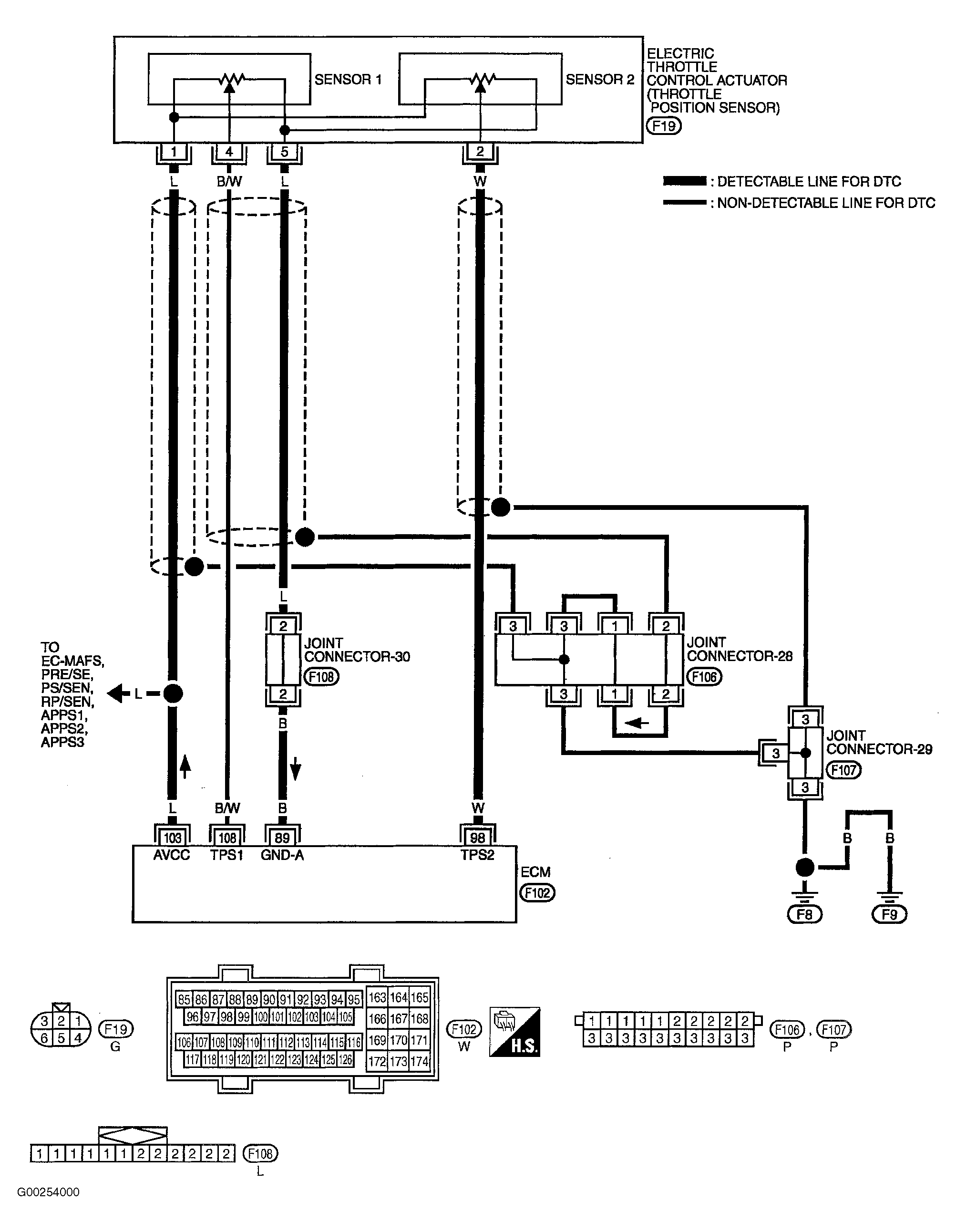

Fig 1: Wiring Diagram For Throttle Position Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

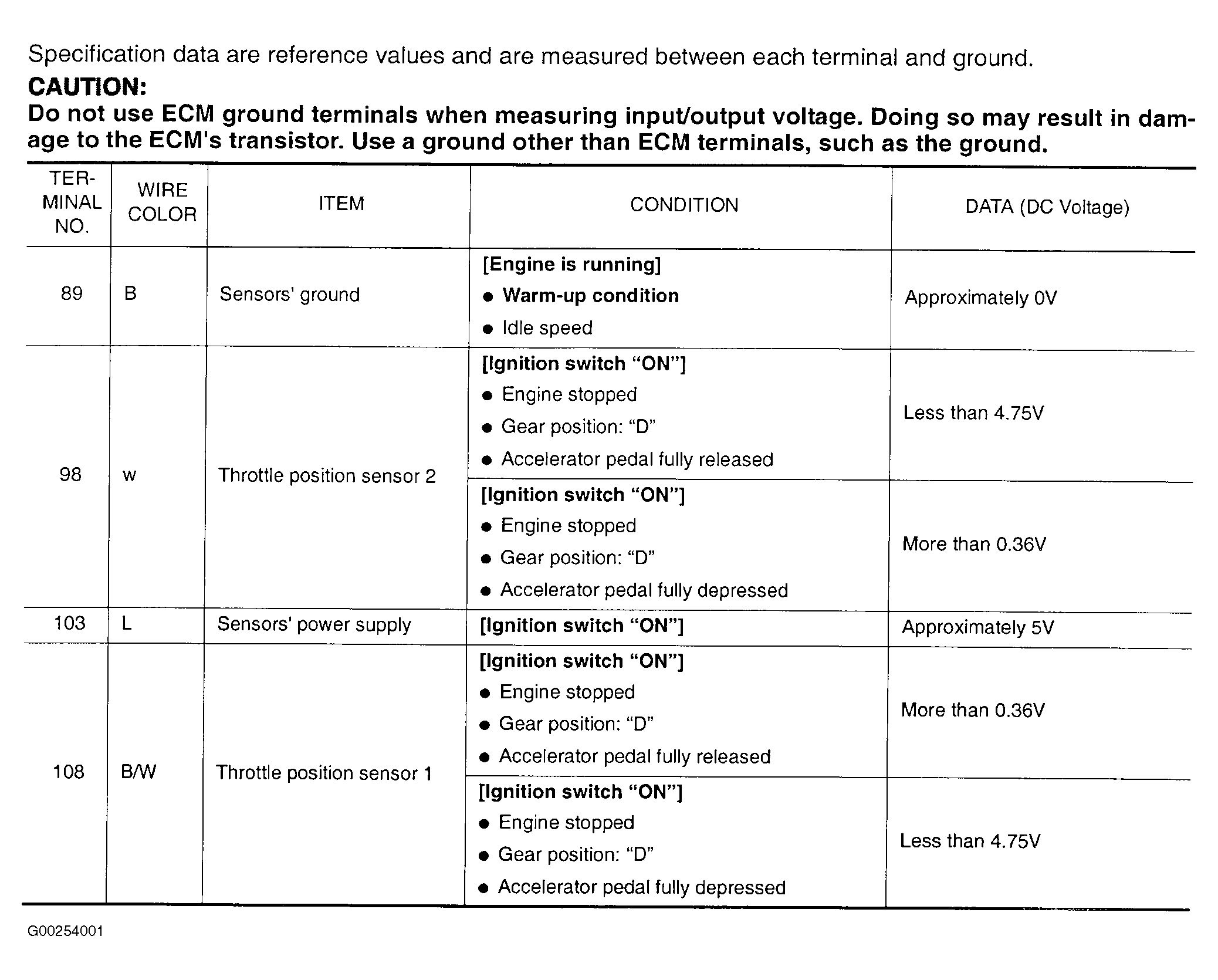

Fig 2: Specification Data & Reference Values For Throttle Position Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
