Component Description, Reference Data, On Board Diagnosis Logic & Fail-Safe Mode

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

For component description, reference data, on board diagnosis logic and fail-safe mode, see Fig 1 .

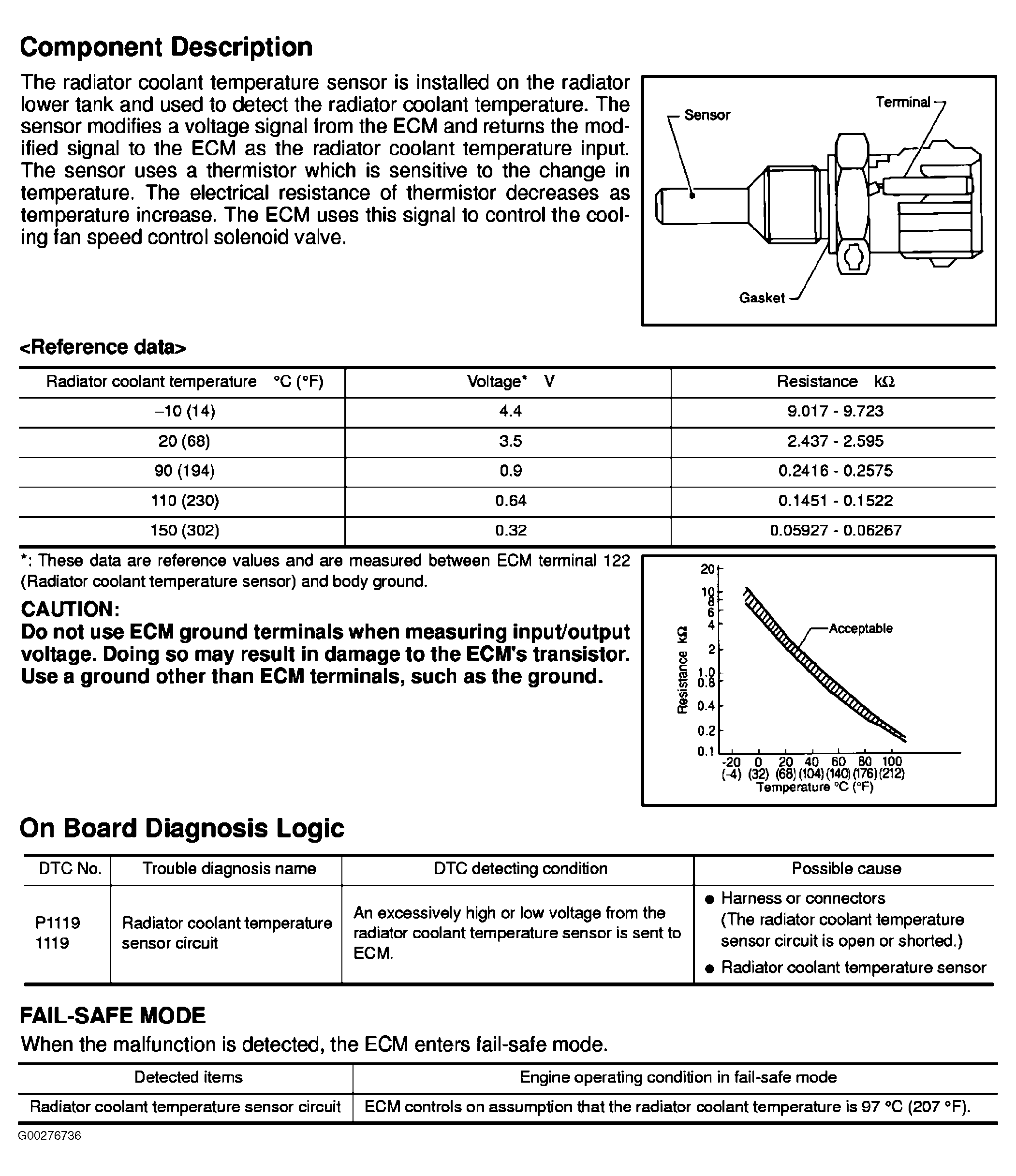

Fig 1: Component Description, Reference Data, On Board Diagnosis Logic & Fail-Safe Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
