Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic procedure, see Fig 1 -Fig 3 .

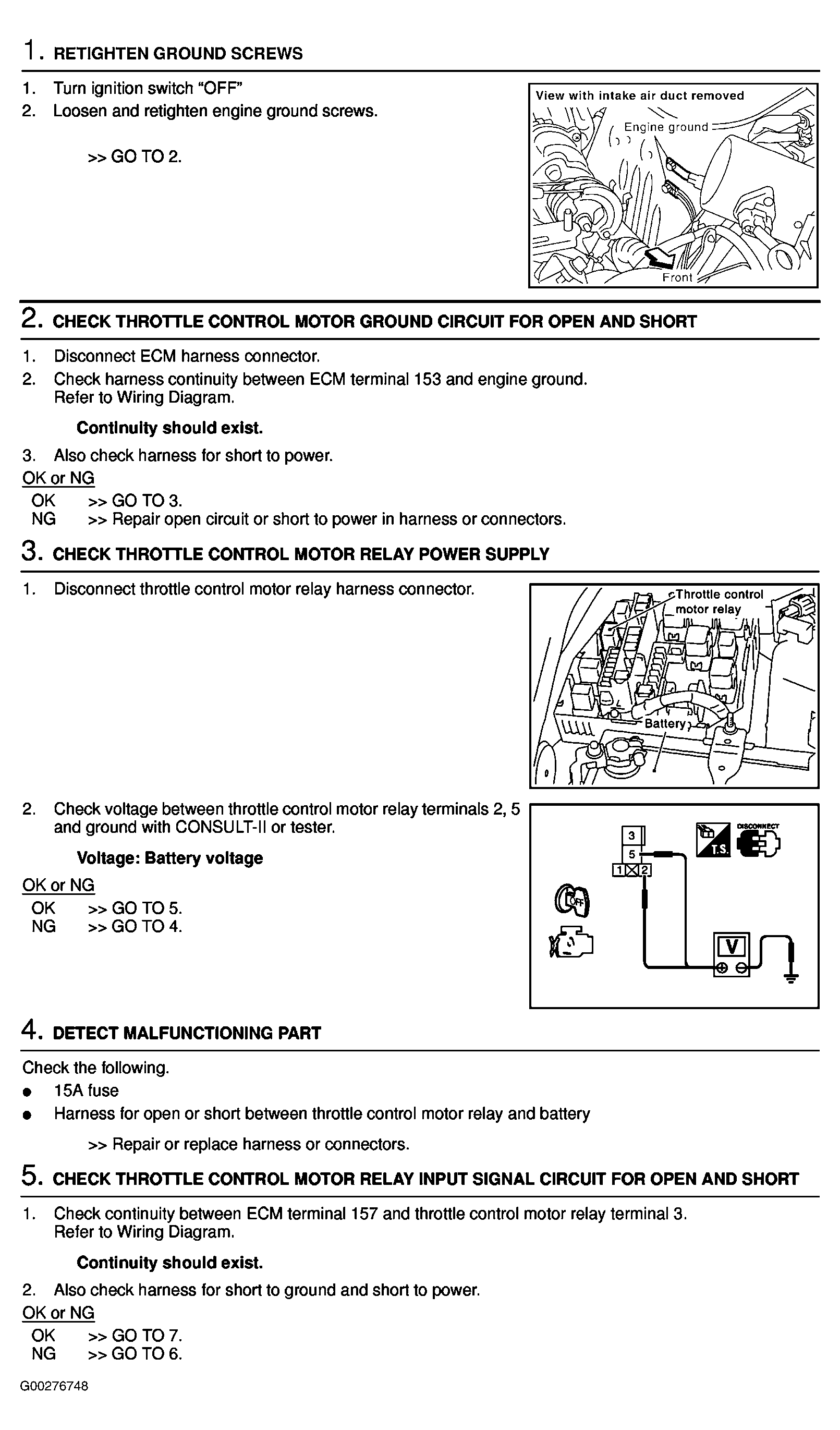

Fig 1: Diagnostic Procedure (Steps 1-5)

Courtesy of NISSAN MOTOR CO., U.S.A.

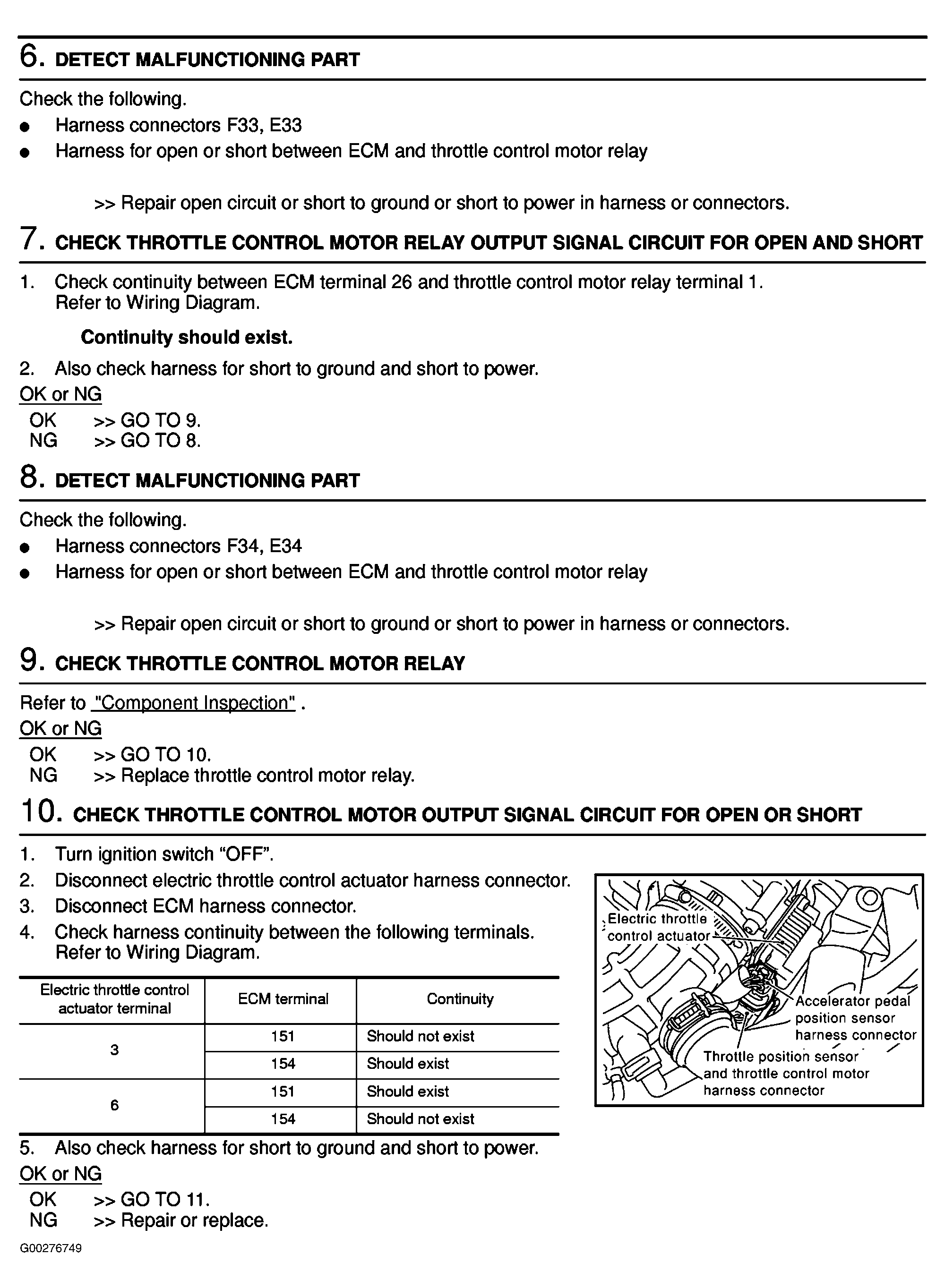

Fig 2: Diagnostic Procedure (Steps 6-10)

Courtesy of NISSAN MOTOR CO., U.S.A.

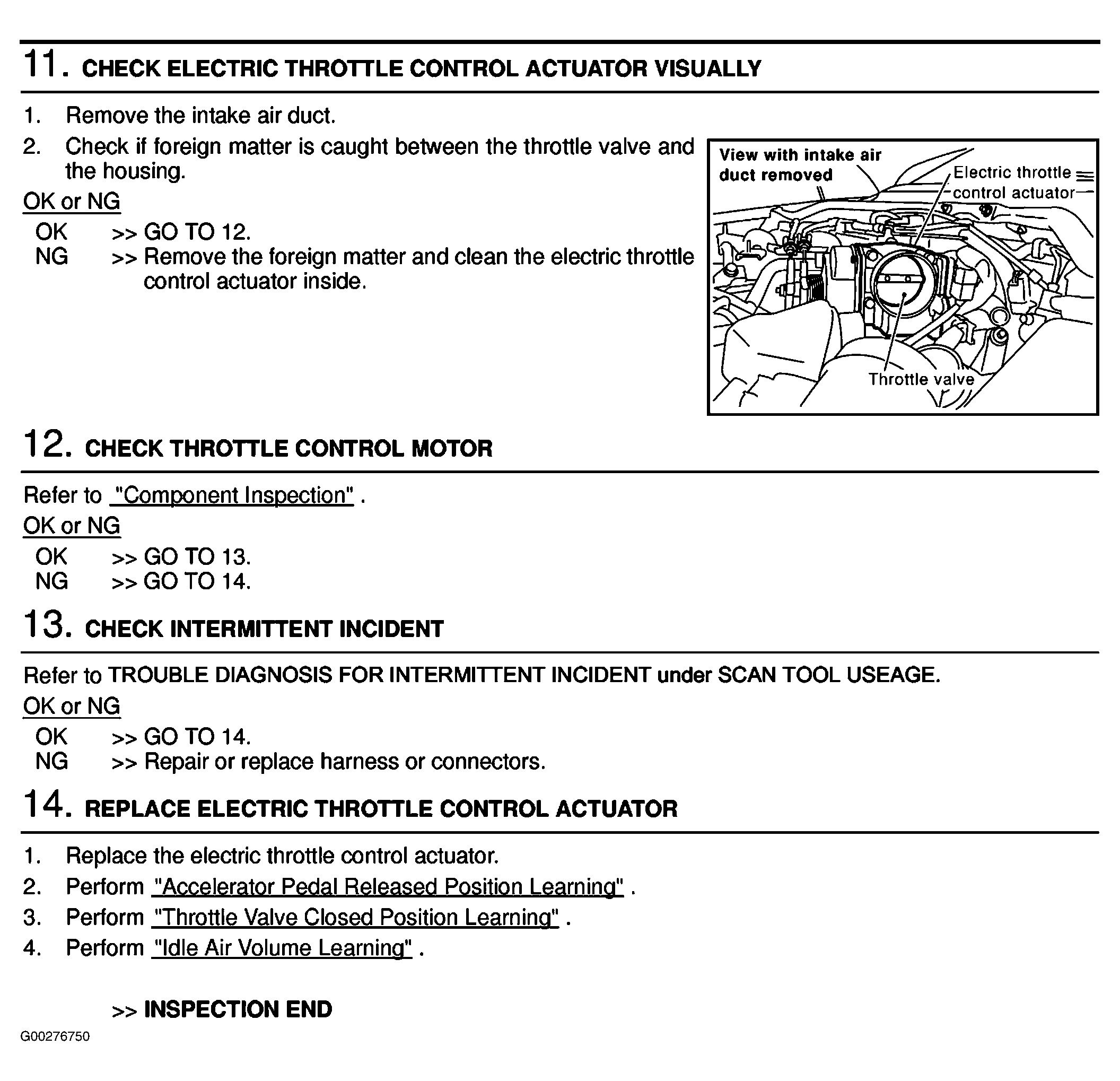

Fig 3: Diagnostic Procedure (Steps 11-14)

Courtesy of NISSAN MOTOR CO., U.S.A.
