Component Description, On Board Diagnosis Logic & DTC Confirmation Procedure

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

For component description, on board diagnosis logic and DTC confirmation procedure, see Fig 1 .

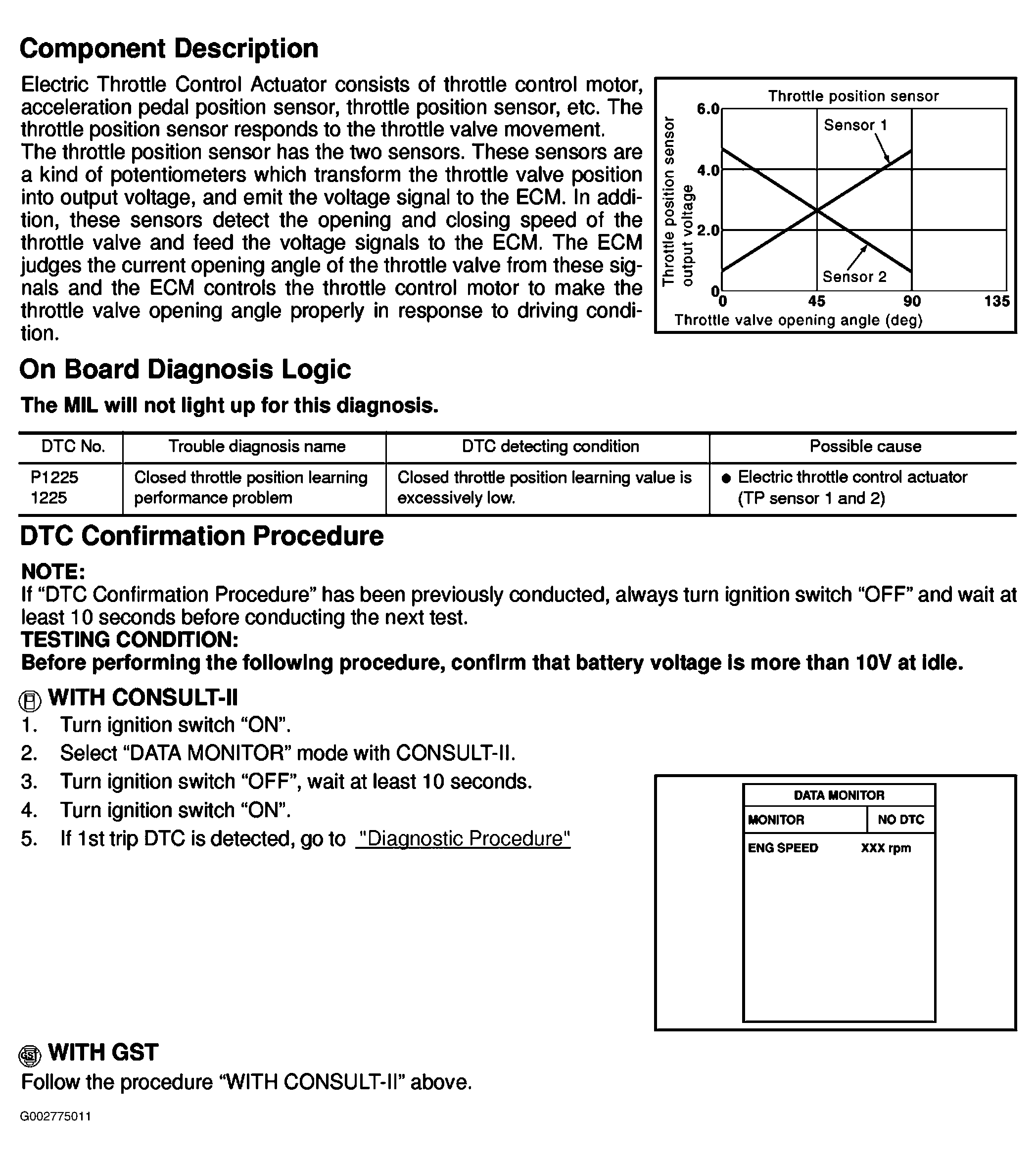

Fig 1: Component Description, On Board Diagnosis Logic & DTC Confirmation Procedure

Courtesy of NISSAN MOTOR CO., U.S.A.
