Element Check

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Attach probe circuit tester (ohm setting) to antenna terminal on each side.

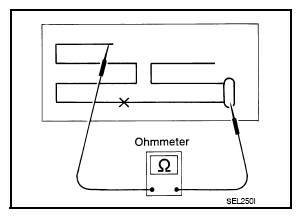

Fig 1: Identifying Connection Between Probe Circuit Tester And Antenna Terminal
Courtesy of NISSAN NORTH AMERICA, INC.
- When measuring continuity, wrap tin foil around the top of probe. Then, press the foil against the wire with your finger .

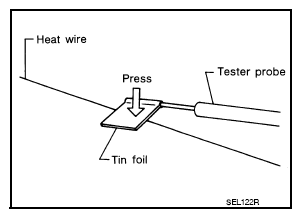

Fig 2: Pressing Tin Foil Against Heat Wire
Courtesy of NISSAN NORTH AMERICA, INC.
If an element is broken, no continuity will exist.

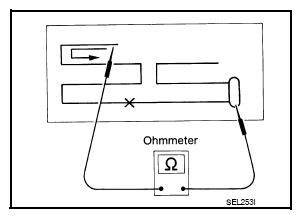

Fig 3: Checking Continuity Of Antenna Terminal
Courtesy of NISSAN NORTH AMERICA, INC.
To locate a break, move probe along element. Tester indication will change abruptly when probe passes the broken point.

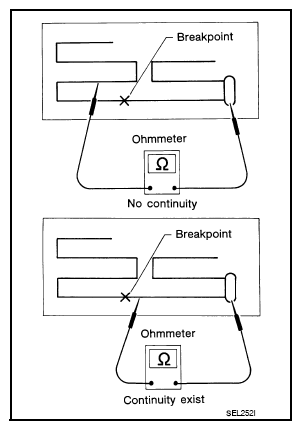

Fig 4: Locating Break Point In Antenna Terminal Using Ohmmeter

Courtesy of NISSAN NORTH AMERICA, INC.
