DISPLAY UNIT: Diagnosis Procedure

Regarding Wiring Diagram information, refer to "WIRING DIAGRAM ".

1. CHECK POWER SUPPLY CIRCUIT
   1. Turn ignition switch to ACC.
   2. Check voltage between display unit harness connector M93 and ground.

      Signal name	Connector	Terminal	Ignition switch position	Value (Approx.)
      Inverter VCC	M93	2	ACC	9V
      Signal VCC		3

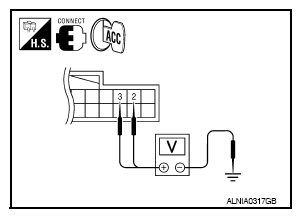

   Fig 1: Checking Voltage Between Display Unit Harness Connector M93 Terminals 2, 3 And Ground

   Courtesy of NISSAN NORTH AMERICA, INC.

   Does specified voltage exist?

   YES: GO TO  3

   NO: GO TO 2

2. CHECK POWER SUPPLY CIRCUIT
   1. Turn ignition switch OFF.
   2. Disconnect the display unit connector M93 and the AV control unit connector M133.
   3. Check continuity between the display unit harness connector M93 (A) and the AV control unit connector M133 (B).

      A		B		Continuity
      Connector	Terminal	Connector	Terminal
      M93	2	M133	59	Yes
      	3		47

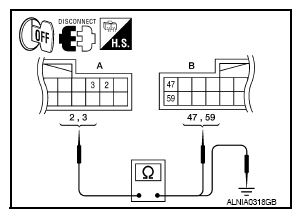

      Fig 2: Checking Continuity Between Display Unit Connector M93 (A) Terminals And AV Control Unit Connector M133 (B) Terminals

      Courtesy of NISSAN NORTH AMERICA, INC.
   4. Check continuity between the display unit harness connector M93 (A) and ground.

      A		-	Continuity
      Connector	Terminal
      M93	2	Ground	No
      	3

   Are continuity results as specified?

   YES: Check AV control unit power and ground supply. Refer to "AV CONTROL UNIT: DIAGNOSIS PROCEDURE ".

   NO: Repair harness or connector.

3. CHECK GROUND CIRCUIT
   1. Turn ignition switch OFF.
   2. Disconnect display unit connector.
   3. Check continuity between display unit harness connector and ground.

      Connector	Terminal	-	Continuity
      M93	1	Ground	Yes

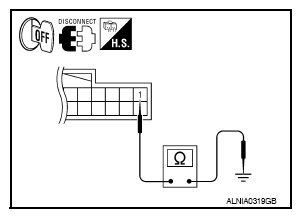

   Fig 3: Checking Continuity Between Display Unit Connector Terminal 1 And Ground

   Courtesy of NISSAN NORTH AMERICA, INC.

   Does continuity exist?

   YES: Inspection End.

   NO: Repair harness or connector.
