When a DTC is stored in ECM

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same malfunction is not detected after performing the driving pattern for MIL shutoff three times in a raw.

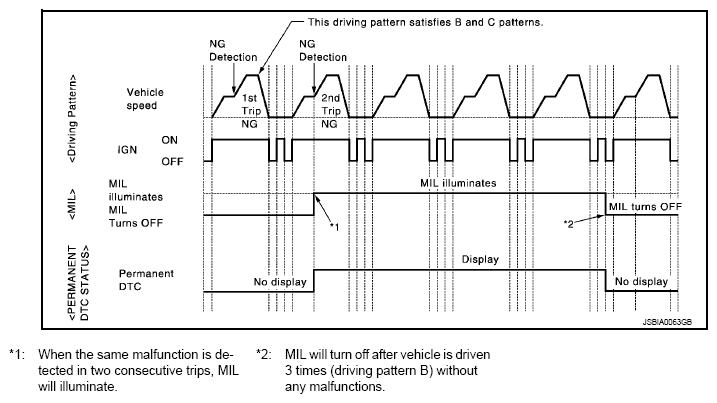

Fig 1: Vehicle Speed Driving Pattern
G07152398Courtesy of NISSAN NORTH AMERICA, INC.
