Component Inspection: Condenser-1

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect condenser-1 harness connector. For the condenser number, refer to "WIRING DIAGRAM ". For the condenser layout, refer to "HARNESS LAYOUT ".
  3. Check resistance between condenser-1 terminals 1 and 2.
Resistance Above 1 MΩ at 25°C (77°F)

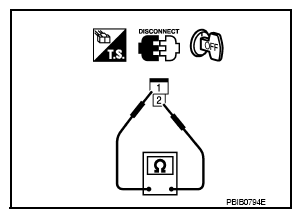

Fig 1: Checking Resistance Between Condenser-1 Terminals 1 And 2
G08170811Courtesy of NISSAN NORTH AMERICA, INC.
