Inspection With Consult-II (Self-Diagnosis)

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Check self diagnostic result .
1. Connect CONSULT-II and select IPDM E/R on the SELECT SYSTEM screen.
2. Select SELF-DIAG RESULTS on the SELECT DIAG MODE screen.
3. Check display content in self diagnostic results.

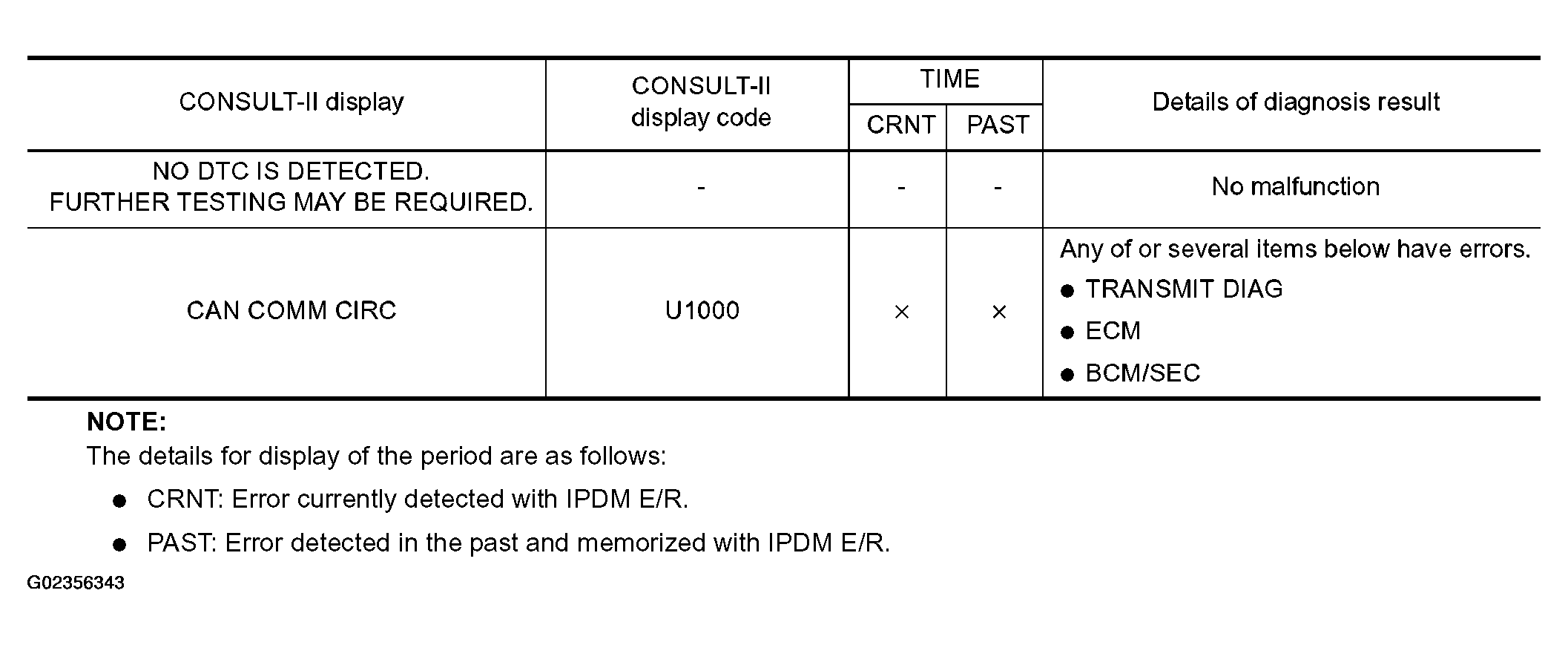

  Fig 1: CONSULT-II Self Diagnostic Results Displayed
  Courtesy of NISSAN MOTOR CO., U.S.A.
Contents displayed
1. NO DTC IS DETECTED. FURTHER TESTING MAY BE REQUIRED: INSPECTION END
2. CAN COMM CIRC: After print-out of the monitor items, refer to PRECAUTIONS WHEN USING CONSULT-II .
