Limit Switch Circuit Check (Driver Side)

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DRIVER SIDE LIMIT SWITCH SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between driver side power window motor connector and ground.

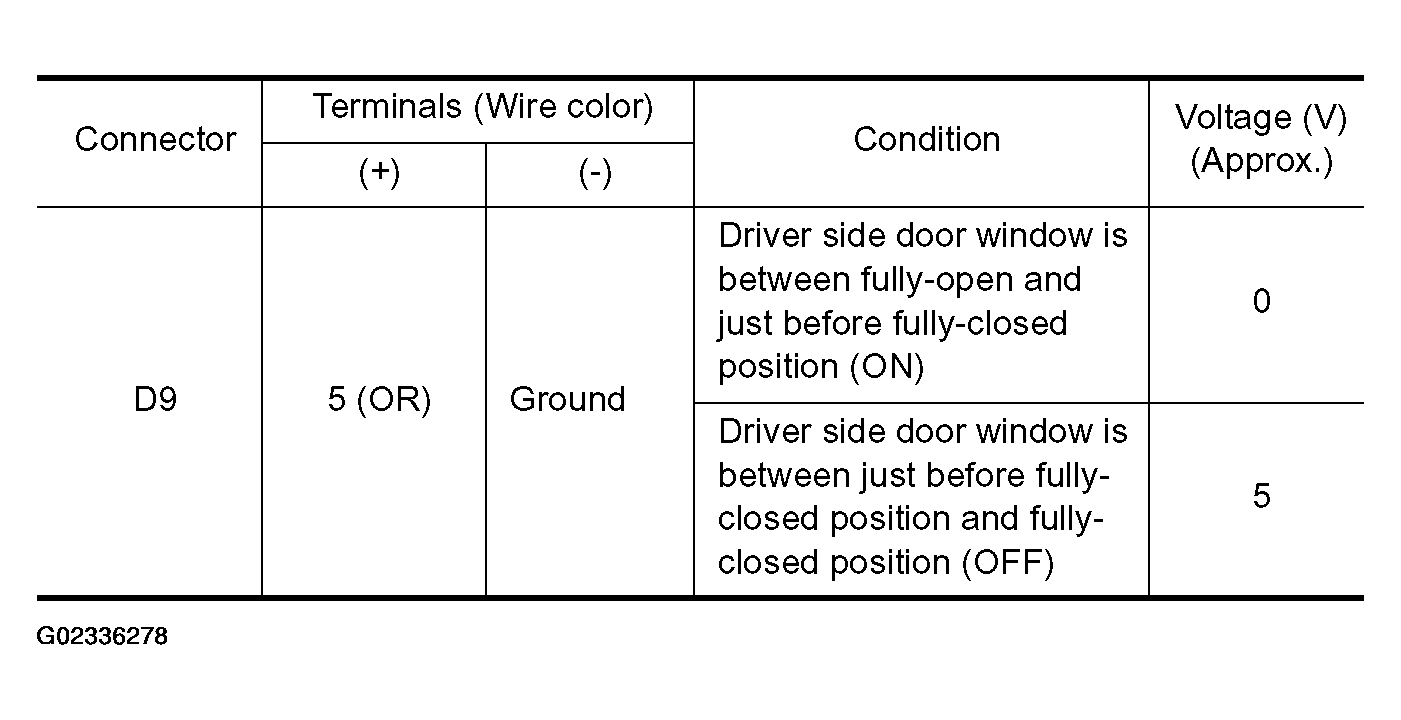

      Fig 1: Driver Side Power Window Motor Connector And Ground Voltage Table
      G02336278Courtesy of NISSAN MOTOR CO., U.S.A.

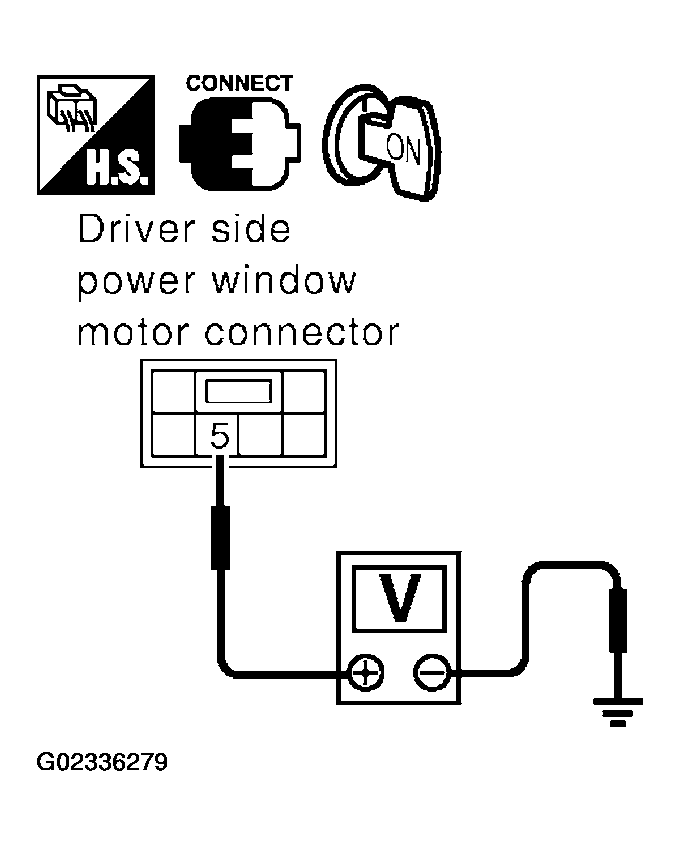

      Fig 2: Checking Voltage Between Driver Side Power Window Motor Connector And Ground
      G02336279Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Limit sw circuit is OK.
    2. NG: GO TO 2.
  2. CHECK LIMIT SWITCH GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect driver side power window motor connector.
    3. Check continuity between driver side power window motor connector D9 terminal 6 and ground.

      6 (PU) - Ground: Continuity should exist.

    OK or NG

    1. OK: GO TO  4
    2. NG: GO TO 3.

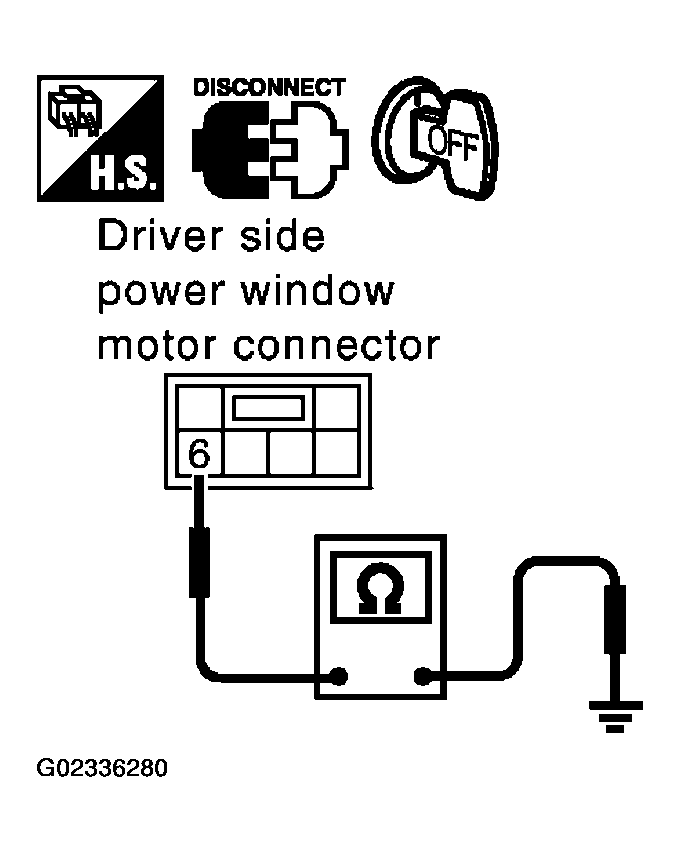

    Fig 3: Checking Continuity Between Driver Side Power Window Motor Connector D9 Terminal 6 And Ground
    G02336280Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK HARNESS CONTINUITY
    1. Disconnect power window main switch connector.
    2. Check continuity between power window main switch connector D7 terminal 14 and driver side power window motor connector D9 terminal 6.

      14 (PU) - 6 (PU) Continuity should exist.

    OK or NG

    1. OK: Replace power window main switch.
    2. NG: Repair or replace harness.

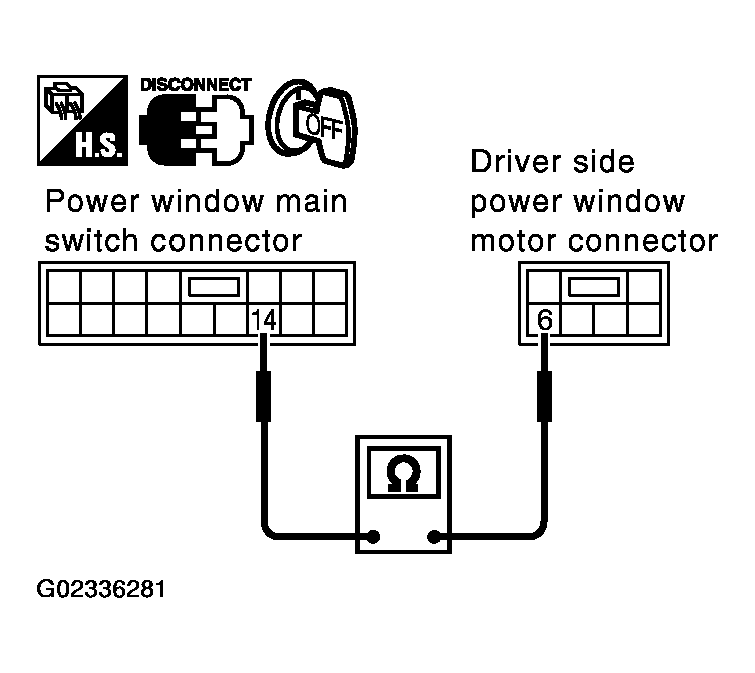

    Fig 4: Checking Continuity Between Power Window Main Switch Connector D7 Terminal 14 And Driver Side Power Window Motor Connector D9 Terminal
    G02336281Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between power window main switch connector D7 terminal 9 and ground.

      9 (OR) - Ground: Approx. 5V

    OK or NG

    1. OK: GO TO 5.
    2. NG: Replace power window main switch.

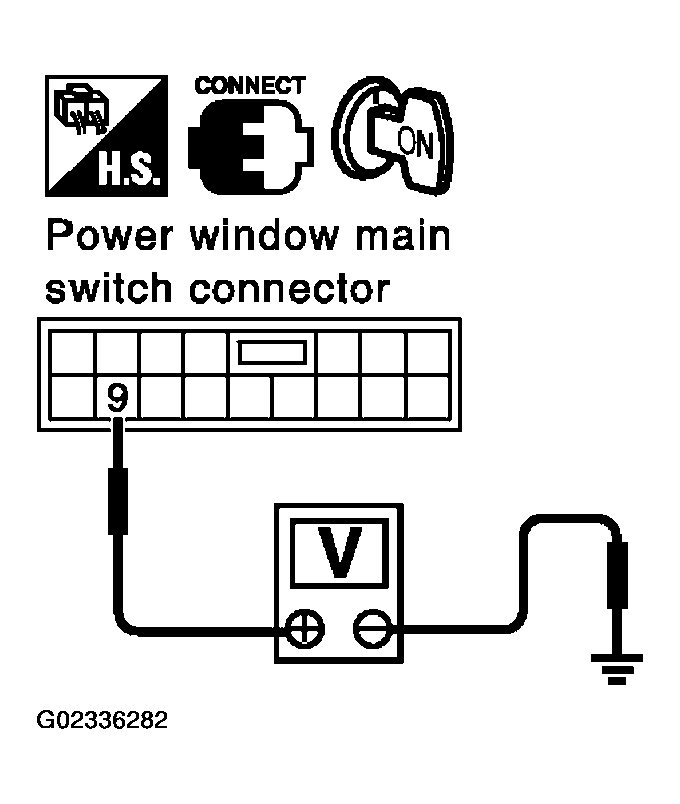

    Fig 5: Checking Voltage Between Power Window Main Switch Connector D7 Terminal 9 And Ground
    G02336282Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect power window main switch connector.
    3. Check continuity between power window main switch connector D7 terminal 9 and driver side power window motor connector D9 terminal 5.

      9 (OR) - 5 (OR): Continuity should exist.

    OK or NG

    1. OK: GO TO 6.
    2. NG: Repair or replace harness.

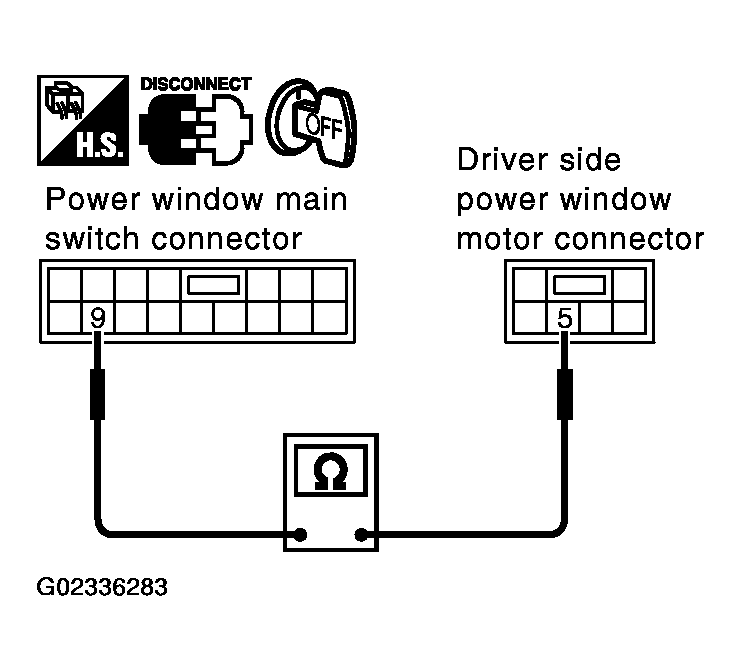

    Fig 6: Checking Continuity Between Power Window Main Switch Connector D7 Terminal And Driver Side Power Window Motor Connector D9 Terminal
    G02336283Courtesy of NISSAN MOTOR CO., U.S.A.
  6. CHECK LIMIT SWITCH
    1. Connect power window main switch and driver side power window motor connector.
    2. Check continuity between driver side power window motor connector D9 terminal 5 and 6.

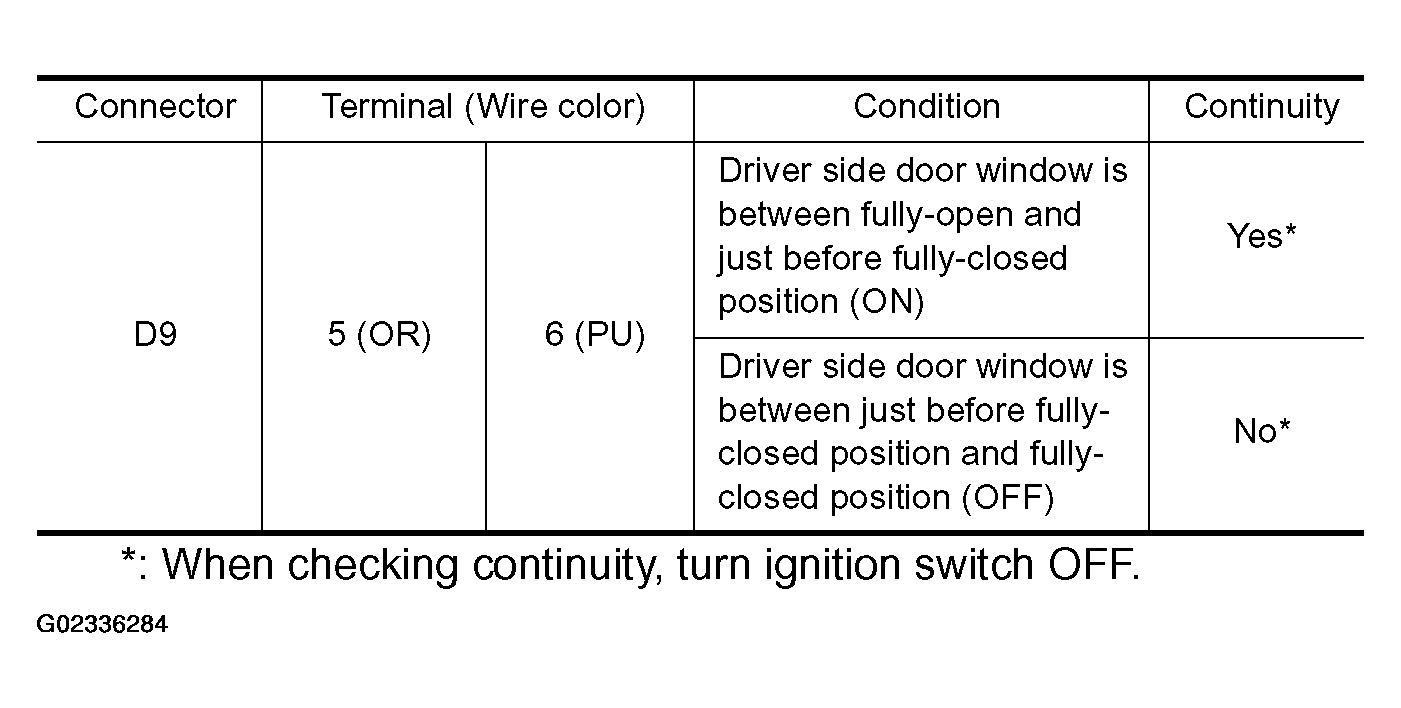

      Fig 7: Power Window Main Switch Connector D7 Terminal And Driver Side Power Window Motor Connector D9 Terminal Continuity Table
      G02336284Courtesy of NISSAN MOTOR CO., U.S.A.
      Fig 8: Checking Continuity Between Driver Side Power Window Motor Connector D9 Terminal 5 And 6
      G02336285Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Check the condition of the harness and the connector.
    2. NG: Replace driver side power window motor.
