Encoder Circuit Check (Rear LH or RH)/With Front and Rear Power Window Anti-Pinch System

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK ENCODER SIGNAL
    1. Turn ignition switch ON.
    2. Check the signal between power window sub-switch (rear LH or RH) connector D55 (LH), D75 (RH) and ground with oscilloscope.

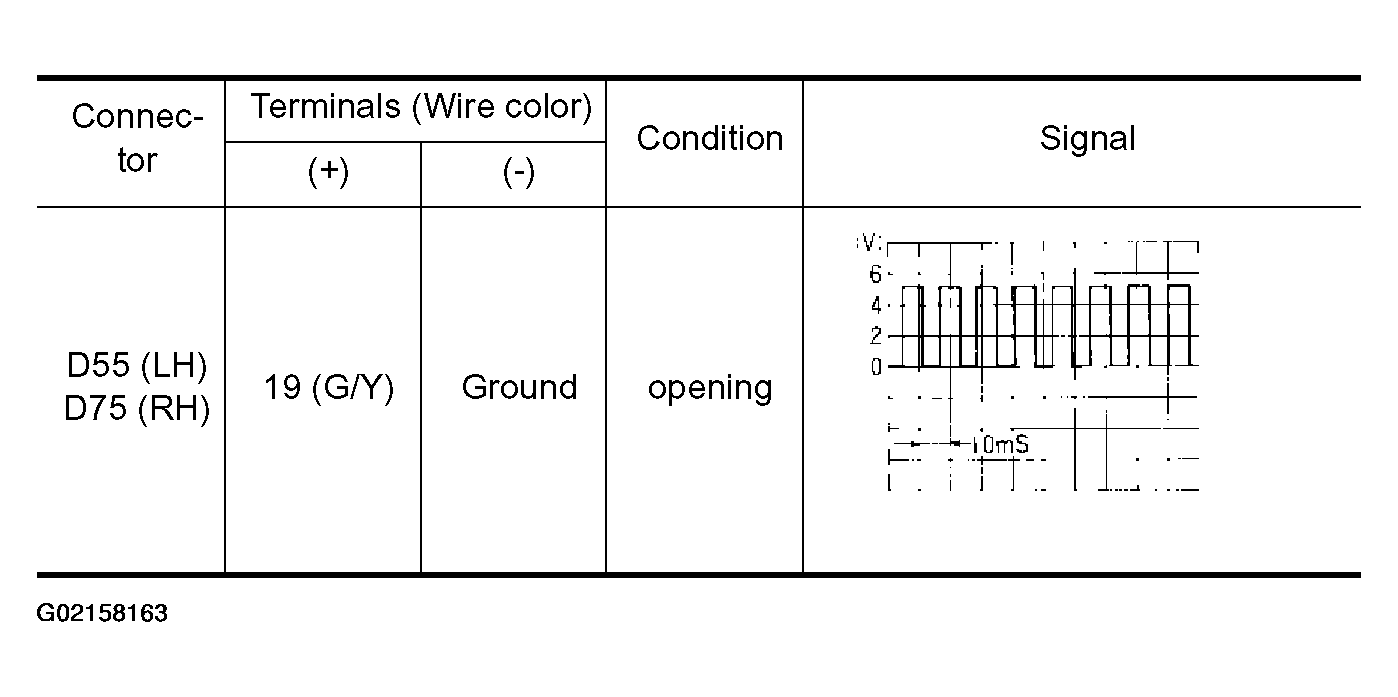

    Fig 1: Encoder Signal Reference Data Table
    G02158163Courtesy of NISSAN MOTOR CO., U.S.A.

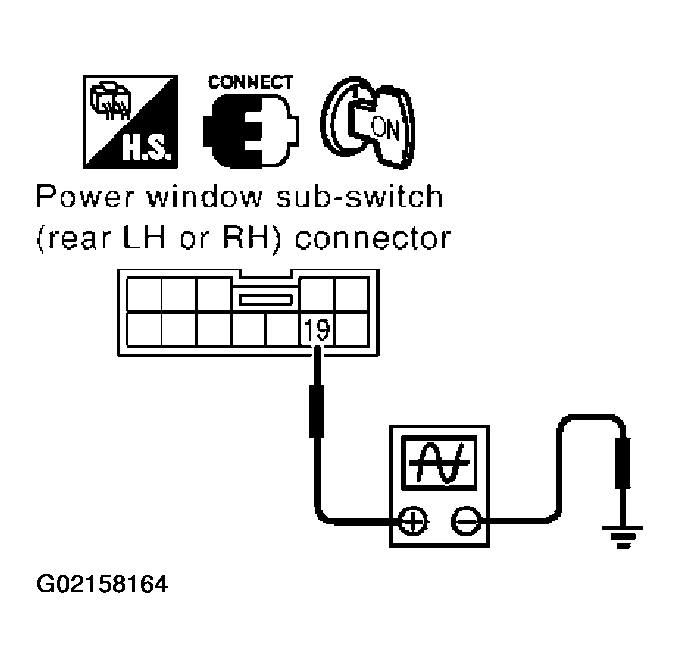

    Fig 2: Checking Signal Between Power Window Sub-Switch Connector D55 (LH), D75 (RH) And Ground
    G02158164Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : Encoder sw circuit is OK
    2. NG : GO TO 2.
  2. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect power window sub-switch (rear LH or RH) and power window regulator (rear LH or RH).
    3. Check continuity between power window sub-switch (rear LH or RH) connector D55 (LH), D75 (RH) terminal 19 and power window regulator (rear LH or RH) connector D52 (LH), D72 (RH) terminal 5.
      1. 19 (G/Y) - 5 (G/Y): Continuity should exist.

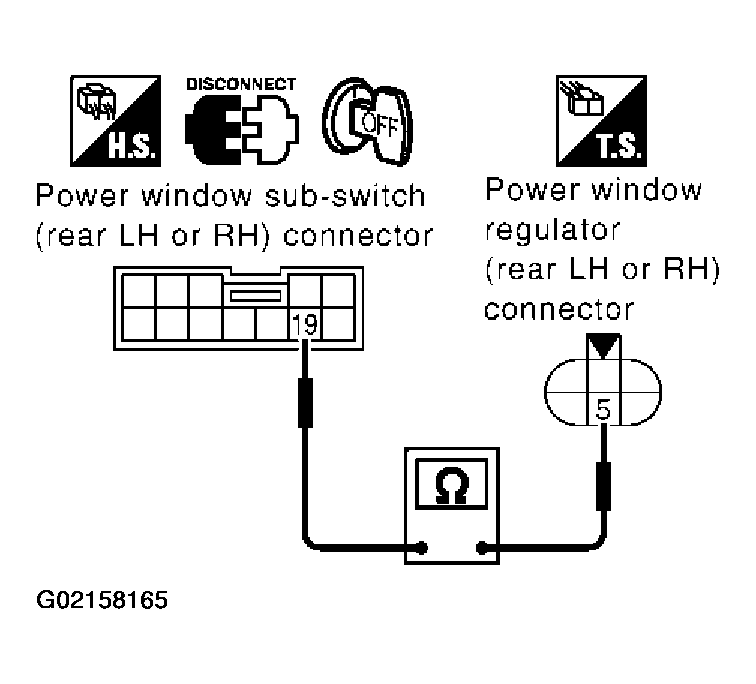

    Fig 3: Checking Continuity Between Connector D55 And Connector D52 (LH) Or Connector D75 And Connector D72 (RH)
    G02158165Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO 3.
    2. NG : Repair or replace harness between power window sub-switch (rear LH or RH) and power window regulator (rear LH or RH).
  3. CHECK ENCODER GROUND

    Check continuity between power window regulator (rear LH or RH) connector D52 (LH), D72 (RH) terminal 4 and ground.

    1. 4 (W/B) - Ground: Continuity should exist.

    OK or NG

    1. OK : Replace power window regulator (rear LH or RH).
    2. NG : GO TO 4.

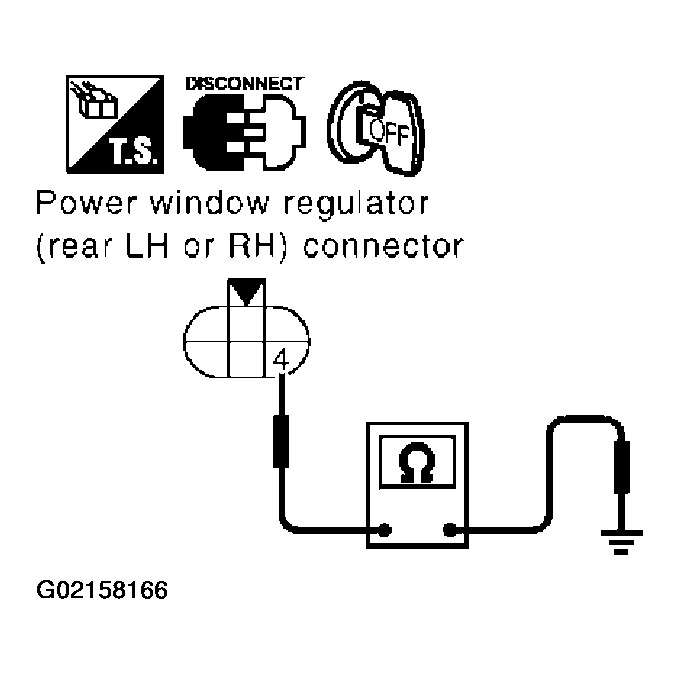

    Fig 4: Checking Continuity Between Connector D52 (LH) Or Connector D72 (RH) And Ground
    G02158166Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK ENCODER GROUND CIRCUIT

    Check continuity between power window regulator (rear LH or RH) connector D52 (LH), D72 (RH) terminal 4 and power window sub-switch (rear LH or RH) connector D55 (LH), D75 (RH) terminal 20.

    1. 6 (W/B) - 20 (W/B): Continuity should exist.

    OK or NG

    1. OK : Replace power window sub-switch (rear LH or RH).
    2. NG : Repair or replace harness between power window regulator (rear LH or RH) and power window sub-switch (rear LH or RH).

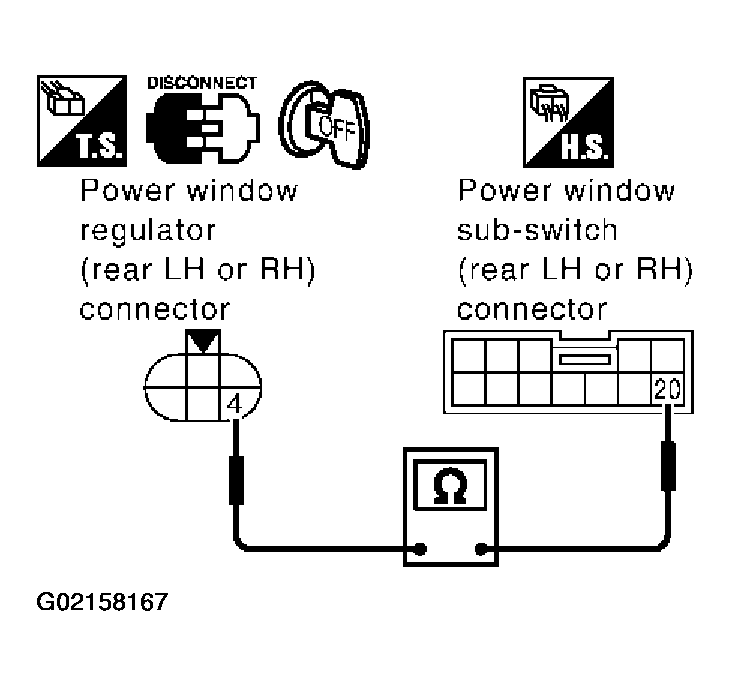

    Fig 5: Checking Continuity Between Connector D52 And Connector D55 (LH) Or Connector D72 And Connector D75 (RH)
    G02158167Courtesy of NISSAN MOTOR CO., U.S.A.
