Power Window Lock Switch Circuit Check/With Front Left and Right Power Window Anti-Pinch System

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER WINDOW LOCK SIGNAL
Check voltage between power window main switch connector and ground.

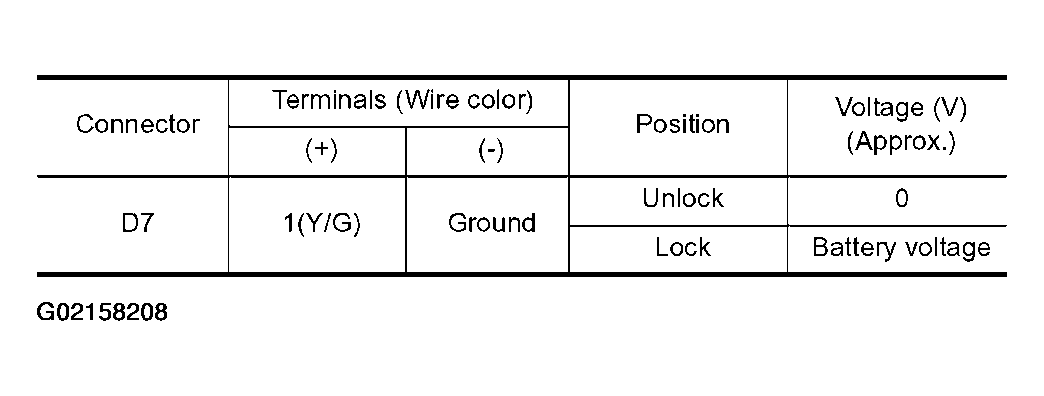

Fig 1: Power Window Lock Signal Reference Data Table
Courtesy of NISSAN MOTOR CO., U.S.A.

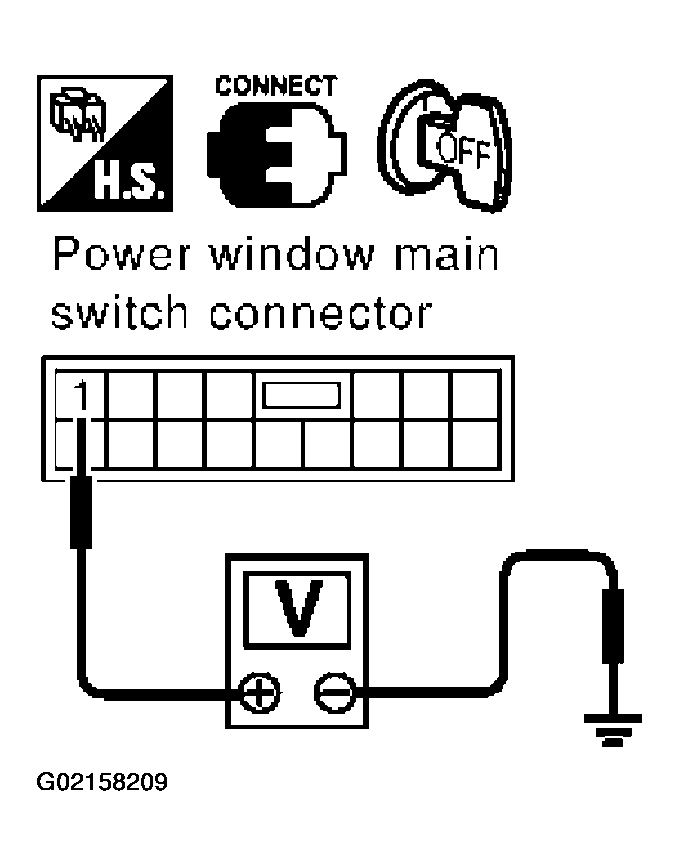

Fig 2: Checking Voltage Between Power Window Main Switch And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : GO TO 2
2. NG : Replace power window main switch.
CHECK POWER WINDOW LOCK SWITCH
Check continuity between power window main switch connector D7 terminal 1 and 5.

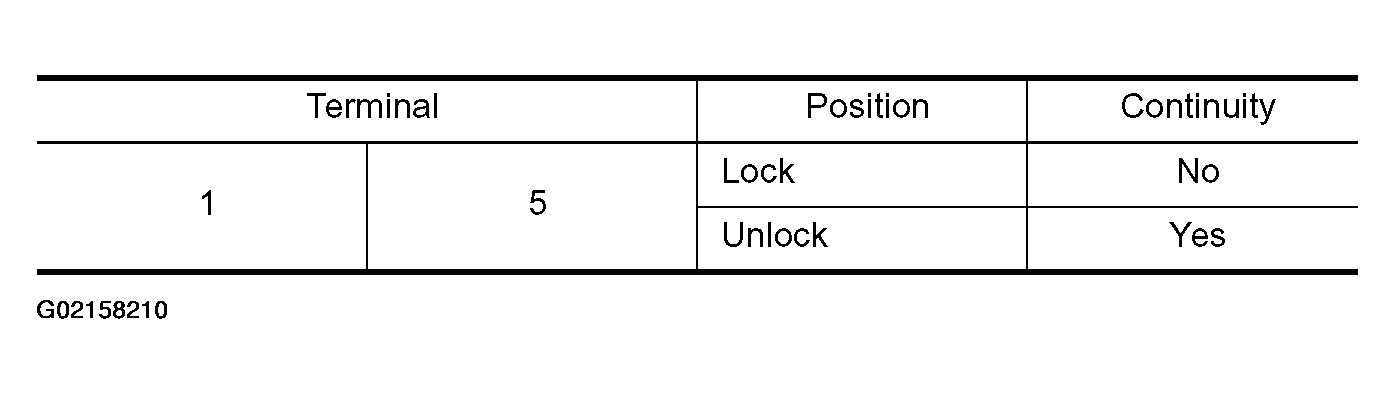

Fig 3: Power Window Lock Switch Reference Data Table
Courtesy of NISSAN MOTOR CO., U.S.A.

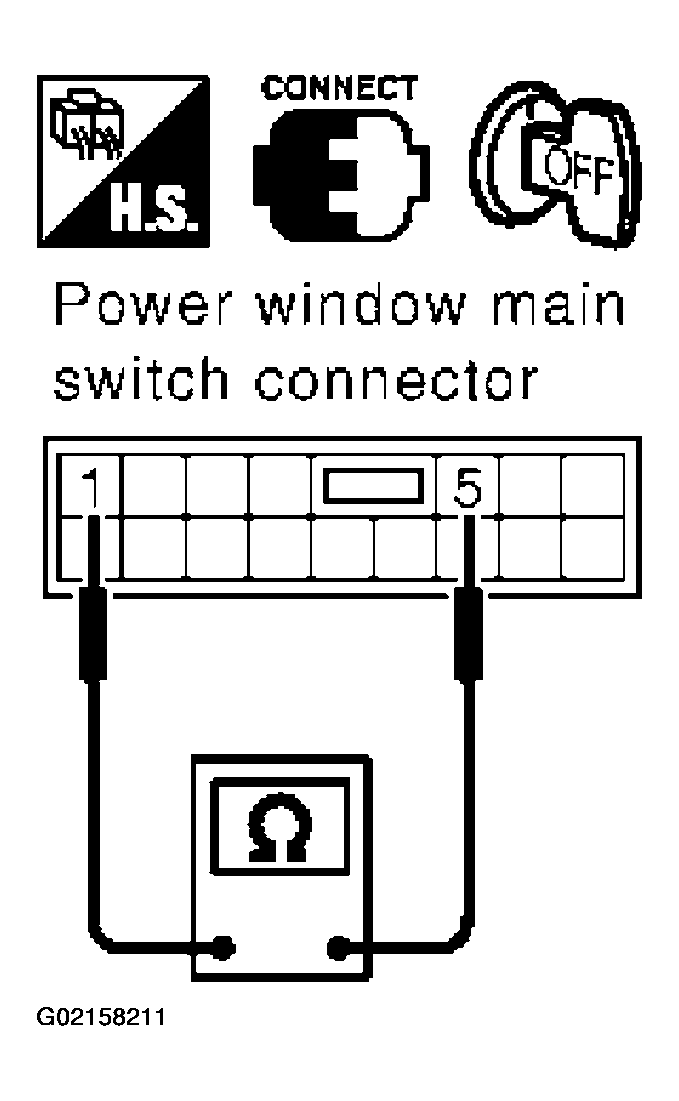

Fig 4: Checking Continuity Between Connector D7 Terminals 1 And 5
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : Check the condition of the harness and the connector.
2. NG : Replace power window main switch.
