Terminal and Reference Value for Power Window Main Switch/With Front Left and Right Power Window Anti-Pinch System

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

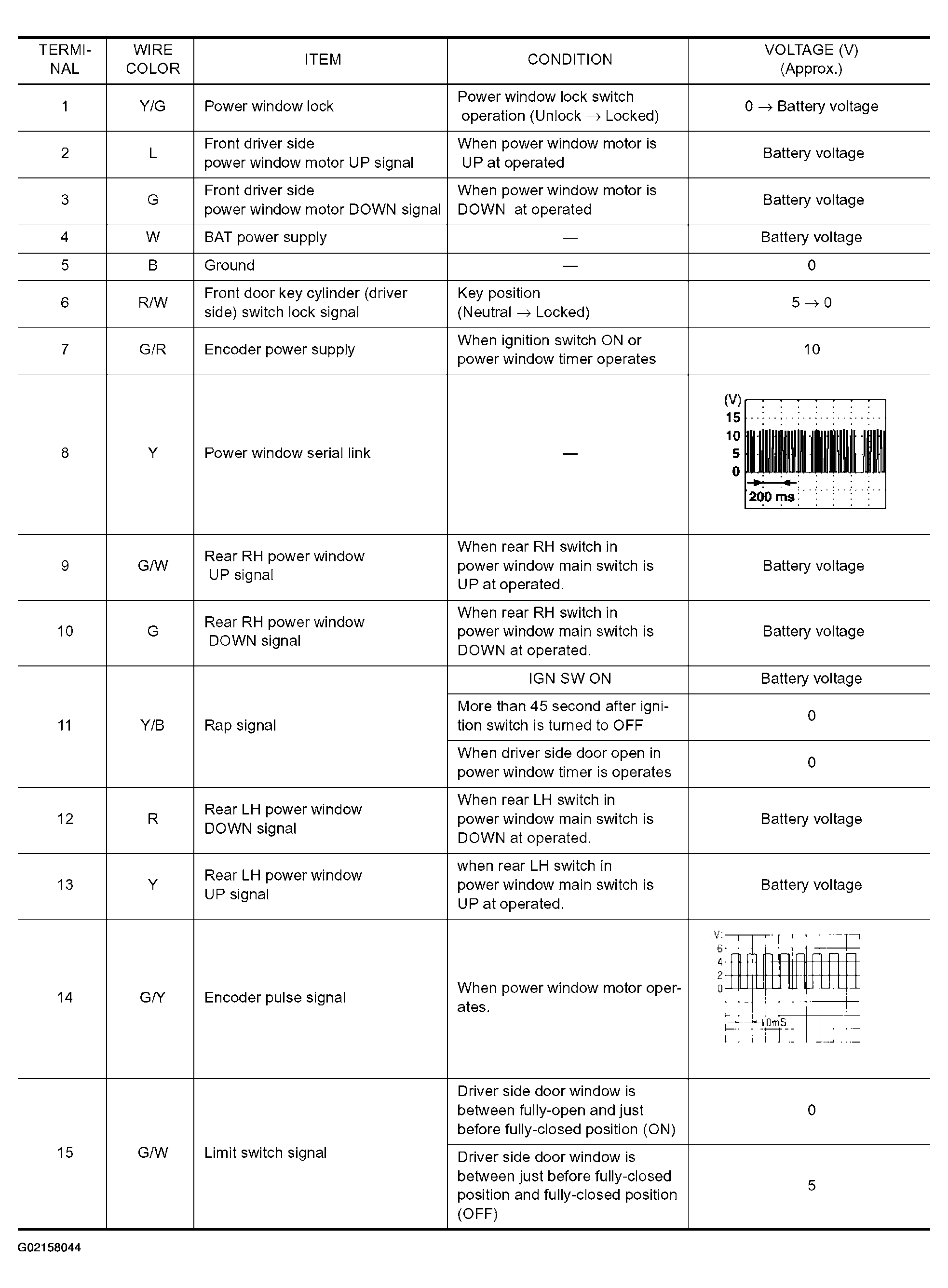

Fig 1: Power Window Main Switch Terminal And Reference Value Chart (1 Of 2)
G02158044Courtesy of NISSAN MOTOR CO., U.S.A.

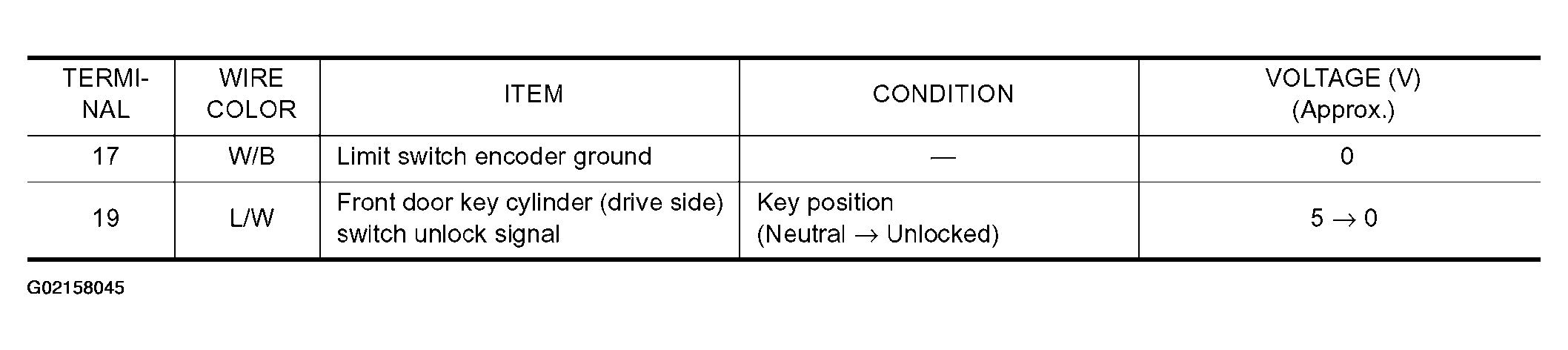

Fig 2: Power Window Main Switch Terminal And Reference Value Chart (2 Of 2)
G02158045Courtesy of NISSAN MOTOR CO., U.S.A.
