Terminal and Reference Value for Power Window Sub-Switch (Front Passenger Side)/With Front Left and Right Power Window Anti-Pinch System

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

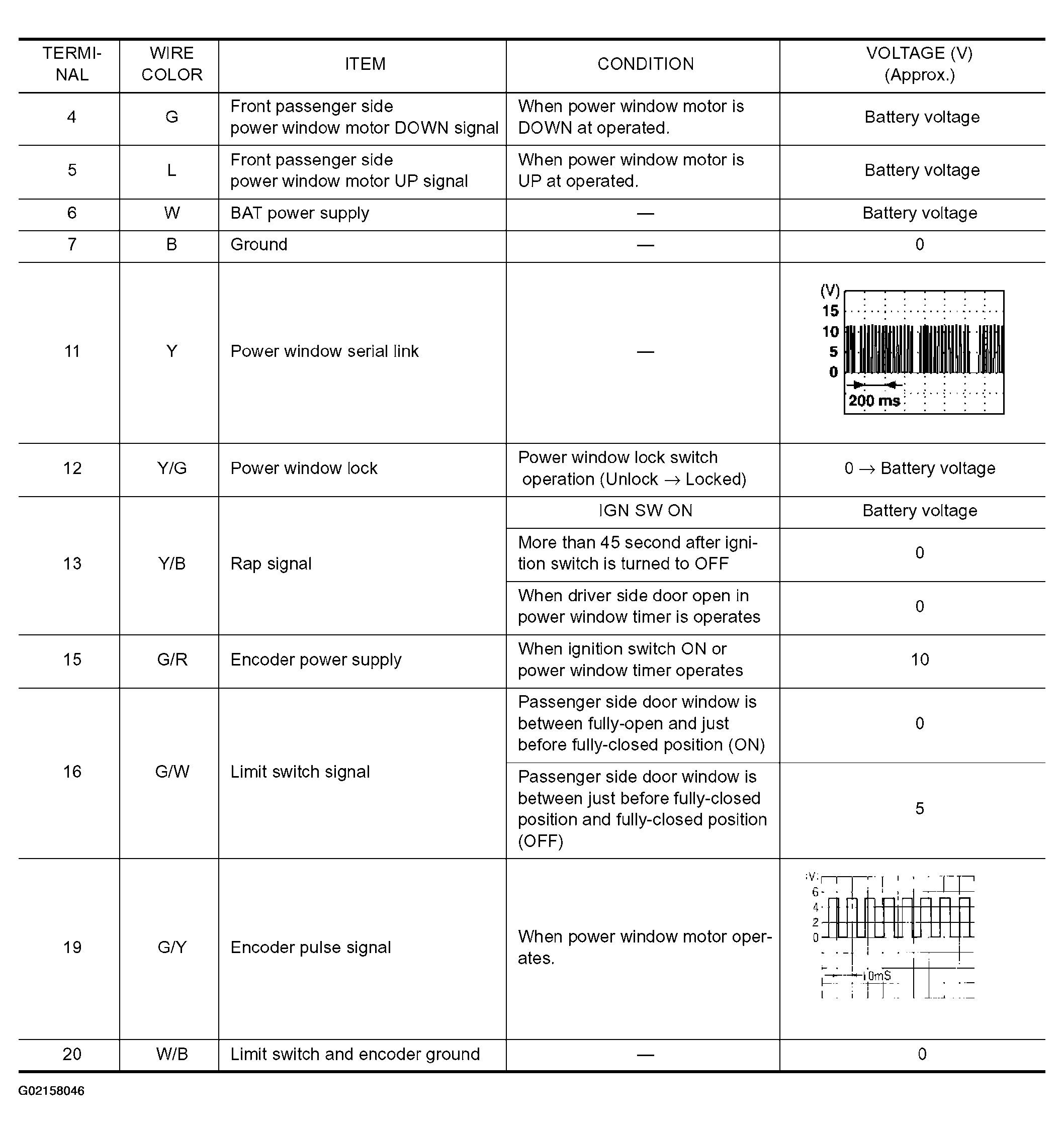

Fig 1: Power Window Sub-Switch Terminal And Reference Value Chart
G02158046Courtesy of NISSAN MOTOR CO., U.S.A.
