IPDM E/R Terminal Inspection

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove hood ledge cover. Refer to "REMOVAL AND INSTALLATION OF IPDM E/R  ".
  2. Remove cowl top cover (left).
  3. Pull up to remove IPDM E/R cover A.

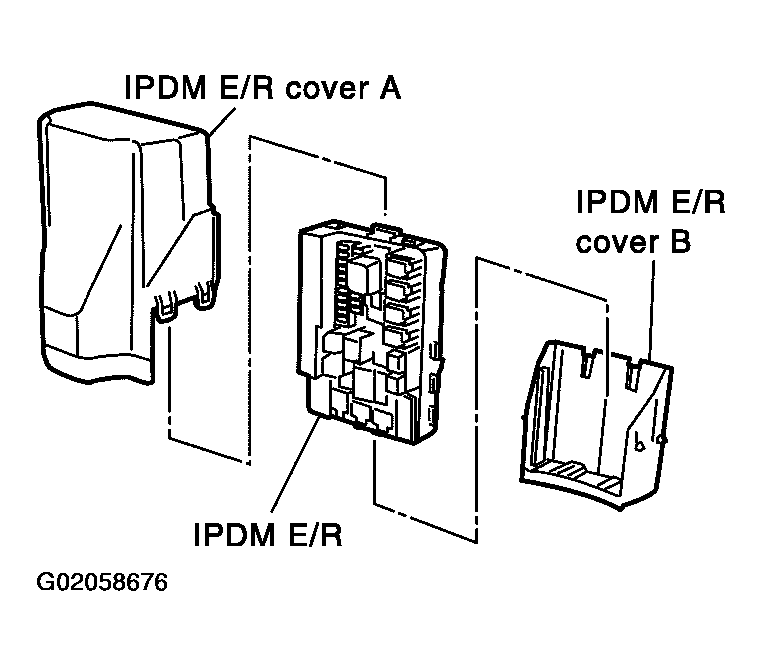

    Fig 1: Removing IPDM E/R Cover
    G02058676Courtesy of NISSAN MOTOR CO., U.S.A.
  4. While pressing pawl on back side of IPDM E/R cover "B" toward vehicle front to unlock, lift up IPDM E/R.

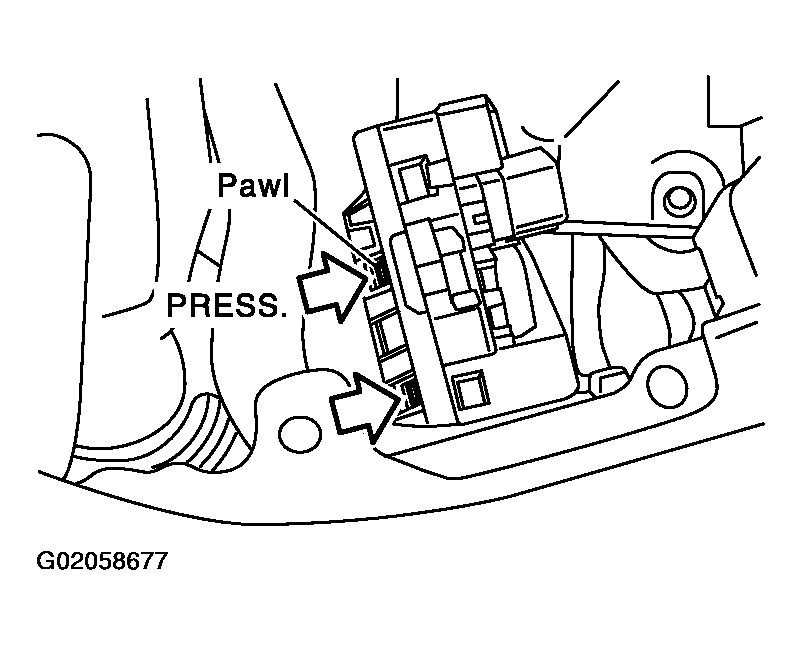

    Fig 2: Unlocking By Pressing Pawl On Back Side Of IPDM E/R Cover B
    G02058677Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Be sure to incline IPDM E/R when placing it. Then perform inspection on each terminal.

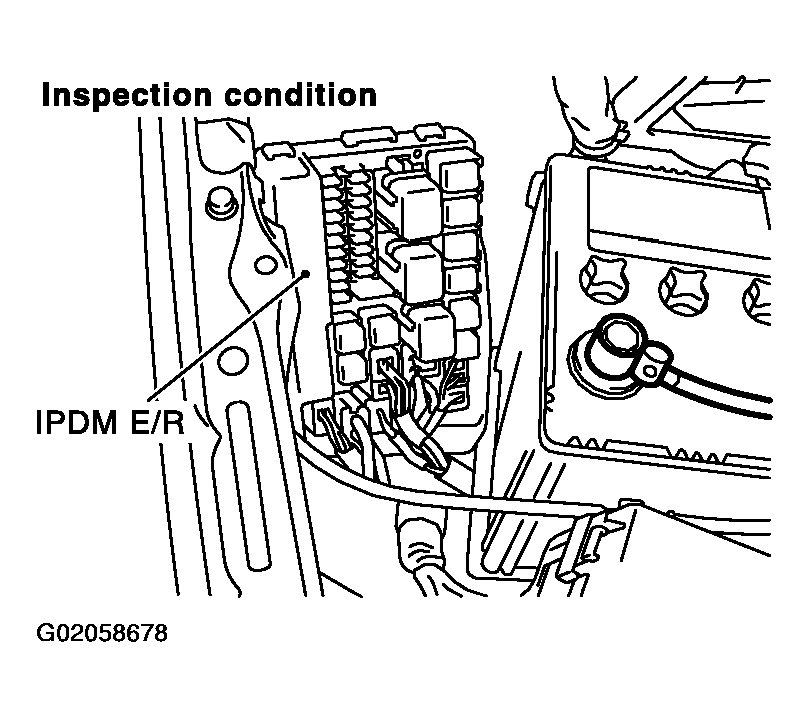

    Fig 3: Identifying IPDM E/R Inspection Condition
    G02058678Courtesy of NISSAN MOTOR CO., U.S.A.
