Removal and Installation of IPDM E/R: Removal

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove battery.
  2. Remove IPDM E/R cover A. While pressing pawl on backside of IPDM E/R cover B toward vehicle front to unlock, lift up IPDM E/R.

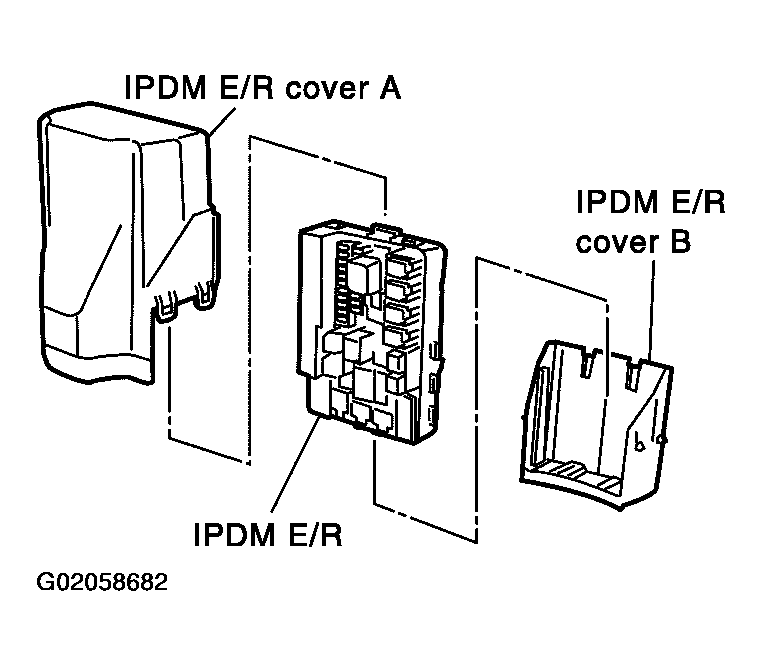

    Fig 1: Removing IPDM E/R Cover A "OR" Removing And Installing IPDM E/R (1 Of 3)
    G02058682Courtesy of NISSAN MOTOR CO., U.S.A.
  3. While pressing pawls on right and left side of IPDM E/R, remove IPDM E/R cover B from IPDM E/R.

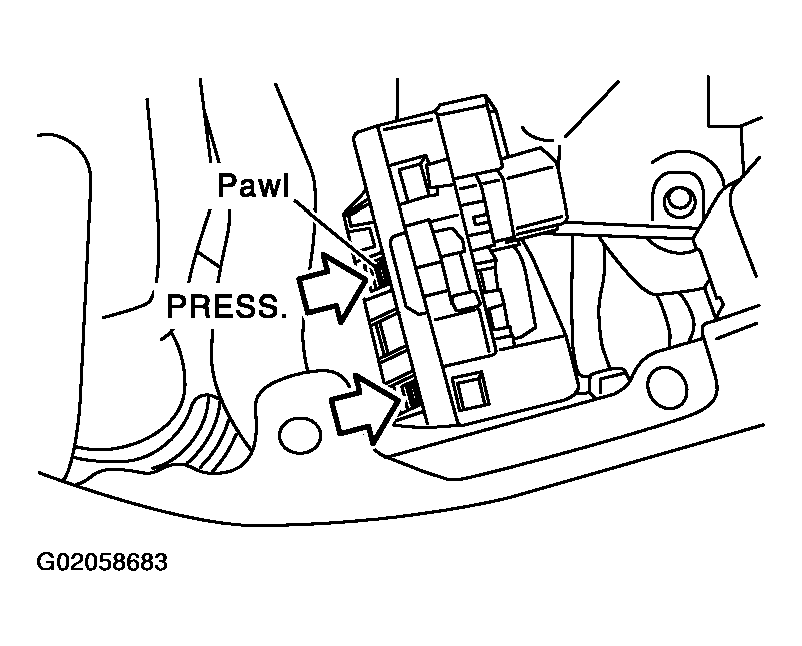

    Fig 2: Removing IPDM E/R Cover A "OR" Removing And Installing IPDM E/R (2 Of 3)
    G02058683Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove harness connector from IPDM E/R.

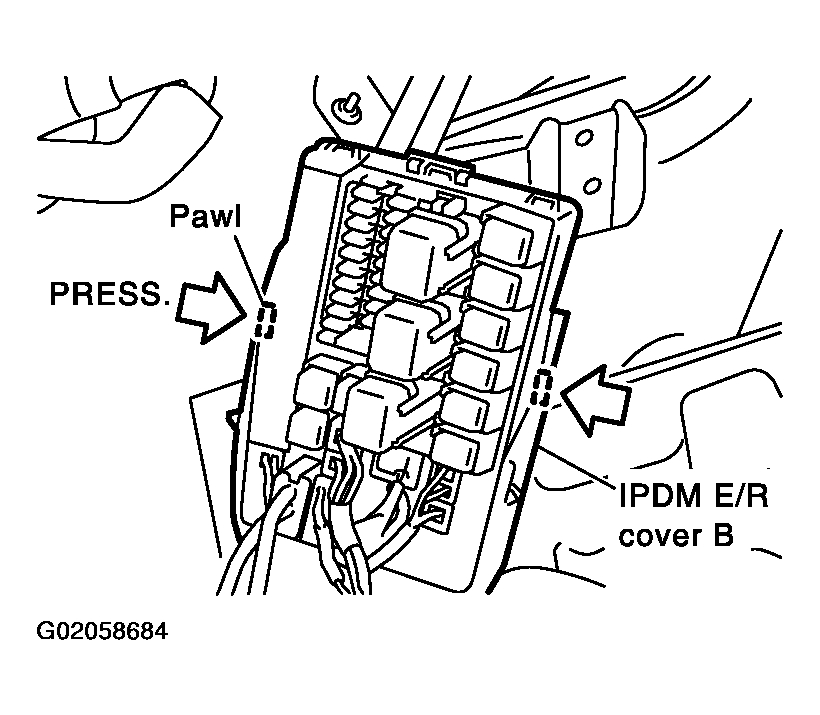

    Fig 3: Removing Harness Connector From IPDM E/R "OR" Removing And Installing IPDM E/R (3 Of 3)
    G02058684Courtesy of NISSAN MOTOR CO., U.S.A.
