Removal and Installation of Display: Removal

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove the screws (4), and remove the display.

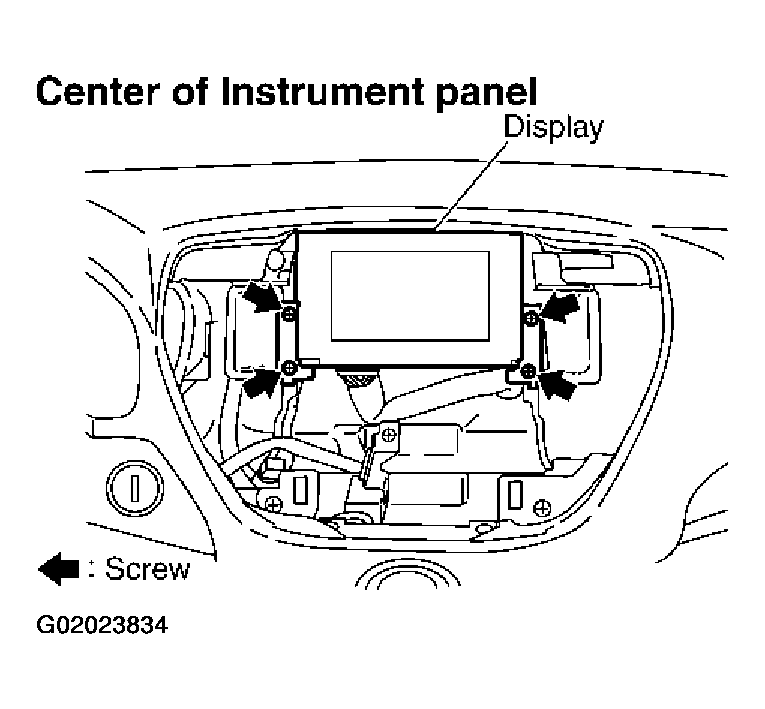

    Fig 1: Removing Display
    G02023834Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (4), and remove bracket.

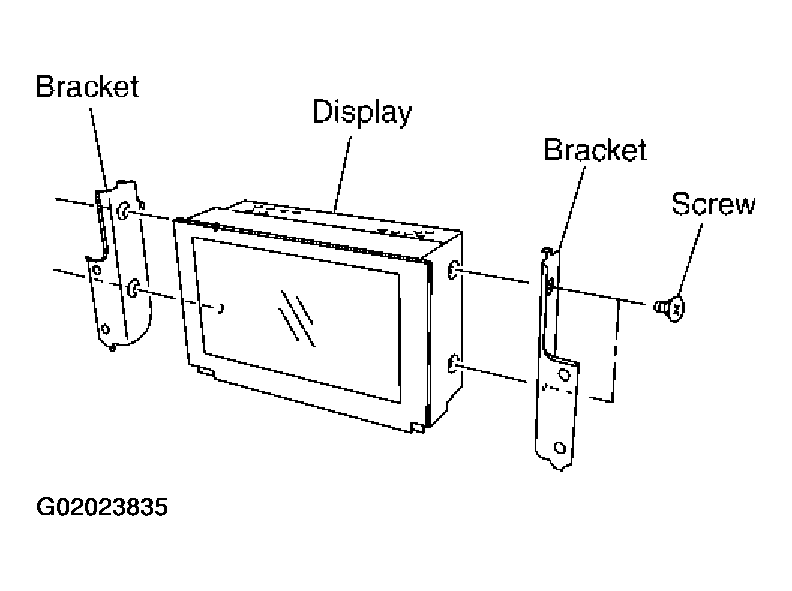

    Fig 2: Removing Bracket
    G02023835Courtesy of NISSAN MOTOR CO., U.S.A.
