Setting Of Vehicle Status

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Setting of electric status can be changed by multifunction switch. The signal is sent to BCM through AV and NAVI control unit to change vehicle electric system setting.
AV and NAVI control unit is communicating with BCM and combination meter.

Press "SETTING" switch to display vehicle information display.

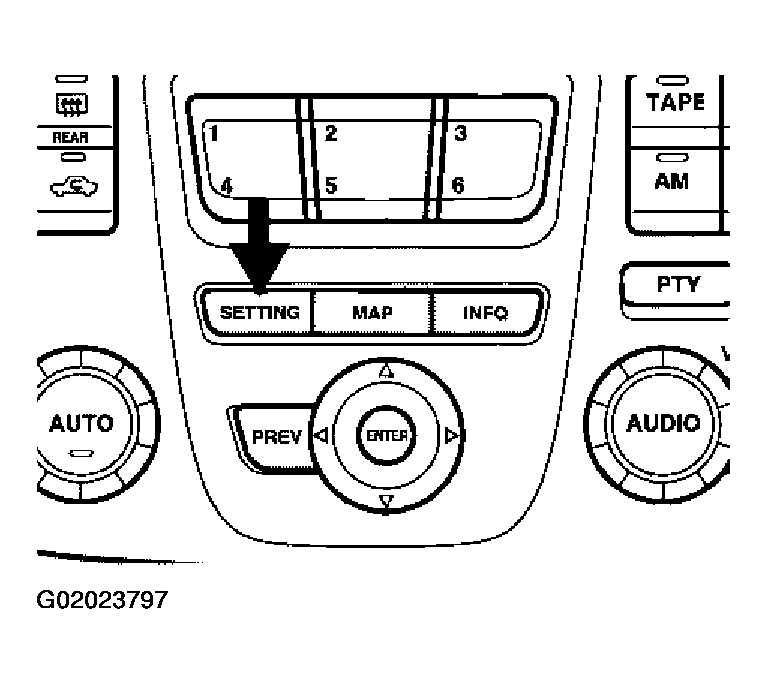

Fig 1: Selecting "SETTING"
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Vehicle Electronic System".

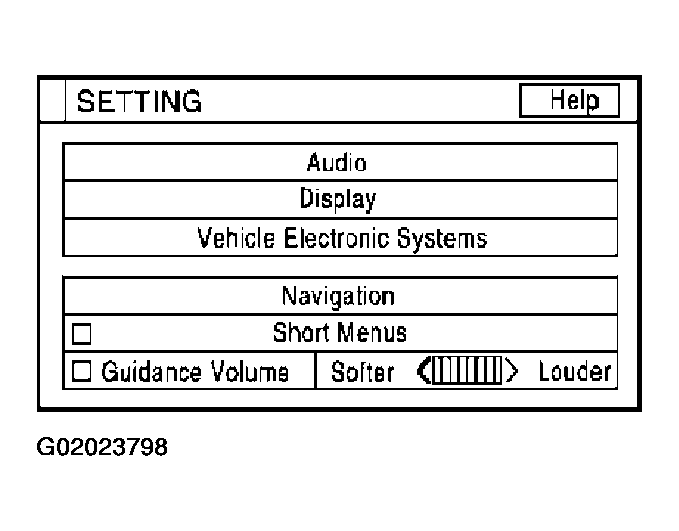

Fig 2: Selecting "VEHICLE ELECTRONIC SYSTEM"
Courtesy of NISSAN MOTOR CO., U.S.A.
Select a vehicle status shown on the display.
Adjustable vehicle status
- Lift Steering Column When Exiting Vehicle

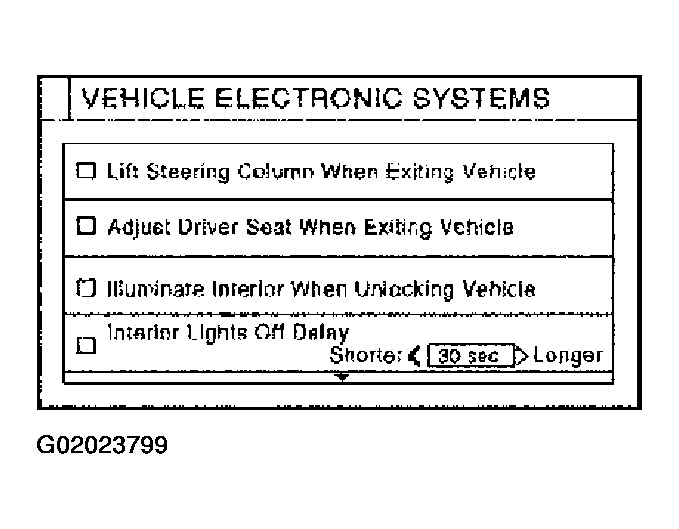

  Fig 3: Selecting Adjustable Vehicle Status (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Adjust Driver Seat When Exiting Vehicle
- Illuminate Interior When Unlocking Vehicle
- Interior Lights Off Delay
- Sensitivity of Automatic Headlights

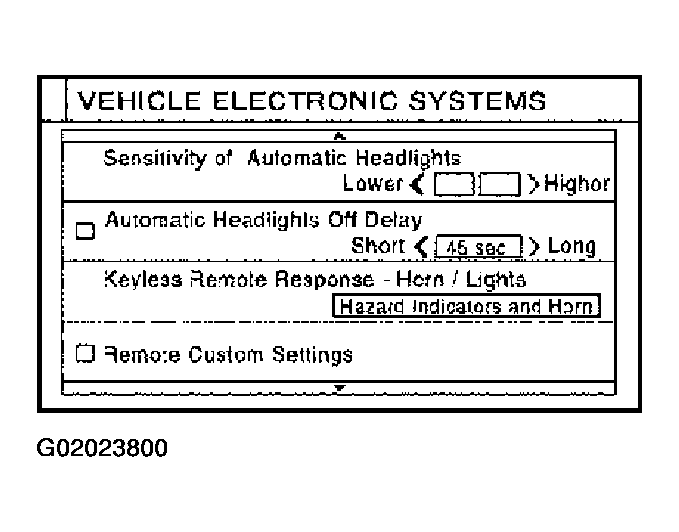

  Fig 4: Selecting Adjustable Vehicle Status (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Automatic Headlights Off Delay
- Key Remote Response-Horn/Lights
- Remote Custom Settings
- Return All Setting to Default

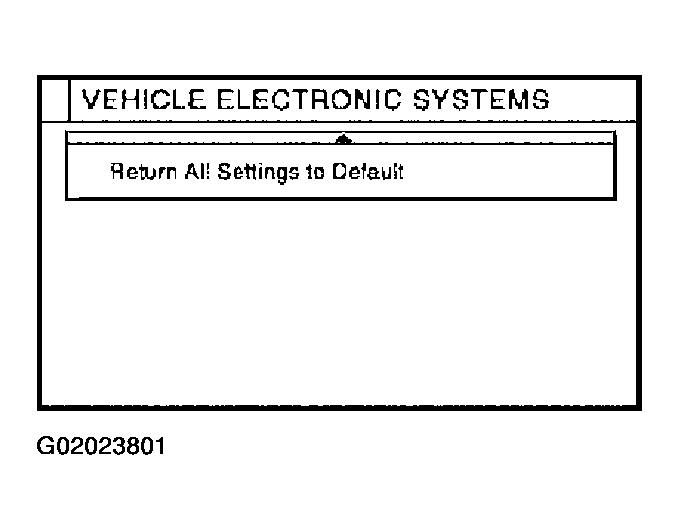

  Fig 5: Returning Settings To Default
  Courtesy of NISSAN MOTOR CO., U.S.A.

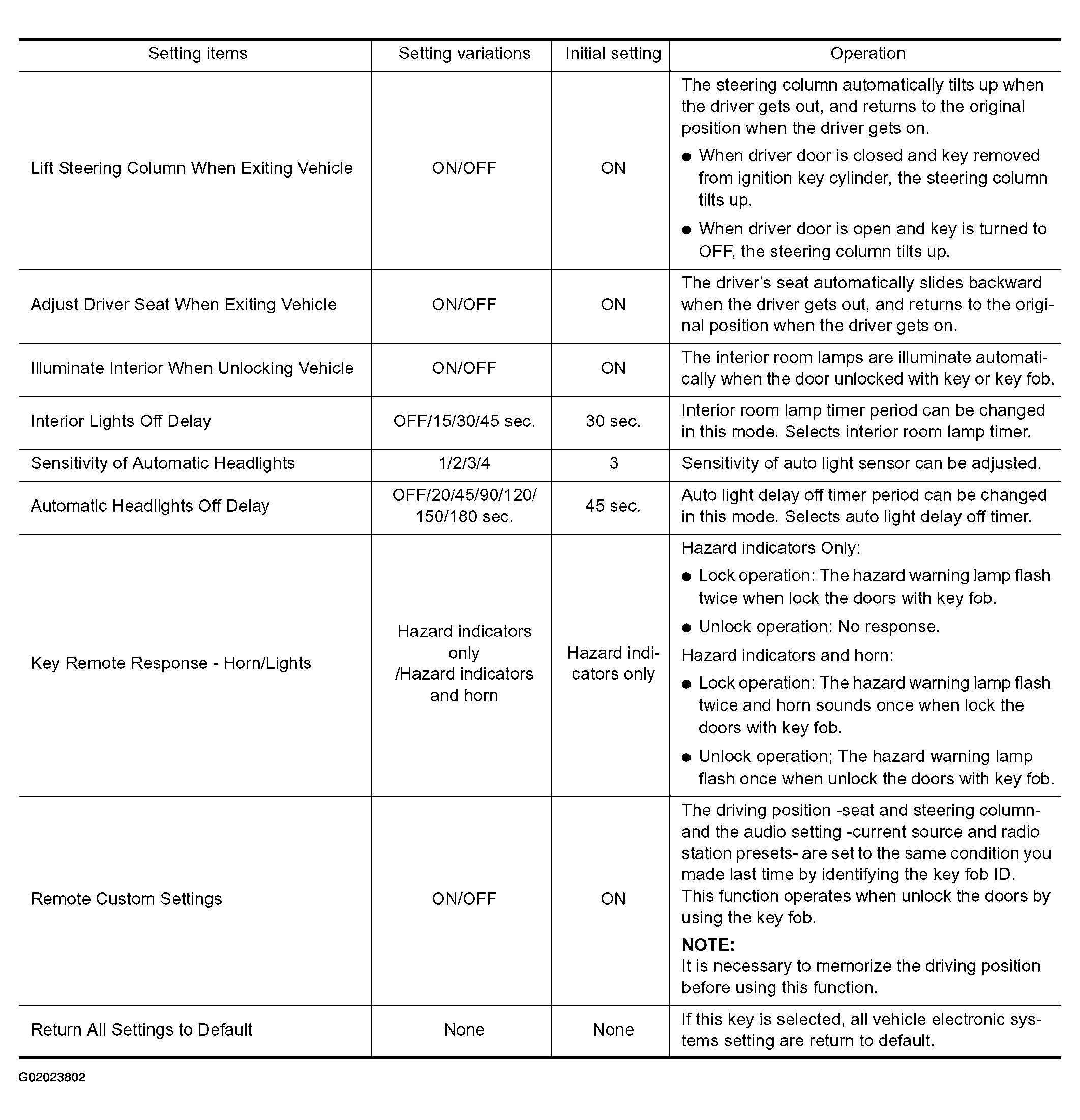

Fig 6: Identifying Adjustable Vehicle Status Table

Courtesy of NISSAN MOTOR CO., U.S.A.
