Warning Indications

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

When combination meter receives warning signal from some control units or sensors, then combination meter warning lamp is illuminated.

Then combination meter sends warning signal to AV and NAVI control unit to display warning indications on the screen.

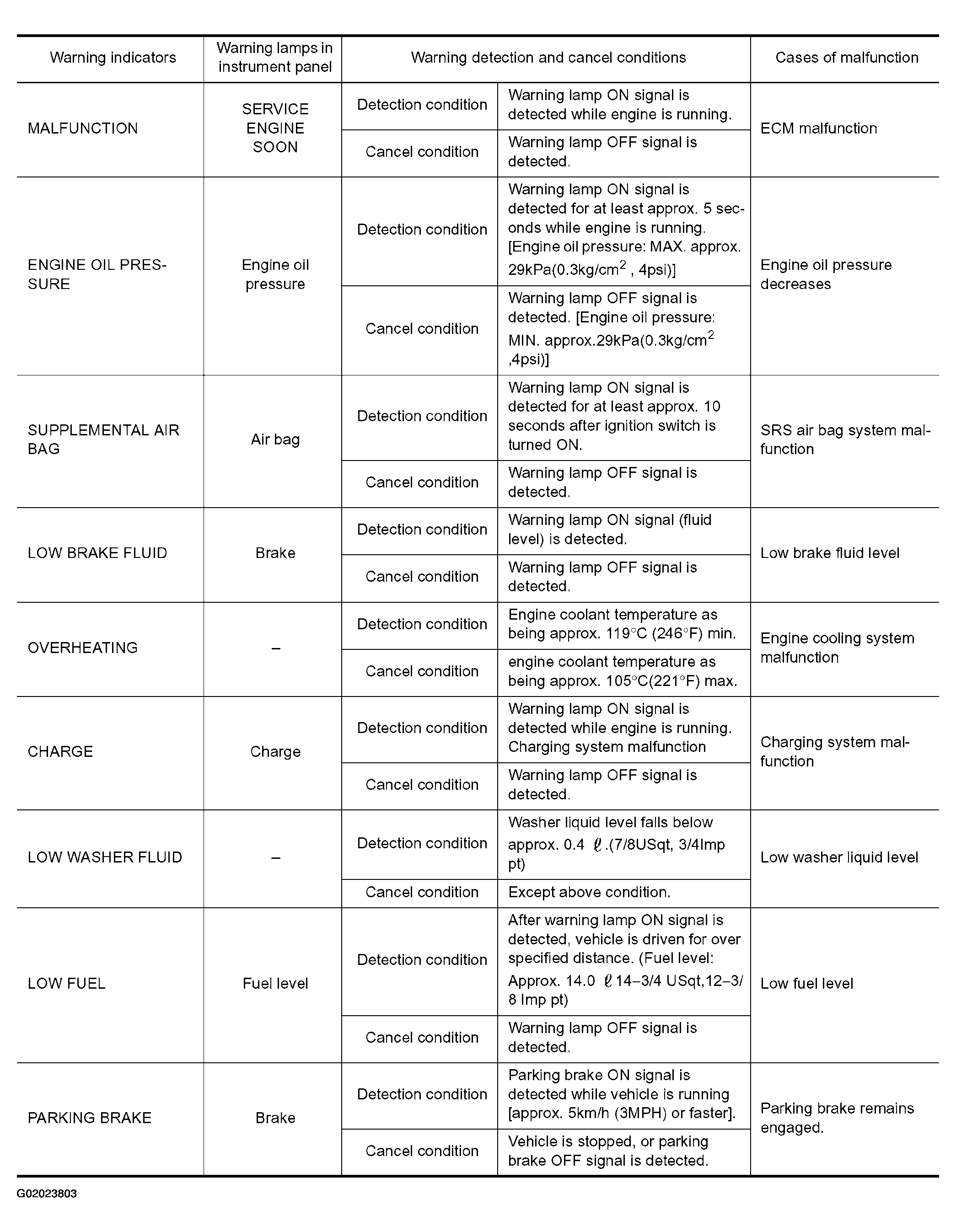

Fig 1: Identifying Warning Indications Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

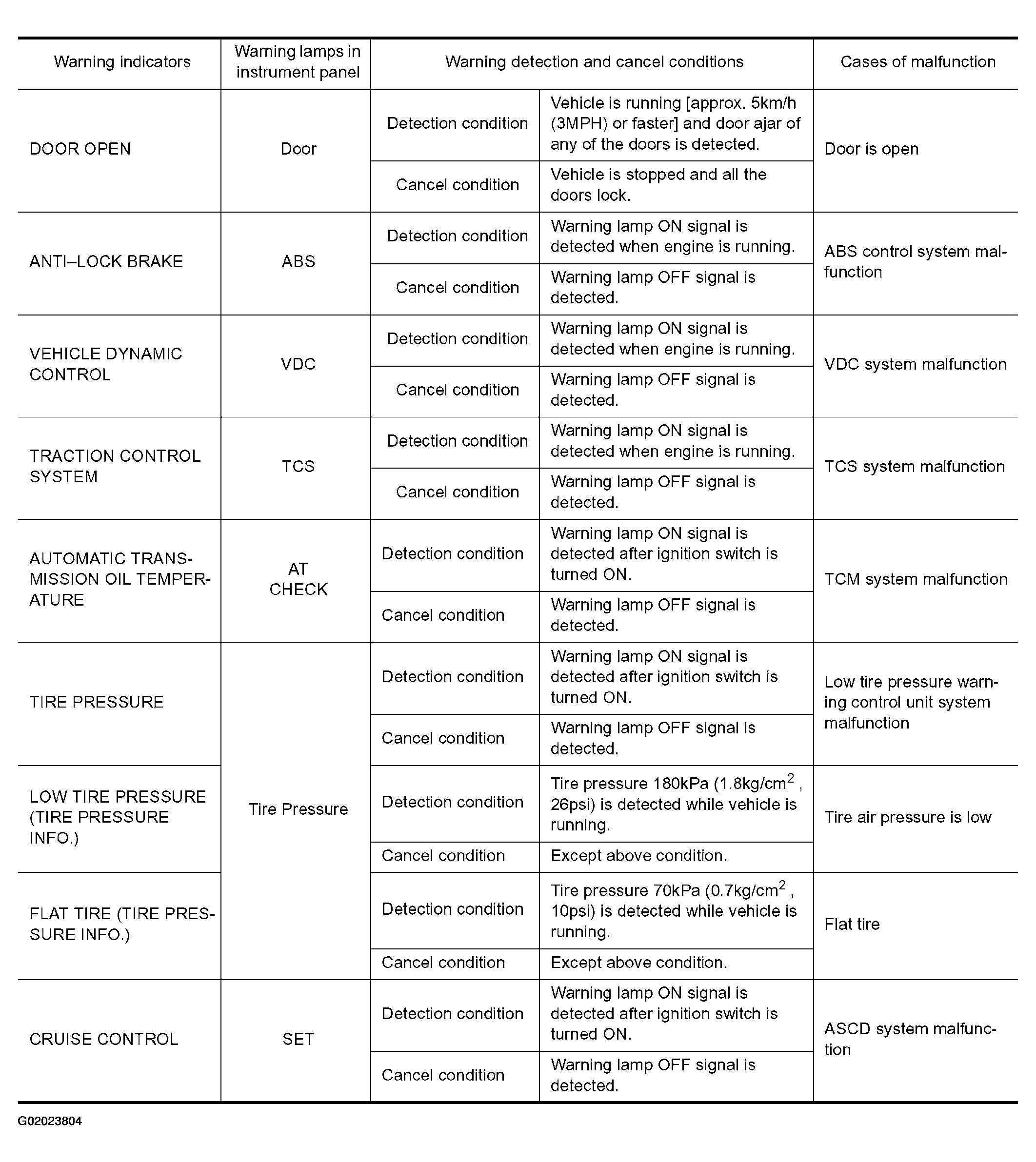

Fig 2: Identifying Warning Indications Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
