With CONSULT-II: Notes

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON" and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

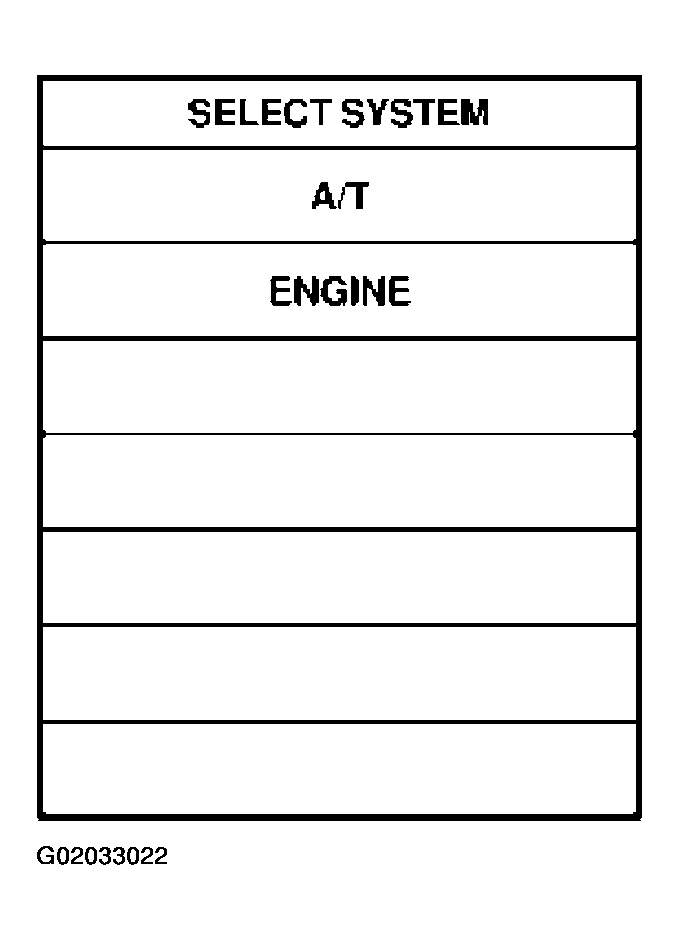

    Fig 1: CONSULT - II (Select System)
    G02033022Courtesy of NISSAN MOTOR CO., U.S.A.

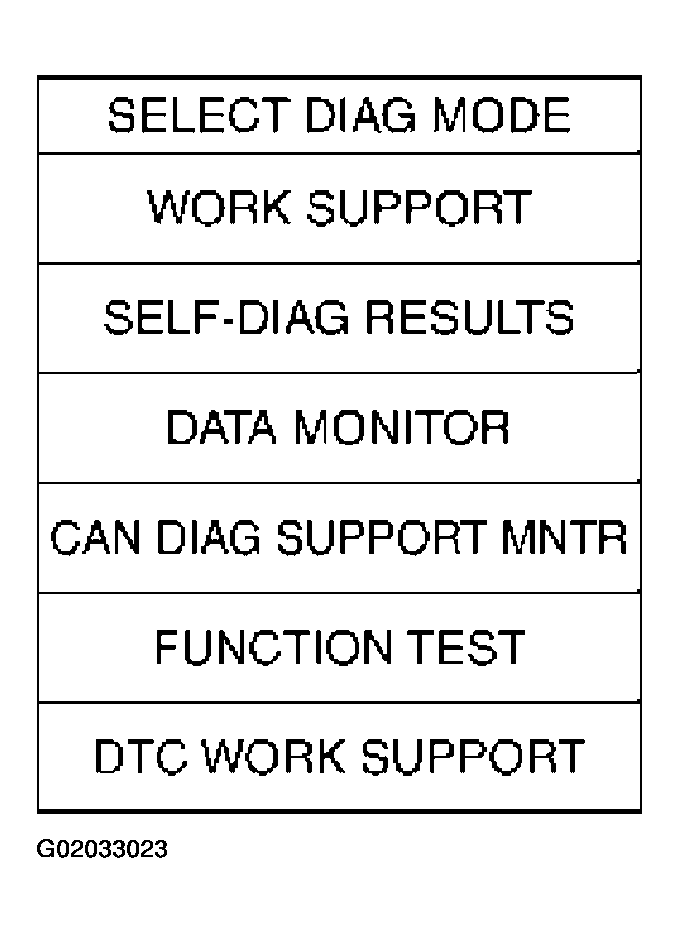

    Fig 2: CONSULT- II (Select Diag Mode)
    G02033023Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine and accelerate vehicle from 0 to 25 km/h (0 to 6 MPH).
