Shift Lock System Electrical Parts Location
WARNING:
This page is about a different variant/trim than selected.

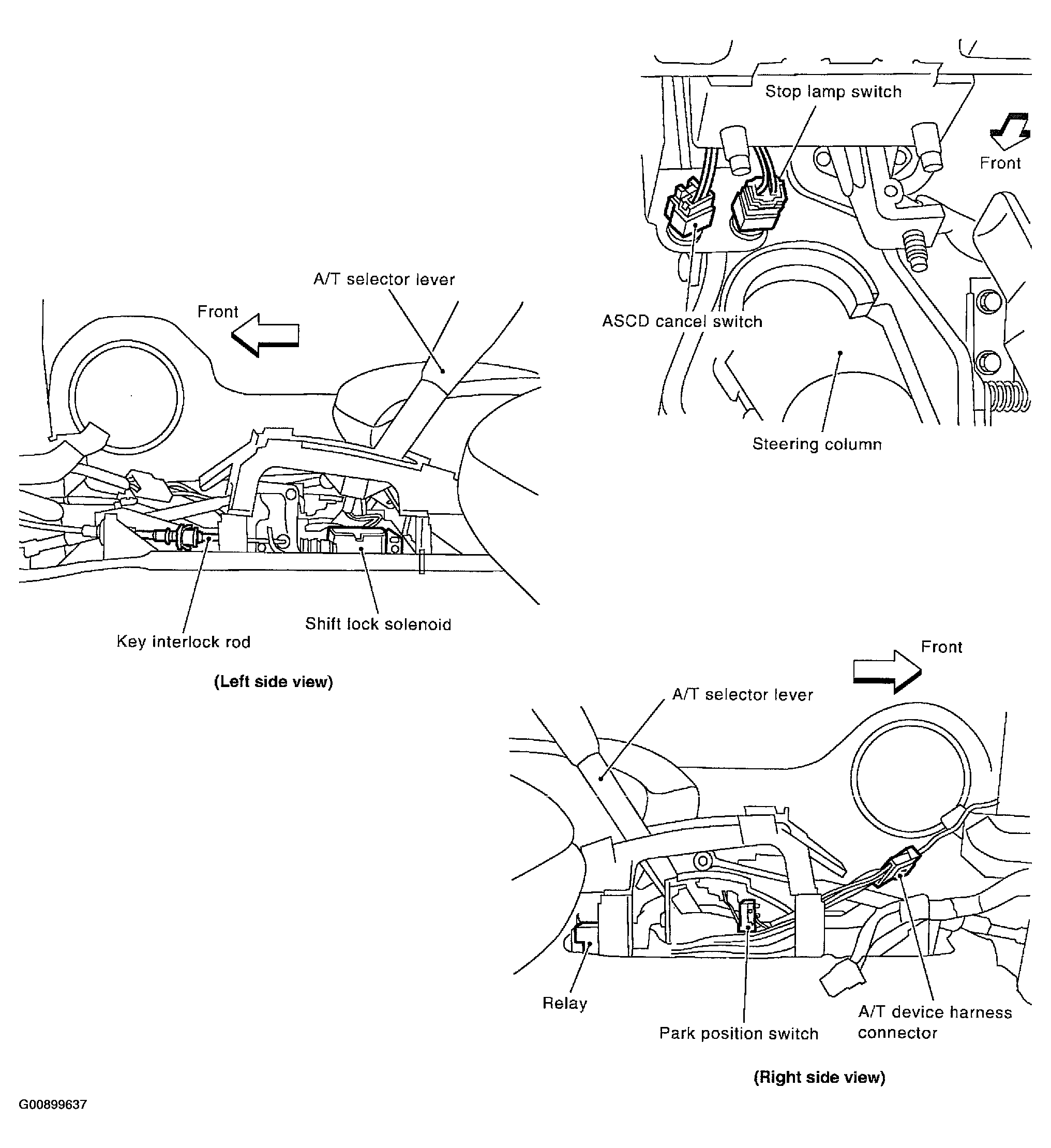

Fig 1: Identifying Shift Lock System Electrical Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
