Diagnostic Trouble Code (DTC) Confirmation Procedure

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

1. Start engine.
2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Drive vehicle under the following conditions: Selector lever in "D", vehicle speed higher than 20 km/h (12 MPH).

Without CONSULT-II

1. Start engine.

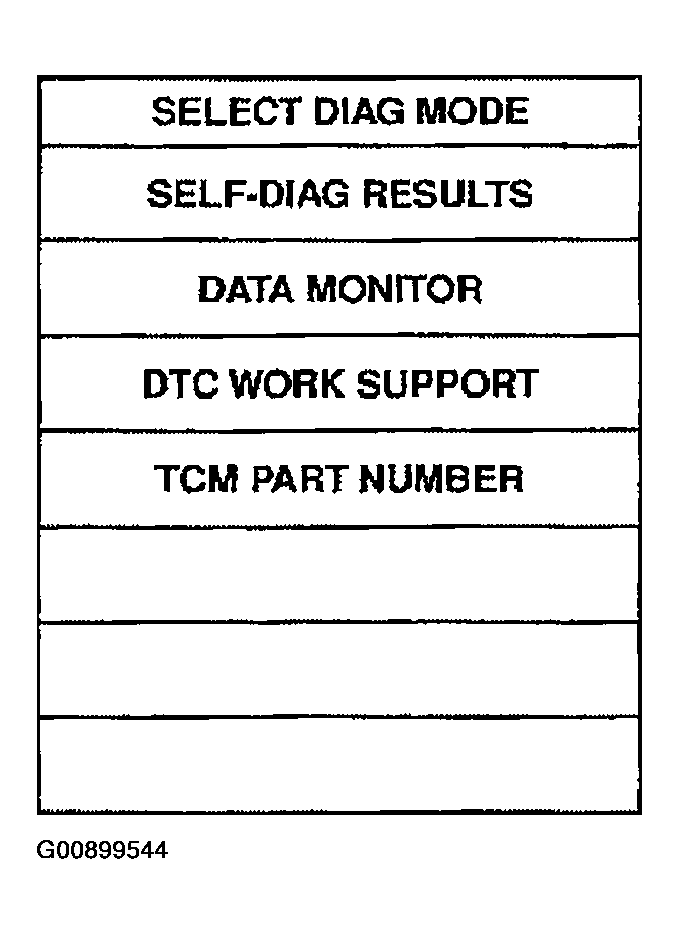

   Fig 1: Consult II Display (1 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Drive vehicle under the following conditions:

   Selector lever in "D", vehicle speed higher than 20 km/h (12 MPH).

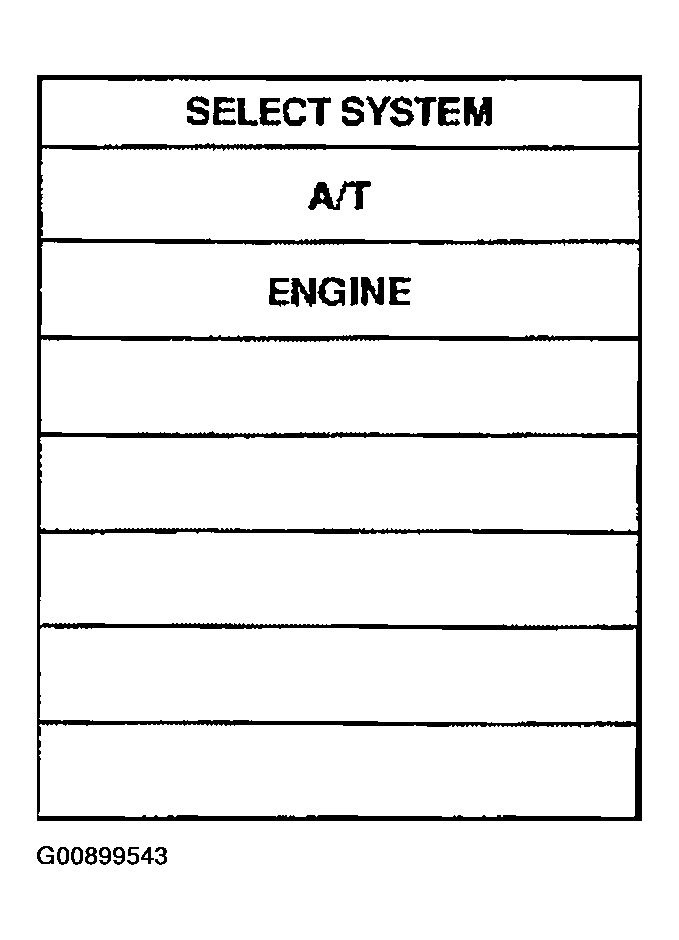

   Fig 2: Consult II Display (2 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Perform self-diagnosis.

   Refer to TCM Self-diagnostic Procedure (No Tools). See TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

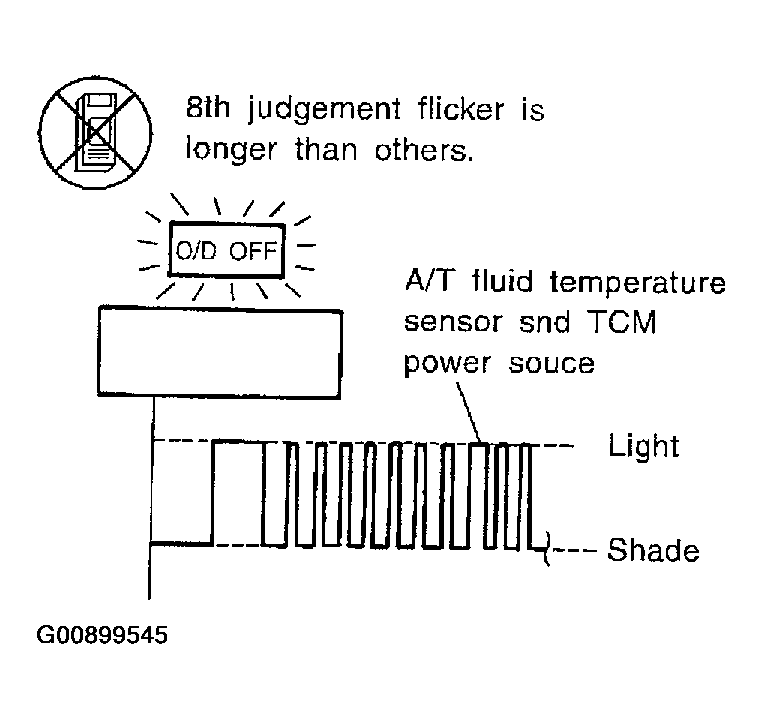

Fig 3: Identifying Blinking Pattern Of 8th Judgement Flicker

Courtesy of NISSAN MOTOR CO., U.S.A.
