DTC Batt/Fluid Temp Sen (A/T Fluid Temp Sensor Circuit And TCM Power Source): Description: Notes

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

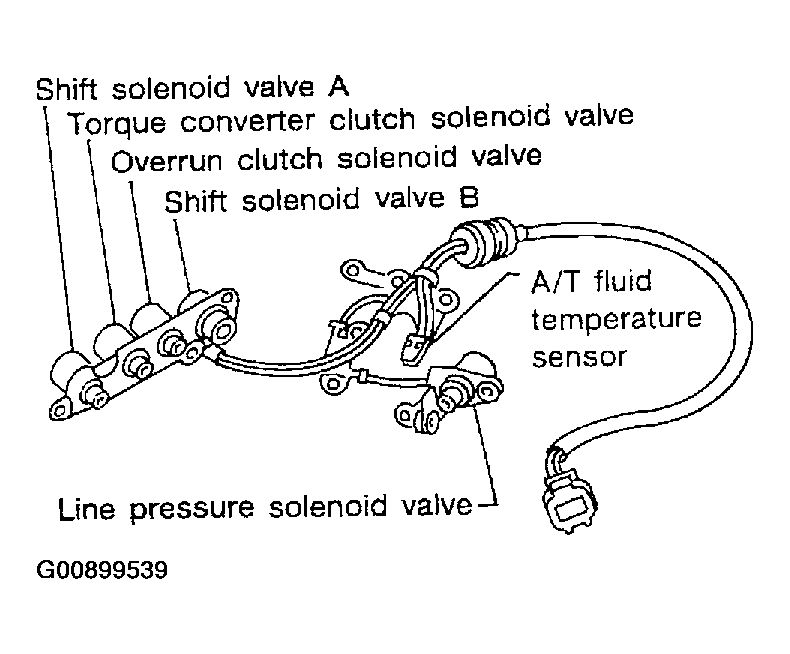

Fig 1: Identifying Solenoid Valves And A/T Fluid Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

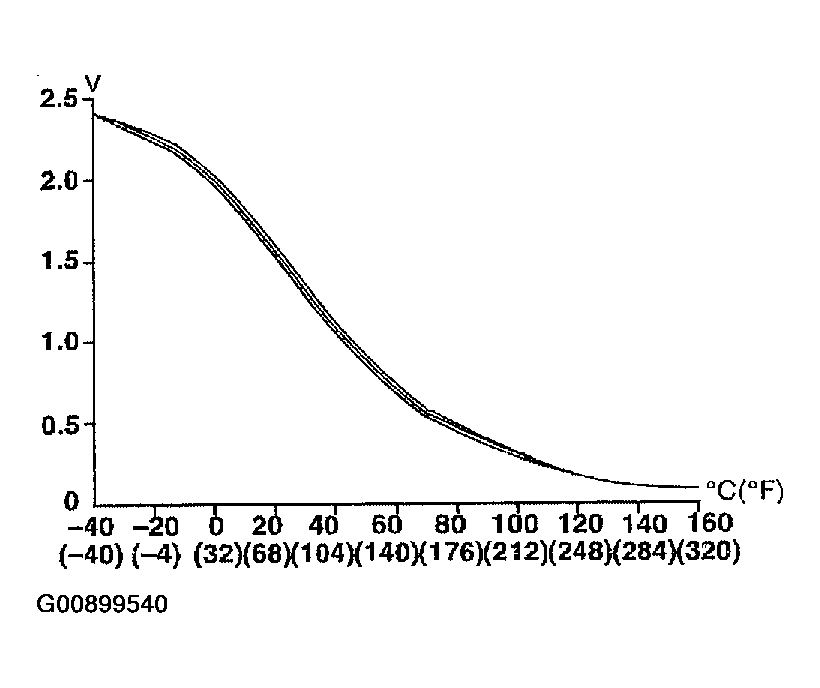

Fig 2: Temperature Voltage Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
