DTC Batt/Fluid Temp Sen (A/T Fluid Temp Sensor Circuit And TCM Power Source): Overhaul: Components

WARNING: This page is about a different variant/trim than selected.

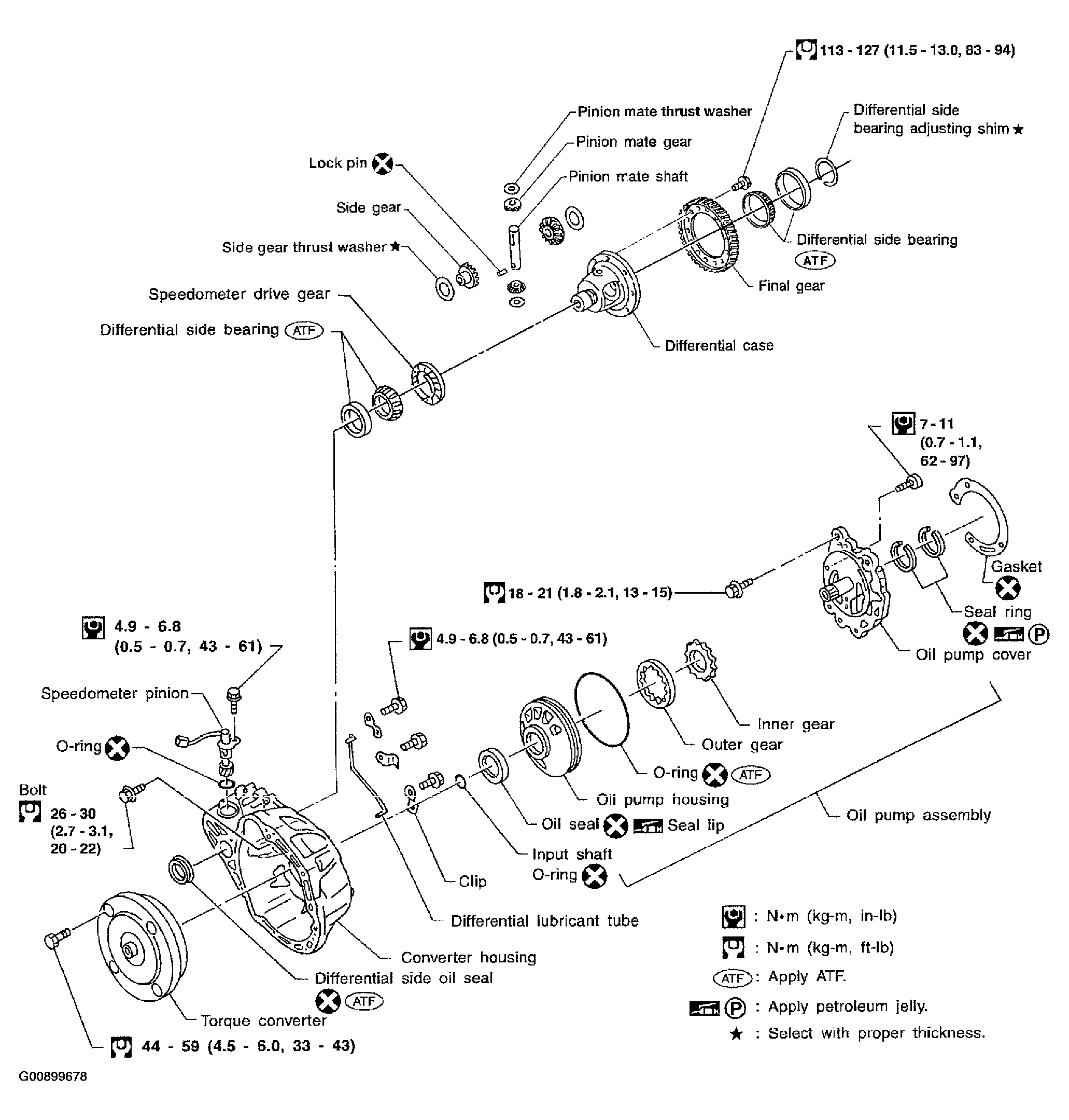

Fig 1: Exploded View And Torque Specification Of A/T (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

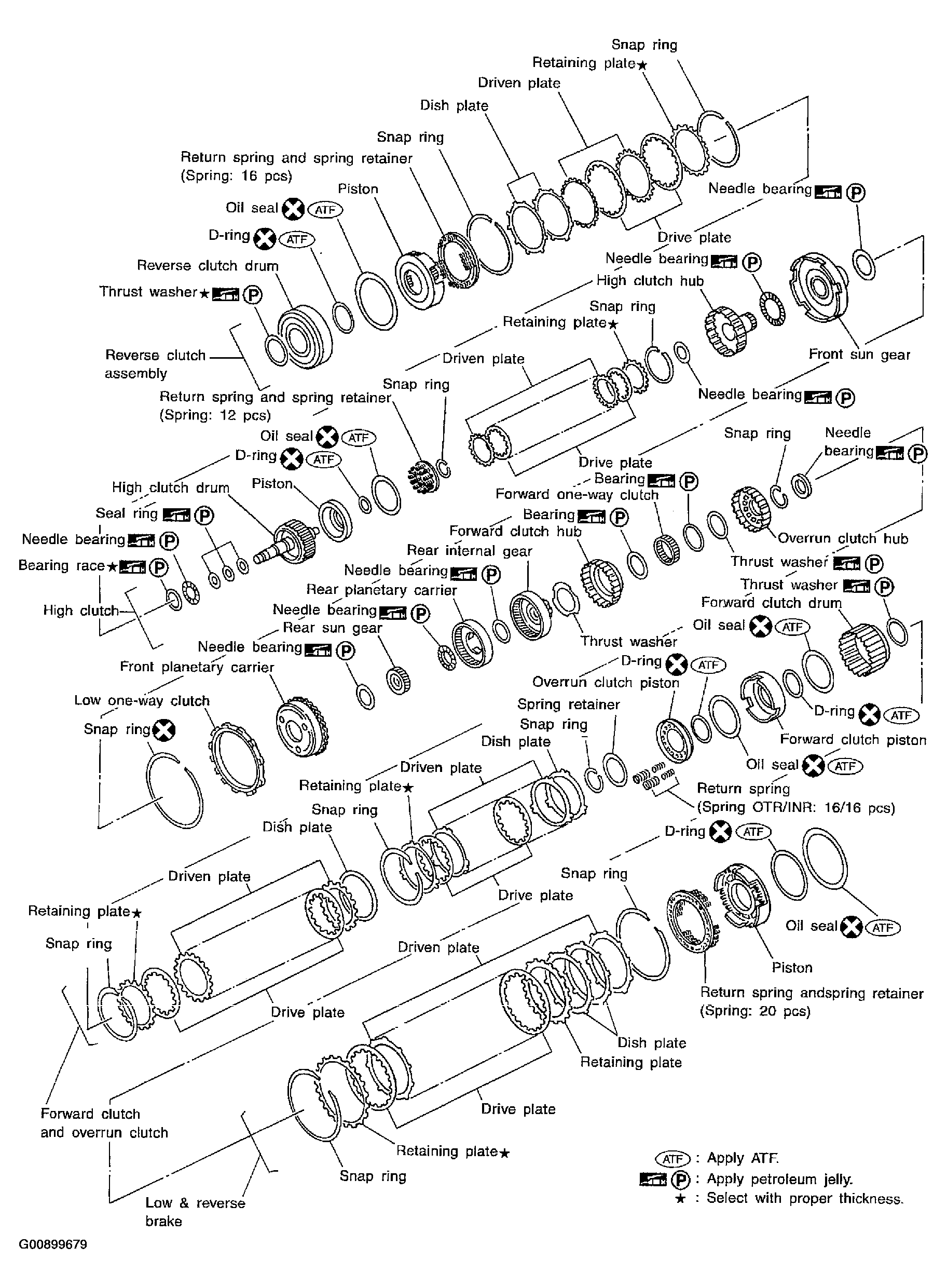

Fig 2: Exploded View And Torque Specification Of A/T (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

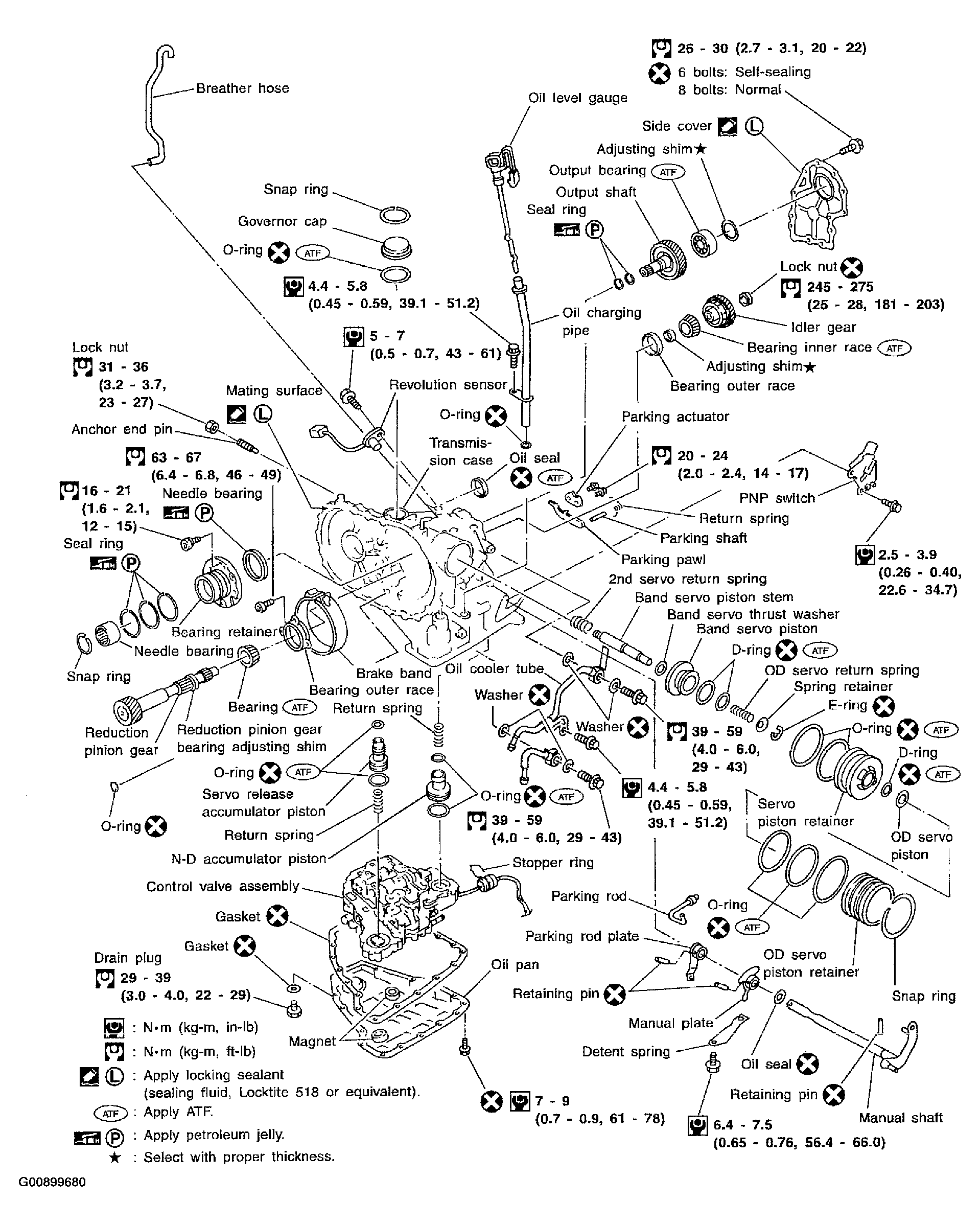

Fig 3: Exploded View And Torque Specification Of A/T (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
