A/T Fluid Temperature Sensor

WARNING: This page is about a different variant/trim than selected.

For removal, refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
Check resistance between two terminals while changing temperature as shown at left.

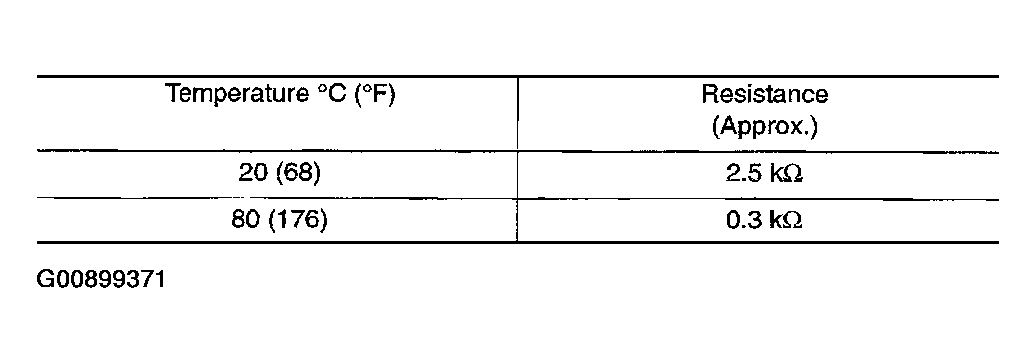

Fig 1: Temperature Resistance Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

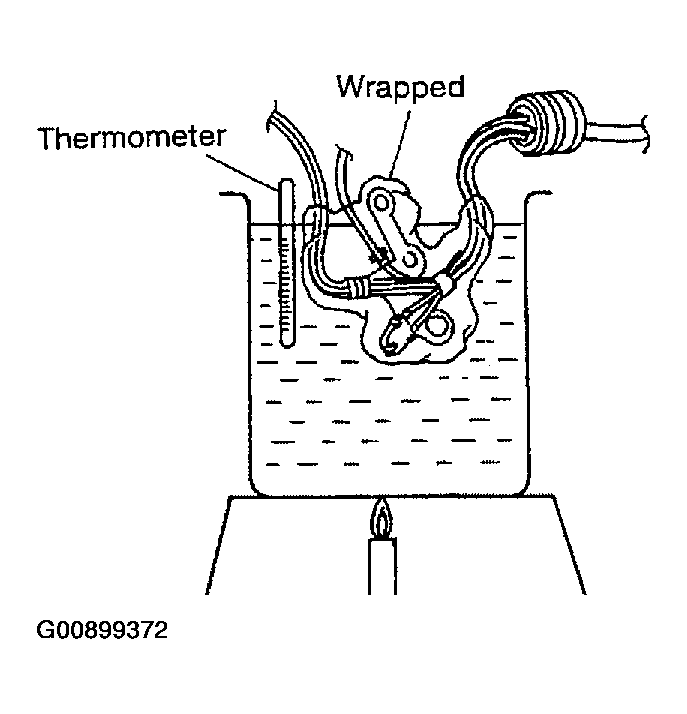

Fig 2: Checking A/T Fluid Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
