Diagnostic Trouble Code (DTC) Confirmation Procedure

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Always drive vehicle at a safe speed.
  • Be careful not to rev engine into the red zone on the tachometer.

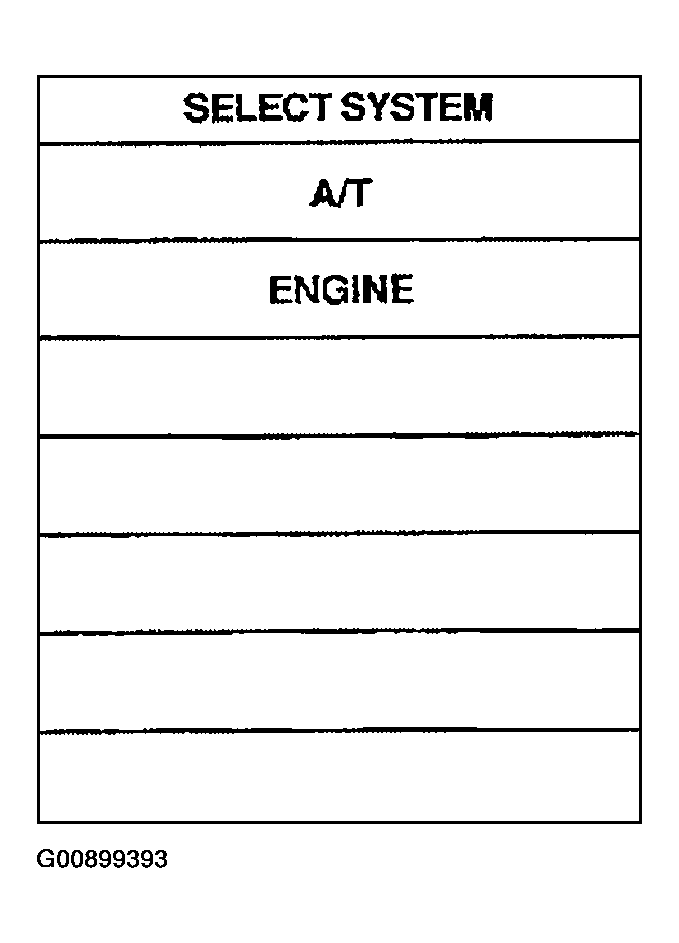

Fig 1: Consult II Display (1 Of 2)
G00899393Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

TESTING CONDITION:

Always drive vehicle on a level road to improve the accuracy of test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

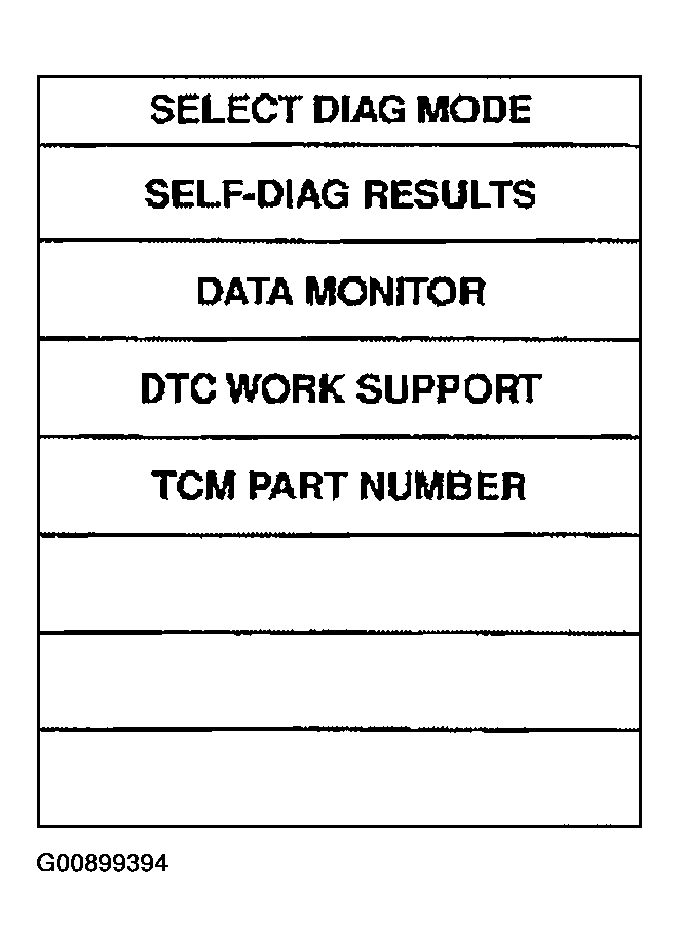

Fig 2: Consult II Display (2 Of 2)
G00899394Courtesy of NISSAN MOTOR CO., U.S.A.

With CONSULT-II

  1. Start engine and select "DATA MONITOR" mode for "A/T" with CONSULT-II.
  2. Make sure that output voltage of A/T fluid temperature sensor is within the range below.

    FLUID TEMP SEN: 0.4 - 1.5V

    If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the voltage (cool down the fluid).

  3. Select "1ST GR FNCTN P0731" of "DTC WORK SUPPORT" mode for "A/T" with CONSULT-II and touch "START".
  4. Accelerate vehicle to 20 to 25 km/h (12 to 16 MPH) under the following condition and release the accelerator pedal completely.

    THROTTLE POSI: Less than 1.0/8 (at all times during step 4) Selector lever: D position (OD "ON")

    • Check that "GEAR" shows "2" after releasing pedal.

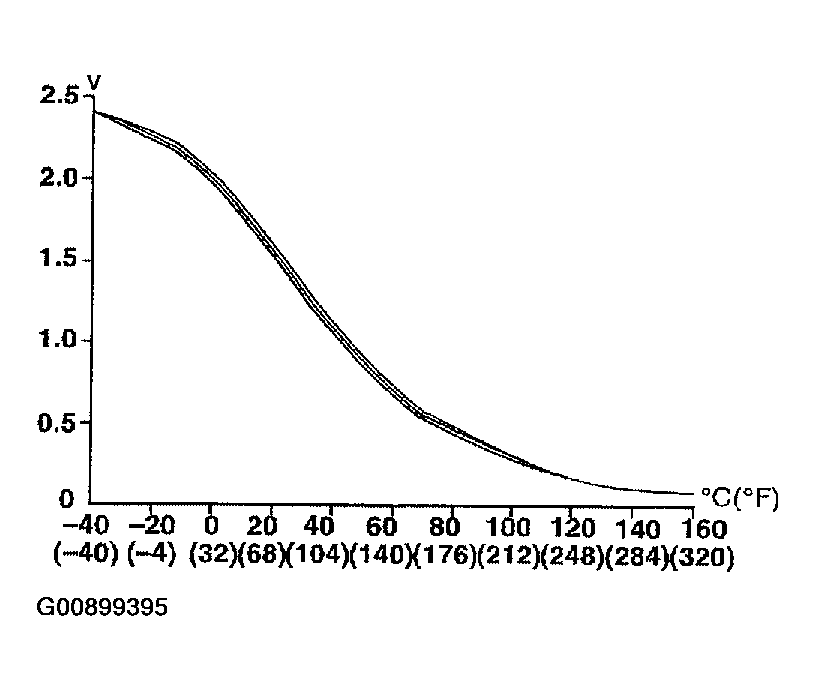

    Fig 3: Temperature Voltage Graph
    G00899395Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Depress accelerator pedal to WOT (more than 7.0/8 of "THROTTLE POSI") quickly from a speed of 20 to 25 km/h (12 to 16 MPH) until "TESTING" changes to "STOP VEHICLE" or "COMPLETED". (It will take approximately 3 seconds.)

    If the check result NG appears on CONSULT-II screen, go to "DIAGNOSTIC PROCEDURE ".

    If "STOP VEHICLE" appears on CONSULT-II screen, go to the following step.

    • Check that "GEAR" shows "1" when depressing accelerator pedal to WOT.
    • If "TESTING" does not appear on CONSULT-II for a long time, select "SELF-DIAGNOSIS" for "ENGINE". In case a 1st trip DTC other than P0731 is shown, refer to applicable "TROUBLE DIAGNOSIS FOR DTC".
  6. Stop vehicle.
  7. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
Fig 4: Normal Shifting Chart
G00899396Courtesy of NISSAN MOTOR CO., U.S.A.
