With Consult-II

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

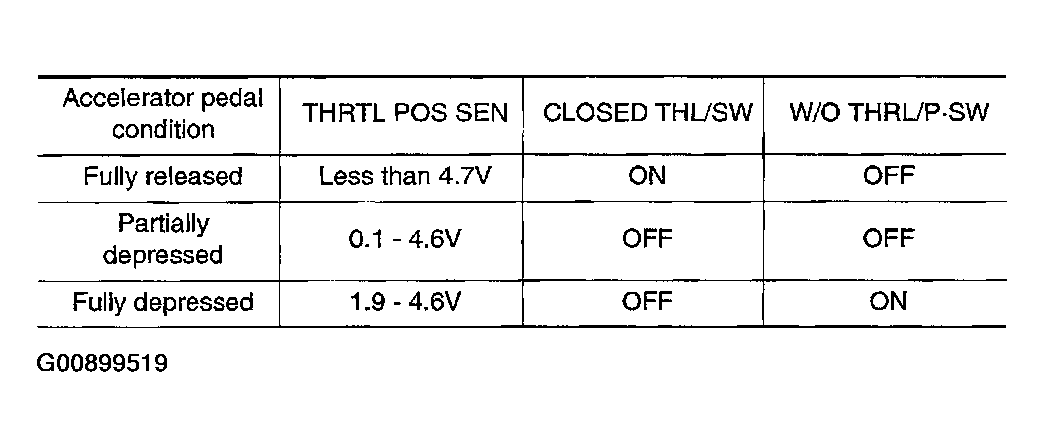

Fig 1: Accelerator Pedal Condition And Throttle Position Sensor Voltage Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

If the check result is NG, go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.

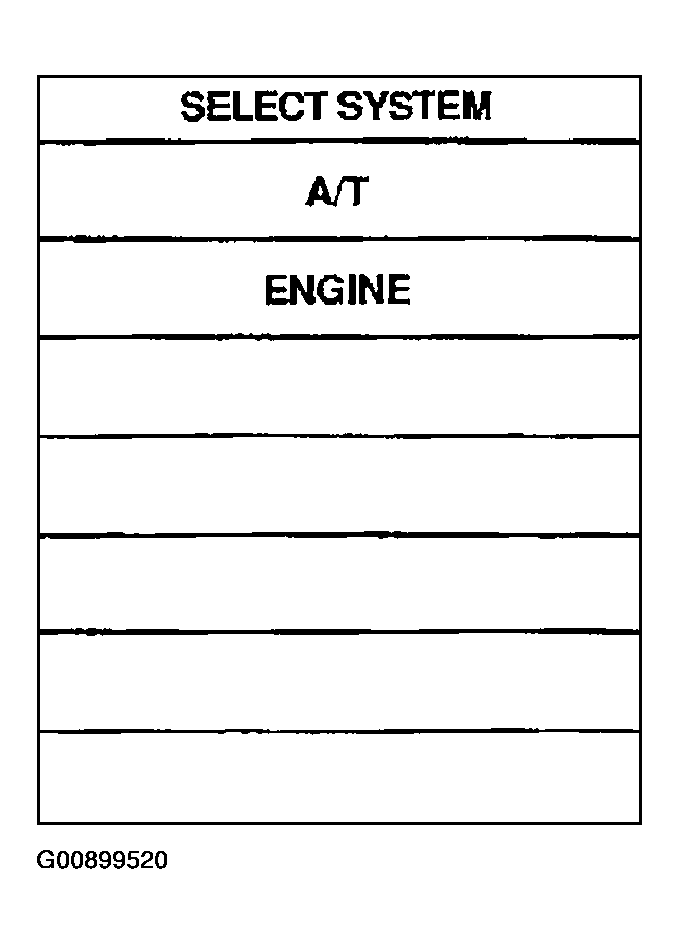

Fig 2: Consult II Display (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
Start engine and maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS SEN: Approximately 3V or less

Selector lever: D position (O/D ON)

If the check result is NG, go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.

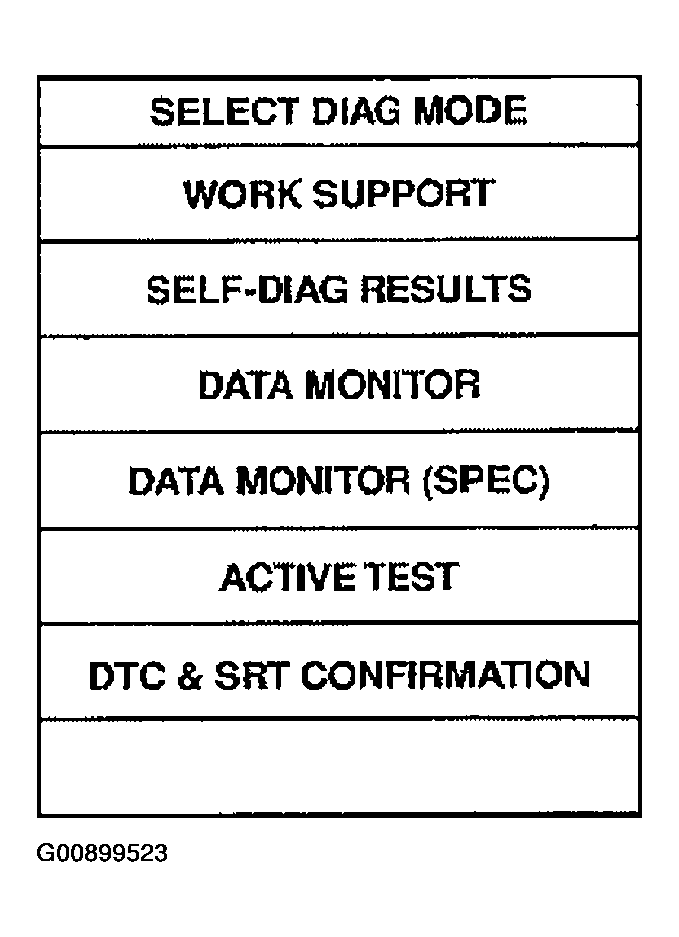

Fig 3: Consult II Display (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

Accelerator pedal: Wide open throttle

Selector lever: D position (O/D ON)

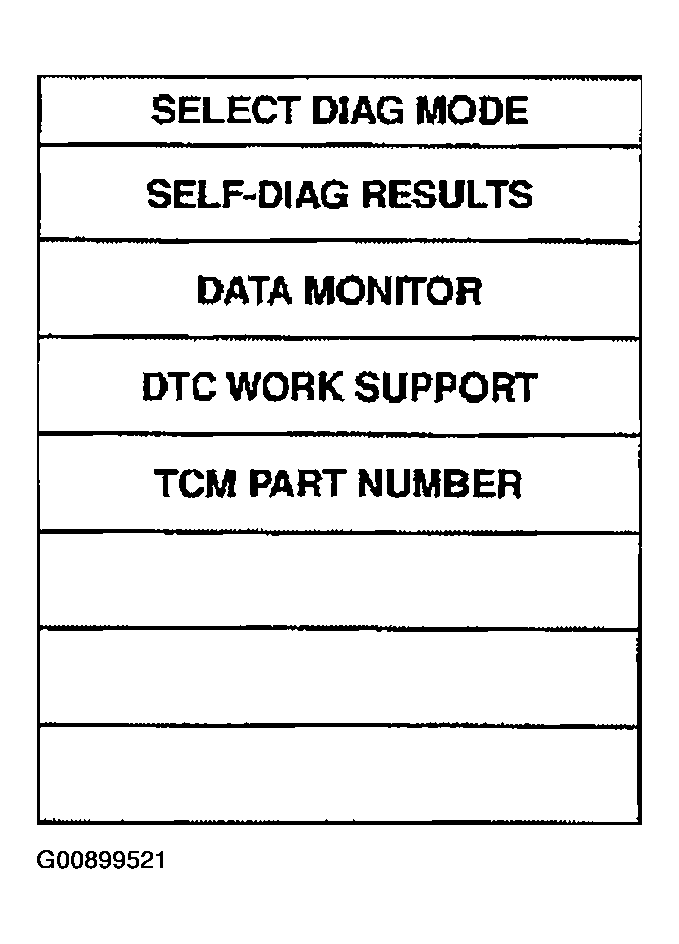

Fig 4: Consult II Display (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

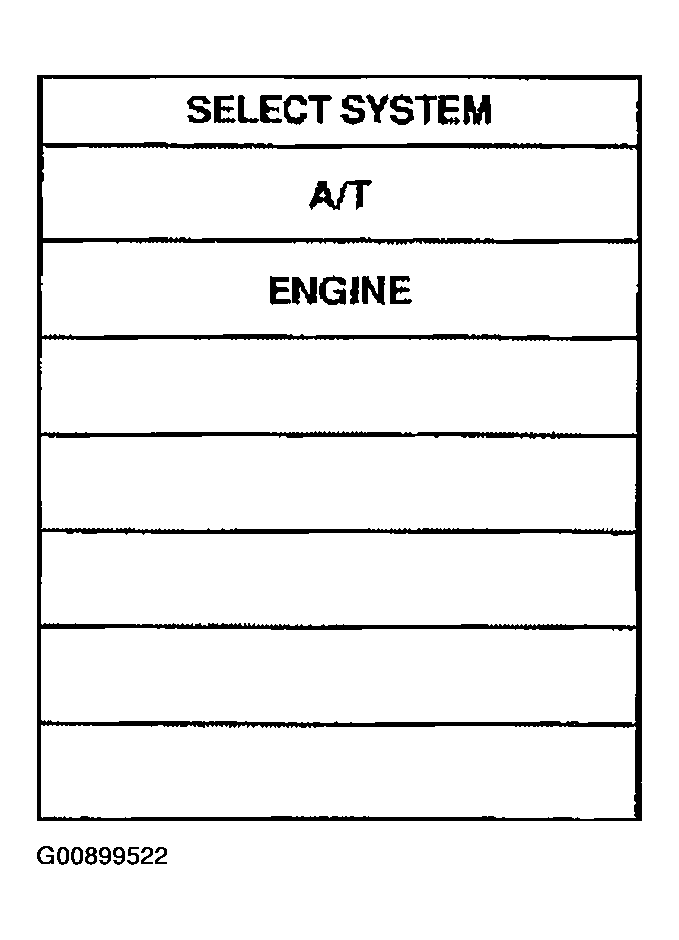

Fig 5: Consult II Display (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
