Input/output signal Chart

WARNING: This page is about a different variant/trim than selected.

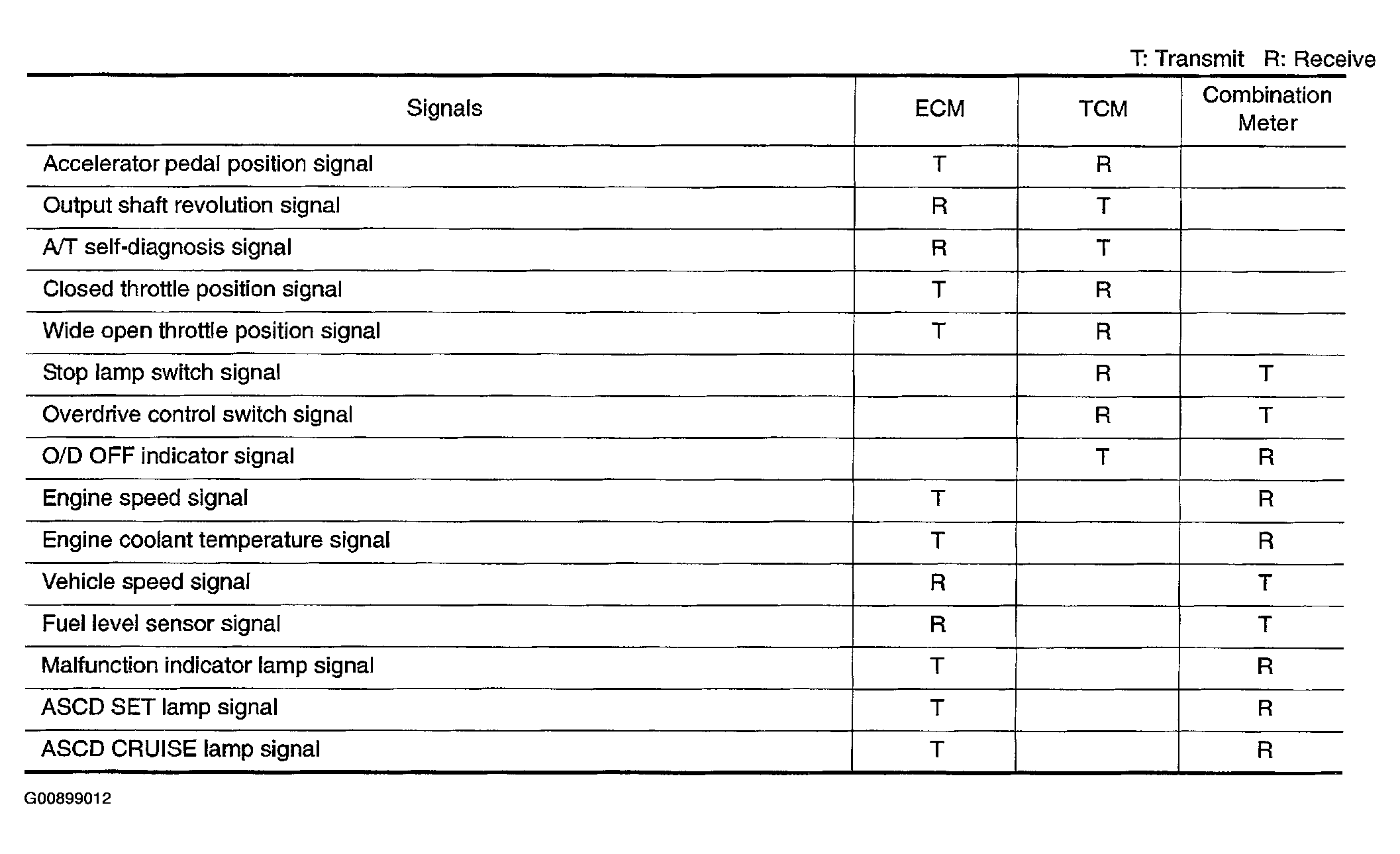

Fig 1: Input/Output Signal Chart
G00899012Courtesy of NISSAN MOTOR CO., U.S.A.
