Overrun Clutch Solenoid Valve Control
WARNING: This page is about a different variant/trim than selected.

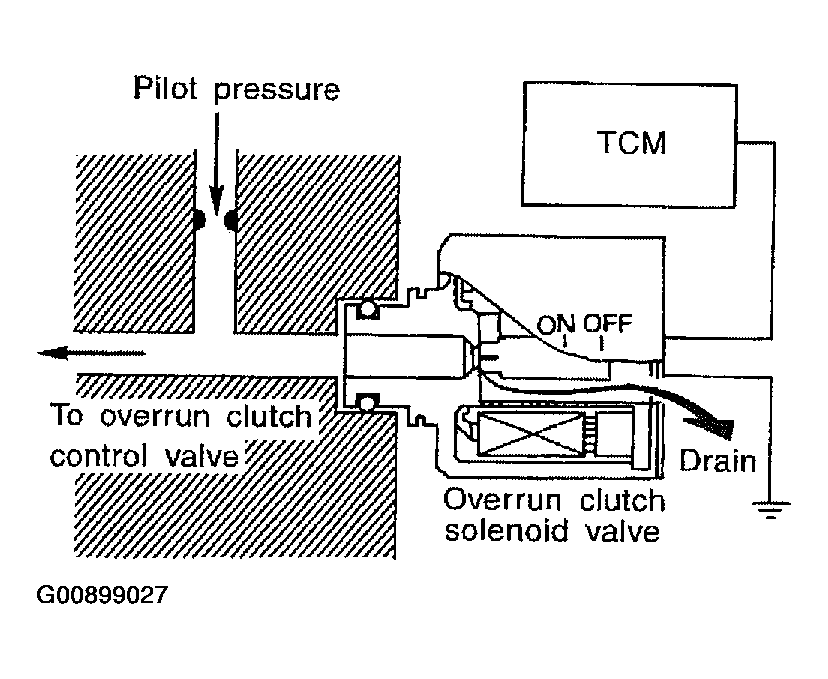

The overrun clutch solenoid valve is operated by an ON-OFF signal transmitted by the TCM to provide overrun clutch control (engine brake control).
When this solenoid valve is "ON", the pilot pressure drain port closes. When it is "OFF", the drain port opens.
During the solenoid valve "ON", pilot pressure is applied to the end face of the overrun clutch control valve.
