Removal and Installation of IPDM E/R: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove coolant reservoir fasteners.
  3. Move coolant reservoir aside.
  4. Remove IPDM E/R upper cover.

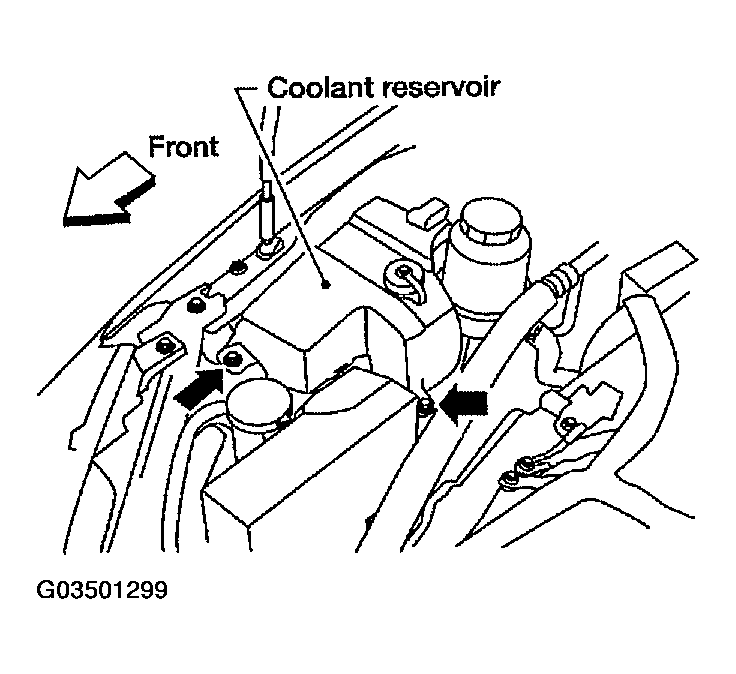

    Fig 1: Removing Coolant Reservoir Fasteners
    G03501299Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove IPDM E/R harness cover.

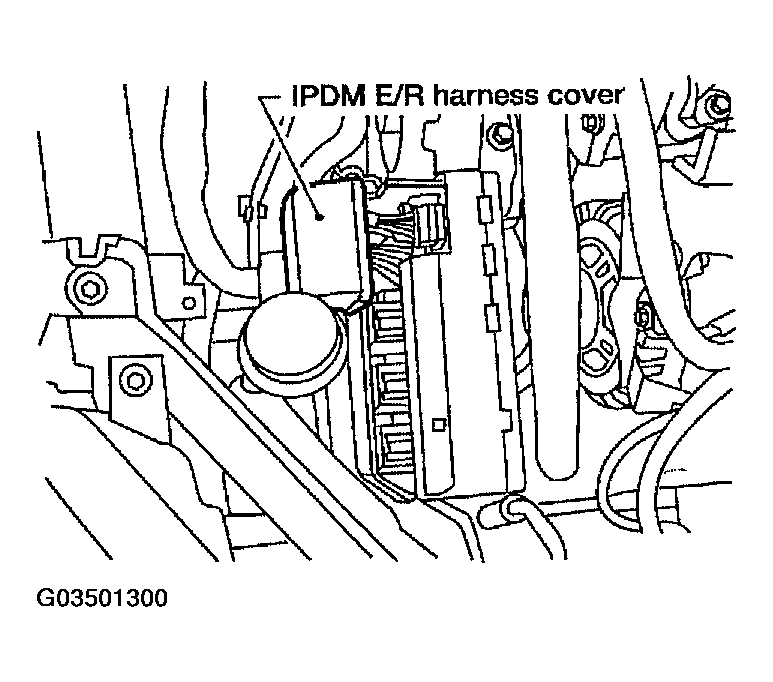

    Fig 2: Removing IPDM E/R Harness Cover
    G03501300Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Release 2 clips and pull IPDM E/R up from case.
  7. Disconnect IPDM E/R connectors and remove the IPDM E/R.

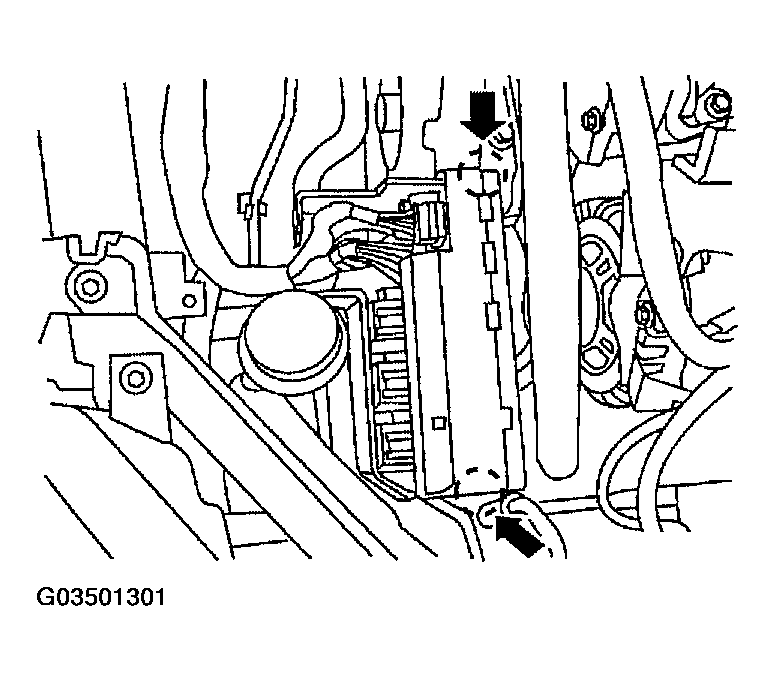

    Fig 3: Releasing Clips And Pulling IPDM E/R Up From Case
    G03501301Courtesy of NISSAN MOTOR CO., U.S.A.
