A/T Self-Diagnostic Results Test Mode

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn on CONSULT-II and touch "ENGINE" for OBD-II detected items or touch "A/T" for TCM self-diagnosis. If A/T is not displayed, check TCM power supply and ground circuit. See TCM POWER & GROUND CIRCUITS in 2001-02 AUTOMATIC TRANSMISSIONS article.
  2. Touch "SELF DIAGNOSIS". Display shows malfunction experienced since the last erasing operation. CONSULT-II performs "Real Time Diagnosis". Also, any malfunction detected while in this mode will be displayed at real time. See Fig 1 and Fig 2 . For data monitor, see Fig 3 -Fig 6 .

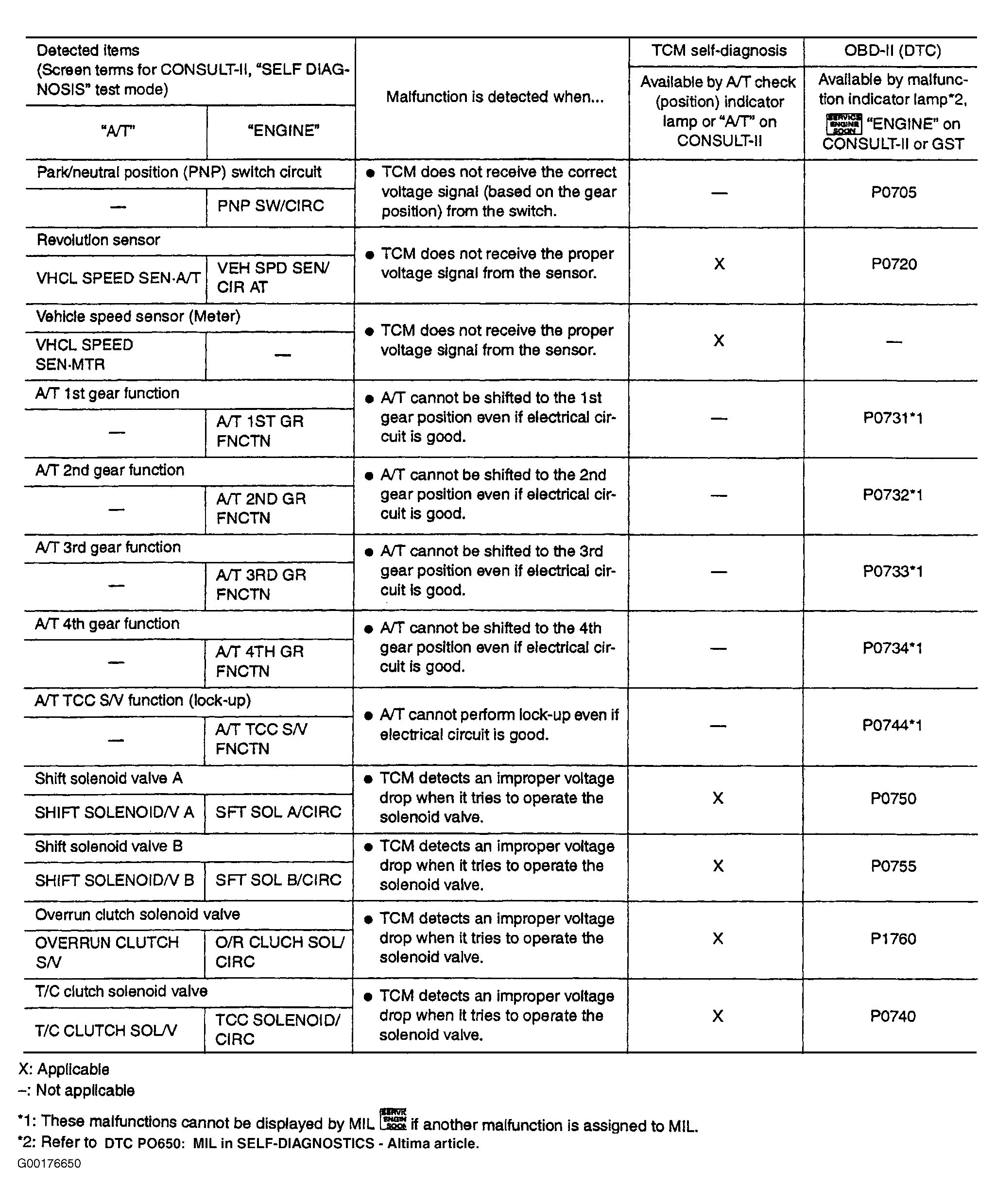

Fig 1: Identifying Self-Diagnostic Result Mode Detected Items (1 Of 2)
G00176650Courtesy of NISSAN MOTOR CO., U.S.A.

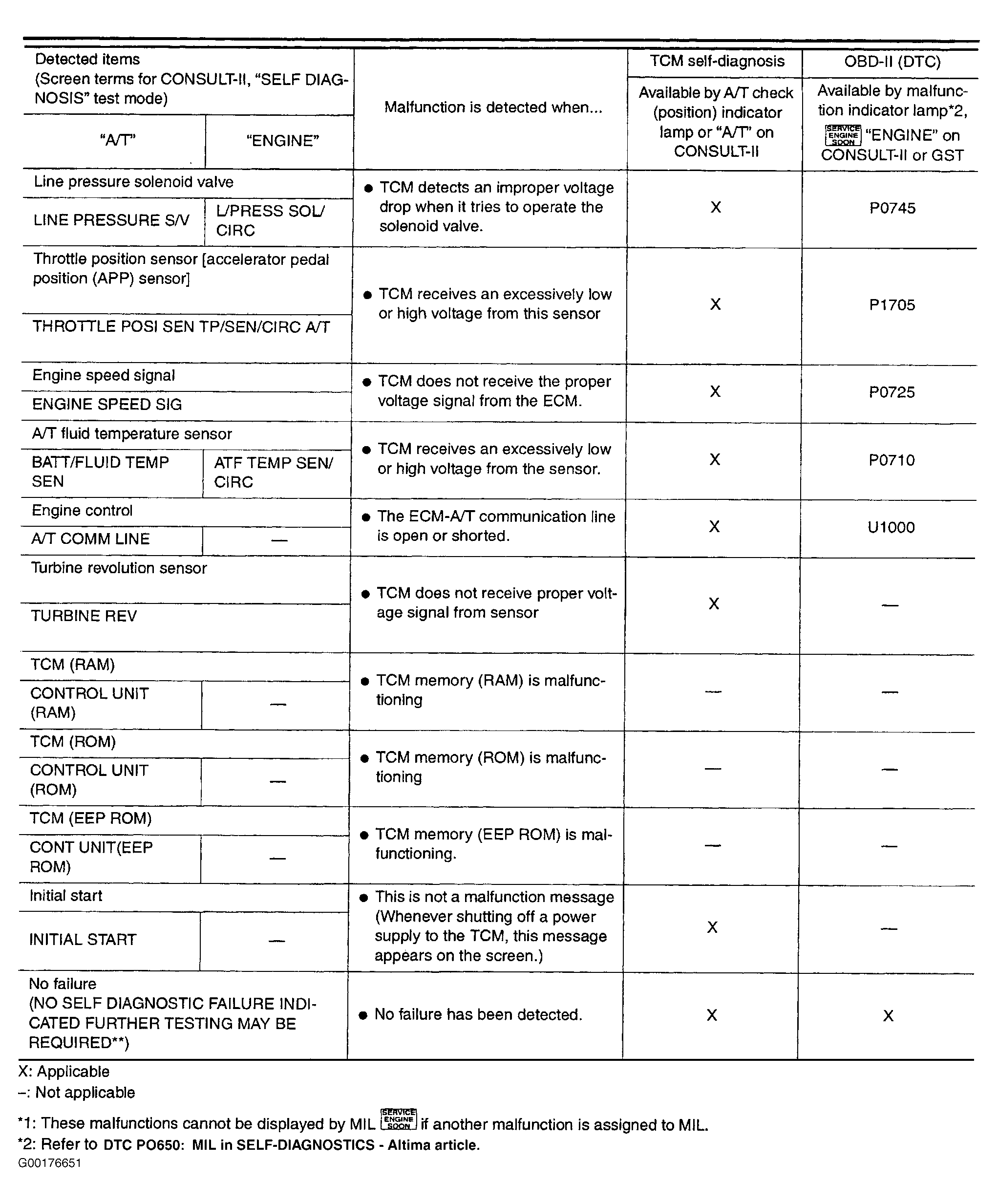

Fig 2: Identifying Self-Diagnostic Result Mode Detected Items (2 Of 2)
G00176651Courtesy of NISSAN MOTOR CO., U.S.A.

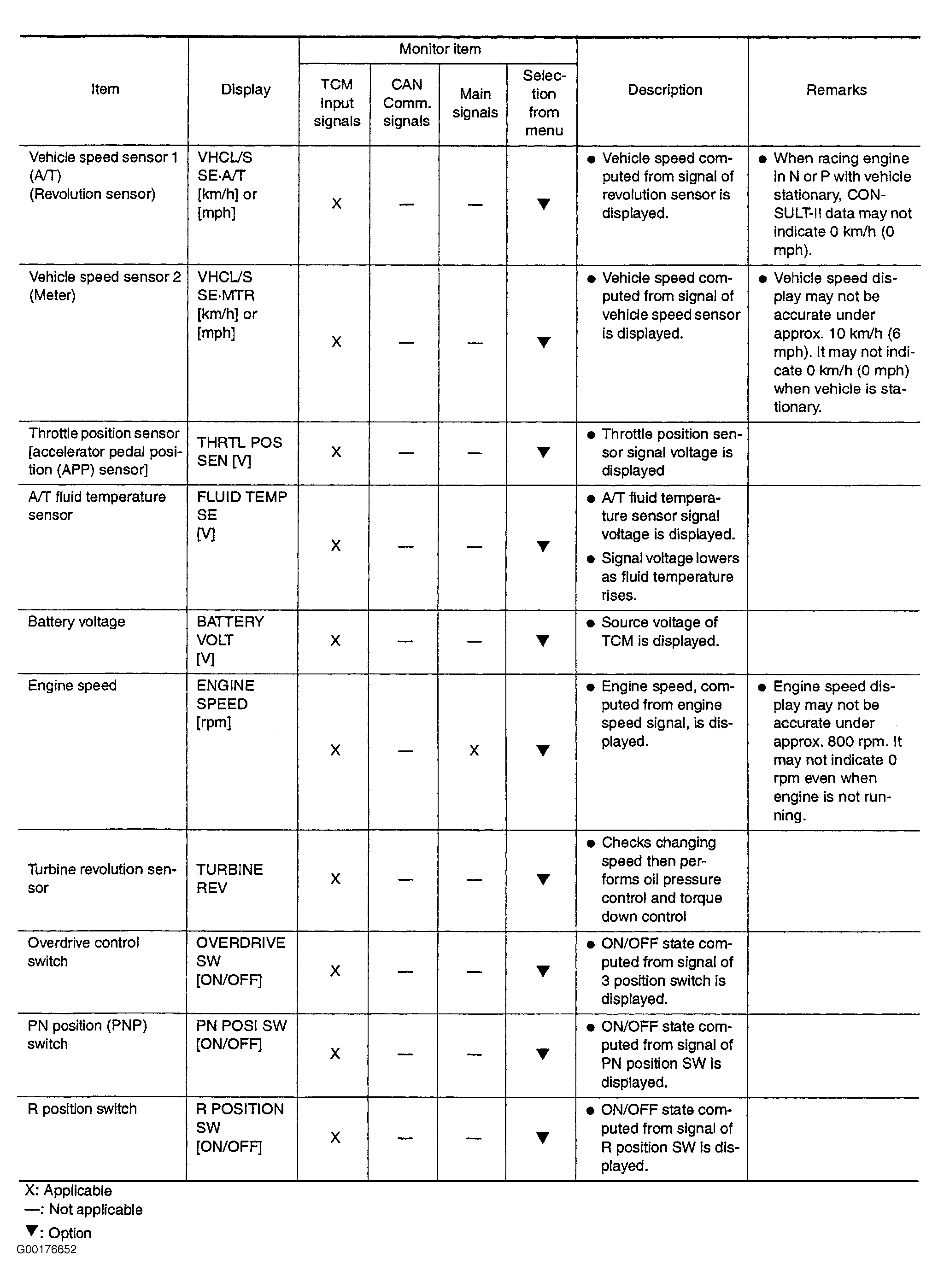

Fig 3: Identifying A/T Data Monitor (1 Of 4)
G00176652Courtesy of NISSAN MOTOR CO., U.S.A.

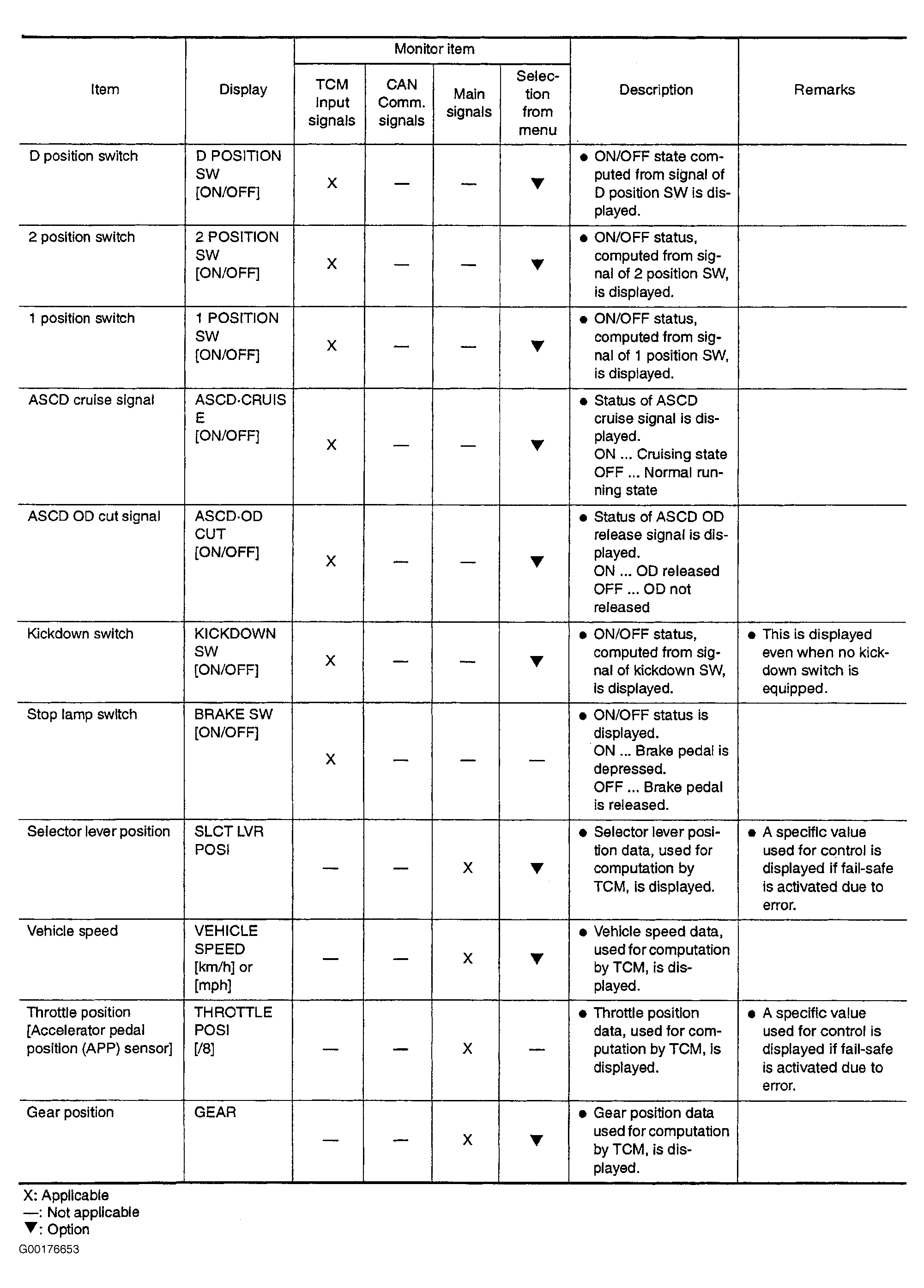

Fig 4: Identifying A/T Data Monitor (2 Of 4)
G00176653Courtesy of NISSAN MOTOR CO., U.S.A.

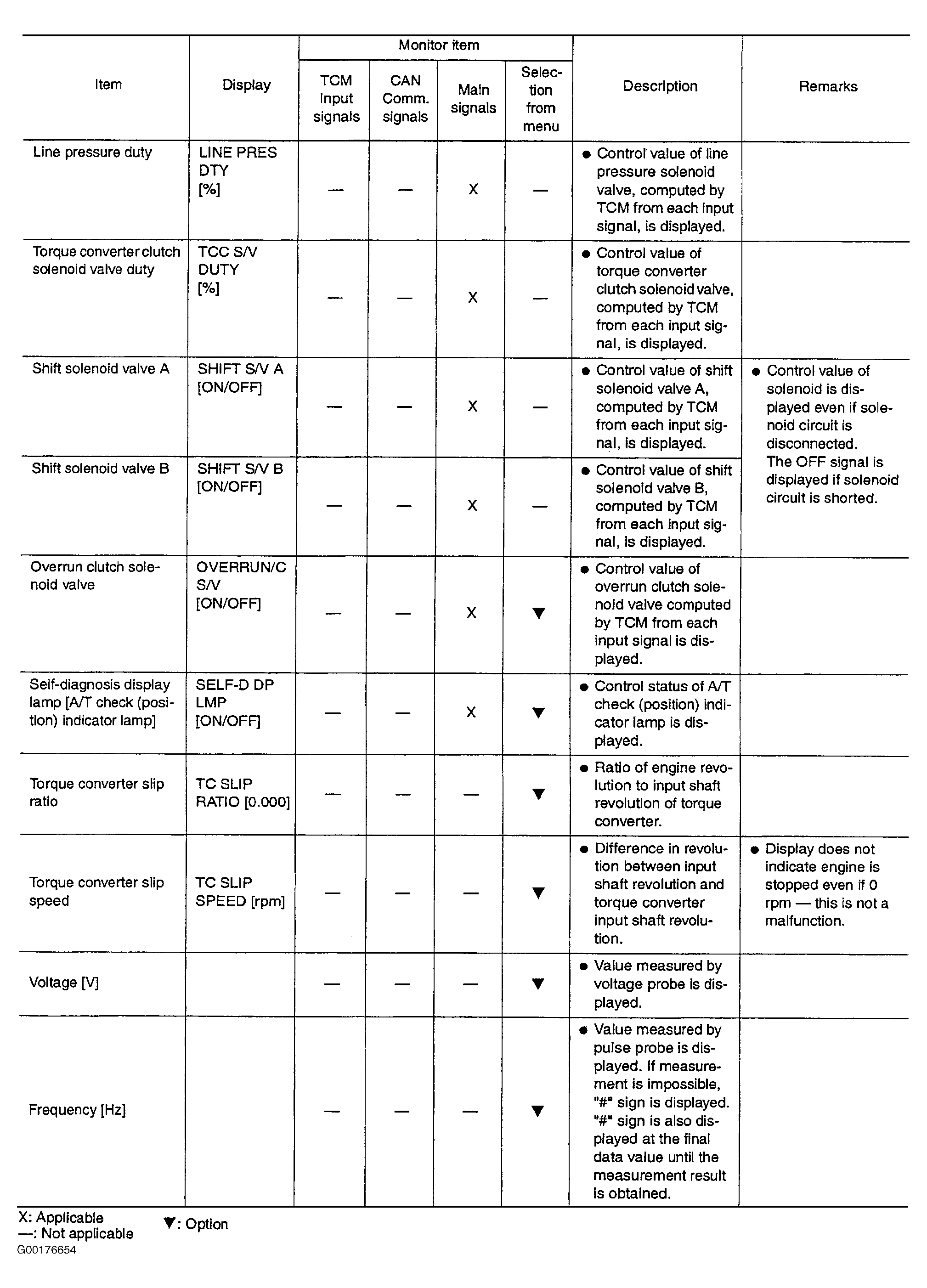

Fig 5: Identifying A/T Data Monitor (3 Of 4)
G00176654Courtesy of NISSAN MOTOR CO., U.S.A.

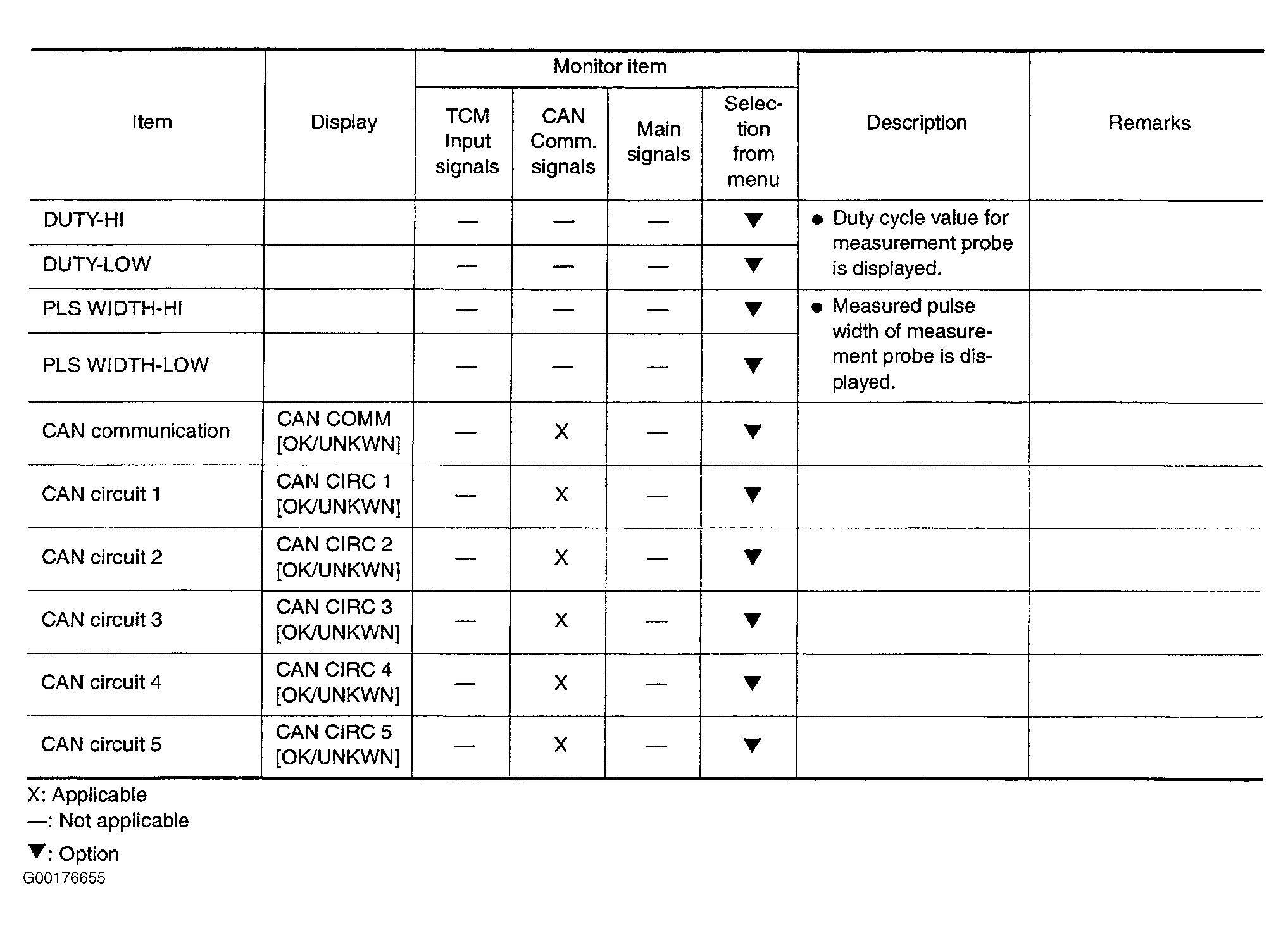

Fig 6: Identifying A/T Data Monitor (4 Of 4)
G00176655Courtesy of NISSAN MOTOR CO., U.S.A.
