Circuit Check Between Combination Meter & BCM (With TCS & A/T)

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS .

NOTE: Some models may not use all of the "SELF-DIAG RESULTS" and "DATA MONITORS" asked for.

For circuit check between combination meter and BCM (with TCS & A/T), see Fig 1 and Fig 2 .

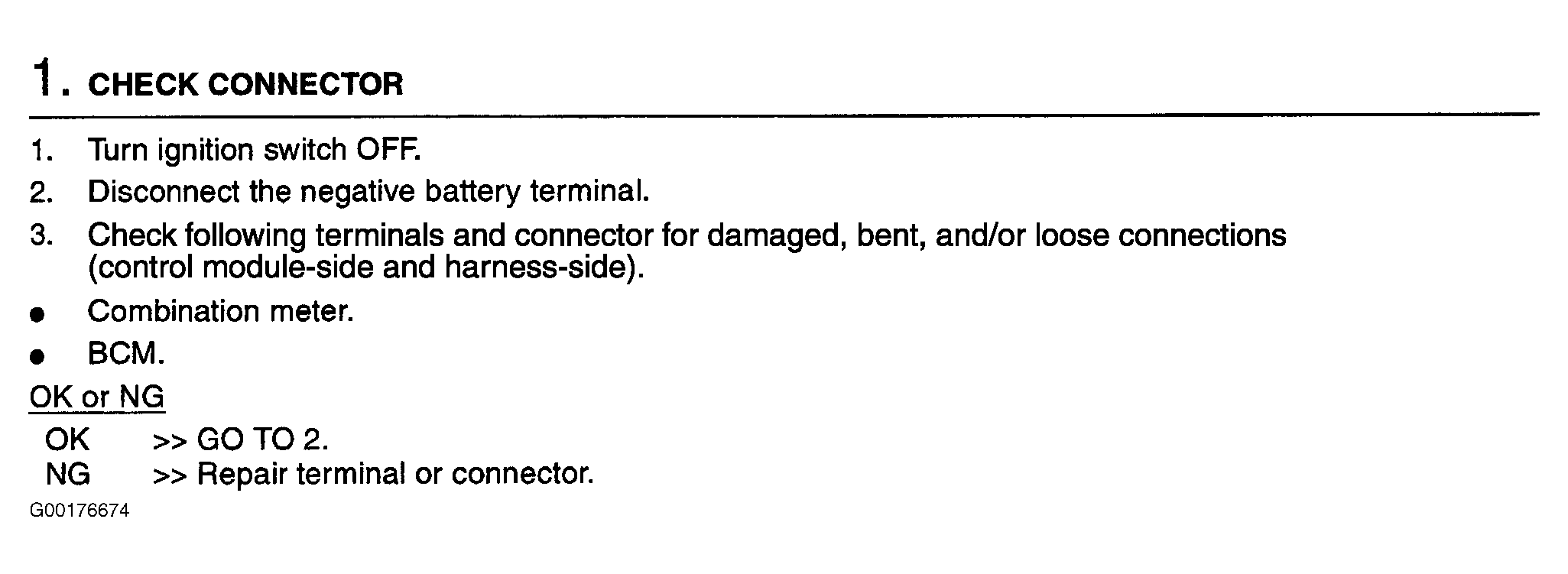

Fig 1: Identifying Circuit Check Between Combination Meter & BCM, Step 1 (With TCS & A/T)

Courtesy of NISSAN MOTOR CO., U.S.A.

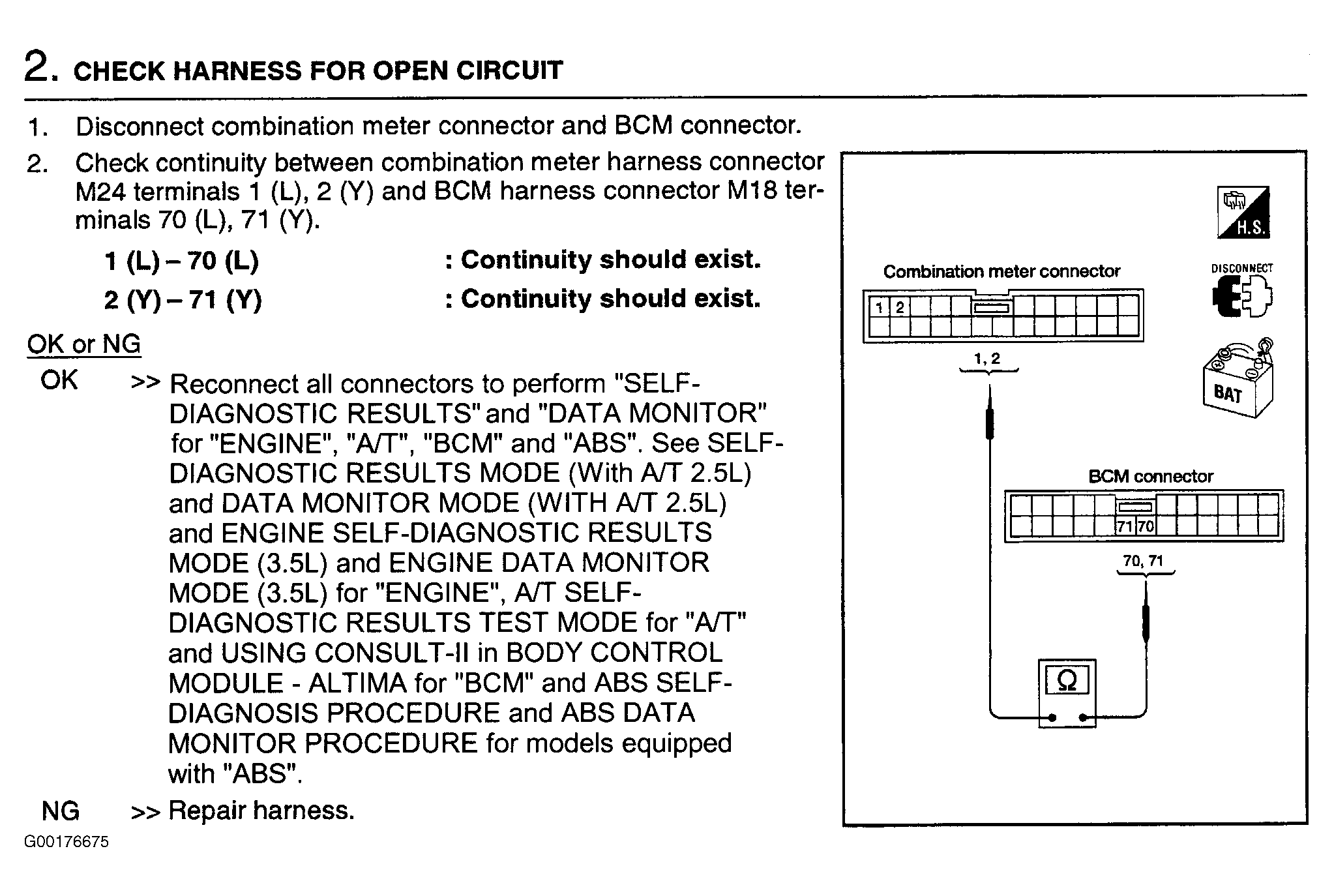

Fig 2: Identifying Circuit Check Between Combination Meter & BCM, Step 2 (With TCS & A/T)

Courtesy of NISSAN MOTOR CO., U.S.A.
