Circuit Check Between TCM & Combination Meter (With TCS & A/T)

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS  .

For circuit check between TCM and combination meter (with TCS & A/T), see Fig 1 -Fig 3 .

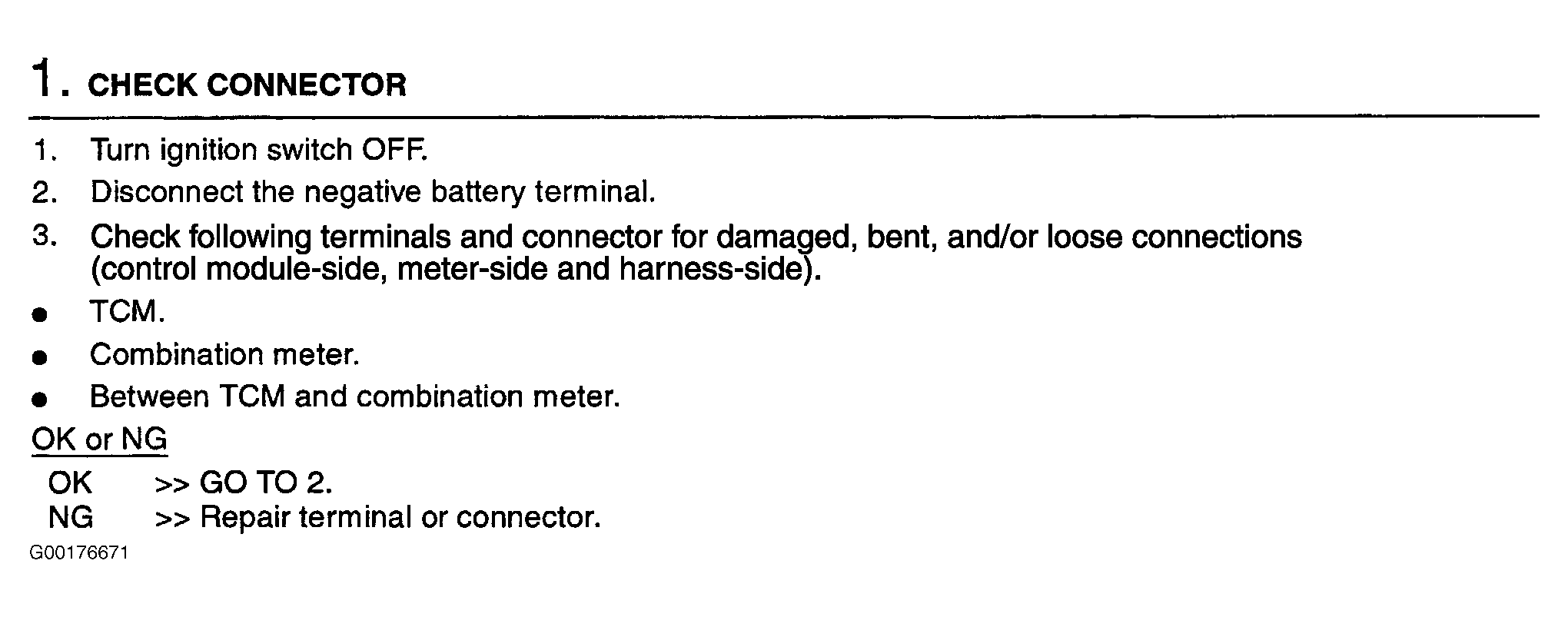

Fig 1: Identifying Circuit Check Between TCM & Combination Meter, Step 1 (With TCS & A/T)
G00176671Courtesy of NISSAN MOTOR CO., U.S.A.

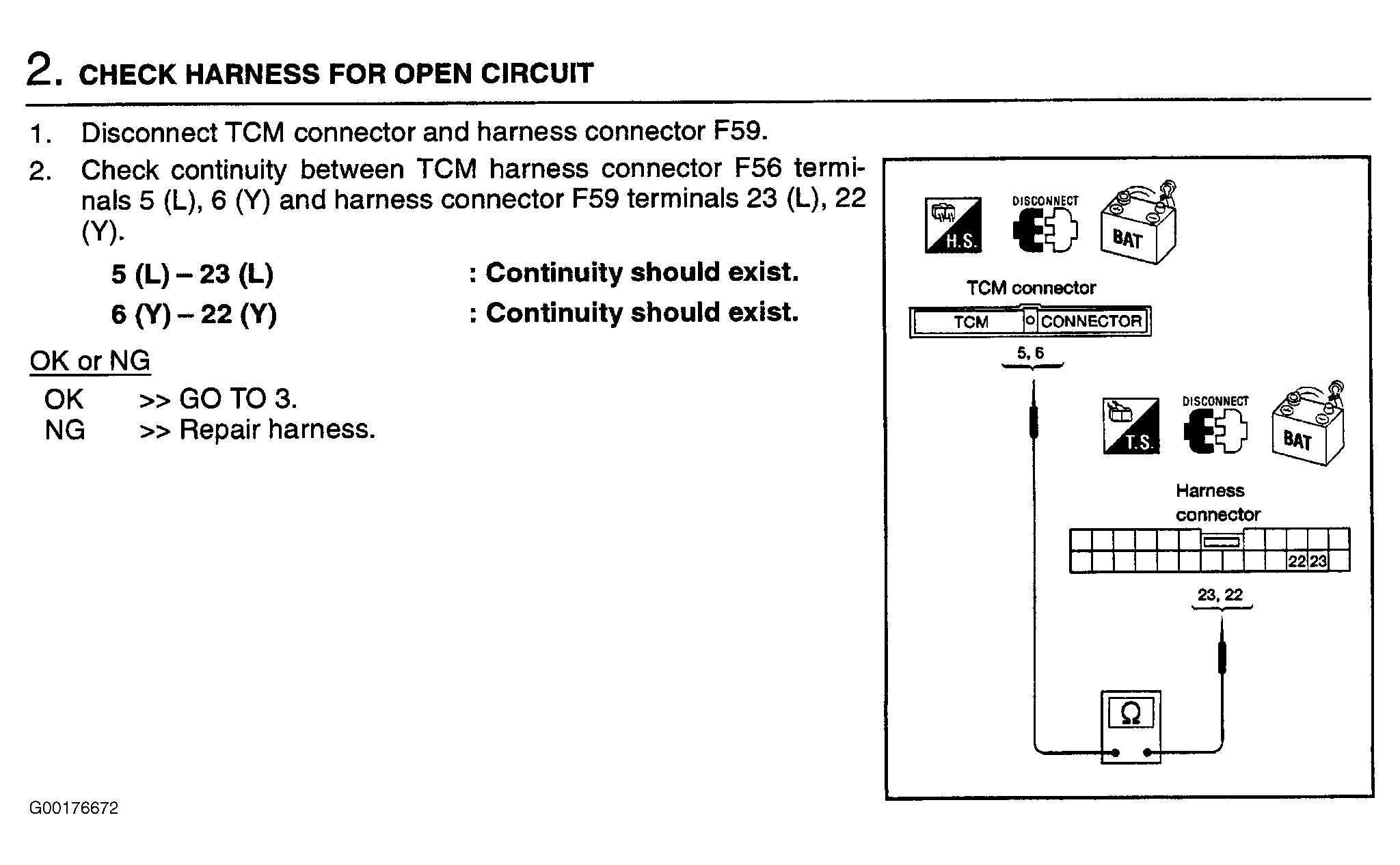

Fig 2: Identifying Circuit Check Between TCM & Combination Meter, Step 2 (With TCS & A/T)
G00176672Courtesy of NISSAN MOTOR CO., U.S.A.

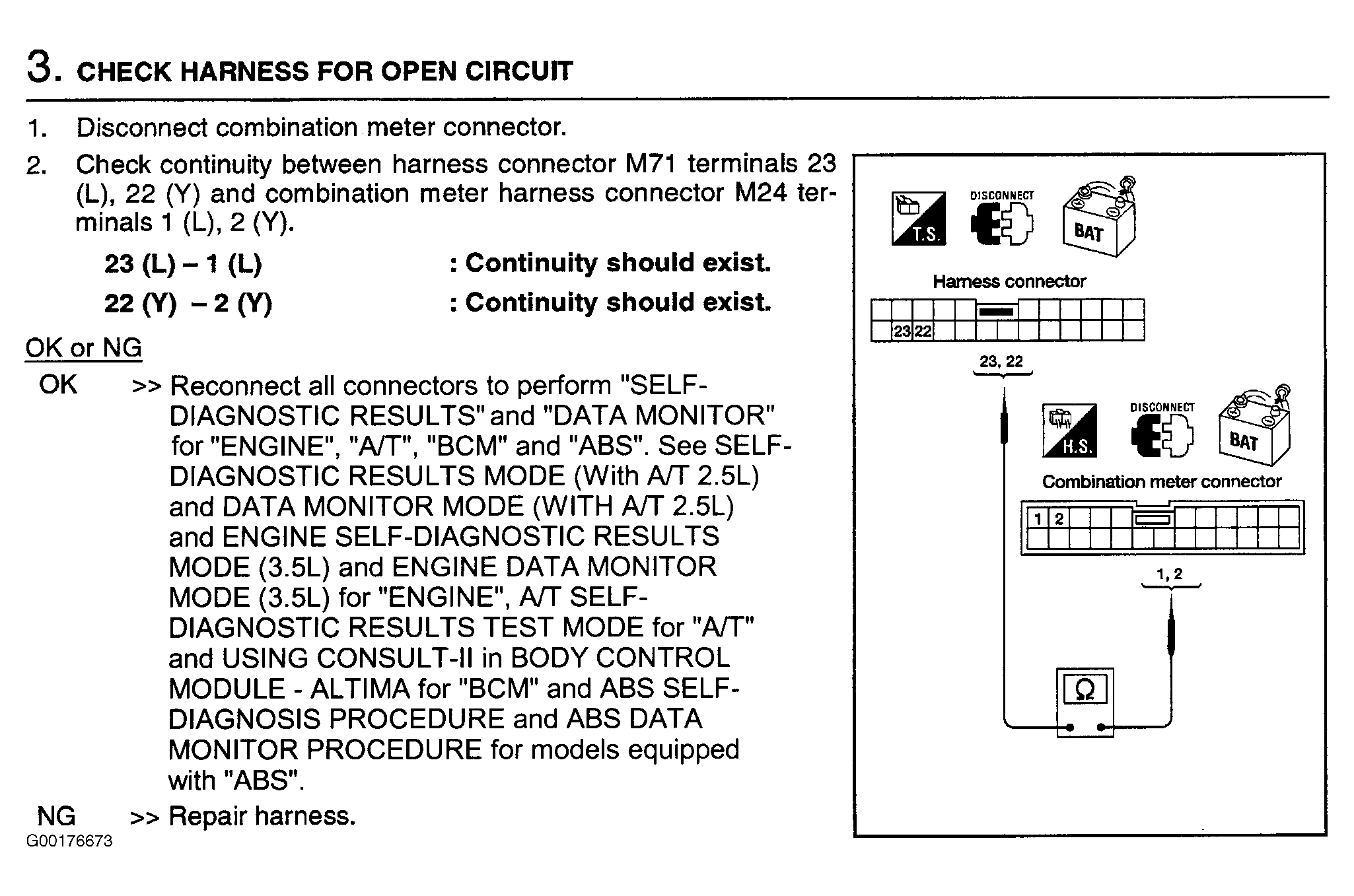

Fig 3: Identifying Circuit Check Between TCM & Combination Meter, Step 3 (With TCS & A/T)
G00176673Courtesy of NISSAN MOTOR CO., U.S.A.
