Combination Meter Self-Diagnosis Mode Functions

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

To interpret Combination Meter Self-Diagnosis Mode functions, refer to the following charts.

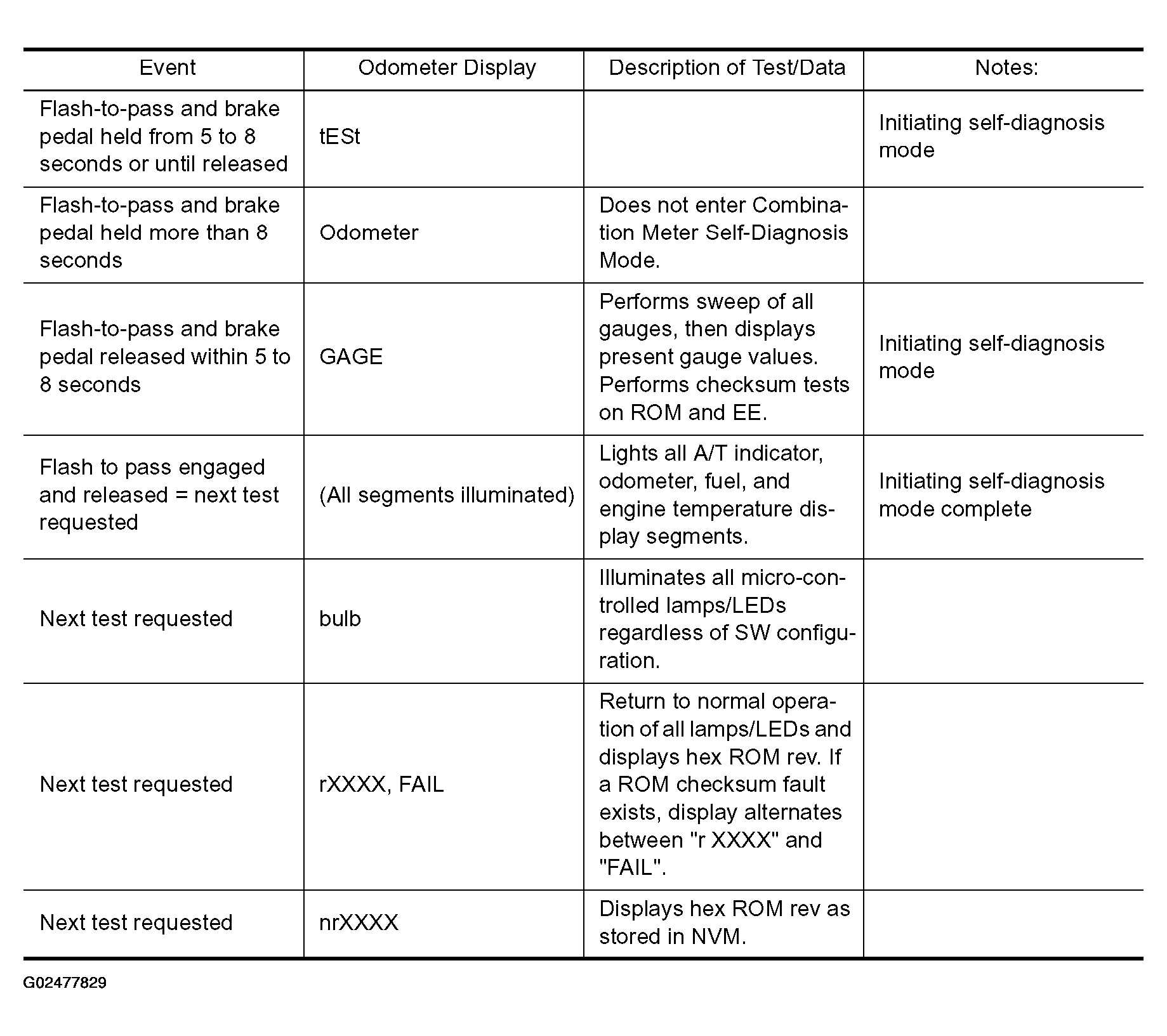

Fig 1: Combination Meter Self-Diagnosis Mode Functions Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

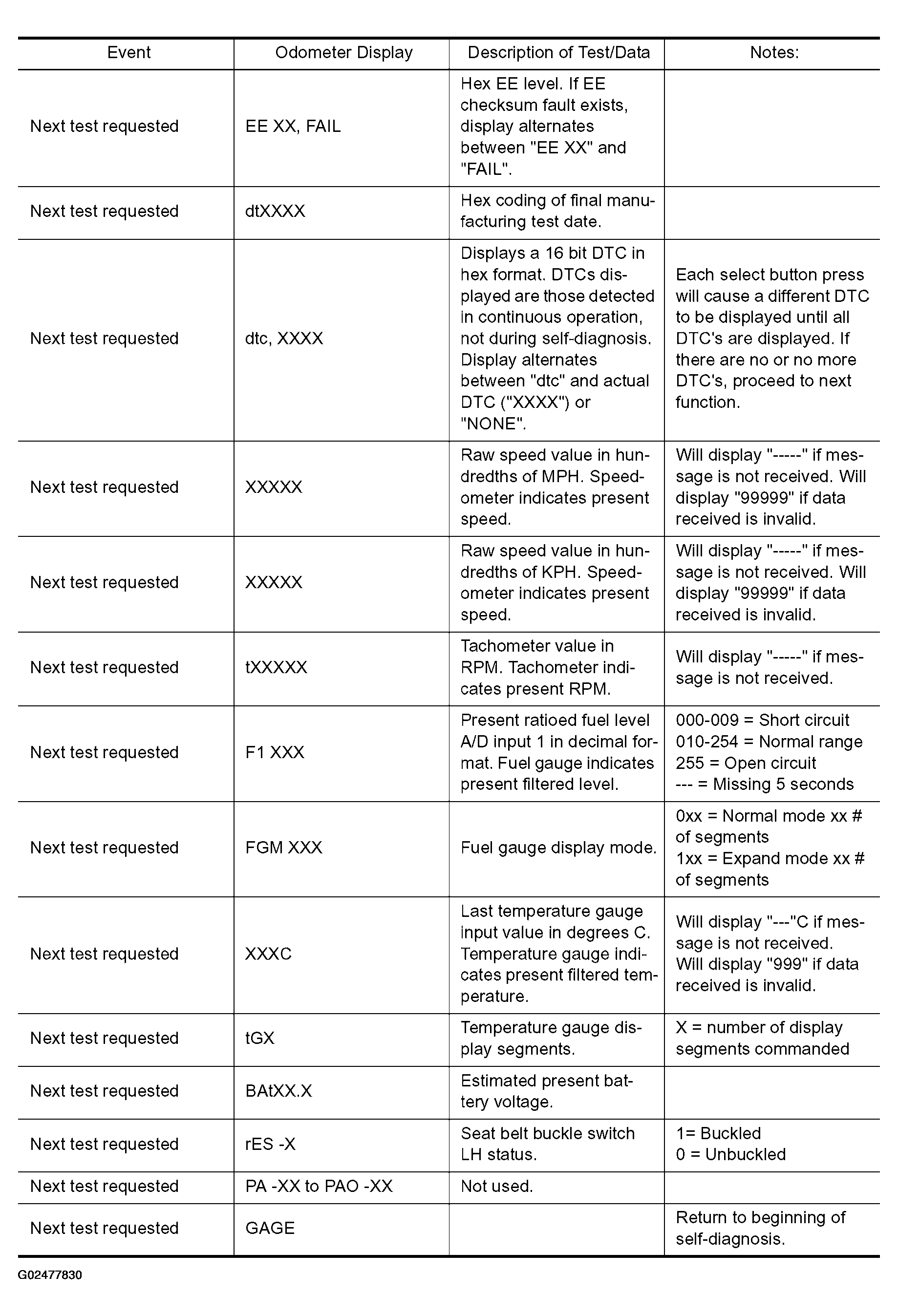

Fig 2: Combination Meter Self-Diagnosis Mode Functions Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
