Work Flow

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

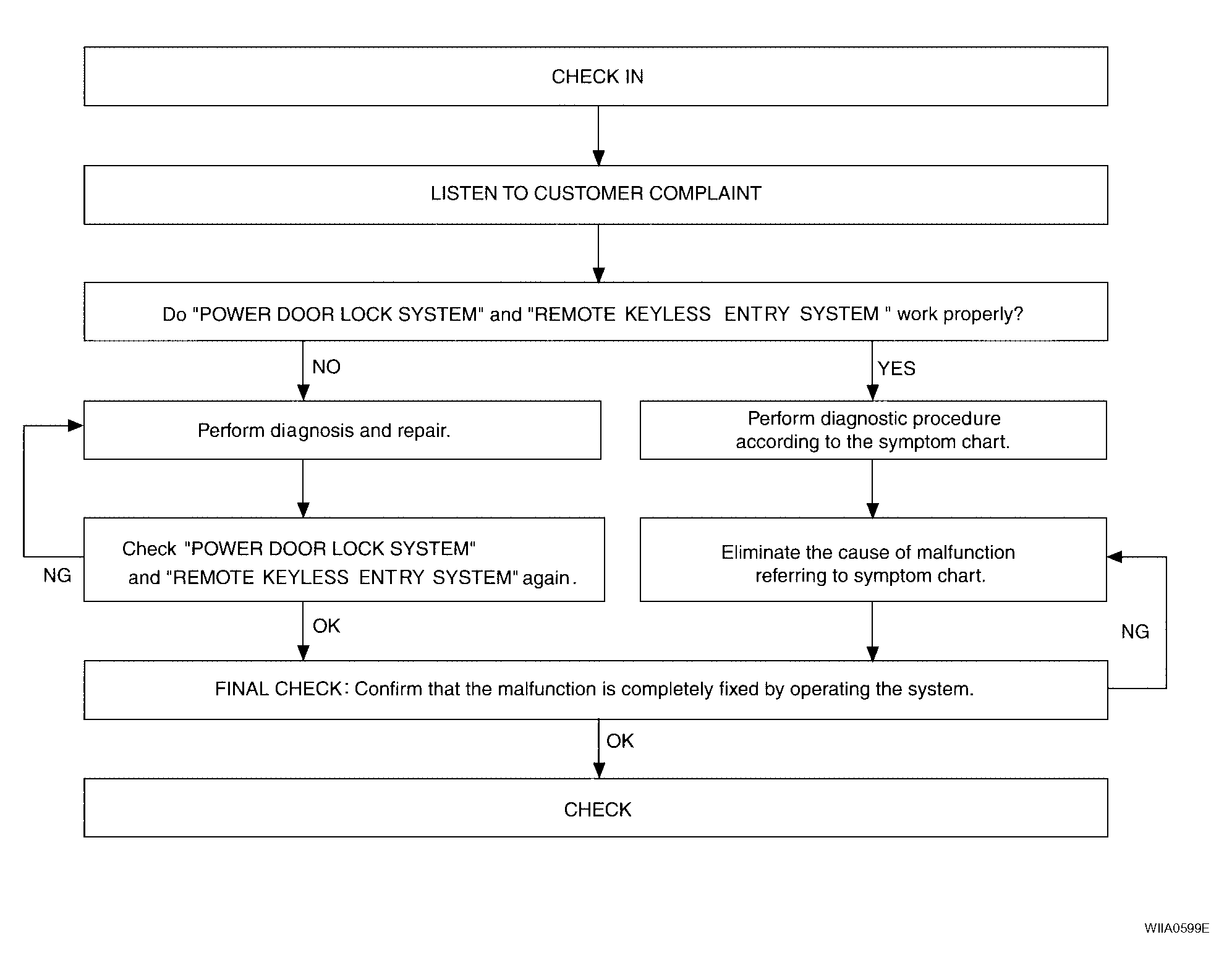

Fig 1: Trouble Diagnosis Work Flow

Courtesy of NISSAN MOTOR CO., U.S.A.

"POWER DOOR LOCK SYSTEM" diagnosis refer to , "POWER DOOR LOCK SYSTEM "
"REMOTE KEYLESS ENTRY SYSTEM" diagnosis refer to , "REMOTE KEYLESS ENTRY SYSTEM "
