Example of Filling in Check Sheet When Initial Conditions Are Not Reproduced

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

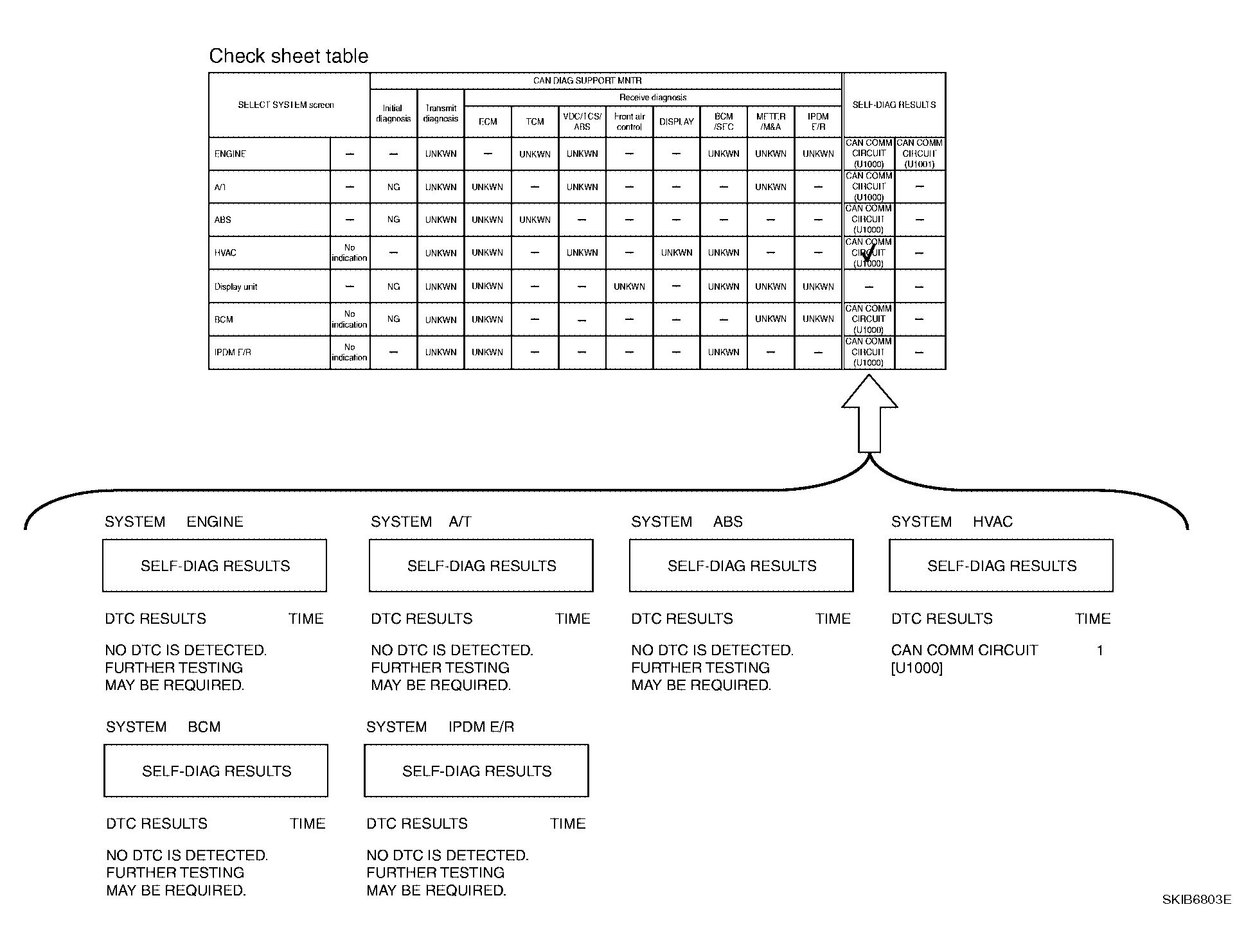

Fig 1: Putting Check Mark To Applicable Column Of Self-Diagnostic Results Of Check Sheet Table

Courtesy of NISSAN MOTOR CO., U.S.A.

See "SELF-DIAG RESULTS" of all units attached to the check sheet. If "CAN COMM CIRCUIT [U1000]" or "CAN COMM CIRCUIT [U1001]" is displayed, put a check mark to the applicable column of self-diagnostic results of the check sheet table.
NOTE:
- For "ENGINE""NO DTC IS DETECTED" is displayed. Do not put a check mark to it.
- For "A/T""NO DTC IS DETECTED" is displayed. Do not put a check mark to it.
- For "ABS""NO DTC IS DETECTED" is displayed. Do not put a check mark to it.
- For "HVAC""CAN COMM CIRCUIT [U1000]" is displayed. Put a check mark to it.
- For "BCM""NO DTC IS DETECTED" is displayed. Do not put a check mark to it.
- For "IPDM E/R""NO DTC IS DETECTED" is displayed. Do not put a check mark to it.

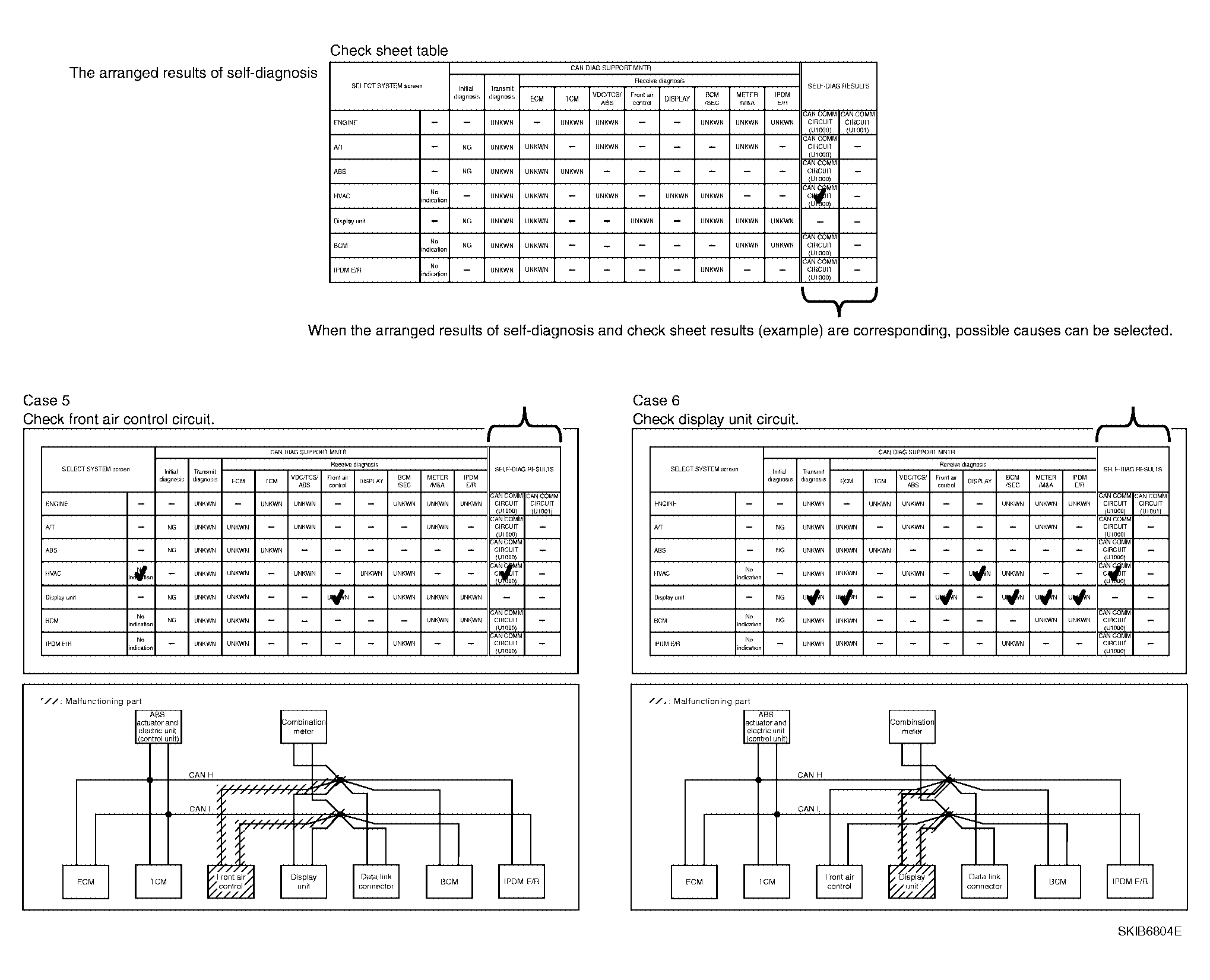

Fig 2: Check Mark Sheet Table
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: There is a case that some of "CAN DIAG SUPPORT MNTR" and "SELF-DIAG RESULTS" are not needed for diagnosis. In the case"UNKWN" and "CAN COMM CIRCUIT(U1000)" in "Check sheet results (example)" change to "-". Then, ignore check marks on the Check sheet table.
For the selected possible causes, it is expected that malfunctions have been found in the past.
